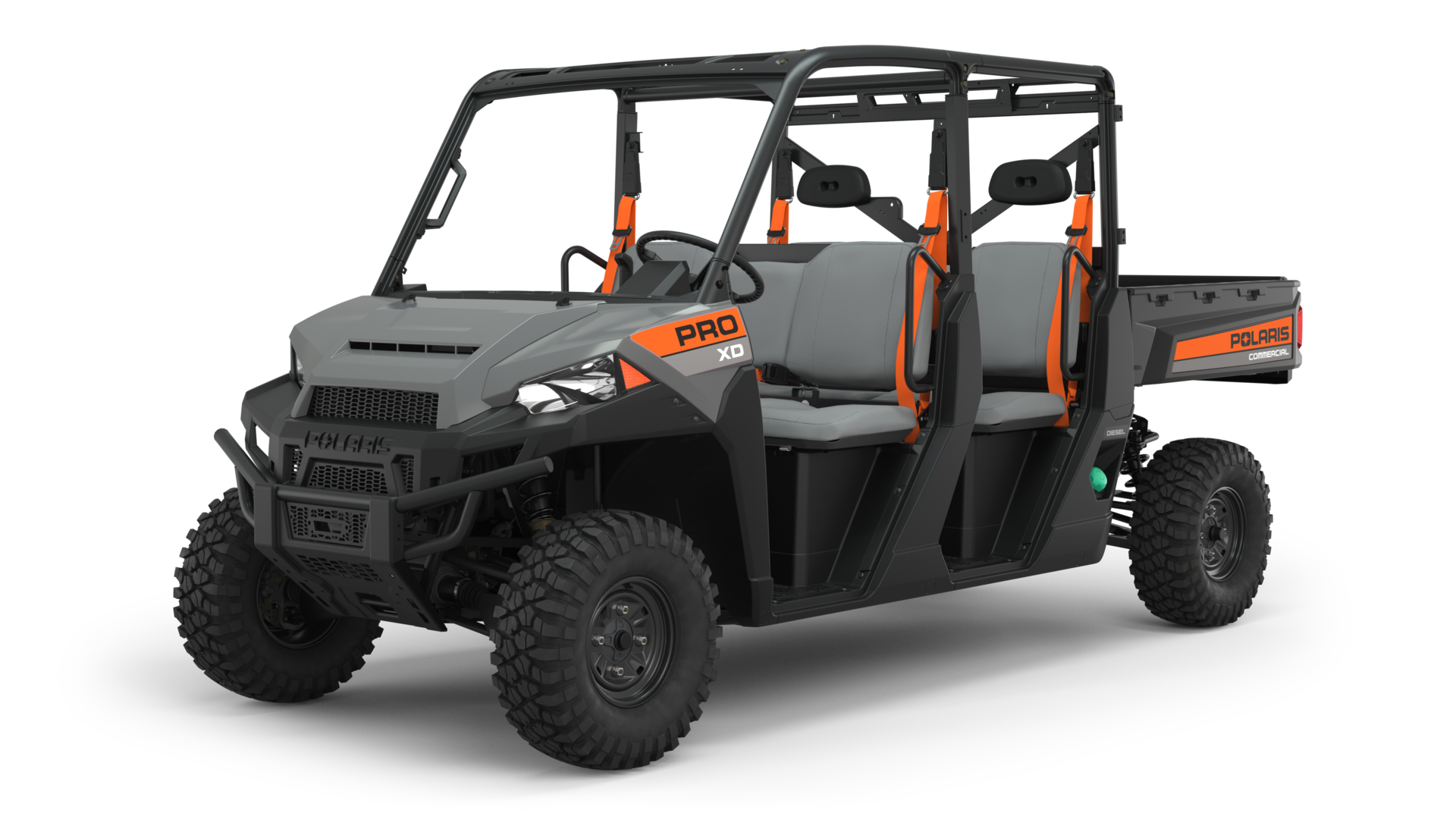

Pro XD Full-Size Diesel Crew
- Engine Type
- 3-Cylinder Kubota® Diesel
- Box Capacity
- 1,250 lb (567 kg)
- Hitch Towing Rating
- 2,500 lb (1,134 kg)
With a Polaris ProStar motor that is speed-limited for safety, puncture-resistant seats, heavy-duty, jobsite-ready tires, and cab that keeps sealed when you need it to, the Pro XD Full-Size Gas is a workday asset to tow, haul or just transport your crew from one spot to the next.
- 898cc motor
- 4-person cab
- Kevlar®-backed seats
Product Disclaimer: Kubota® is a registered trademark of Kubota Corporation. Duro® is a registered trademark of HWA Fong Rubber (USA) Inc. Donaldson® is a registered trademark of Donaldson Company, Inc. Kevlar® is a registered trademark of E.I. du Pont de Nemours & Company.
Specifications
Units for specifications
Engine & Drivetrain
| Air Intake | |
|---|---|
| Cooling | Liquid |
| Cylinders Displacement | 898 cc |
| Drive System Type | On-Demand 4x4 |
| Engine Braking System (EBS) | Not Equipped |
| Engine Type | 3-Cylinder Kubota® Diesel |
| Fuel System/Battery | Mechanical Injection |
| Top Speed | 26 mph (41 km/h) *Adjustable with accessories |
| Horsepower | 24.5 HP |
| Transmission/Final Drive | Automatic PVT H/L/N/R/P; Shaft |
Dimensions
| Bed Box Dimensions (L x W x H) | 43.5 x 54 x 11.5 in (110.5 x 137 x 29 cm) |
|---|---|
| Box Capacity | 1,250 lb (567 kg) |
| Estimated Dry Weight | 1,884 lb (856 kg) |
| Fuel Capacity | 11.5 gal (43.5 L) |
| Ground Clearance | 11 in (27.9 cm) |
| GVWR | |
| Hitch Towing Rating | 2,500 lb (1,134 kg) |
| Overall Vehicle Size (L x W x H) | 157 x 62.5 x 75 in (399 x 159 x 191 cm) |
| Payload Capacity | 2,075 lb (941 kg) |
| Turning Radius | 154 in (391 cm) |
| Wheelbase | 117 in (297.2 cm) |
Brakes
| Front/Rear Brakes | 4-Wheel Hydraulic Disc with Dual-Bore Front Calipers |
|---|---|
| Parking Brake | Park In-Transmission + Separate Mechanical Parking Brake Standard |
Additional Specifications
| Cargo System | Lock & Ride® |
|---|---|
| Maintenance Interval | 200 Hours (50 Hour initial) |
| Hitch Type | Standard 2 in (5 cm) Receiver |
| Instrumentation | All-Digital Gauge, Speedometer, Odometer, Tachomete, 2 Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, Engine Temperature, High-Temp Light, Clock, Clutch Belt Slip Warning, Glow Plug Indicator, Low Oil Pressure Indicator, Seat Belt Indicator, Parking Brake Engaged Alarm |
| Lighting | 55W low/60W high, LED Tail |
| Other Standard Features | Horn, Backup Alarm |
| Seat Covering | Kevlar®-Backed Vinyl (Grey) |
| Person Capacity | 4 |
| Tilt Steering | Standard |
Tires / Wheels
| Electronic Power Steering | Standard |
|---|---|
| Hubs | Front: Steel; Rear: Ductile Iron |
| Front Tires | 26 x 10-12 Duro® DI-2042 Power Grip (M/T) |
| Rear Tires | 26 x 10-12 Duro® DI-2042 Power Grip (M/T) |
| Wheels | 12 x 6 HD Steel - Gloss Black |
| Front Suspension | 9 in (22.9 cm) |
| Rear Suspension | 9 in (22.9 cm) |
