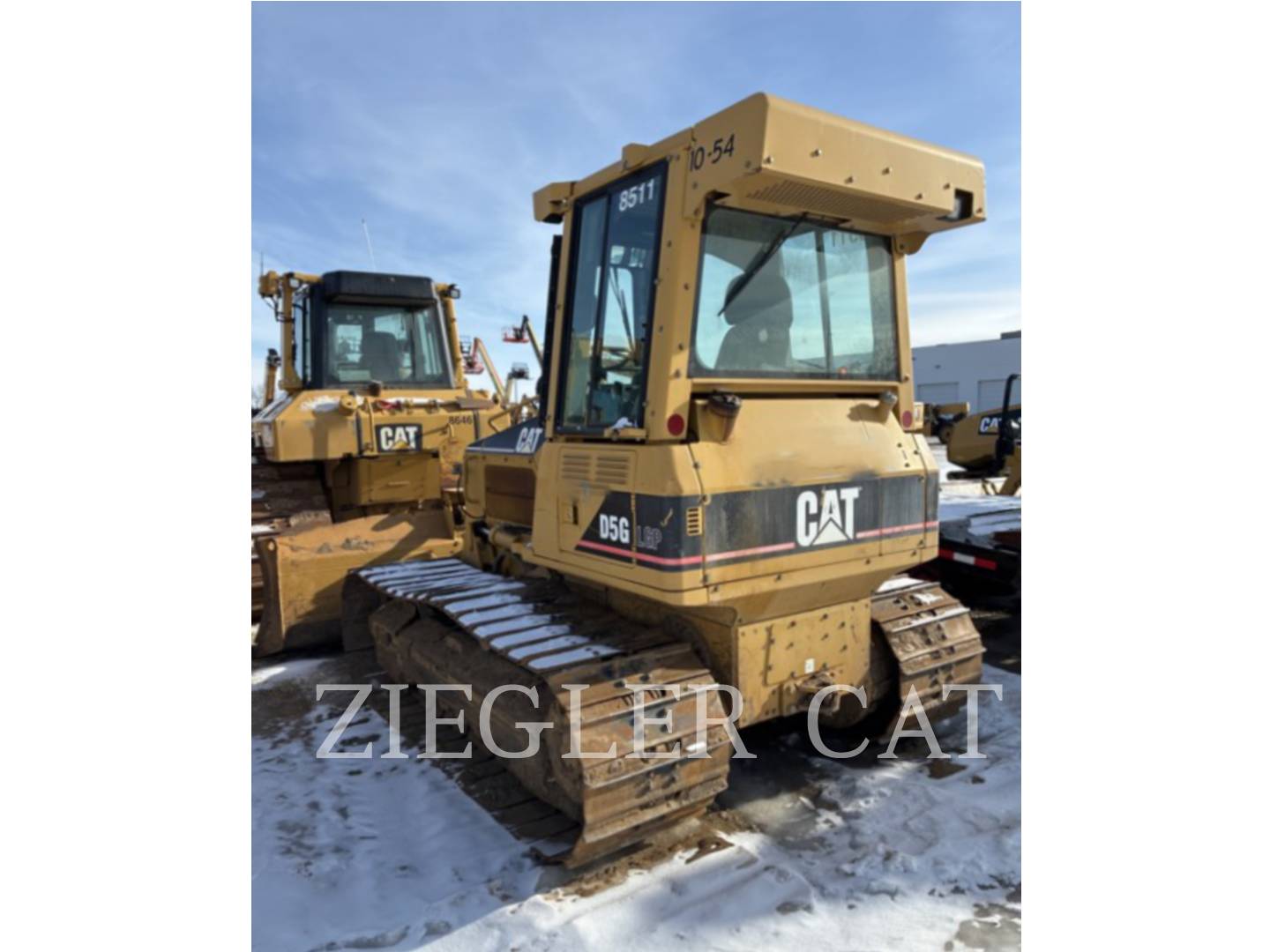

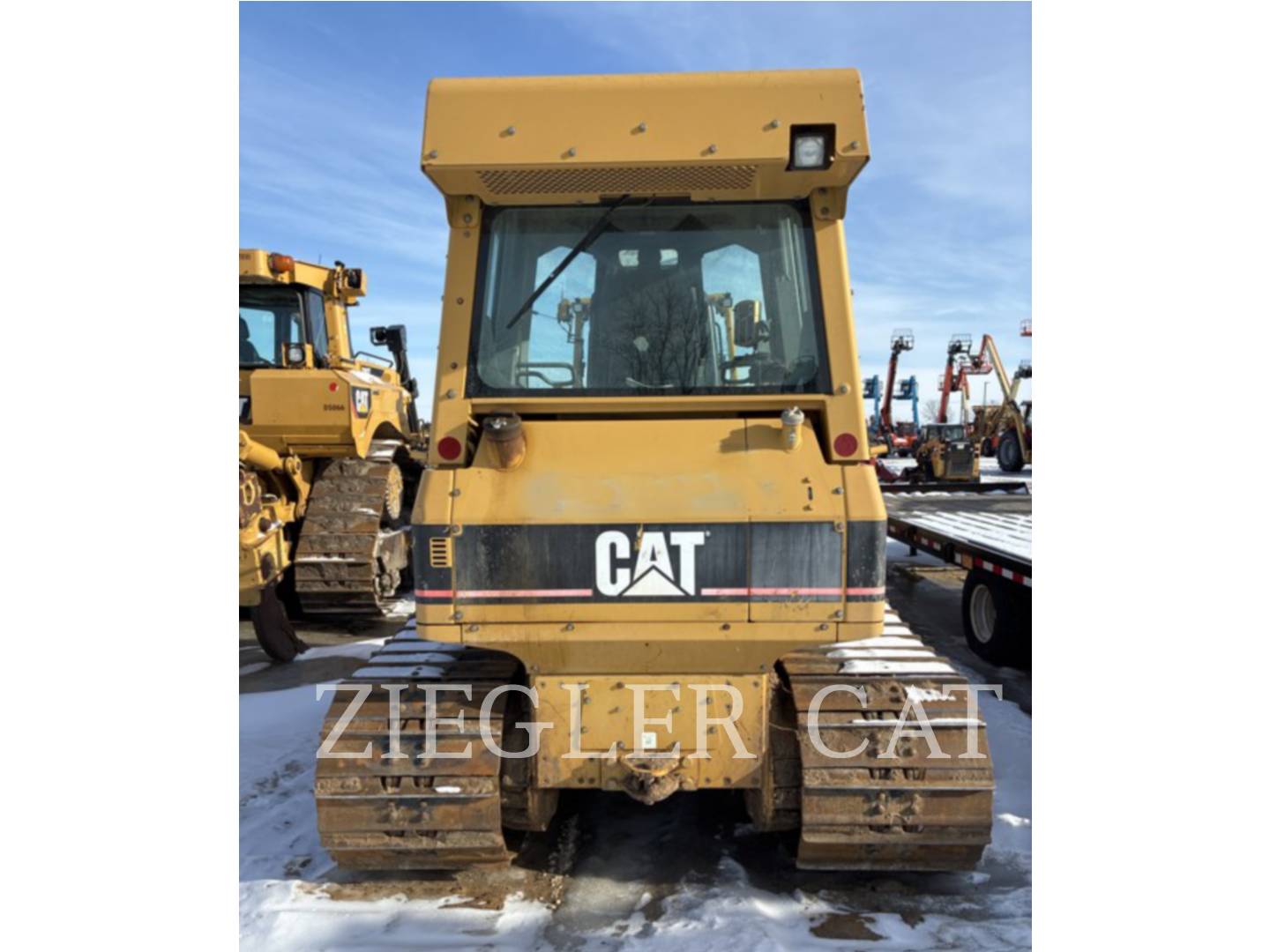

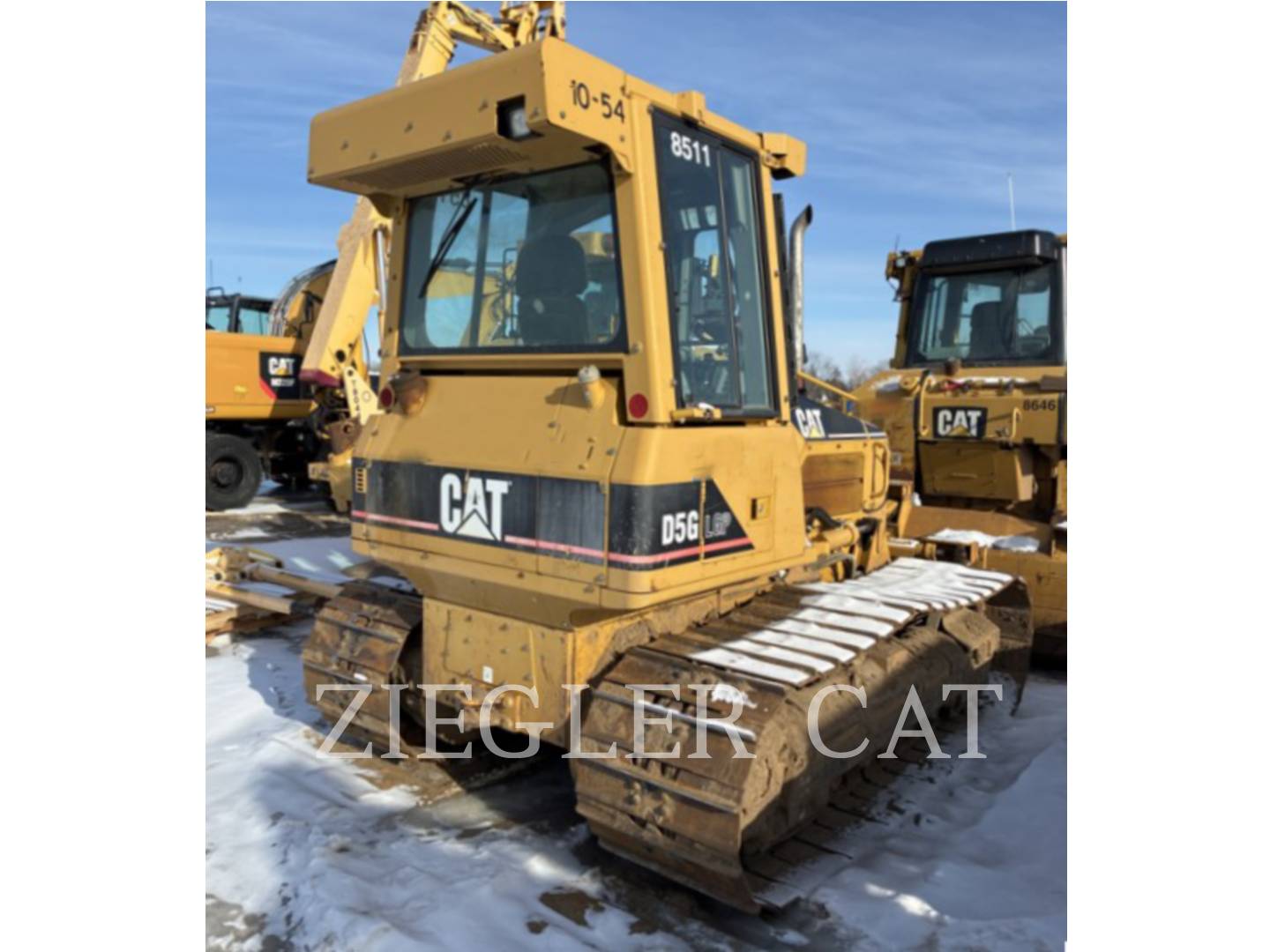

2006 CAT D5G 4,555 engine hrs
Condition
| Machine Starts and is Operable | Yes | |
|---|---|---|
| Visible Oil Leaks | No | |
| Body | ||
| Frame | ||
| General |
| Cleaning Required | No | |
|---|---|---|
| Notes - GENERAL APPEARANCE | THE MACHINE IS OVERALL STRAIGHT | |
| Battery Box | ||
| Belly Pans | MINOR BELLY PAN DENT. | |
| Cab or Canopy | ||
| Decals | ||
| Draw Bar | ||
| Engine Enclosures | ||
| Fuel Tank | ||
| Grab Irons | ||
| Hood | ||
| Main Frame Welds | ||
| Paint | LOOKS GOOD OVERALL. | |
| Pre-Cleaner Bowl | ||
| Radiator Grill | ||
| Sheet Metal |
| Parking Brake Functioning | Yes | |
|---|---|---|
| ROPS Certification Plate | Yes | |
| Safety Decals In Place | Yes | |
| Safety Decals Legible | Yes | |
| Back Up Alarm | ||
| Horn | ||
| ROPS | ||
| Seat Belt / Date | FUNCTIONAL |
| Current O&MM | Yes | |
|---|---|---|
| Air Conditioner | COOLING. | |
| Armrests | ||
| Cab Filter / Heat Vent Louvres | ||
| Dash Console | ||
| Door Latches / Hinges / Seals | ||
| Floor Boards / Mats | ||
| Gauges | ||
| Headliner | FALLING DOWN WITH THE FORWARD SECTION TORN. | |
| Heater / Defroster | ||

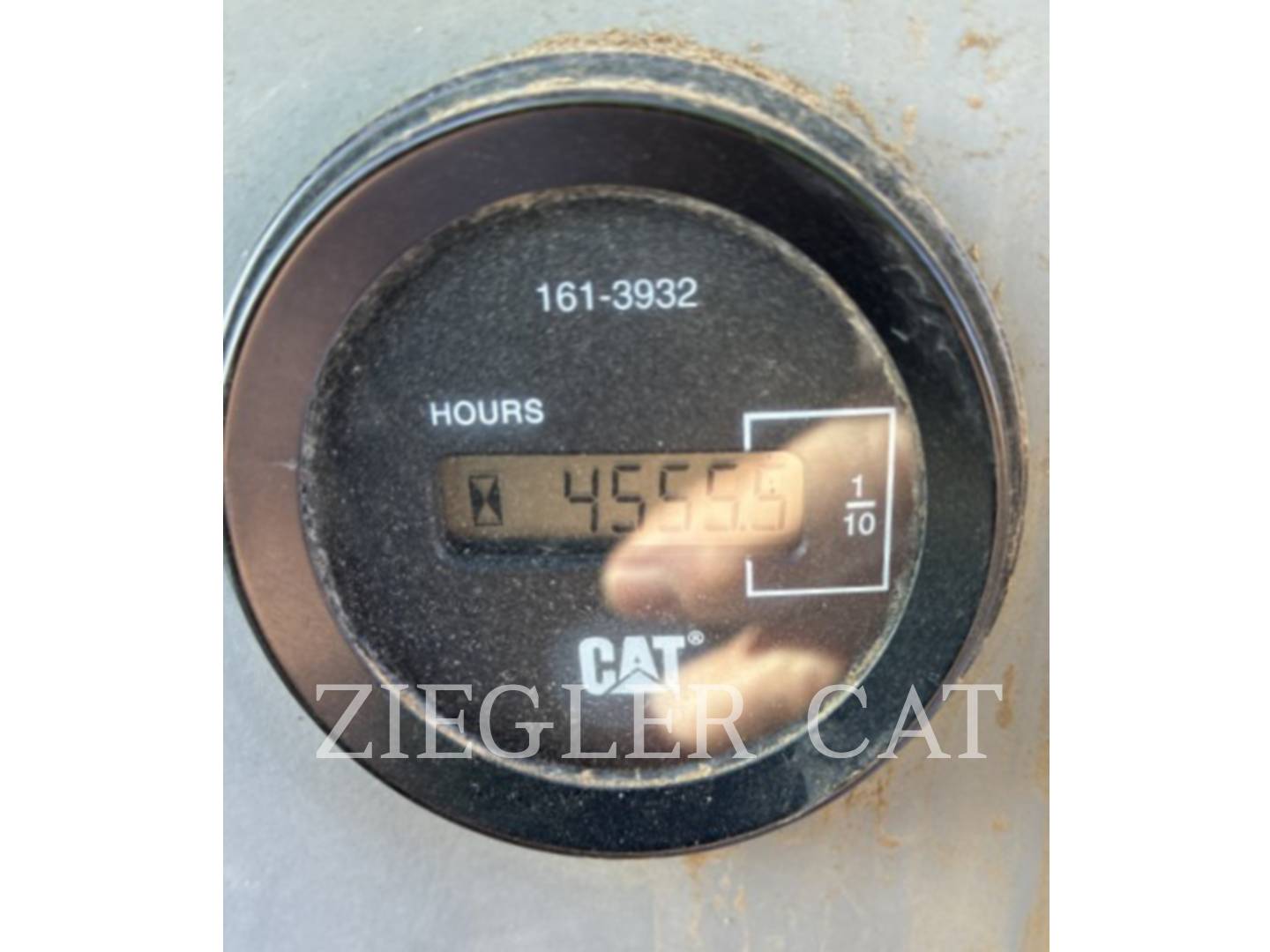

| Hour Meter - GAUGES, OPERATION STATION, CONSOLE | ACCURATE | |
| Hydraulic Controls | ||
| Interior Lights | ||
| Interior Plastic / Fabric | ||
| Monitoring Display | ||
| Radio | STANDARD. | |
| Seat Cushions / Suspension / Type | ONE BURN HOLE. | |
| Switches | ||
| Transmission Controls | ||
| Windows | ||
| Windshield Wipers |
| Blow By | Yes | MINOR SO NORMAL. |
|---|---|---|

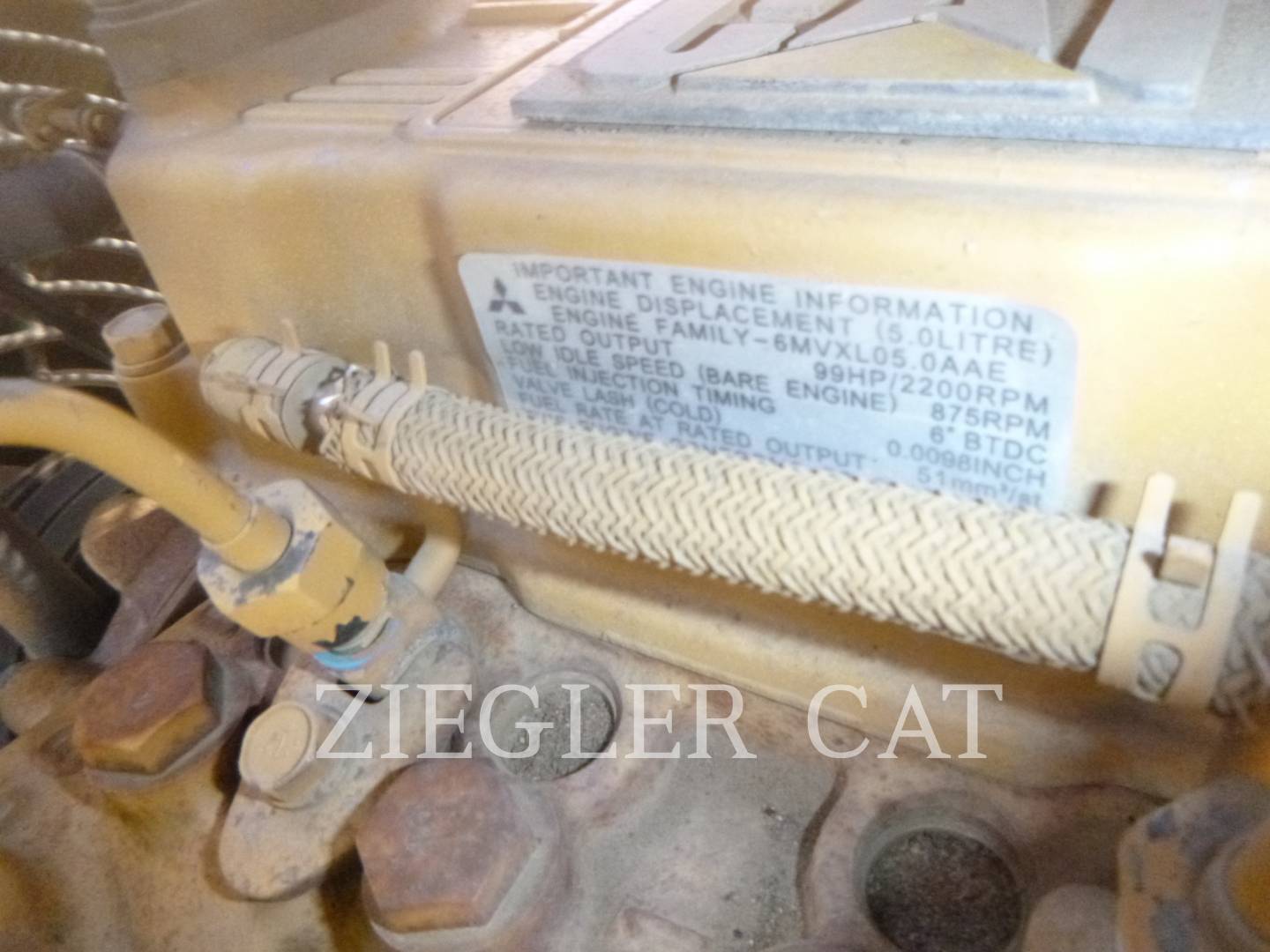

| Emissions Decal Legible | Yes | TIER II |
| Fuel Leaks | No | |
| Has Engine been rebuilt? | No | |
| Knocking | No | |
| Oil Leaks | No | |
| Service Needed | No | THE OIL WAS CHANGED AND SAMPLED AT 4379 HOURS WITH SAMPLE RETURNING NORMAL. |
| Water in Oil | No | |

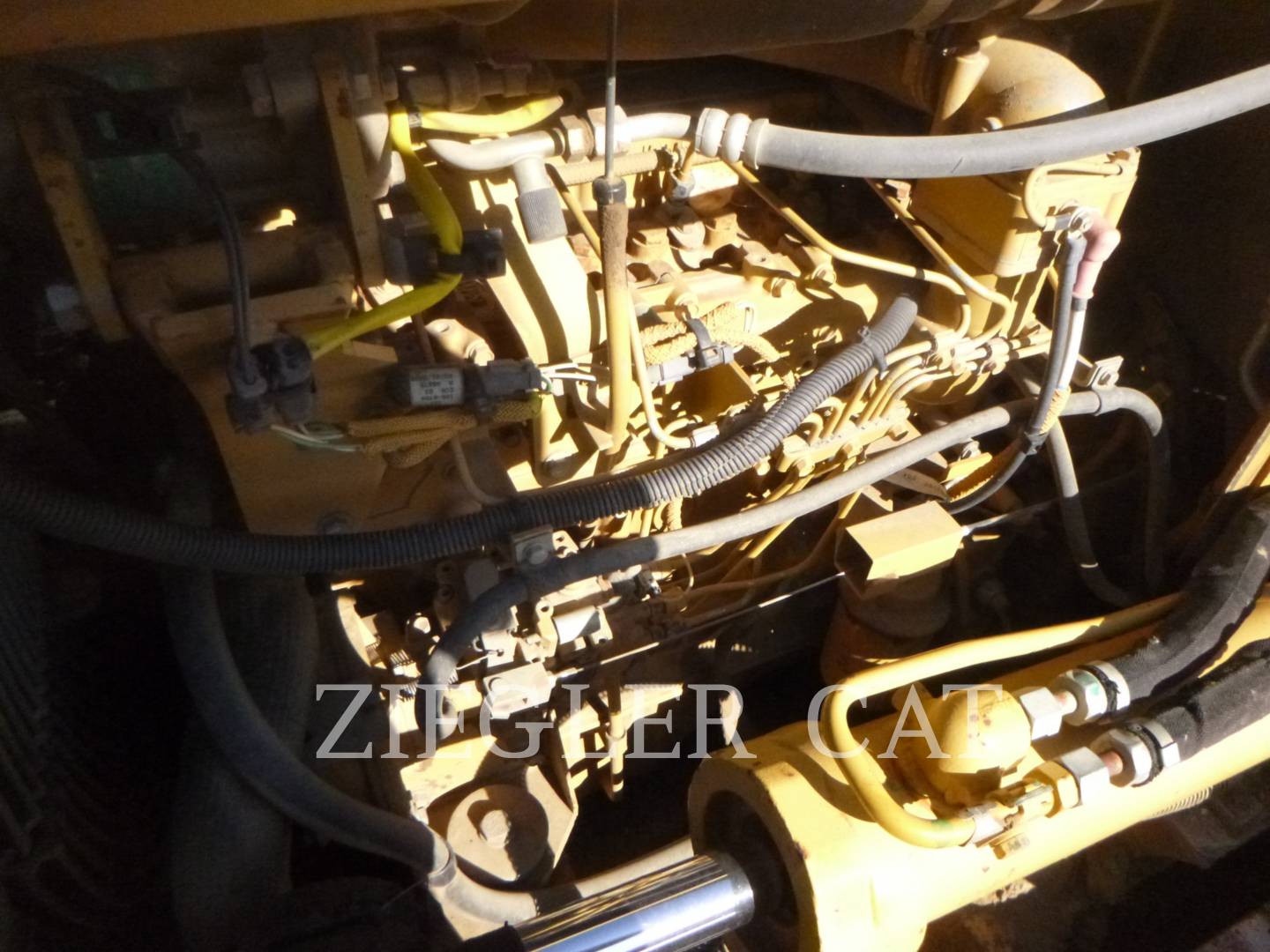

| Notes - ENGINE | THE ENGINE IS RUNNING SMOOTH WITH NORMAL POWER. | |
| Oil Pressure (H/L/N) | NORMAL | |
| Smoke Color (B/D/L/W) | NORMAL | |
| Belts / Pulleys - ENGINE | ||
| Engine Oil Level / Condition | ||
| Engine Supports / Mounts | ||
| Exhaust / Muffler / Stack | ||
| Fuel Injection System | ||
| Governor | ||
| Intake / Air Filters | ||
| Operating Condition - ENGINE | ||
| Turbocharger / Blower |
| Compression in Radiator | No | |
|---|---|---|
| Coolant Leaks | No | NO LEAKS WERE SEEN. |
| Oil in Anti-Freeze | No | |
| Standard Radiator | Yes | |
| Notes - COOLING SYSTEM | THE COOLING SYSTEM IS FUNCTIONING NORMAL IN 53 DEGREE WEATHER. | |
| Anti-Freeze Level / Color / Condition | THE COLOR AND LEVEL IS NORMAL. | |
| Belts / Pulleys - COOLING SYSTEM | ||
| Coolers | ||
| Fan | ||
| Fan Drive / Type | ||
| Fan Shrouds / Guards | ||
| Hoses / Tubes | ||
| Radiator | ||
| Water Pump |
| Ether Aid | Yes | |
|---|---|---|
| Alternator | ||
| Batteries / Cables | ||
| Starter | ||
| Wiring | ||
| Work Lights |
| Hydrostatic | Yes | |
|---|---|---|
| Leaks - TRANSMISSION | No | |
| Transmission - Noisy | No | |
| Notes - TRANSMISSION | THE HYSTAT IS PERFORMING NORMAL THROUGHOUT ALL SPEED SETTINGS. | |
| Controls - TRANSMISSION | ||
| Cooler | ||
| Lines / Fittings - TRANSMISSION | ||
| Operating Condition - TRANSMISSION | ||
| Pump - TRANSMISSION | ||
| Seals | ||
| Temp / Pressure Gauges | ||
| Transmission Oil Filter Condition / Service Hours | THE OIL WAS CHANGED AT 2914 HOURS AND SAMPLED AT 4151 HOURS WITH SAMPLE RETURNING NORMAL. | |
| Valves |
| Notes - STEERING | THE MACHINE IS STEERING NORMAL WITH GOOD CONTROL. | |
|---|---|---|
| Steering Operating Condition | ||
| Steering Valve |
| Parking Brake Operation | ||
|---|---|---|
| Service Brake Operation |
| Leaks - HYDRAULICS | No | |
|---|---|---|
| Notes - HYDRAULICS | THE IMPLEMENT HYDRAULICS ARE FUNCTIONING NORMAL. | |
| Angle Cylinder | ||
| Control Linkage - HYDRAULICS | ||
| Hose Lines | ||
| Hydraulic Oil Filter Condition / Service Hours | THE OIL WAS CHANGED AT 2914 HOURS AND SAMPLED AT 4151 HOURS WITH SAMPLE RETURNING NORMAL. | |
| Hydraulic Valves | ||
| Lift Cylinders | ||
| Overall Operating Condition | ||
| Pumps | ||
| Tank / Sight Glass / Cap | ||
| Tilt Cylinder |

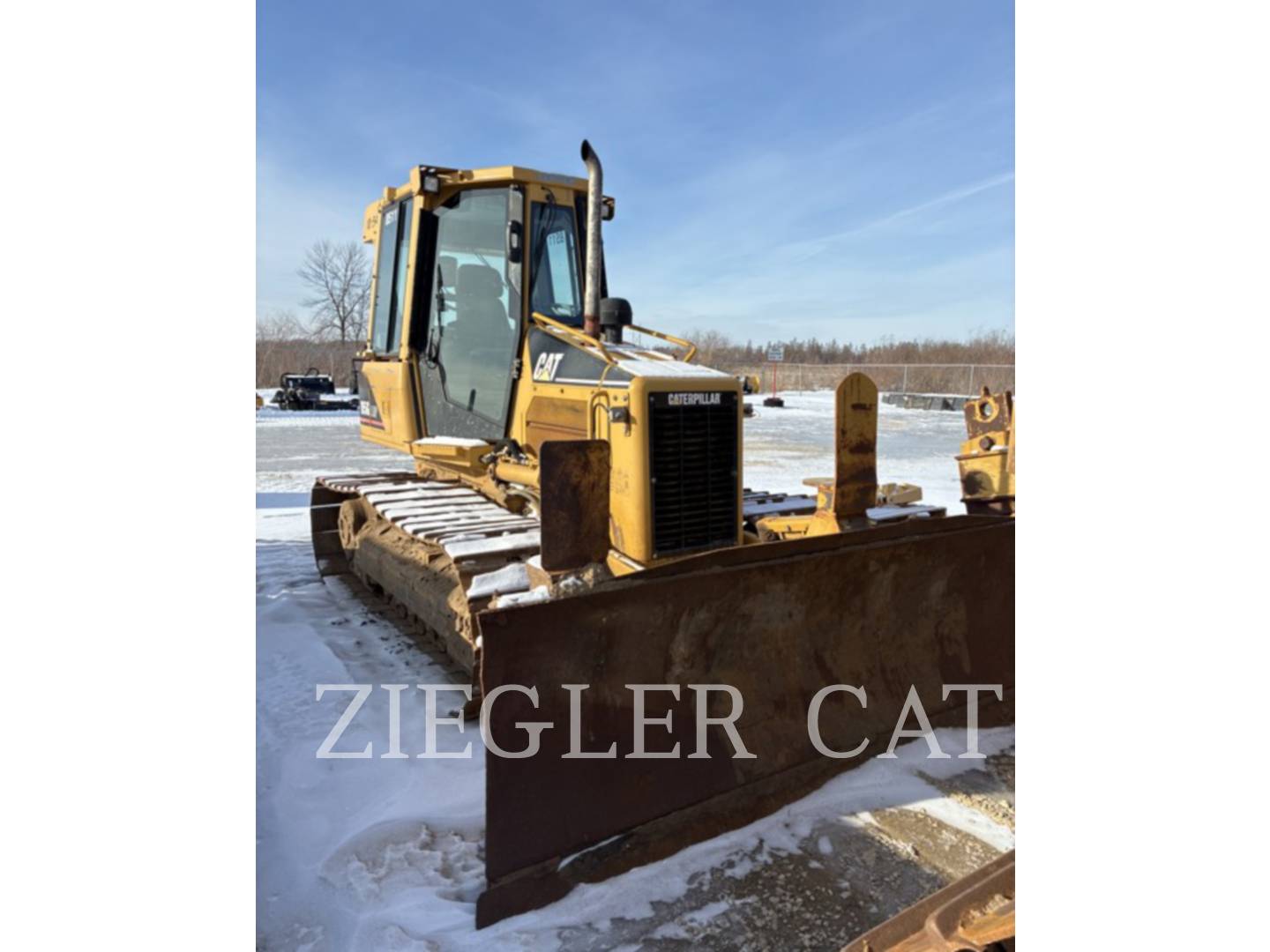

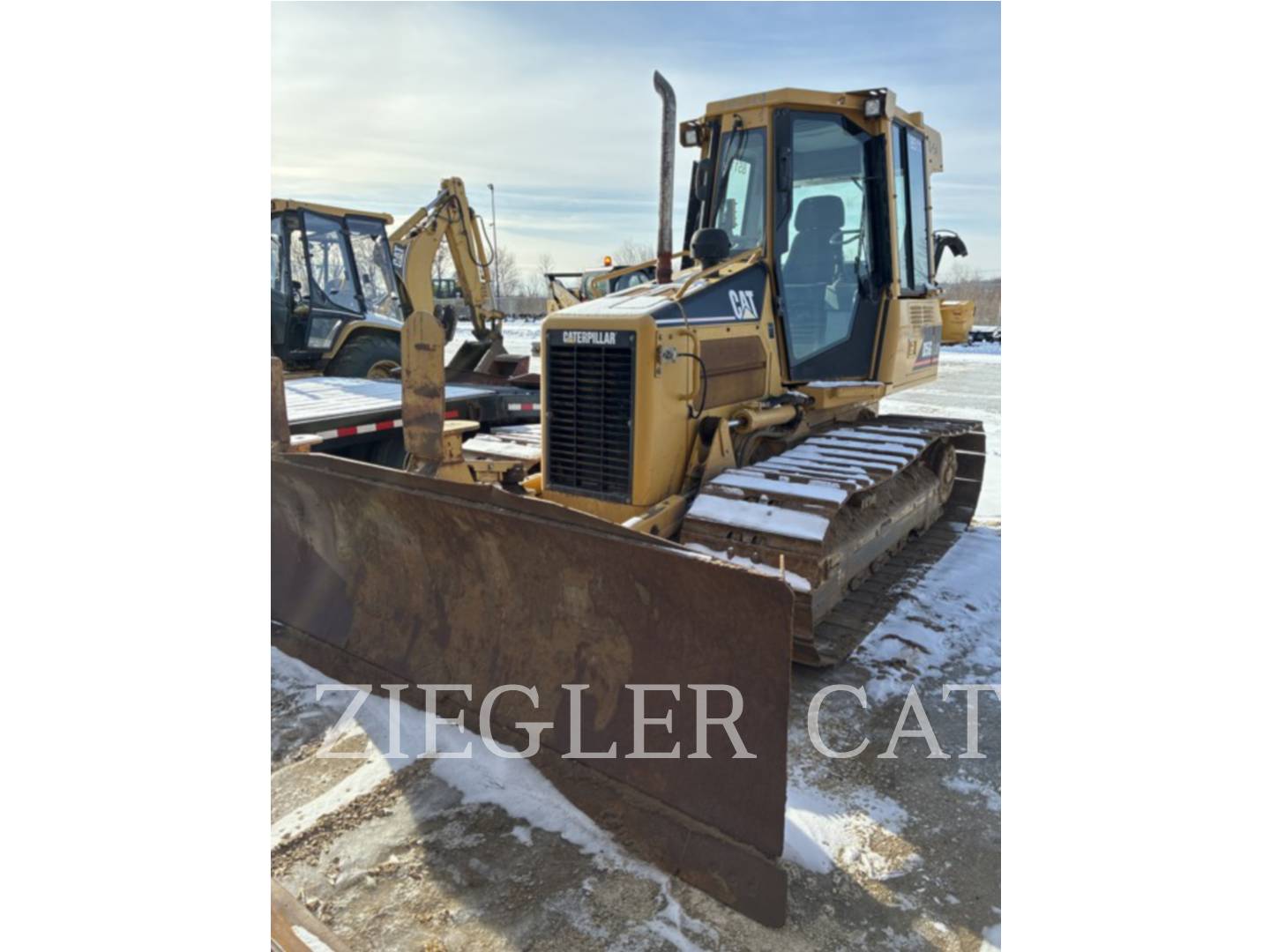

| Notes - BLADE | THE BLADE JOINTS ARE OVERALL | |
|---|---|---|
| Back of Blade | ||
| C Frame / Mounts / Bearings | THERE IS 1/16 INCH PLAY IN THE C-FRAME MOUNTS | |
| Cutting Edge & Bits | CAN STILL BE TURNED. | |
| Face / Moldboard | THE BLADE IS PLATED. | |
| Pins | TIGHT OVERALL. | |
| Spill Rack | DENT ON THE L.H. TOP. | |
| Stabilizer Link | ||
| Tilt Arms | ||
| Trunnions | LOWER TRUNNION HAS SHIMS REMAINING FOR FUTURE ADJUSTMENT. |
| Link / Brand / Part Number | 235-2514 SYSTEM ONE. | |
|---|---|---|
| Notes - UNDERCARRIAGE 1 | NEW RAILS, HARDWARE AND SEGMENTS WERE INSTALLED 6-22 AT 3971 HOURS. THE U/C IS IN GOOD FUNCTIONAL CONDITION | |
| Track Shoes Width / Type | 26 INCH MODERATE SERVICE SHOES. | |
| Guiding Guard - Left | ||
| Guiding Guard - Right | ||
| Track Frame - Left | ||
| Track Frame - Right | ||
| Carrier Rollers Front |
Left Measurement: 158.5MM Left Percent Worn: 2% Right Measurement: 158.5MM Right Percent Worn: 2% |
|
| Idlers Front |
Left Measurement: 23MM Left Percent Worn: 17% Right Measurement: 23MM Right Percent Worn: 17% |
|
| Links |
Left Measurement: 107.5MM Left Percent Worn: 6% Right Measurement: 107.5MM Right Percent Worn: 6% |
|
| Pins & Bushings (External) |
Left Measurement: 59.75MM Left Percent Worn: 12% Right Measurement: 59.75MM Right Percent Worn: 12% |
|
| Segments |
Left Percent Worn: 40% Right Percent Worn: 40% |
|
| Track Roller 7 |
Left Measurement: AVE 168MM Left Percent Worn: 30% Right Measurement: 168MM Right Percent Worn: 30% |
|
| Track Shoe Grouser Height |
Left Measurement: 29.5MM Left Percent Worn: 67% Right Measurement: 29.5MM Right Percent Worn: 67% |
| Notes - FINAL DRIVES | BOTH DRIVE OIL WERE CHANGED AT 4151 HOURSO AND BOTH ARE CURRENTLY LEVEL WITH NORMAL APPEARING OIL. | |
|---|---|---|
| Housings, Left | ||
| Housings, Right | ||
| Planetaries / Differential, Left | ||
| Planetaries / Differential, Right |
| comment 1 | THE MACHINE IS FUNCTIONING NORMAL WITH SMOOTH ENGINE AND NORMAL PERFORMING HYSTAT. | |
|---|---|---|
| comment 2 | LEVEL 4PM WAS DONE AT 4051 HOURS & A LEVEL 1PM AT 4379 HOURS. |
Comments
HEATER & A/C
LIGHTS
STANDARD RADIO
SPRING SUSPENSION SEAT
EITHER AID
ENGINE COOLANT HEATER
HITCH
VARIABLE HYSTAT
3 VALVE HYDRAULICS
PAT BLADE

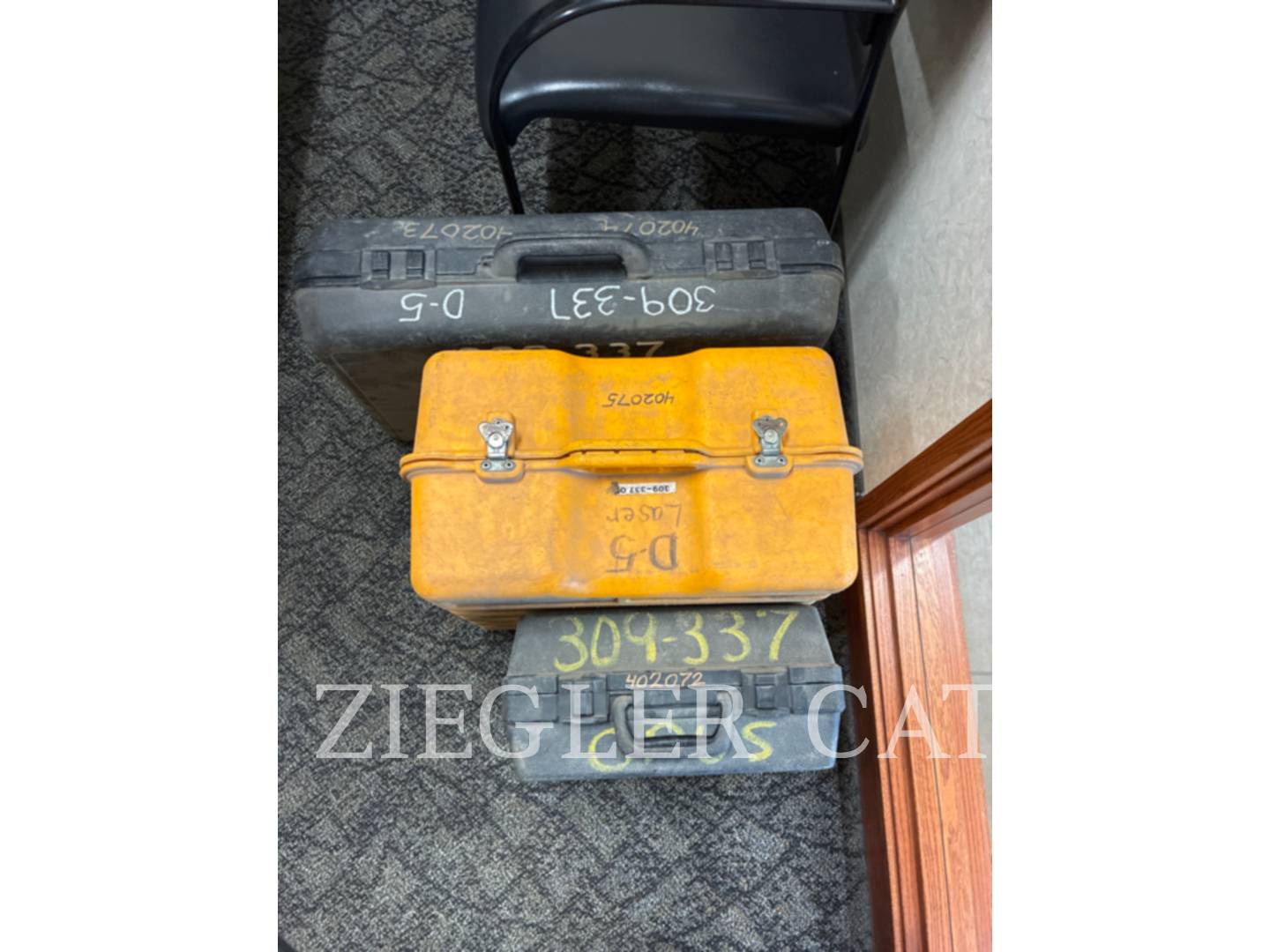

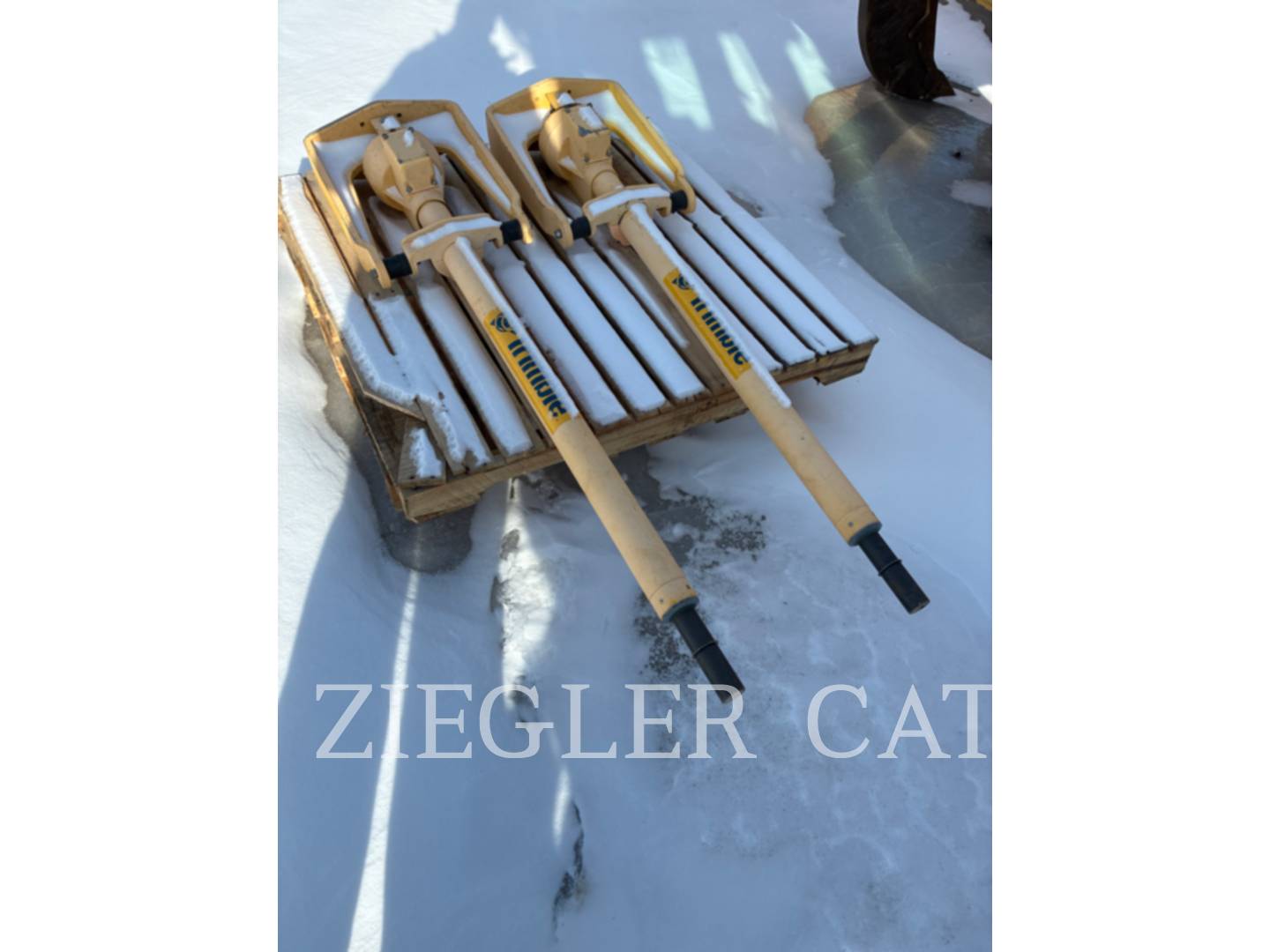

NOTE: THE MACHINE HAS TRIMBLE GPS
Features
