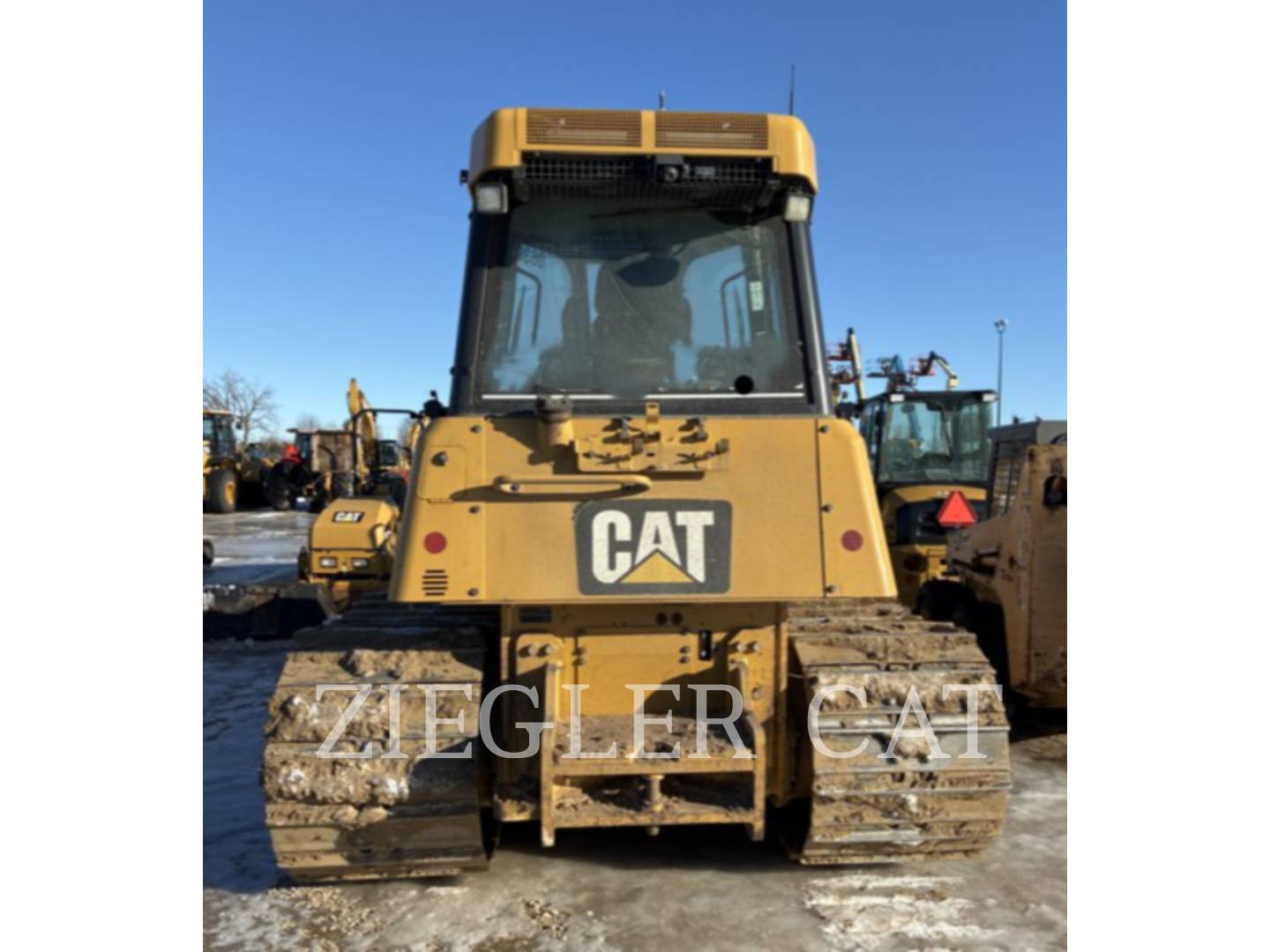

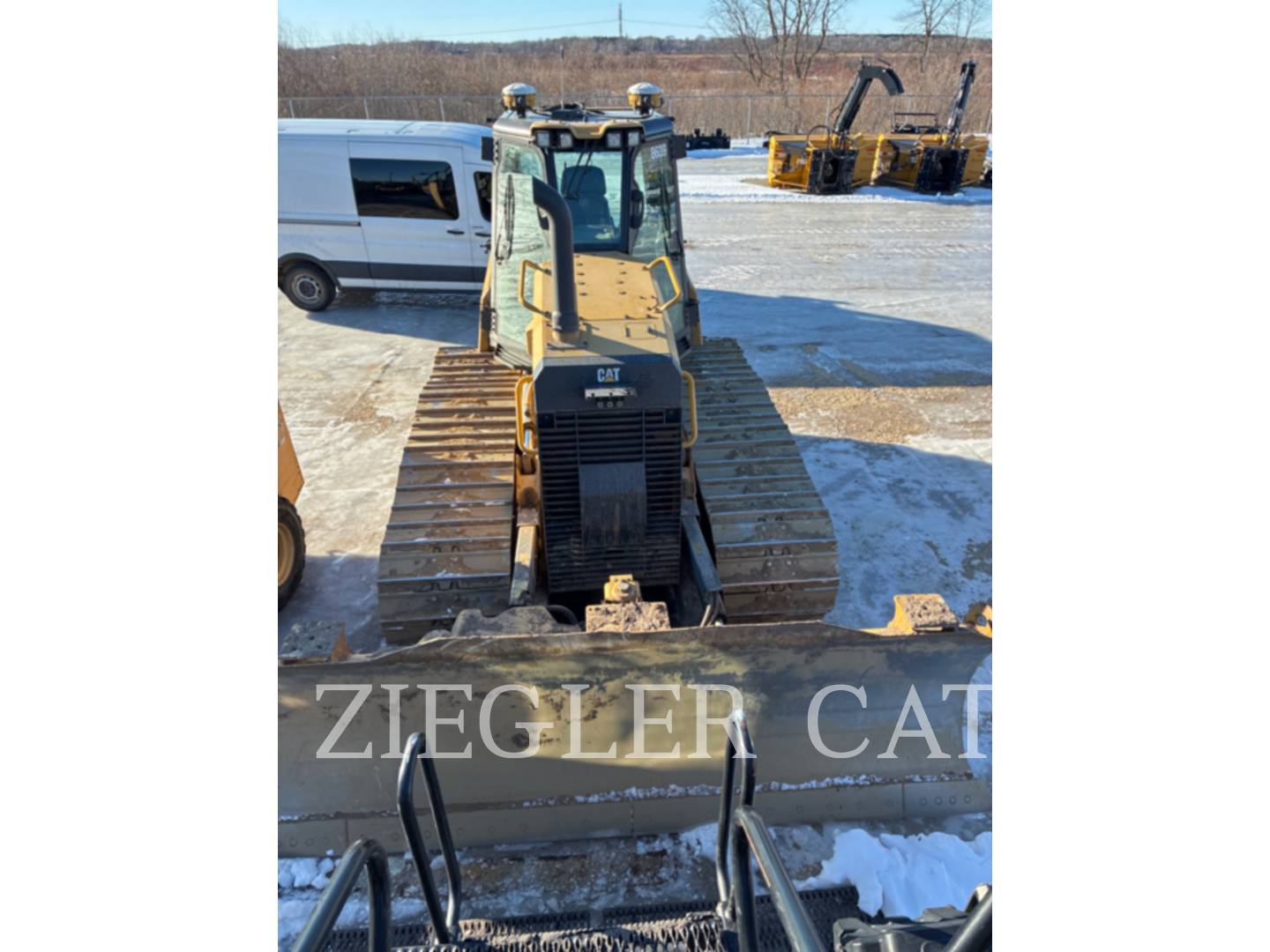

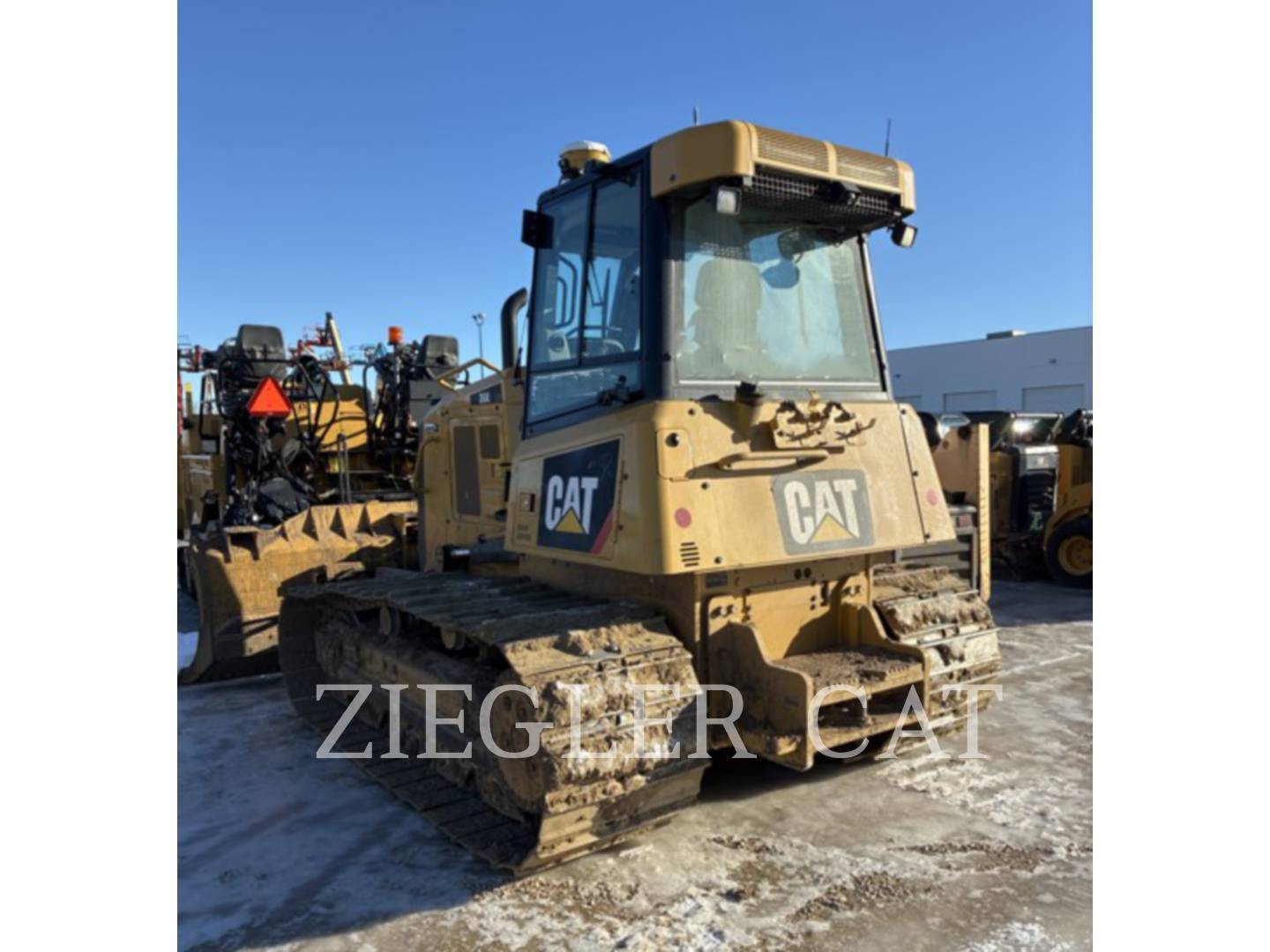

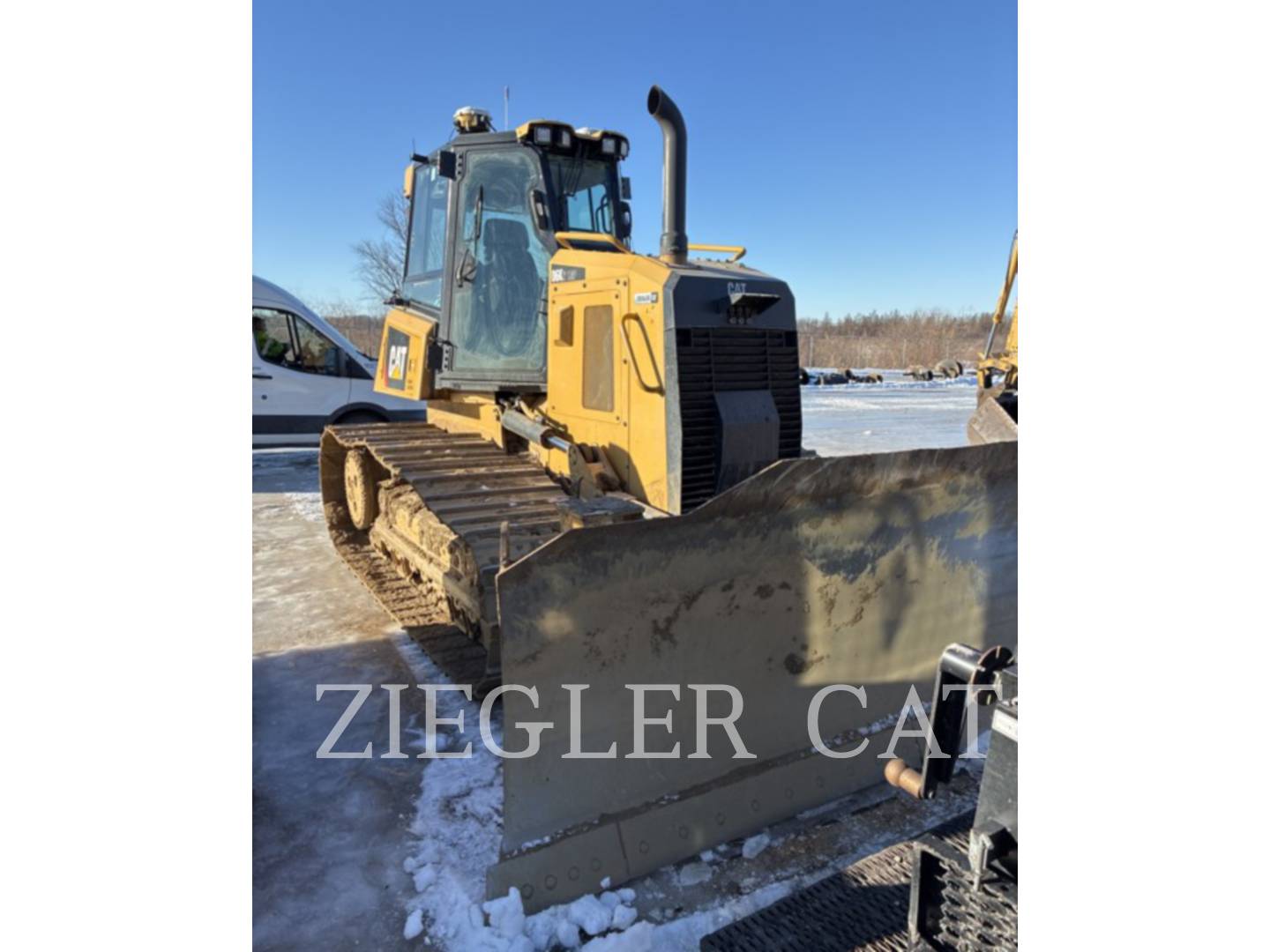

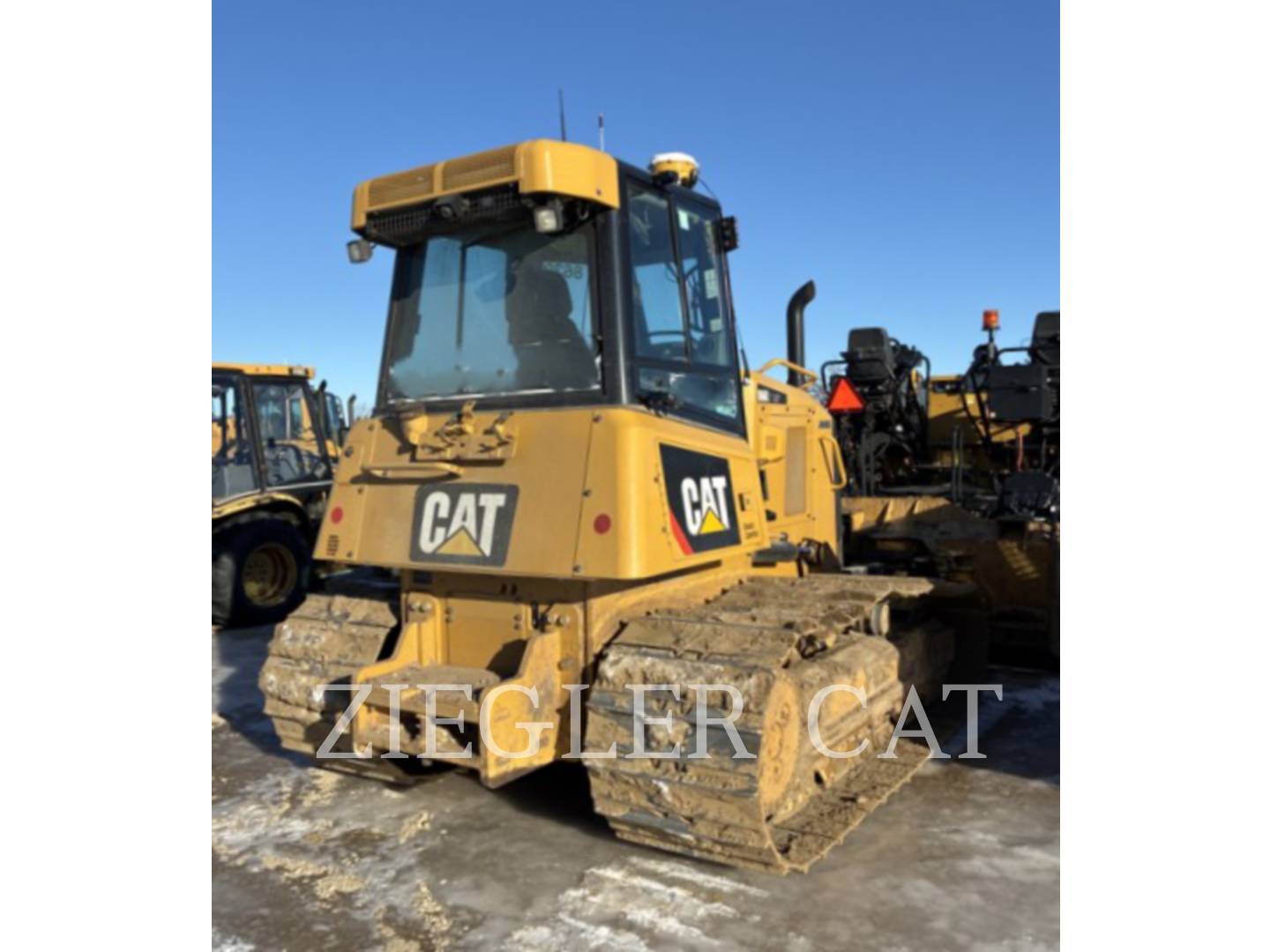

2018 CAT D6K2LGPT 6,127 engine hrs
Condition
| ET Product Status Report Download | Yes | |
|---|---|---|
| Machine Starts and is Operable | Yes | |
| Visible Oil Leaks | No | |
| Body | ||
| Frame | ||
| General |
| Battery Box | ||
|---|---|---|
| Belly Pans | ||
| Cab or Canopy | ||
| Decals | ||
| Draw Bar | ||
| Engine Enclosures | ||
| Fuel Tank | ||
| Grab Irons | ||
| Hood | ||
| Main Frame Welds | ||
| Paint | LOOKS GOOD OVERALL. | |
| Pre-Cleaner Bowl | ||
| Radiator Grill | ||
| Sheet Metal | ||
| Steps / Ladder |
| Parking Brake Functioning | Yes | |
|---|---|---|
| ROPS Certification Plate | Yes | CERTIFICATION IS IN PALACE. |
| Safety Decals In Place | Yes | |
| Safety Decals Legible | Yes | |
| Back Up Alarm | ||
| Camera(s) | ||
| Horn | ||
| ROPS | THE ROPS ARE CLEAN. | |
| Seat Belt / Date | FUNCTIONAL |
| Current O&MM | Yes | |
|---|---|---|
| Air Conditioner | COOLING | |
| Armrests | ||
| Cab Filter / Heat Vent Louvres | ||
| Dash Console | ||
| Door Latches / Hinges / Seals | R.H. SIDE COMPARTMENT DOOR LOCK IS MISSING. | |
| Floor Boards / Mats | ||
| Gauges | ||
| Headliner | ||
| Heater / Defroster | ||

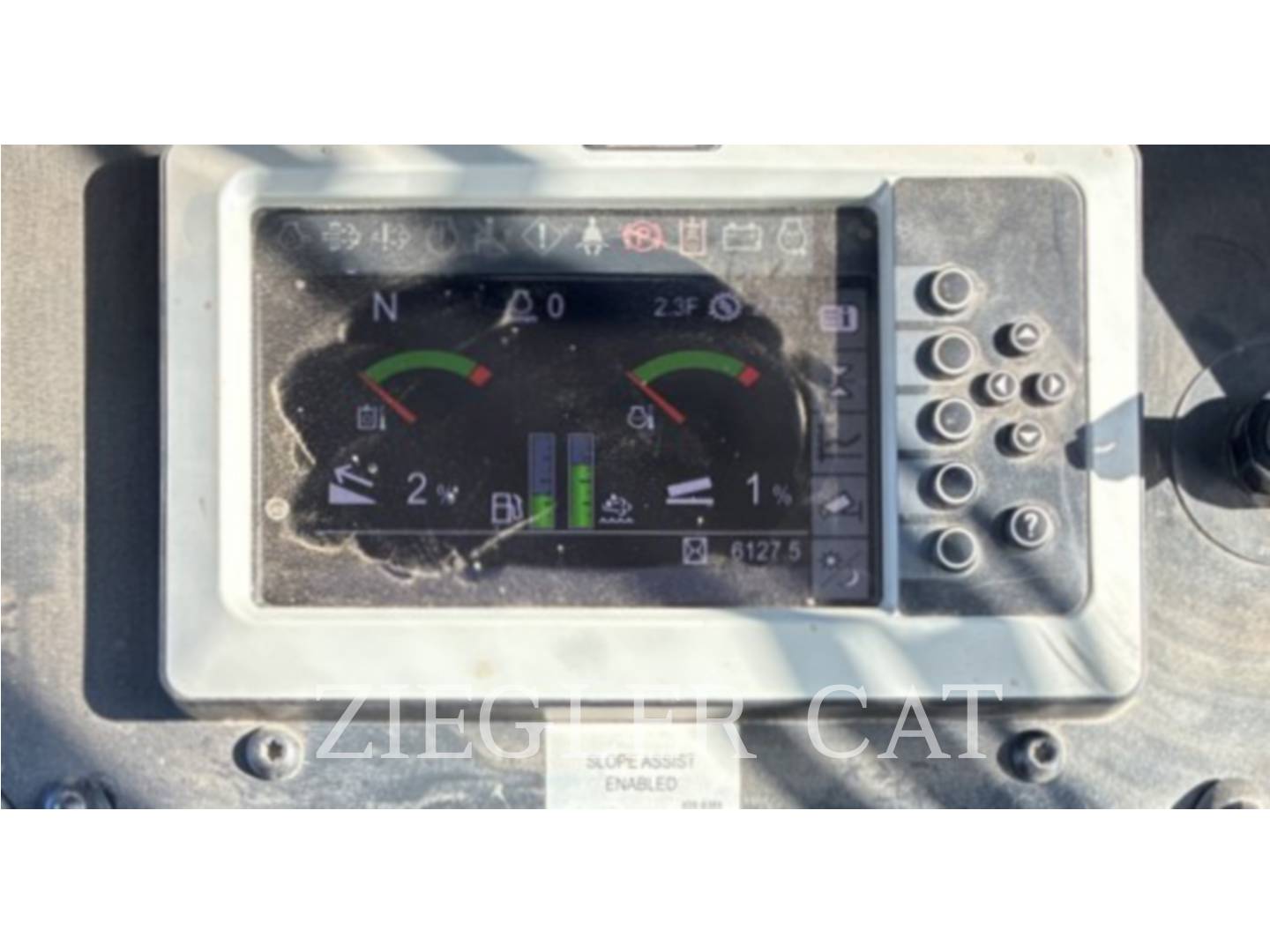

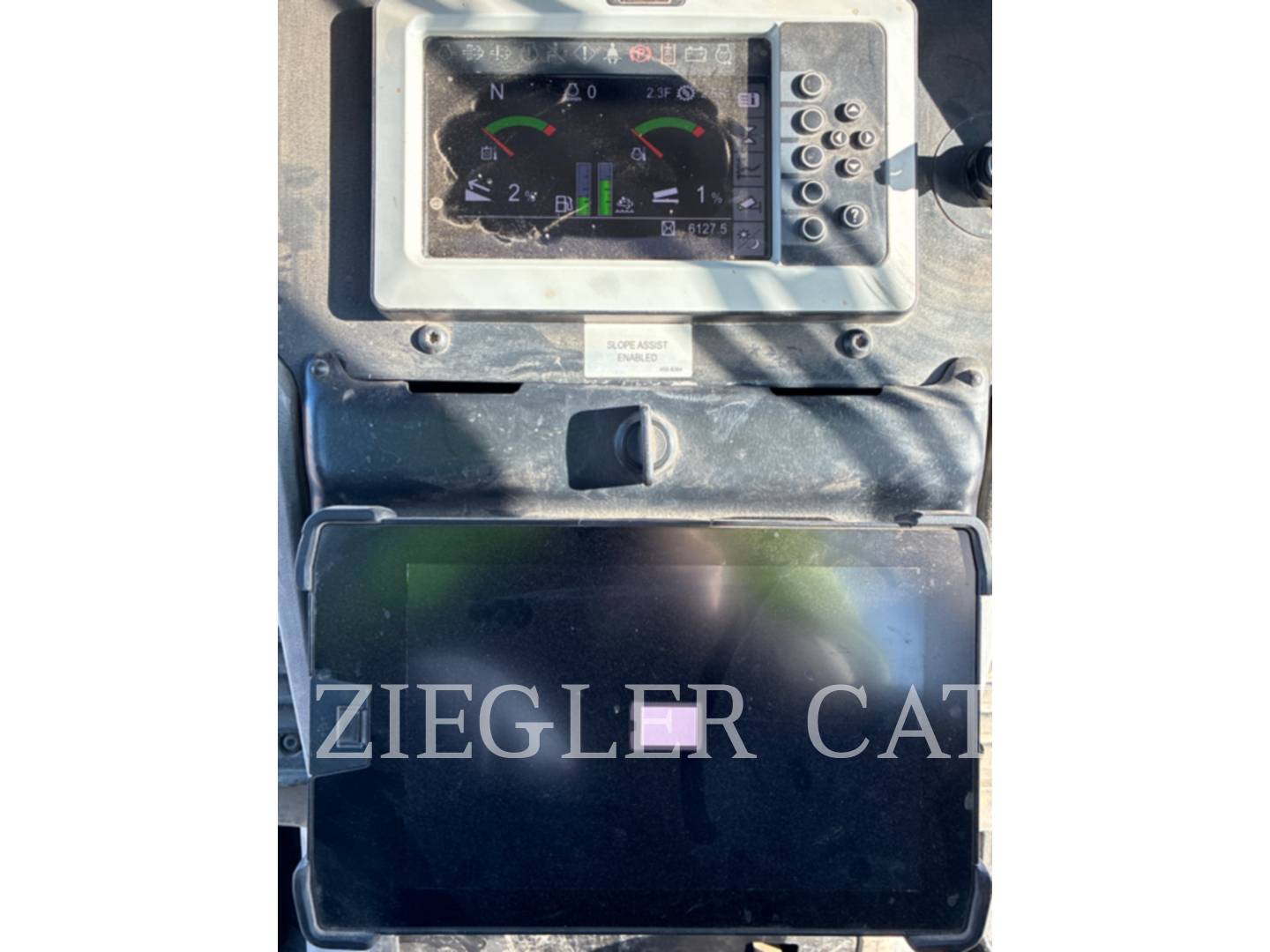

| Hour Meter - GAUGES, OPERATION STATION, CONSOLE | ACCURATE. | |
| Interior Lights | ||
| Interior Plastic / Fabric | ||
| Monitoring Display | ||
| Radio | USB & BT | |

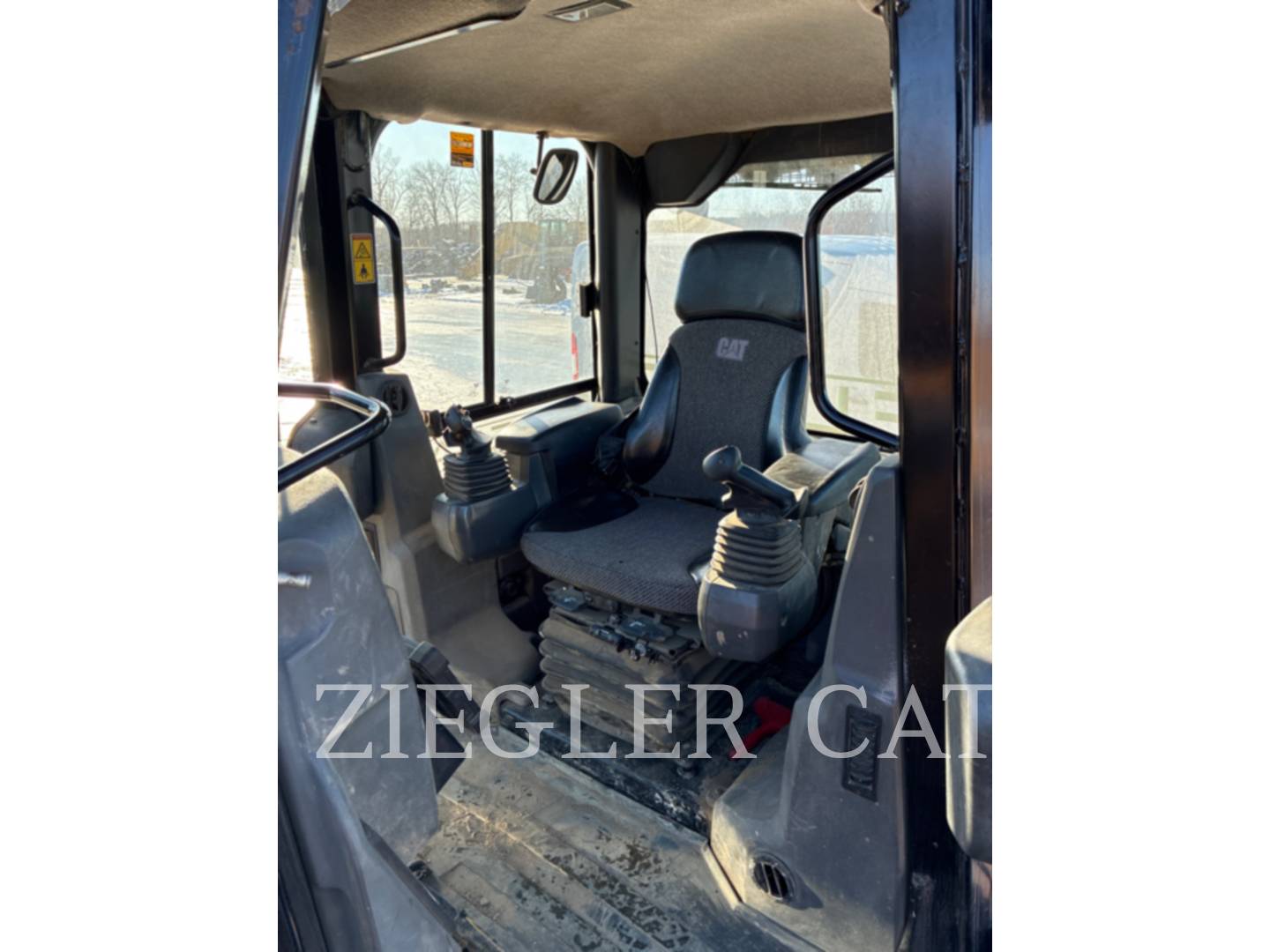

| Seat Cushions / Suspension / Type | MINOR BURN HOLE IN THE SEAT CUSHION. | |
| Switches | ||
| Windows | ||
| Windshield Wipers |
| Apparent Other Engine Damage | No | |
|---|---|---|
| Blow By | Yes | MINIMAL. |

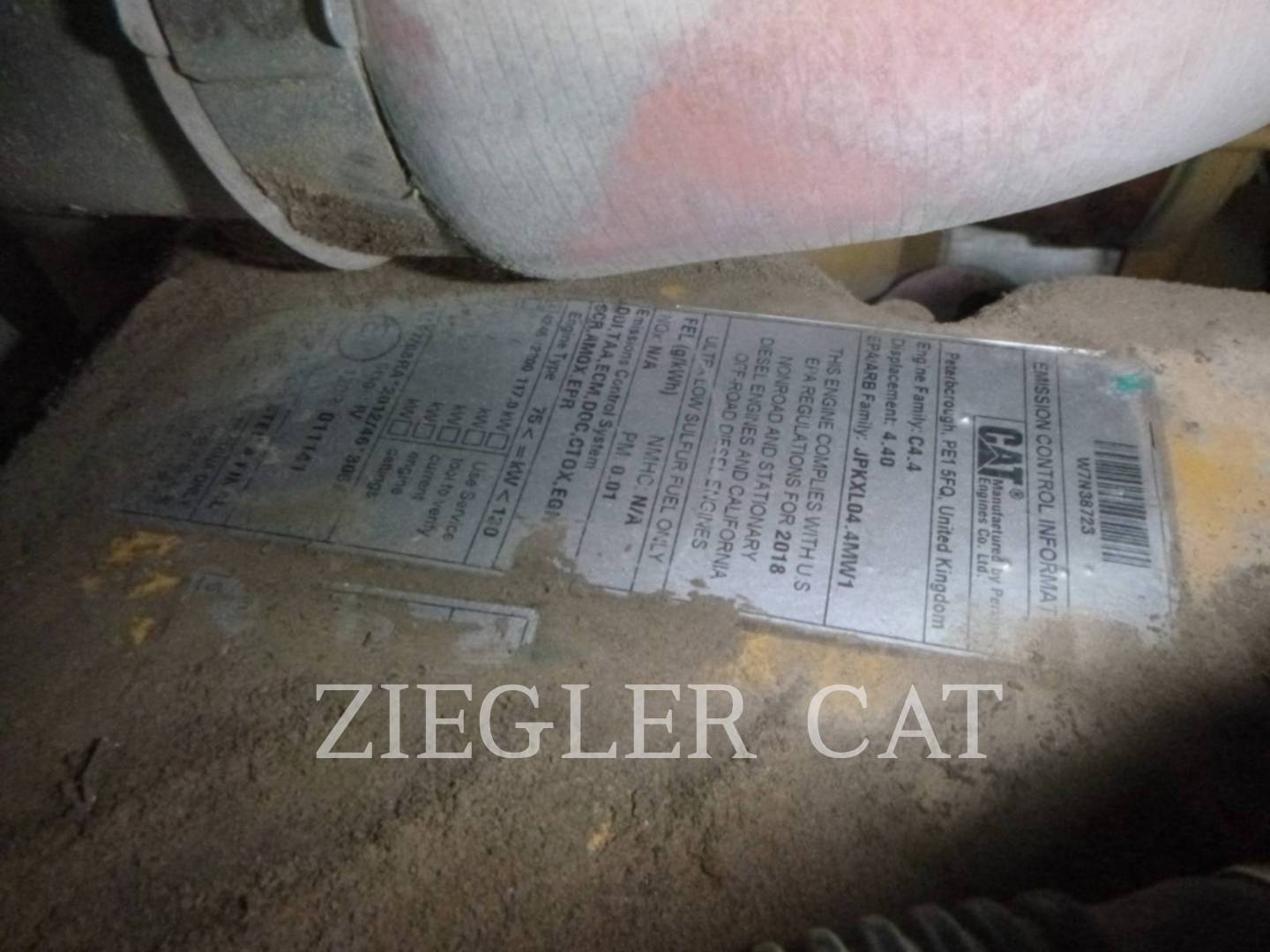

| Emissions Decal Legible | Yes | TIER 4 FINAL. |
| Fuel Leaks | No | |
| Knocking | No | |
| Oil Leaks | No | |
| Service Needed | No | PM4 PERORMED AT 6128 HOURS |
| Water in Oil | No | |

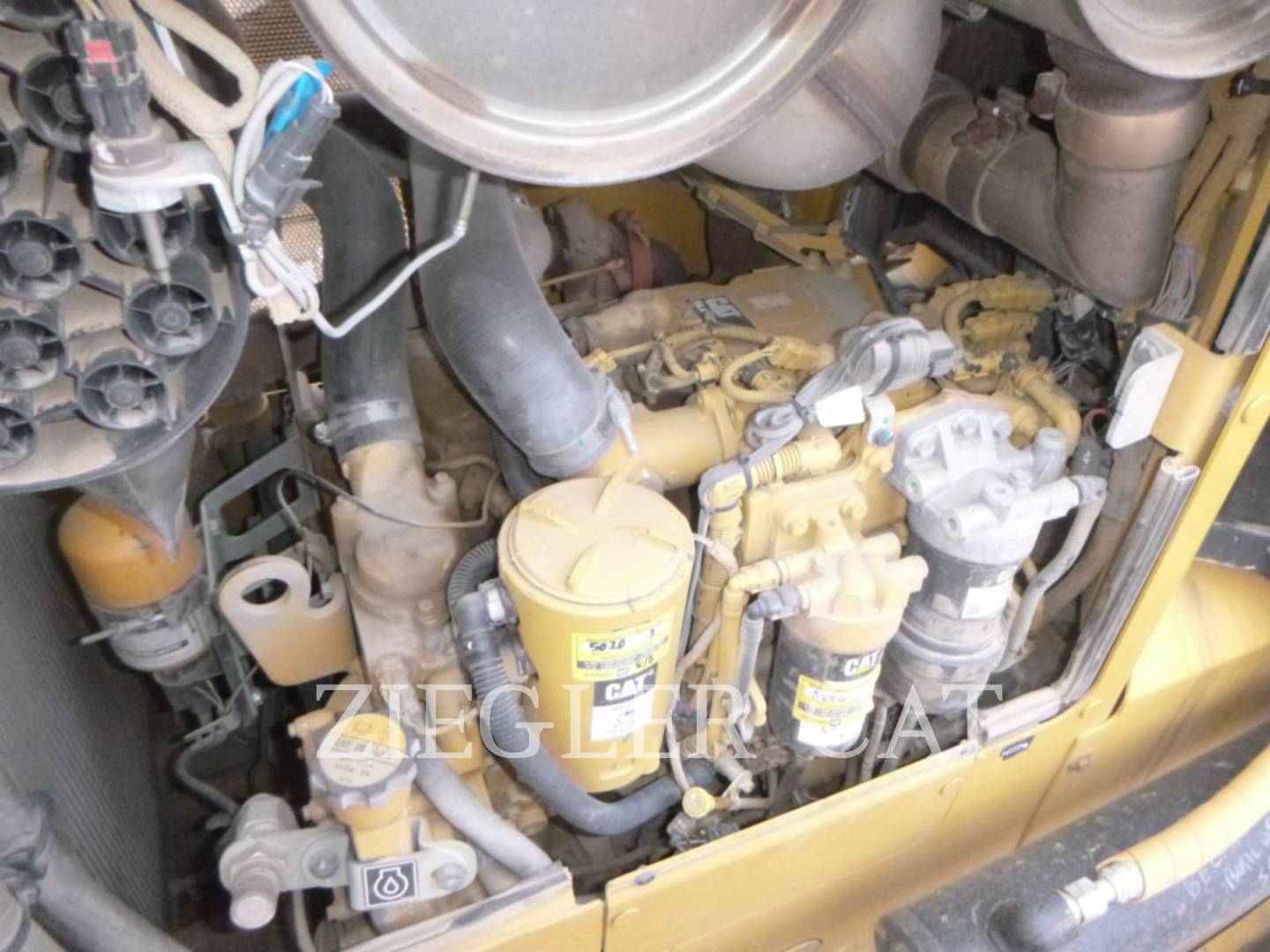

| Notes - ENGINE | THE ENGINE IS RUNNING SMOOTH WITH NORMAL POWER. | |
| Oil Pressure (H/L/N) | NORMAL | |
| Smoke Color (B/D/L/W) | NORMAL | |
| Engine Oil Level / Condition | ||
| Engine Supports / Mounts | ||
| Exhaust / Muffler / Stack | ||
| Fuel Injection System | ||
| Governor | ||
| Intake / Air Filters | ||
| Operating Condition - ENGINE | ||
| Turbocharger / Blower |
| Display | ||
|---|---|---|
| GNSS Antennas #1 | ||
| GNSS Receiver #1 | ||
| GNSS Receiver #2 | ||
| GPS Radio | ||
| Sensor Blade |
| Aftertreatment System Codes | No | |
|---|---|---|
| Leaks / Type | No | |
| Notes - EMISSIONS | THE EMISSIONS SYSTEM IS FUNCTIONING NORMAL. | |
| Aftertreatment Heat Shields / Guards | ||
| DEF Lines / Wiring | ||
| Diesel Exhaust Fluid (DEF) Tank | ||
| Diesel Particulate Filter (DPF) Condition / Service Hours |
| Compression in Radiator | No | |
|---|---|---|
| Coolant Leaks | No | |
| Oil in Anti-Freeze | No | |
| Standard Radiator | Yes | |
| Notes - COOLING SYSTEM | THE COOLING SYSTEM IS FUNCTIONING NORMAL IN 50 DEGREE WEATHER. | |
| Anti-Freeze Level / Color / Condition | NORMAL COLOR & LEVEL. | |
| Belts / Pulleys - COOLING SYSTEM | ||
| Coolers | ||
| Fan | ||
| Fan Drive / Type | HYD | |
| Fan Shrouds / Guards | ||
| Hoses / Tubes | ||
| Radiator | ||
| Water Pump |
| Active Codes | No | |
|---|---|---|
| Block Heater | Yes | |
| Ether Aid | Yes | |
| Alternator | ||
| Batteries / Cables | ||
| Product Link / Condition | PLE641 | |
| Starter | ||
| Wiring | ||
| Work Lights |
| Hydrostatic | Yes | |
|---|---|---|
| Leaks - TRANSMISSION | No | |
| Traction Control | Yes | |
| Transmission - Noisy | No | |
| Notes - TRANSMISSION | THE HYSTAT IS FUNCTIONING NORMAL THROUGHOUT ALL SPEED SETTINGS. | |
| Controls - TRANSMISSION | ||
| Cooler | ||
| Lines / Fittings - TRANSMISSION | ||
| Operating Condition - TRANSMISSION | ||
| Pump - TRANSMISSION | ||
| Seals | ||
| Temp / Pressure Gauges | ||
| Transmission Oil Filter Condition / Service Hours | HYDROSTATIC TRANSMISSION, HYDRAULIC FLUID SERVICED AT 6128 HOURS | |
| Valves |
| Notes - STEERING | THE MACHINE IS STEERING NORMAL WITH GOOD CONTROL. | |
|---|---|---|
| Steering Operating Condition | ||
| Steering Valve |
| Parking Brake Operation |
|---|
| Leaks - HYDRAULICS | No | |
|---|---|---|
| Notes - HYDRAULICS | THE IMPLEMENT HYDRAULICS ARE PERFORMING NORMAL. FLUID SERVICED AT 6128 HOURS | |
| Angle Cylinder | ||
| Control Linkage - HYDRAULICS | ||
| Hose Lines | ||
| Hydraulic Oil Filter Condition / Service Hours | ||
| Hydraulic Valves | ||
| Lift Cylinders | ||
| Overall Operating Condition | ||
| Pumps | ||
| Tank / Sight Glass / Cap | ||
| Tilt Cylinder |

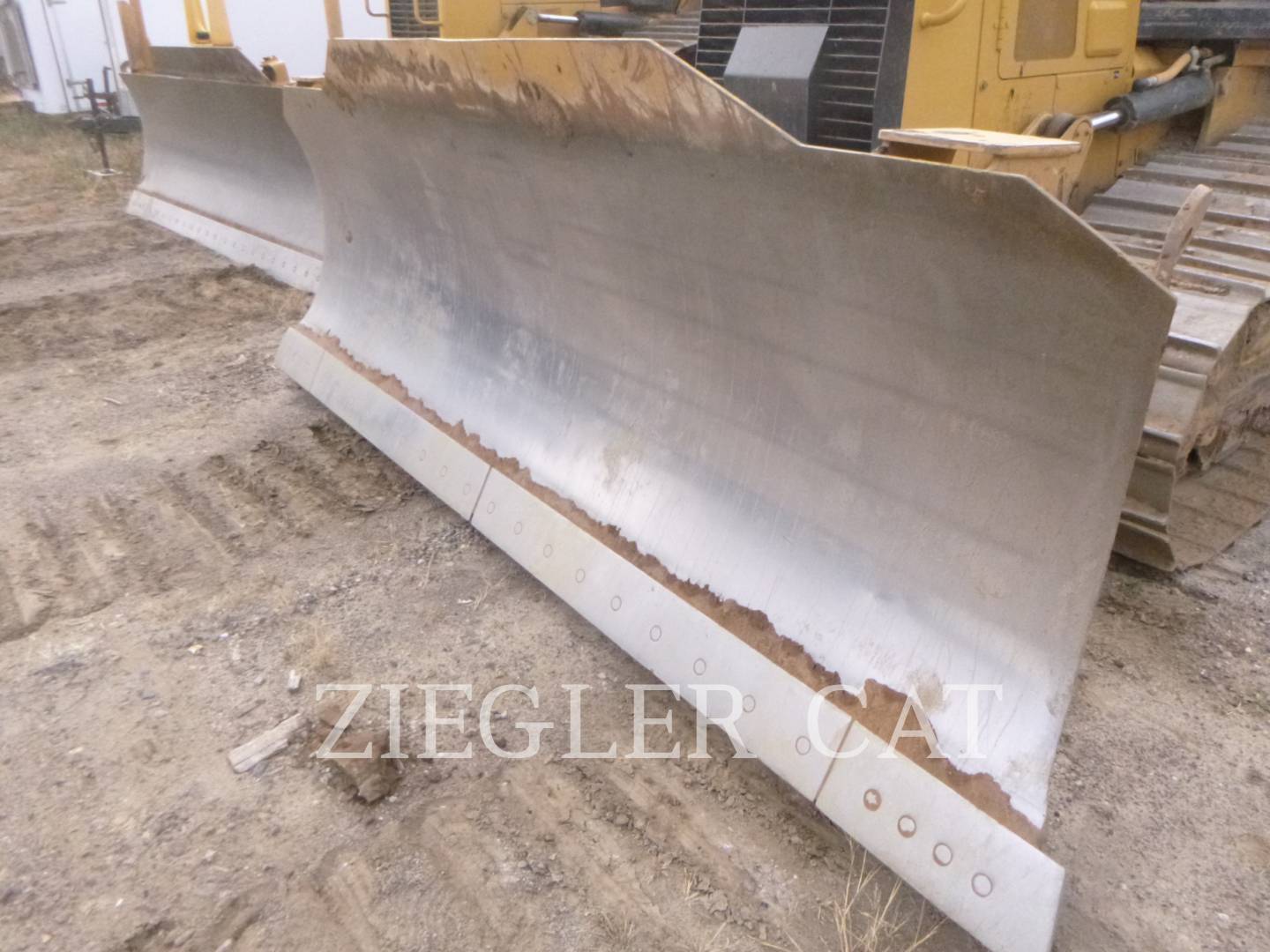

| Notes - BLADE | THE DOZER IS FUNCTIONAL WITH MINOR PLAY AS DESCRIBED. | |
|---|---|---|
| Back of Blade | ||
| C Frame / Mounts / Bearings | THERE IS MINIMAL PLAY IN THE C-FRAME JOINTS. | |
| Cutting Edge & Bits | CAN STILL BE TURNED. | |
| Face / Moldboard | ||
| Pins | THE ANGLE CYLINDER JOINTS HAVE AROUND 1/16 INCH PLAY. AND THE LIFT CYLINDER HEAD END JOINTS HAVE MINIMAL PLAY. | |
| Spill Rack | ||
| Stabilizer Link | ||
| Tilt Arms | MINOR FUNCTIONAL PLAY IN THE HEAD END | |
| Trunnions | THE LOWER TRUNNION IS IN GOOD FUNCTIONAL CONDITION WITH A FEW SHIMS REMAINING. |
| Pins & Bushings Turned? | No | |
|---|---|---|
| Cannon / Track Adjuster | DRY | |
| Equalizer Bar | THE OUTER EQUALIZER BAR JOINTS HAD NEW BEARINGS AND PINS INSTALLED 8-23 AT 4387 HOURS, CENTER BEARING HAS SOME MOVEMENT. | |
| Link / Brand / Part Number | 106-1625 SALT LINKS. | |
| Notes - UNDERCARRIAGE 1 | ALL U/C WAS REPLACED WITH EXCEPTION TO THE SHOES 8-23 AT 4387 HOURS. | |
| Pivot Shaft | DRY. LAST RESEALED 8-23 AT 4387 HOURS | |
| Track Shoes Width / Type | 30 INCH EXTREME SERVICE. | |
| Guiding Guard - Left | REAR INNER GUIDING GUARD HAS A LITTLE DAMAGE. | |
| Guiding Guard - Right | REAR INNER GUIDING GUARD HAS A LITTLE DAMAGE. | |
| Track Frame - Left | ||
| Track Frame - Right | ||
| Carrier Rollers Front |
Left Measurement: 166MM Left Percent Worn: 8% Right Measurement: 166MM Right Percent Worn: 8% |
|
| Carrier Rollers Rear |
Left Measurement: 166.5MM Left Percent Worn: 7% Right Measurement: 166.5MM Right Percent Worn: 7% |
|
| Idlers Front |
Left Measurement: 26.25MM Left Percent Worn: 18% Right Measurement: 26MM Right Percent Worn: 16% |
|

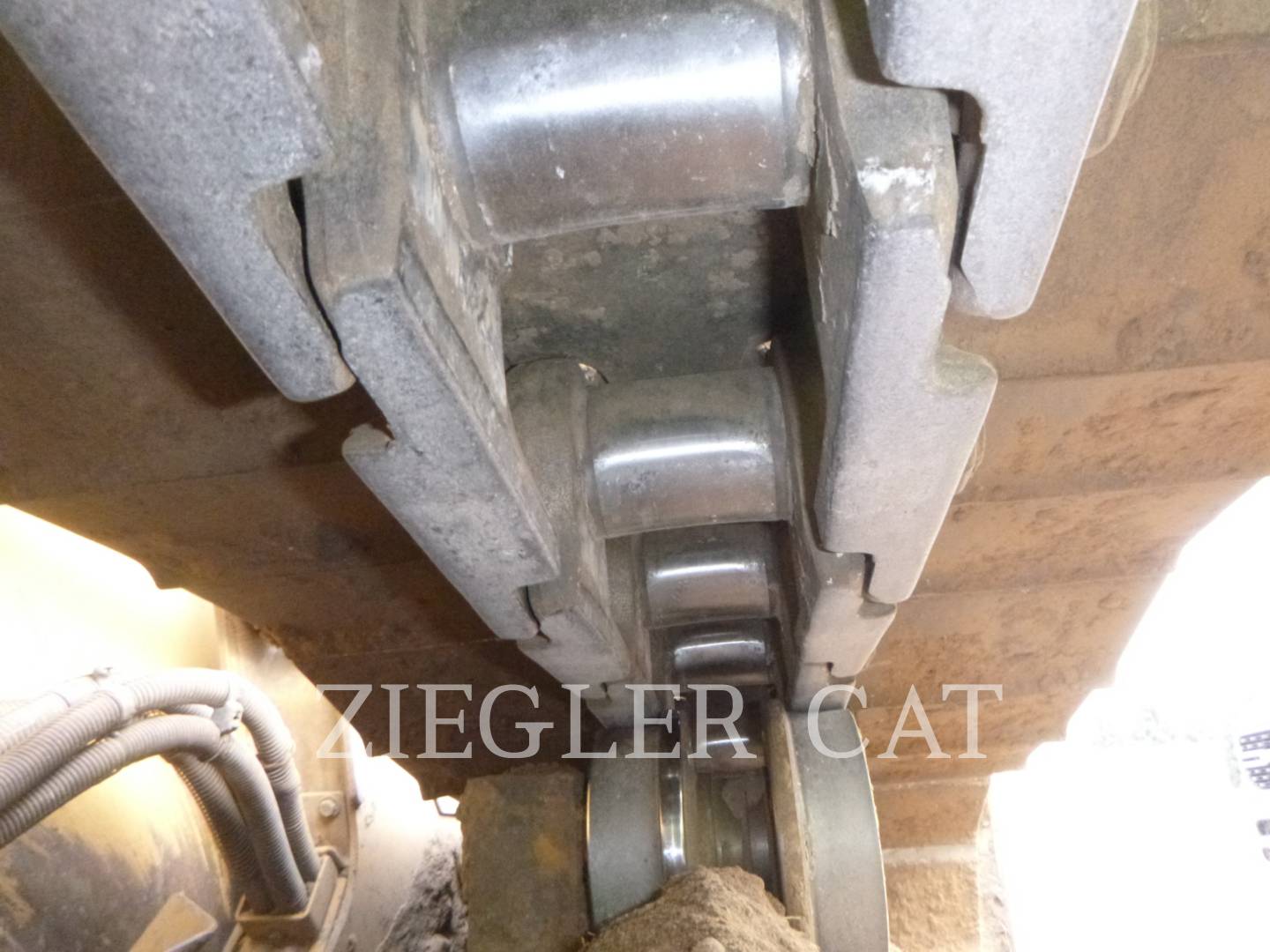

| Links |
Left Measurement: 117MM Left Percent Worn: 21% Right Measurement: 117MM Right Percent Worn: 21% |
|
| Pins & Bushings (External) |
Left Measurement: 63MM Left Percent Worn: 32% Right Measurement: 63MM Right Percent Worn: 32% |
|
| Track Roller 8 |
Left Measurement: AVE 171MM Left Percent Worn: 18% Right Measurement: 171MM Right Percent Worn: 18% |
|
| Track Shoe Grouser Height |
Left Measurement: 34.25MM Left Percent Worn: 70% Right Measurement: 34.25MM Right Percent Worn: 70% |
| Magnetic Plugs Removed & Checked? | Yes | |
|---|---|---|
| Housings, Left | ||
| Housings, Right | ||
| Planetaries / Differential, Left | ||
| Planetaries / Differential, Right |
| comment 1 | THE MACHINE IS CURRENTLY FUNCTIONING NORMAL WITH SMOOTH ENGINE AND NORMAL PERFORMING HYSTAT. |
|---|
Comments
CAB ROPS
HEATER & A/C
LIGHTS
REARVIEW CAMERA
PRODUCT LINK ELITE PLE641
RADIO BT & USB
AIR SEAT SUSPENSION
HEATED & COOLED SEAT
TIER 4 FINAL EMISSIONS
DRAWBAR HITCH COUNTERWEIGHT
ACCUGRADE
ENGINE COOLANT HEATER
AUTO TRACTION ASSIST
STABLE BLADE CONTROL
SLOPE ASSIST
VARIABLE HYSTAT
BLADE SHAKE FEATURE
3 VALVE HYDRAULICS
PAT BLADE

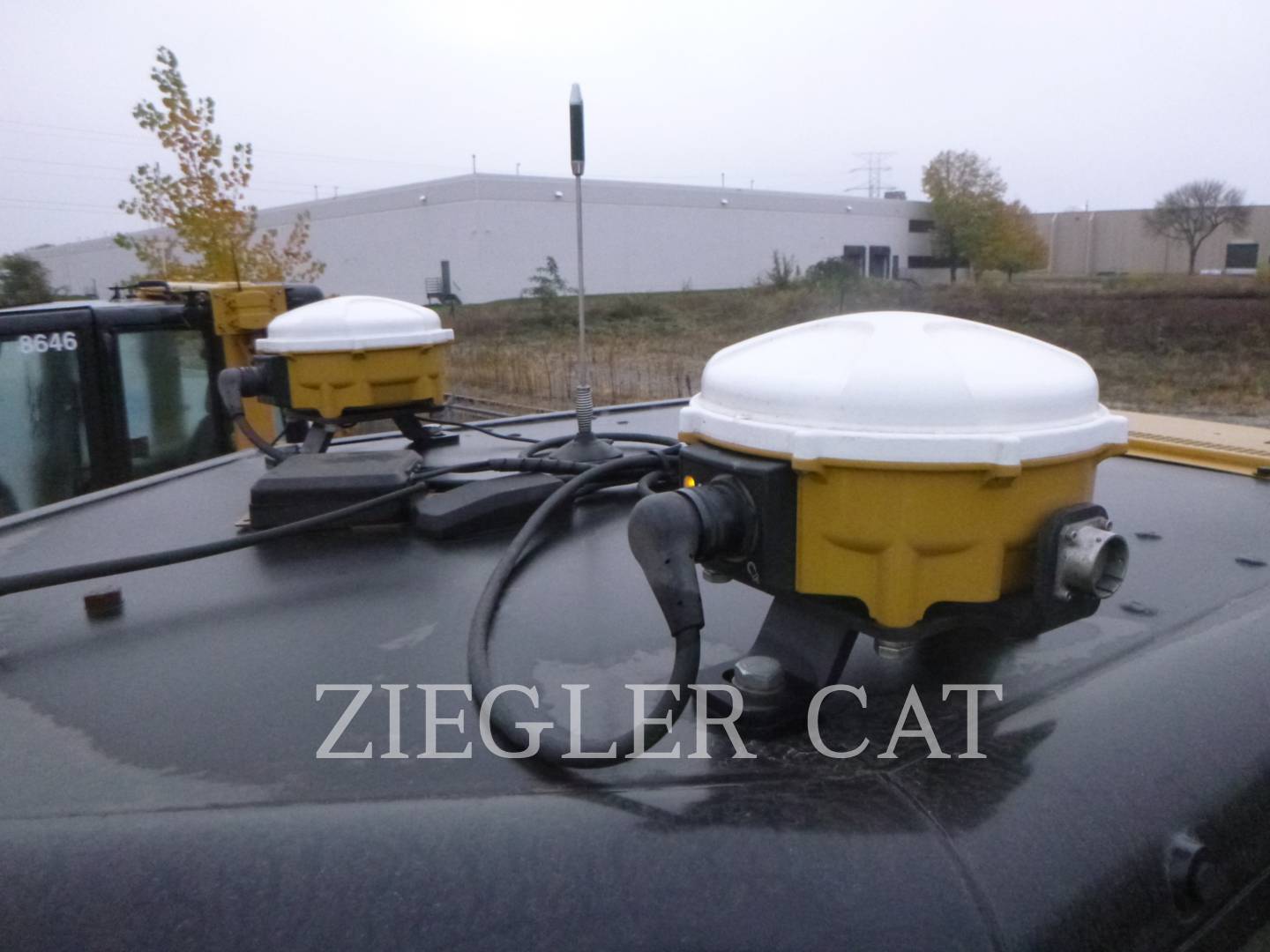

3D GPS TRIMBLE SYSTEM (K17117)
