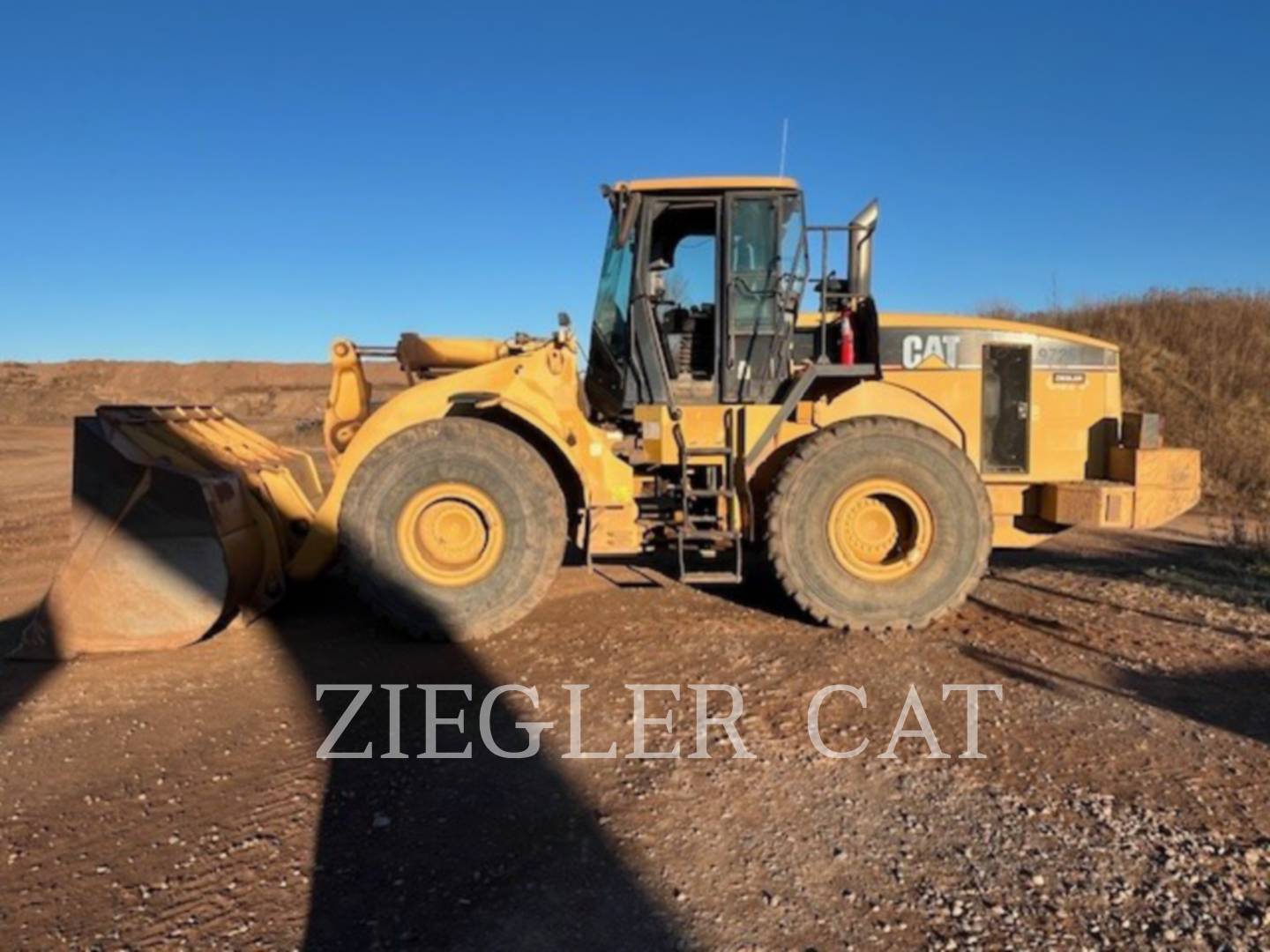

2004 CAT 972GII 16,611 engine hrs

$68,500
16,611 engine hrs
Stock Number: EQ0162754
VIN: AXC00880
DULUTH, MN

Comments

EROPS
A/C & HEATER
LIGHTS
RADIO
R/C
AUTOSHIFT
LMT SLIP REAR
COMMAND STEERING
ETHER AID
26.5 X 25 TIRES
PIN ON GP BUCKET
PAYLOAD MONITORING SYSTEM
26.5 X 25 TIRES

EROPS HAS DRILL HOLES. A DSN NEEDS TO BE FILED. THIS MIGHT NEED TO BE RECERTIFIED.

SERVICE WORK PERFORMED BY ZIEGLER

TRANSMISSION OH DONE AT 15,443 HRS.

ENGINE TOP END & HEAD DONE AT 12,200 HRS.

Features

  • 26.5 X 25 TIRES
  • 972GII
  • AUTOSHIFT
  • COMMAND STEERING
  • EROPS - A/C & HEATER
  • Ether Aid
  • LIGHTS
  • LIMITED SLIP REAR
  • PAYLOAD MONITORING SYSTEM
  • PIN ON GP BUCKET
  • R/C
  • Radio

Condition

ET Product Status Report Download Yes
Logged / Active Codes Yes SEE ENGINE, MONITORING SYSTEM AND STEERING SYSTEM.
Machine Starts and is Operable Yes
Tires are Aired Up and Drivable Yes
Visible Oil Leaks Yes
Body
● ●
Frame
● ● ●
General
● ●

Notes - GENERAL APPEARANCE THE MACHINE IS OVERALL STRAIGHT
Cab or Canopy
● ●
THE TOP CAB PLASTIC COVER IS DAMAGED.
Counterweight
● ● ●
Crankcase Guard / Battery Box
● ● ●
Decals
● ●
Eng. Enclose Hood / Stack
● ●
THE INSULATION ON THE L.H. INNER SIDE IS TORN UP.
Fenders
● ●
THE L.H. FRONT FENDER HAS MINOR DAMAGE AND BOTH REAR FENDER DEFLECTORS ARE BENT
Front Frame
● ● ●
NO CRACKS WERE SEEN.
Fuel Tank
● ● ●
Grab Irons
● ● ●
Paint
● ●
LOOKS NORMAL FOR THE AGE AND HRS.
Pre-Cleaner Bowl
● ● ●
Radiator Grill & Shroud
● ● ●
Rear Frame
● ● ●
NO CRACKS WERE SEEN.
Sheet Metal
● ● ●
Steps / Ladder
● ● ●

Parking Brake Functioning Yes
ROPS Certification Plate No THE CERTIFICATION DECAL IS MISSING.
Safety Decals In Place Yes
Safety Decals Legible Yes
Safety Locks / Pins Yes
Service Brakes Functioning Yes
Back Up Alarm
● ● ●
Horn
● ● ●
ROPS
● ●
THERE IS A 3/32 INCH DRILL HOLE IN THE L.H. REAR ROPS POLE. CAT SAID THE HOLE CAN BE REPAIRED AND THE CERTIFICATION IS IN PLACE. SEE ATTACHED DSN RESPONSE.
Seat Belt / Date
● ●
FUNCTIONAL.

Fuel Level 55%

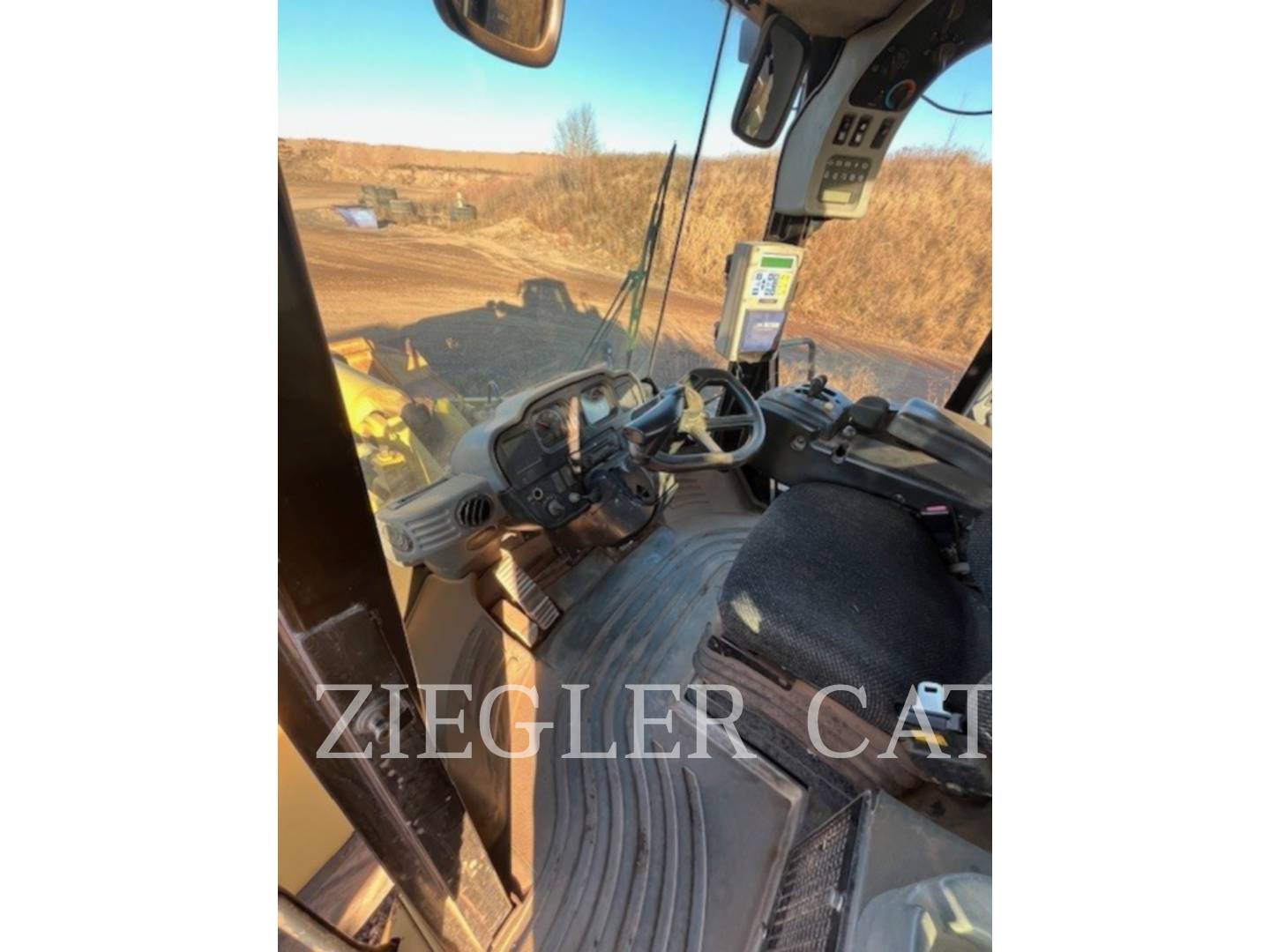

Notes - OPERATOR STATION 1 THE WEIGHT MONITORING SYSTEM IS NOT TURNING ON.
Current O&MM Yes
Air Conditioner
● ●
TO COLD TO BE TESTED.
Armrests
● ●
MINOR WEAR
Cab Filter / Heat Vent Louvres
● ●
Dash Console
● ● ●
Door Latches / Hinges / Seals
● ● ●
Floor Boards / Mats
● ● ●
Gauges
● ● ●
Headliner
● ● ●
Heater / Defroster
● ● ●
Hour Meter
● ● ●
ACCURATE.
Interior Lights
● ● ●
Interior Plastic / Fabric
● ● ●
Mirrors
● ● ●
Monitoring Display
● ●
THERE IS AN ACTIVE CODE FOR THE ACTION ALARM 271-5
Radio
● ● ●
CD

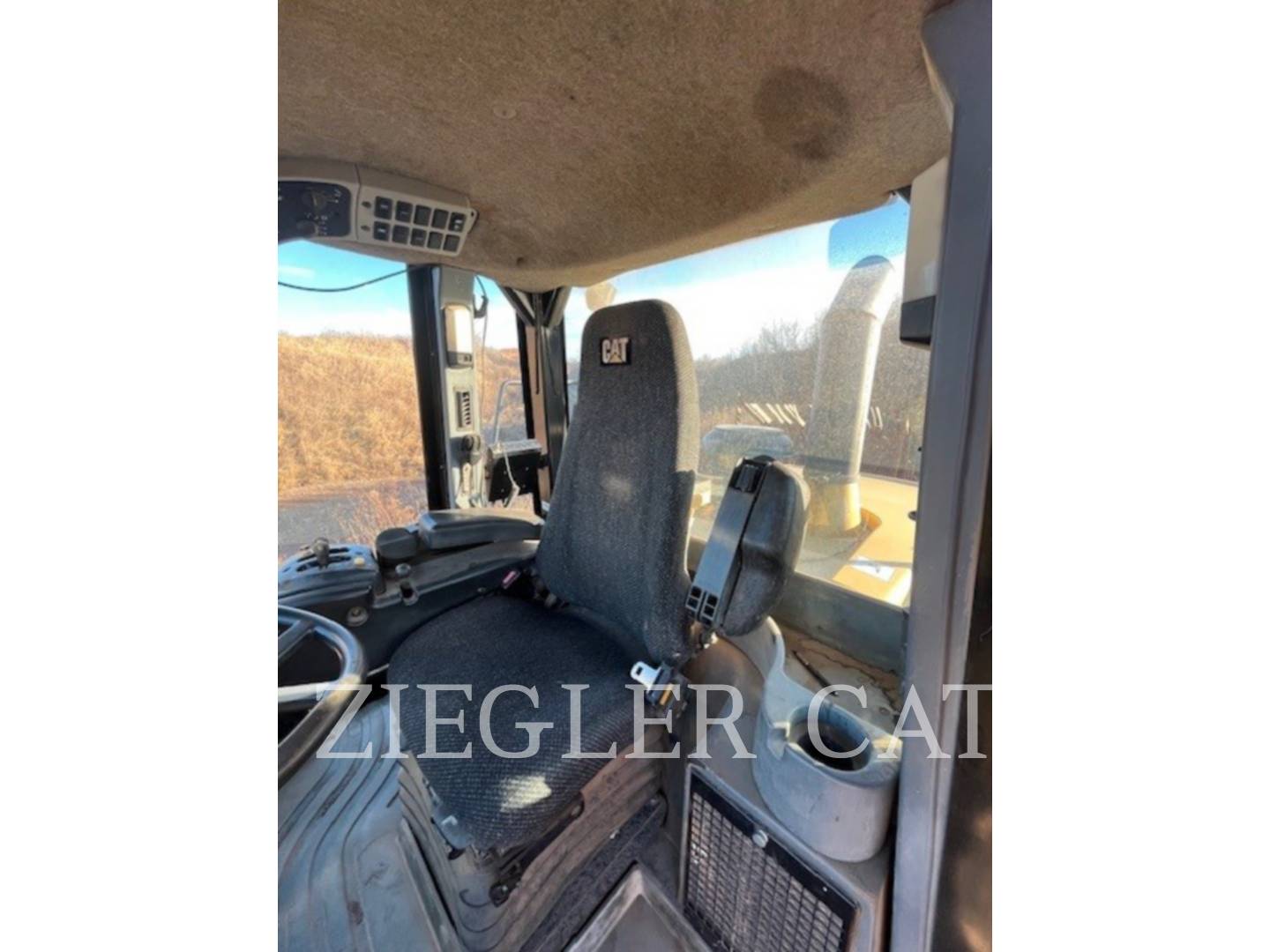

Seat Cushions / Suspension / Type
● ● ●
Switches
● ● ●
Windows
● ● ●
Windshield Wipers
● ●

Blow By Yes NORMAL FOR THE HRS.
Emissions Decal Legible Yes TIER II
Fuel Leaks No
Knocking No
LOGGED OR ACTIVE CODES Yes LOGGED CODES 274-4 ATMOSPHERIC PRESSURE SENSOR AND E096 (1) HIGH FUEL PRESSURE
Oil Leaks Yes THE L.H. FRONT ENGINE COVER HAS A LEVEL 1 WEEP AND THE R.H. REAR ENGINE BLOCK HAS A RUBBER PLUG LEAKING LEVEL 3.
Service Needed No I SAMPLED THE OIL DURING THIS INSPECTION & IT RETURNED NORMAL.
Water in Oil No
Notes - ENGINE THE ENGINE IS RUNNING SMOOTH WITH FAIR TO NORMAL OVERALL POWER & RETURNED A NORMAL OIL SAMPLE. IT HOLDS UP UNDER A DOUBLE STALL.
Oil Pressure (H/L/N) NORMAL
Smoke Color (B/D/L/W) NORMAL
Engine Oil Level / Condition
● ● ●
Engine Supports / Mounts
● ● ●
Exhaust / Muffler / Stack
● ● ●
Fuel Injection System
● ● ●
Governor
● ● ●
Intake / Air Filters
● ●
Operating Condition
● ● ●
Turbocharger / Blower
● ●
THE TURBO DRAIN LINE IS LEAKING TO LEVEL 2.

Compression in Radiator No
Coolant Leaks No
Oil in Anti-Freeze No
Standard Radiator Yes
Notes - COOLING SYSTEM THE COOLING SYSTEM IS FUNCTIONING NORMAL IN 40 DEGREE WEATHER.
Anti-Freeze Level / Color / Condition
● ● ●
NORMAL LEVEL & COLOR.
Belts / Pulleys - COOLING SYSTEM
● ●
Coolers
● ● ●
Fan
● ● ●
Fan Drive / Type
● ● ●
HYDRAULIC
Fan Shrouds / Guards
● ● ●
Hoses / Tubes
● ●
Radiator
● ● ●
Water Pump
● ● ●

Block Heater Yes
Ether Aid Yes MISSING THE ETHER CAN.
Signal Lights Yes
Alternator
● ● ●
Batteries / Cables / Master Disconnect
● ● ●
Starter / Type
●
THE STARTER IS LEAKING LEVEL 3.
Wiring
● ●
Work Lights
● ●
THERE IS ONE TOP CAB LIGHT ON THE FRONT AND ONE ON THE REAR.

Transmission - Noisy No
Notes - TRANSMISSION THE TRANSMISSION WAS RECONDITIONED 7-17 AT 15381 HOURS. THE TRANSMISSION IS SHIFTING NORMAL TO ALL GEARS.
Case
● ● ●
Controls - TRANSMISSION
● ● ●
Cooler
● ● ●
Drive Shaft
● ● ●
Lines / Fittings - TRANSMISSION
● ● ●
Operating Condition - TRANSMISSION
● ● ●
Pump - TRANSMISSION
● ● ●
Seals
● ● ●
Temp / Pressure Gauges
● ● ●
Torque Converter - TRANSMISSION
● ● ●
STALLING NORMAL.
Transmission - Forward Shifts
● ● ●
Transmission - Reverse Shifts
● ● ●
Universal Joints - TRANSMISSION
● ● ●
SEVERAL U-JOINTS WERE REPLACED AT 15381 HOURS

Notes - STEERING THE MACHINE IS STEERING NORMAL WITH LEAKING STEERING CYLINDERS.
Articulate P & B
● ●
MINIMAL TO MINOR PLAY.
Lines / Fittings - STEERING
● ●
Pumps
● ●
ORIG
Steering Cylinder
●
BOTH STEERING CYLINDERS ARE LEAKING TO LEVEL 3.
Steering Linkage
● ●
MINOR FUNCTIONAL PLAY.
Steering Valves / Pumps
● ●
THE COMMAND STEERING CONTROL VALVE IS WET TO LEVEL 1.
Steering Wheel Tilt / Extend
● ● ●
Supplemental Steer
●
THERE IS AN ACTIVE CODE 795-7 FOR THE SECONDARY STEERING INTERMEDIATE RELAY NOT RESPONDING.
Valves
● ● ●

Holds In Park Yes
Leaks - BRAKE No
Holding What Gear? HOLDS IN SECOND GEAR STALL.
Notes - BRAKE ALL BRAKES ARE FUNCTIONAL.
Accumulator
● ● ●
Control Valve
● ● ●
Lines / Tubes
● ● ●
Parking Brake - BRAKE
● ● ●
PARKING BRAKE WAS RECONDITIONED 7-17 AT 15381 HOURS
Pedal
● ● ●
Pump - BRAKE
● ●
ORIG
Type (Wet, Dry)
● ● ●
WET INTERNAL.

Leaks - HYDRAULICS Yes
Notes - HYDRAULICS THE HYDRAULICS ARE FUNCTIONING TO NORMAL LEVELS WITH SEVERAL LEAKS AS DESCRIBED & RETURNED A NORMAL OIL SAMPLE. THE AUTO DIG FEATURE IS NOT WORKING
Accumulator Charge - Ride Control
● ●
THE RIDE CONTROL IS TURNING ON BUT FIRM WHEN SPRINGING BACK FROM A CUSHION.
Bucket & Hoist Kickout
● ● ●
Control Linkage
● ● ●
ELECTRO HYDRAULIC CONTROLS.
Filter Condition (CUT)
● ●
I SAMPLED THE OIL DURING THIS INSPECTION & IT RETURNED NORMAL.
Hose Lines
●
THERE ARE SEVERAL HOSES LEAKING TO LEVEL 3.
Lift Cylinders
●
BOTH CYLINDERS ARE LEAKING TO LEVEL 3.
Overall Operating Condition
● ● ●
Pumps & Valves
● ●
ORIG
Tank
● ● ●
Tilt Cylinder
●
THE TILT CYLINDER IS LEAKING LEVEL 3.

Standard Lift Yes
Bucket Capacity 5 PLUS YDS.

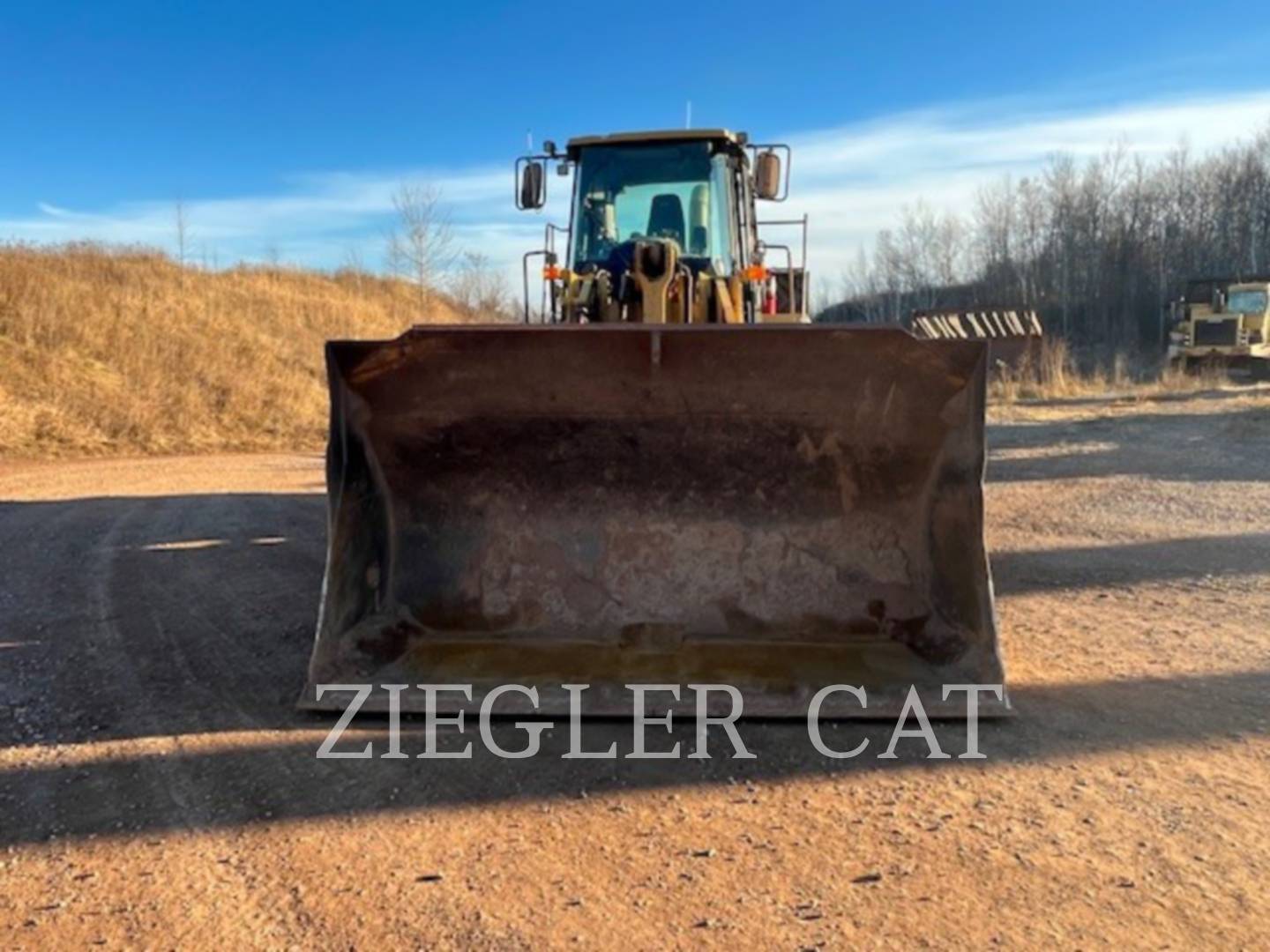

Notes - BUCKET THE BUCKET AND LINKAGES ARE WORN BUT WOULD STILL DIG.
Bucket Bottom
● ●
THE BOTTOM HAS SEEN WELDING AND REPAIR. CURRENTLY IN FAIR CONDITION.
Bucket Floor
● ●
THE BUCKET FLOOR HAS SEEN PATCH WORK AND IS CURRENTLY THIN WITH NO HOLES.
Bucket P & B
●
THE LOWER LOADER ARM TO BUCKET JOINTS ARE WORN AROUND 1/8 PLUS INCH. THE TILT BONE IS WORN OVER 1/8 - 3/16 INCH.
Bucket Sides
● ● ●
Cutting Edges
● ●
THE BASE EDGE HAS SEEN BUILDUP. CURRENTLY IN FAIR CONDITION.
Loader Frame
● ● ●
Loader Pins & Bushings
● ● ●
MINIMAL PLAY
Segments
● ● ●
CAN STILL BE TURNED.

Notes - FINAL DRIVES THE DRIVELINE COMPONENTS ARE FUNCTIONING NORMAL.
Differentials
● ●
Front Axle
● ●
Rear Axle
● ●
Trunion
● ●
NO PLAY FELT. CANT BE SEEN DUE TO GUARDING.
Wheel Lugs & Rims - FINAL DRIVES
● ● ●

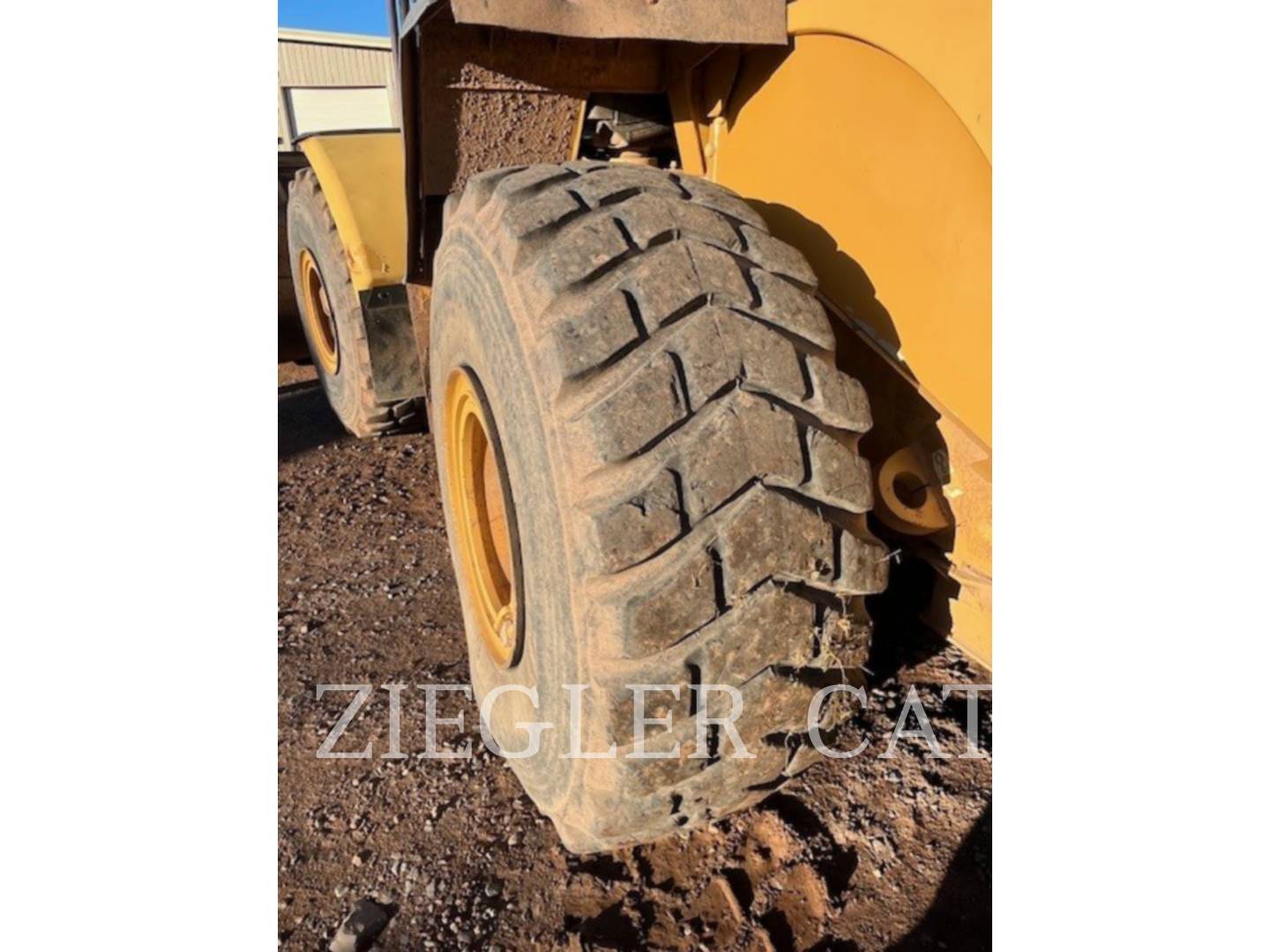

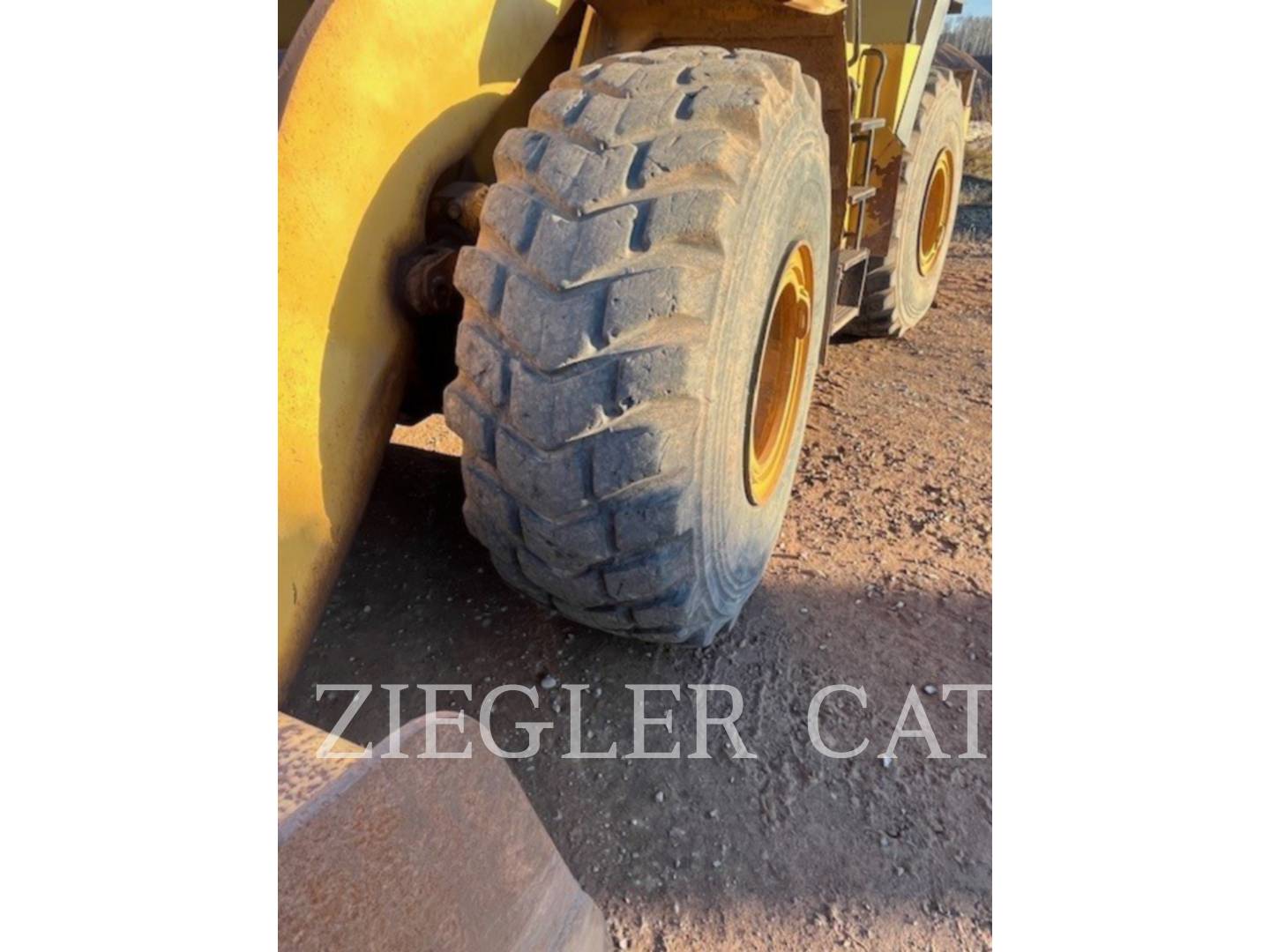

Notes - TIRES ALL TIRES ARE FUNCTIONAL WITH SOME MINOR TO MODERATE LUG DAMAGE.
Tire Size - TIRES 26.5R25
Left Front
Life Left: 50%
Recapped: No
Tread Cuts Chunks: No
Side Cuts Section: No
Left Rear
Life Left: 50%
Recapped: No
Tread Cuts Chunks: No
Side Cuts Section: No
Right Front
Life Left: 50%
Recapped: No
Tread Cuts Chunks: No
Side Cuts Section: No
Right Rear
Life Left: 50%
Recapped: No
Tread Cuts Chunks: No
Side Cuts Section: No

comment 1 THE ENGINE RETURNED A NORMAL OIL SAMPLE AND IS RUNNING SMOOTH WITH FAIR TO NORMAL POWER.
comment 2 THE TRANSMISSION IS SHIFTING NORMAL TO ALL GEARS AND THE HYDRAULICS ARE FUNCTIONAL HAVING RETURNED A NORMAL OIL SAMPLE.
