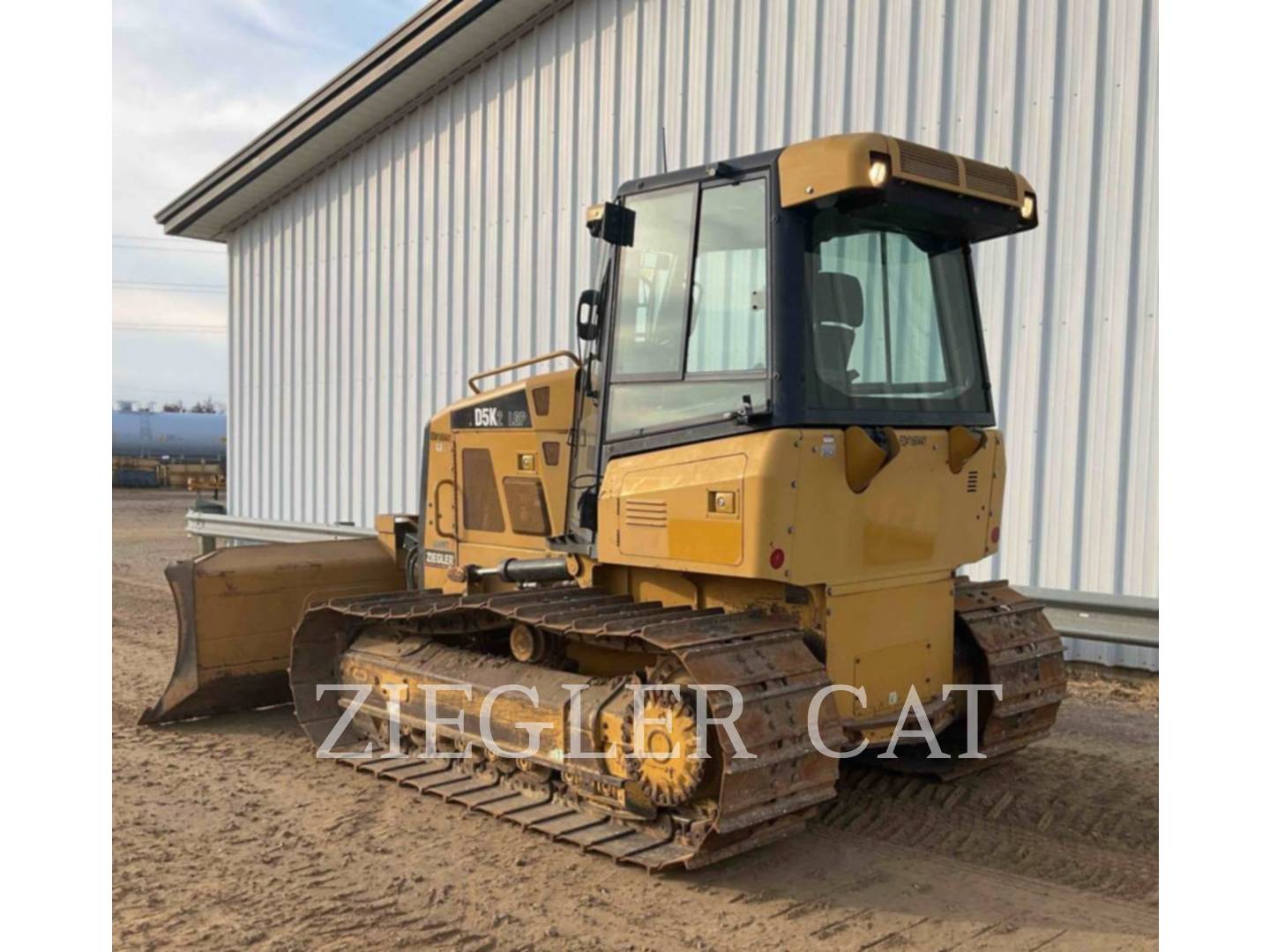

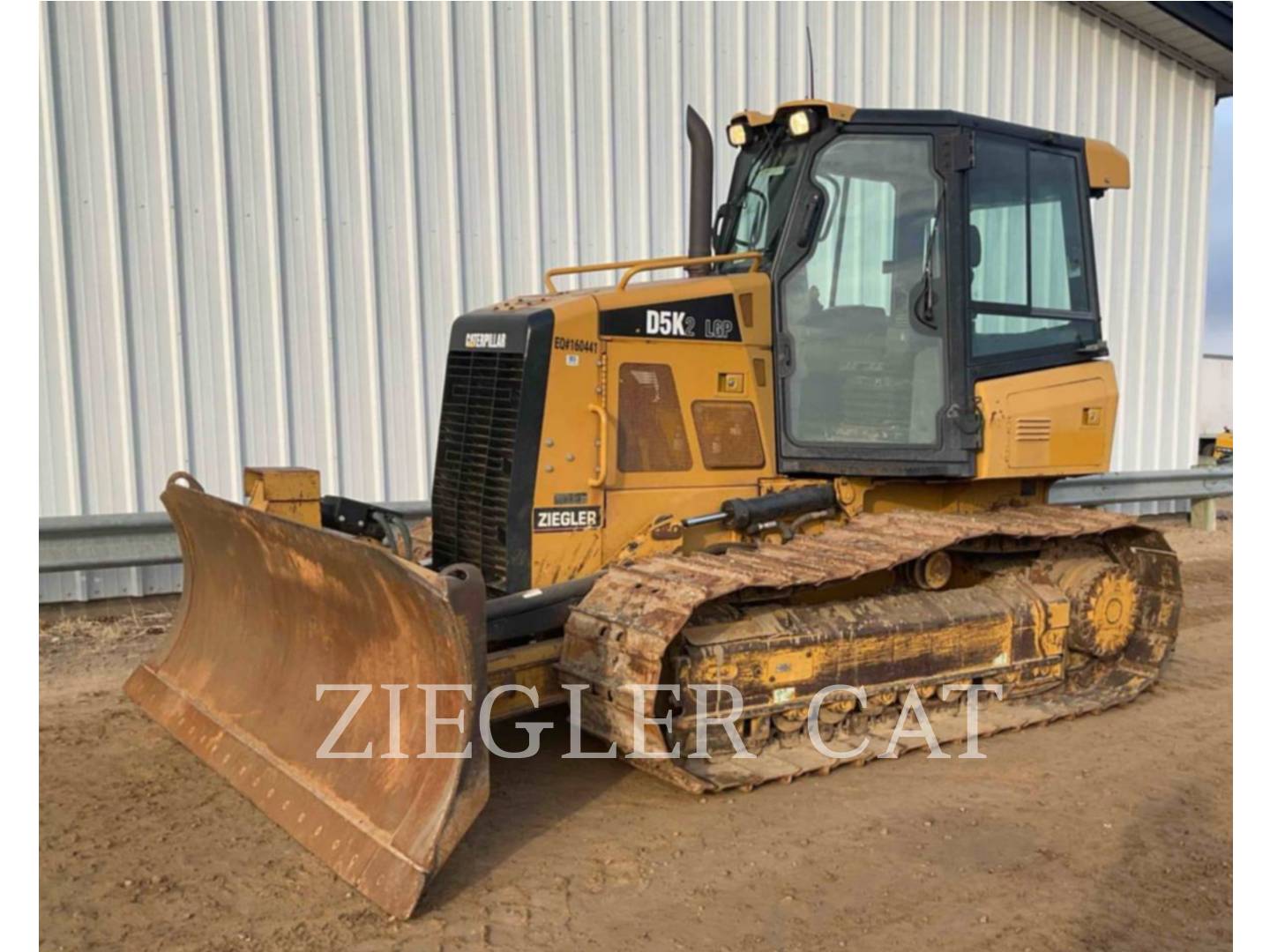

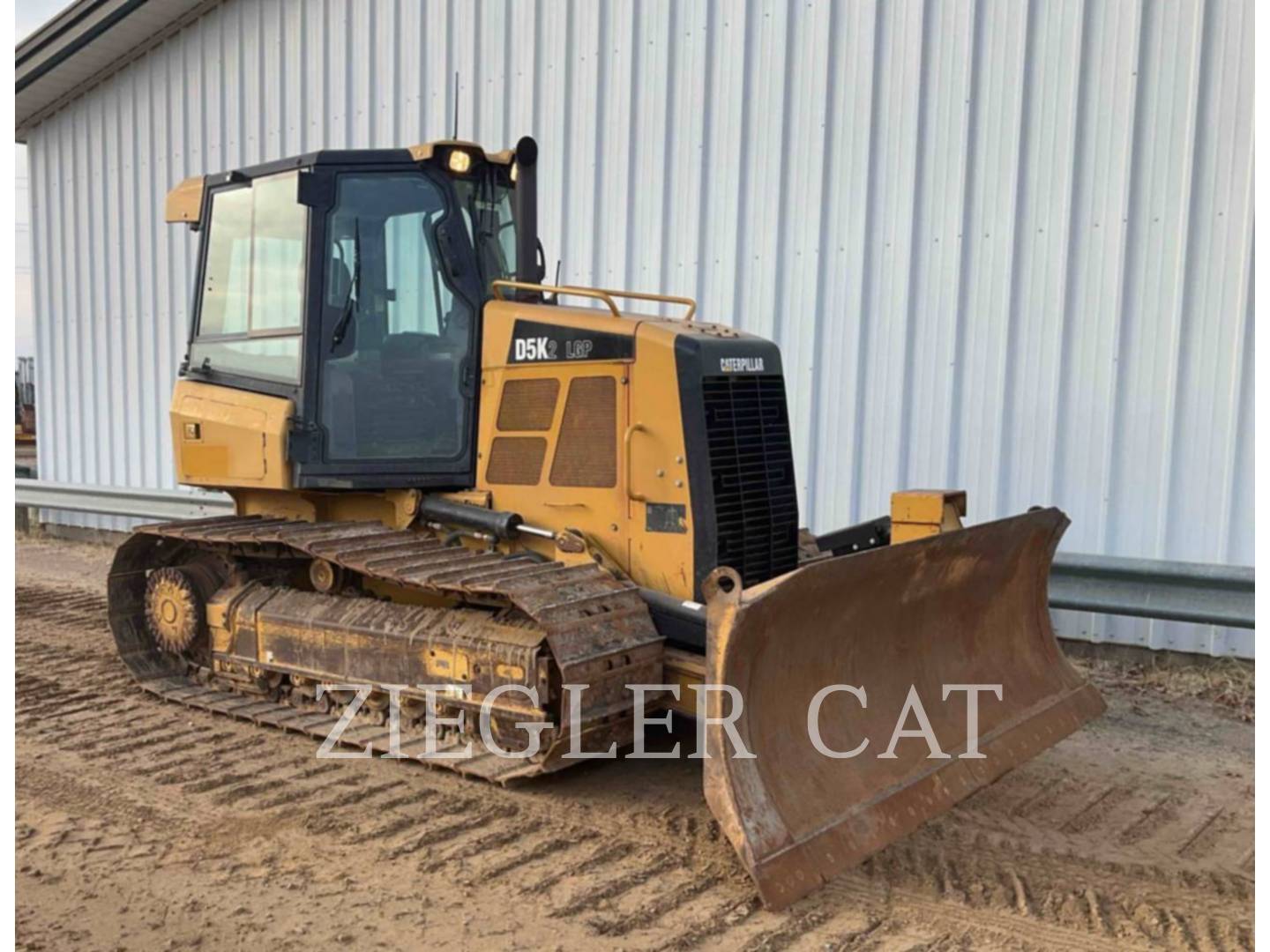

2013 CAT D5K 5,623 engine hrs
Condition
| Logged / Active Codes | No | |
|---|---|---|
| Machine Starts and is Operable | Yes | |
| Visible Oil Leaks | No | |
| Body | ||
| Frame | ||
| General |
| Battery Box | ||
|---|---|---|
| Belly Pans | ||
| Cab or Canopy | ||
| Decals | Missing rear CAT decal. | |
| Draw Bar | ||
| Engine Enclosures | ||
| Fuel Tank | ||
| Grab Irons | ||
| Hood | ||
| Main Frame Welds | ||
| Paint | Paint is scratched in some spots. Looks normal for hours. | |
| Radiator Grill | ||
| Sheet Metal | ||
| Steps / Ladder |
| Parking Brake Functioning | Yes | |
|---|---|---|
| ROPS Certification Plate | Yes | |
| Safety Decals Legible | Yes | |
| Back Up Alarm | ||
| Horn | ||
| ROPS | ||
| Seat Belt / Date | ||
| Secondary Exit |
| Fuel Level - OPERATOR STATION | 1/4 | |
|---|---|---|
| Current O&MM | Yes | |
| Air Conditioner | A/C blows cold at 49 degrees. | |
| Armrests | ||
| Cab Filter / Heat Vent Louvres | ||
| Dash Console | ||
| Door Latches / Hinges / Seals | ||
| Floor Boards / Mats | ||
| Gauges | ||
| Headliner | ||
| Heater / Defroster | ||

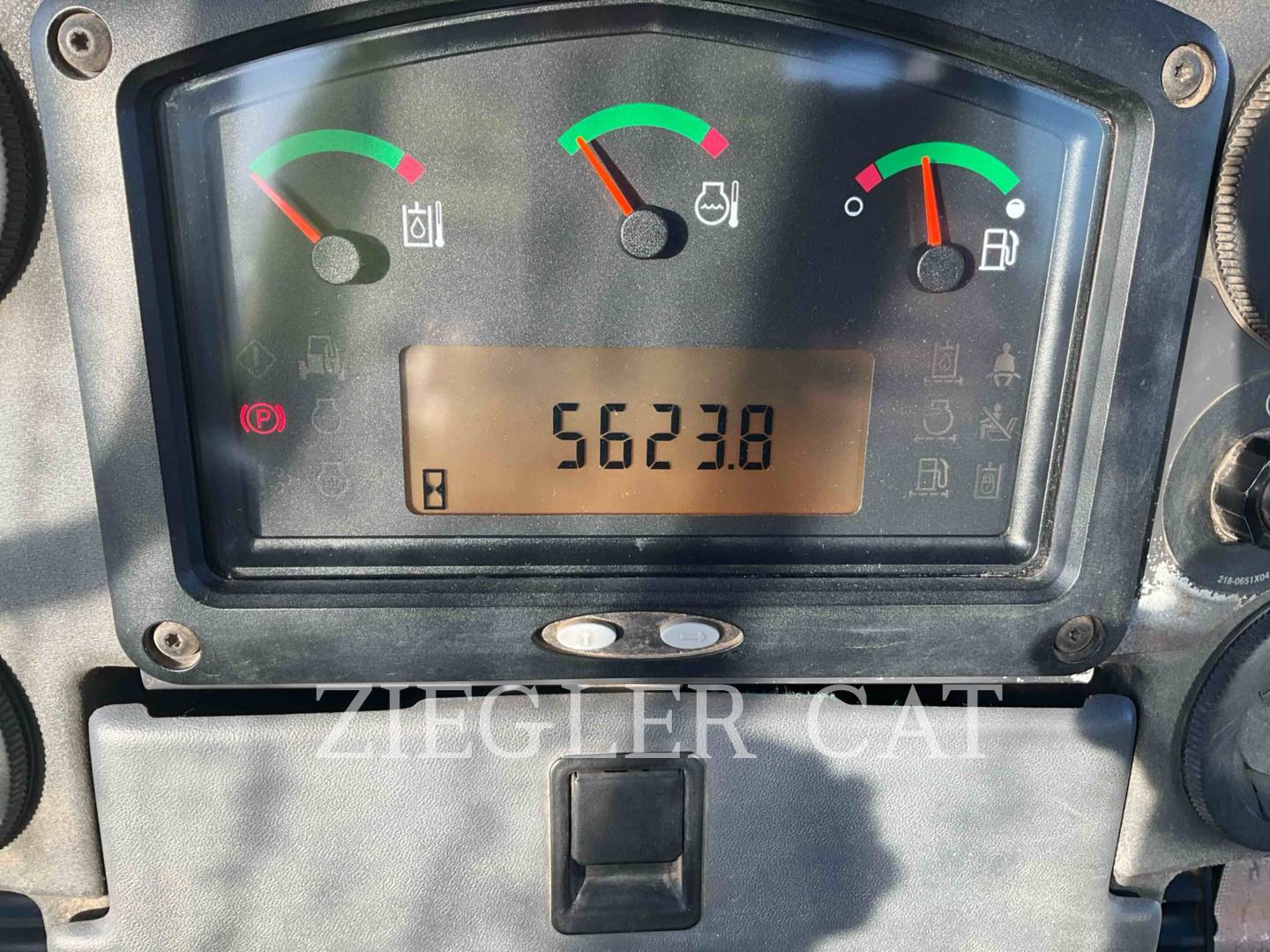

| Hour Meter - GAUGES, OPERATION STATION, CONSOLE | ||
| Hydraulic Controls | ||
| Interior Lights | ||
| Interior Plastic / Fabric | ||
| Mirrors | ||
| Monitoring Display | ||
| Pans/Guards | ||
| Radio | Volume dial is missing. | |
| Seat Cushions / Suspension / Type | Heated seat is not working. | |
| Switches | ||
| Transmission Controls | ||
| Windows | ||
| Windshield Wipers | Wipers only work when washer fluid button is pressed, fluid is not spraying on right door or rear window. |
| Apparent Other Engine Damage | No | |
|---|---|---|
| Blow By | No | |

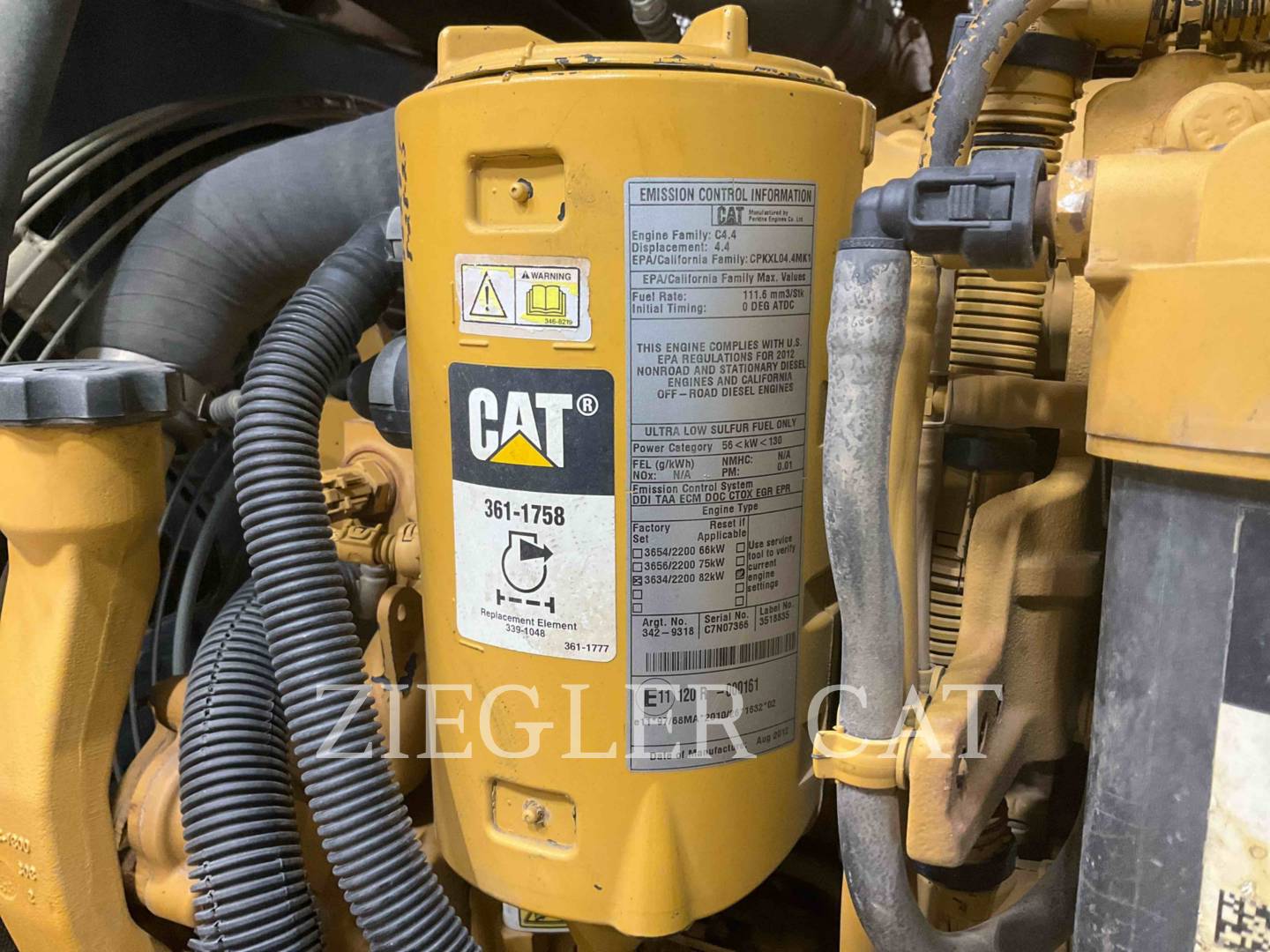

| Emissions Decal Legible | Yes | |
| Fuel Leaks | No | |
| Oil Leaks | No | |

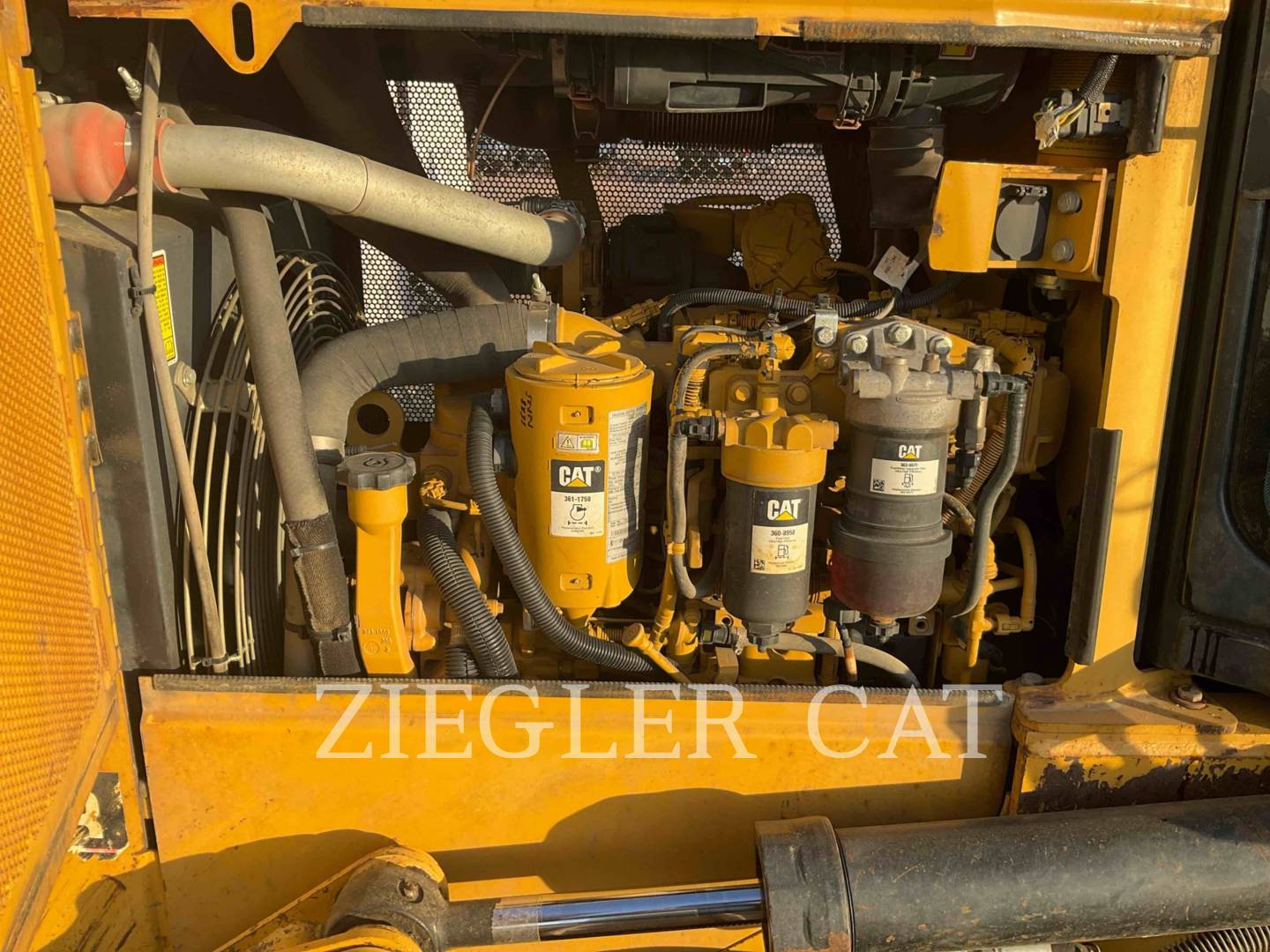

| Service Needed | No | No dates written on filters, air filter looks clean and engine oil looks clean. |
| Water in Oil | No | |
| Oil Pressure (H/L/N) | Good | |
| Smoke Color (B/D/L/W) | None | |
| Belts / Pulleys - ENGINE | ||
| Engine Oil Level / Condition | ||
| Engine Supports / Mounts | ||
| Exhaust / Muffler / Stack | ||
| Fuel Injection System | ||
| Governor | ||
| Intake / Air Filters | ||
| Operating Condition - ENGINE | ||
| Other | ||
| Turbocharger / Blower |
| Aftertreatment System Codes | No | |
|---|---|---|
| Aftertreatment Heat Shields / Guards | ||
| Diesel Particulate Filter (DPF) Condition / Service Hours | Non serviceable DPF. machine has no codes for DPF |
| Compression in Radiator | No | |
|---|---|---|
| Coolant Leaks | No | |
| Oil in Anti-Freeze | No | |
| Standard Radiator | Yes | |
| Anti-Freeze Level / Color / Condition | ||
| Belts / Pulleys - COOLING SYSTEM | ||
| Coolers | Coolant temp wont go over 126 degrees. | |
| Fan | ||
| Fan Drive / Type | ||
| Fan Shrouds / Guards | ||
| Hoses / Tubes | ||
| Radiator | ||
| Water Pump |
| Active Codes | No | |
|---|---|---|
| Block Heater | Yes | |
| Ether Aid | Yes | |
| Alternator | ||
| Batteries / Cables | ||
| Starter | ||
| Wiring | ||
| Work Lights |
| Hydrostatic | Yes | |
|---|---|---|
| Leaks - TRANSMISSION | No | |
| Transmission - Noisy | No | |
| Notes - TRANSMISSION | Transmission is smooth | |
| Case | ||
| Controls - TRANSMISSION | ||
| Cooler | ||
| Lines / Fittings - TRANSMISSION | ||
| Operating Condition - TRANSMISSION | ||
| Pump - TRANSMISSION | ||
| Seals | ||
| Temp / Pressure Gauges | ||
| Transmission - Forward Shifts | ||
| Transmission - Reverse Shifts | ||
| Transmission Oil Filter Condition / Service Hours | ||
| Valves |
| Differential Steer | ||
|---|---|---|
| Differential Steering Controls | ||
| Pump / Motor | ||
| Steering Operating Condition | ||
| Steering Valve |
| Parking Brake Operation | ||
|---|---|---|
| Service Brake Operation |
| Leaks - HYDRAULICS | No | |
|---|---|---|
| Angle Cylinder | ||
| Control Linkage - HYDRAULICS | ||
| Hose Lines | ||
| Hydraulic Oil Filter Condition / Service Hours | ||
| Hydraulic Valves | ||
| Lift Cylinders | ||
| Overall Operating Condition | Pilot accumulator is not charged. Cannot lower blade with engine off. | |
| Pumps | ||
| Tank / Sight Glass / Cap | ||
| Tilt Cylinder |
| Back of Blade | Left side lift link is bent over. | |
|---|---|---|
| C Frame / Mounts / Bearings | Both C-frame mounts have 1/4” of play in pin bores of machine. Left c-frame pin did not take grease. | |
| Cutting Edge & Bits | ||
| Face / Moldboard | ||
| Pins | Both lift cylinder and both angling cylinders have 3/16” of play on both ends. | |
| Stabilizer Link | ||
| Trunnions | Trunnion has 1/2” of play. |
| Link / Brand / Part Number | 235-2529 | |
|---|---|---|
| Notes - UNDERCARRIAGE 1 | The four leaking rollers are all very minor leaks just a little wet around seals. | |
| Guiding Guard - Left | ||
| Guiding Guard - Right | ||
| Track Frame - Left | ||
| Track Frame - Right | ||
| Carrier Rollers Front |
Left Measurement: 148mm Left Percent Worn: 75% Right Measurement: 148mm Right Percent Worn: 75% |
|
| Idlers Front |
Left Measurement: 22mm Left Percent Worn: 32% Right Measurement: 22mm Right Percent Worn: 32% |
|
| Links |
Left Measurement: 105mm Left Percent Worn: 35% Right Measurement: 105mm Right Percent Worn: 35% |
|
| Pins & Bushings (External) |
Left Measurement: 56mm Left Percent Worn: 54% Right Measurement: 56mm Right Percent Worn: 54% |
|
| Track Roller 1 |
Left Measurement: 21mm leaking Left Percent Worn: 32% Right Measurement: 21mm Right Percent Worn: 32% |
|
| Track Roller 2 |
Left Measurement: 21mm leaking Left Percent Worn: 32% Right Measurement: 21mm Right Percent Worn: 32% |
|
| Track Roller 3 |
Left Measurement: 21mm leaking. Left Percent Worn: 32% Right Measurement: 21mm Right Percent Worn: 32% |
|
| Track Roller 4 |
Left Measurement: 21mm Left Percent Worn: 32% Right Measurement: 21mm Right Percent Worn: 32% |
|
| Track Roller 5 |
Left Measurement: 21mm Left Percent Worn: 32% Right Measurement: 21mm Right Percent Worn: 32% |
|
| Track Roller 6 |
Left Measurement: 21mm Left Percent Worn: 32% Right Measurement: 21mm leaking. Right Percent Worn: 32% |
|
| Track Shoe Grouser Height |
Left Measurement: 39mm Left Percent Worn: 30% Right Measurement: 39mm Right Percent Worn: 30% |
| Magnetic Plugs Removed & Checked? | Yes | |
|---|---|---|
| Notes - FINAL DRIVES | Oil looks clean and at correct level. | |
| Housings, Left | ||
| Housings, Right | ||
| Planetaries / Differential, Left | ||
| Planetaries / Differential, Right |
Comments
A/C
HEATER
LIGHTS
RADIO
PAT DOZER
AIR SUSP SEAT
JOYSTICK STEER
DRAWBAR
