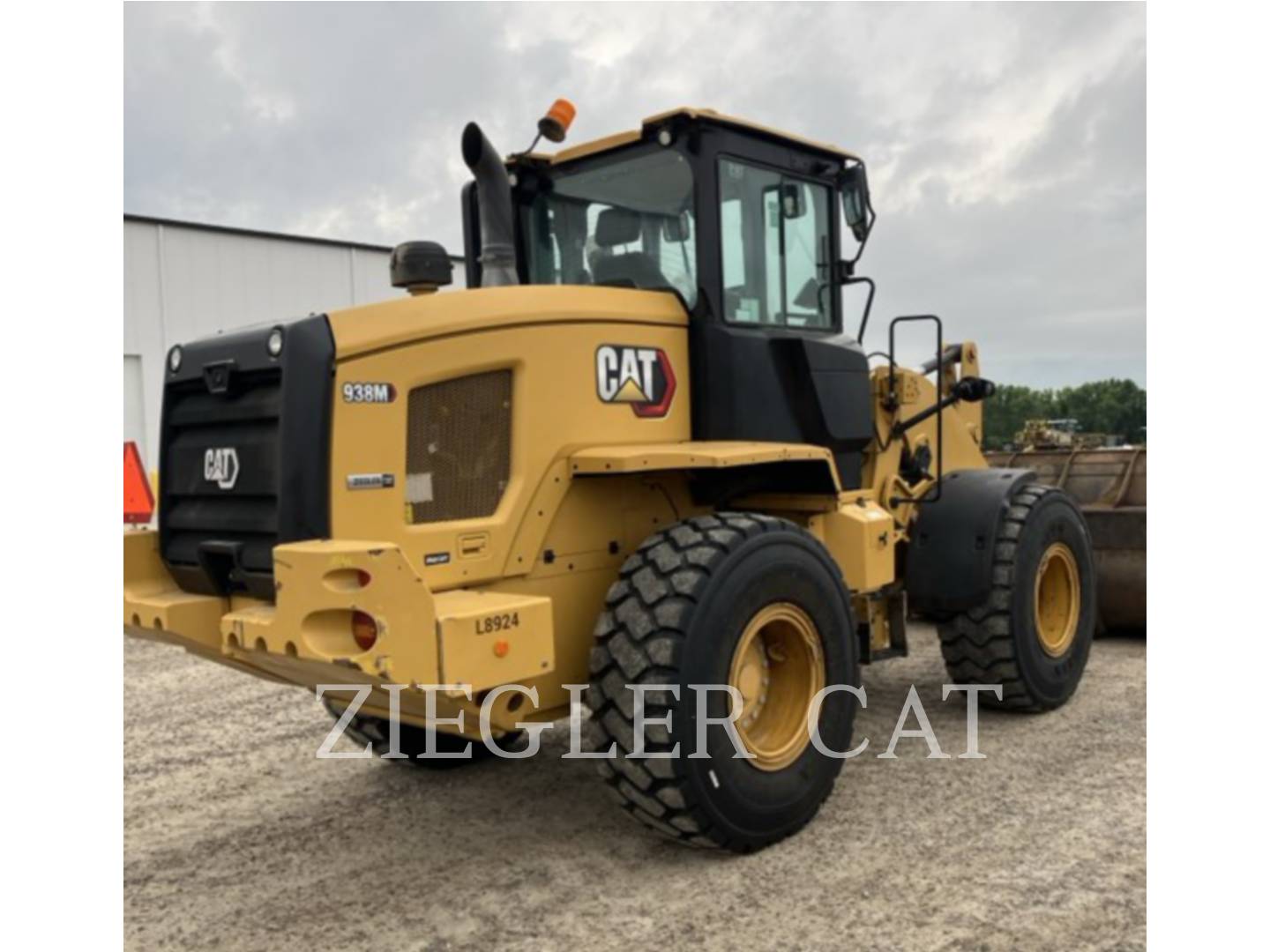

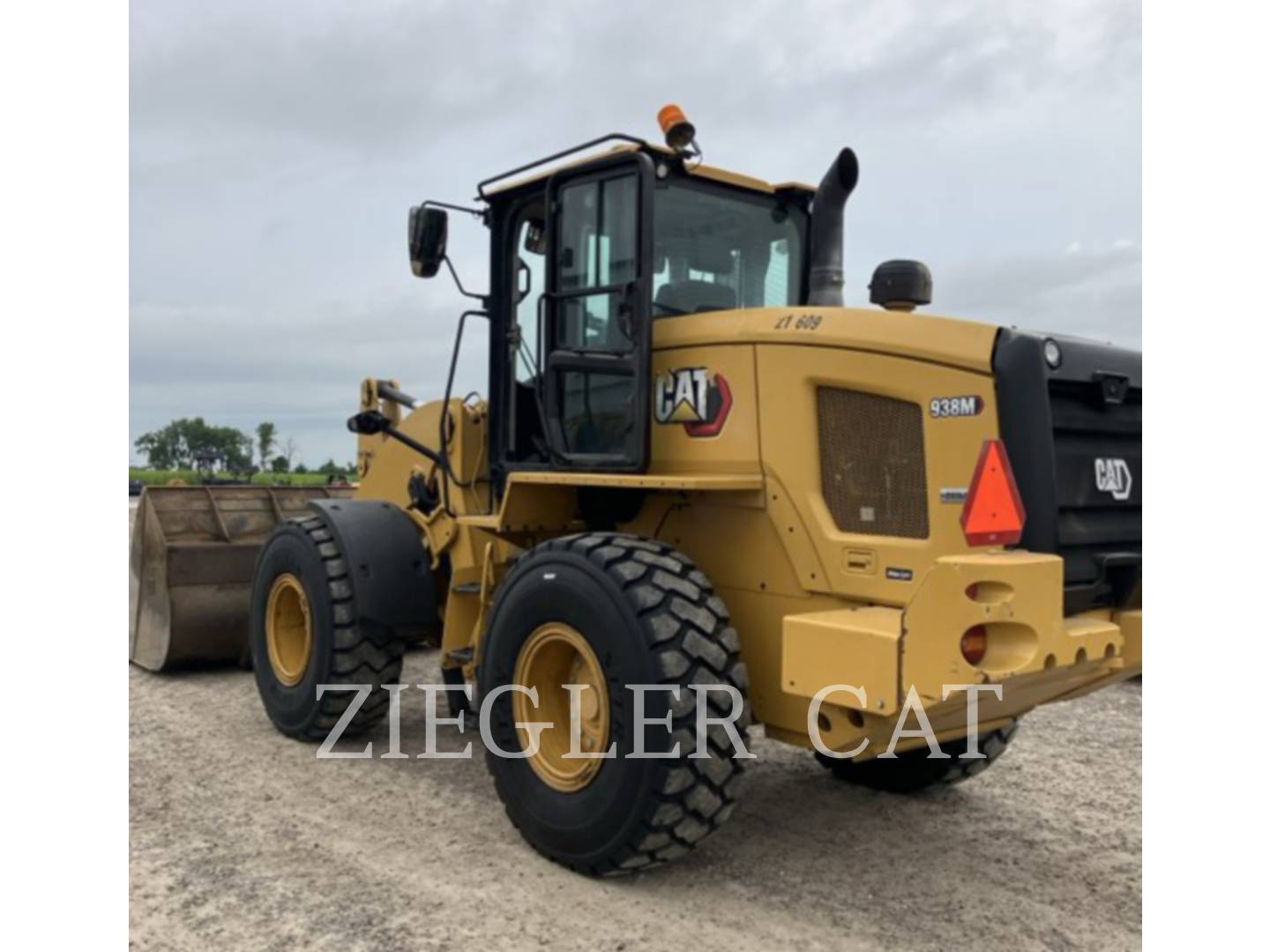

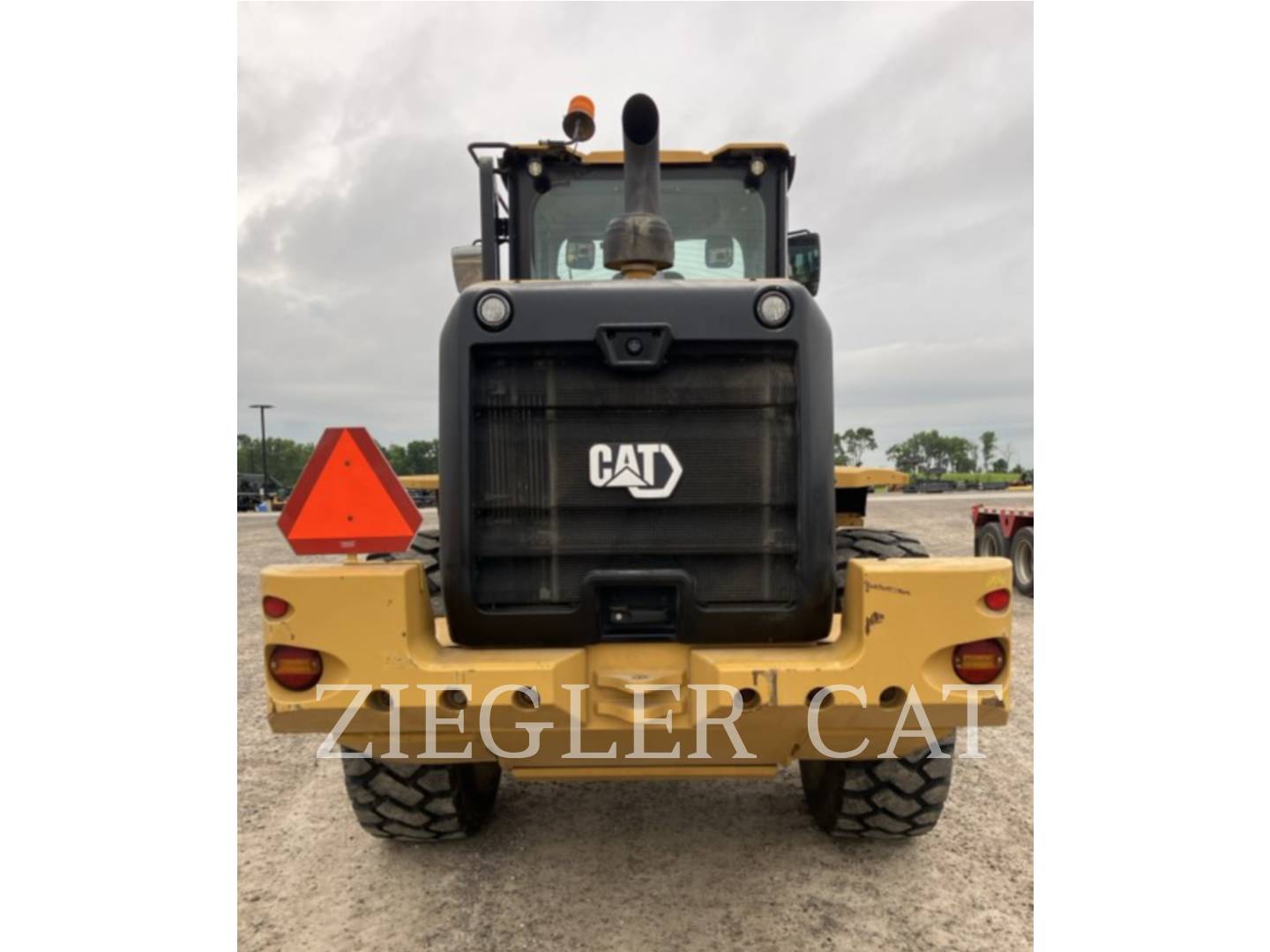

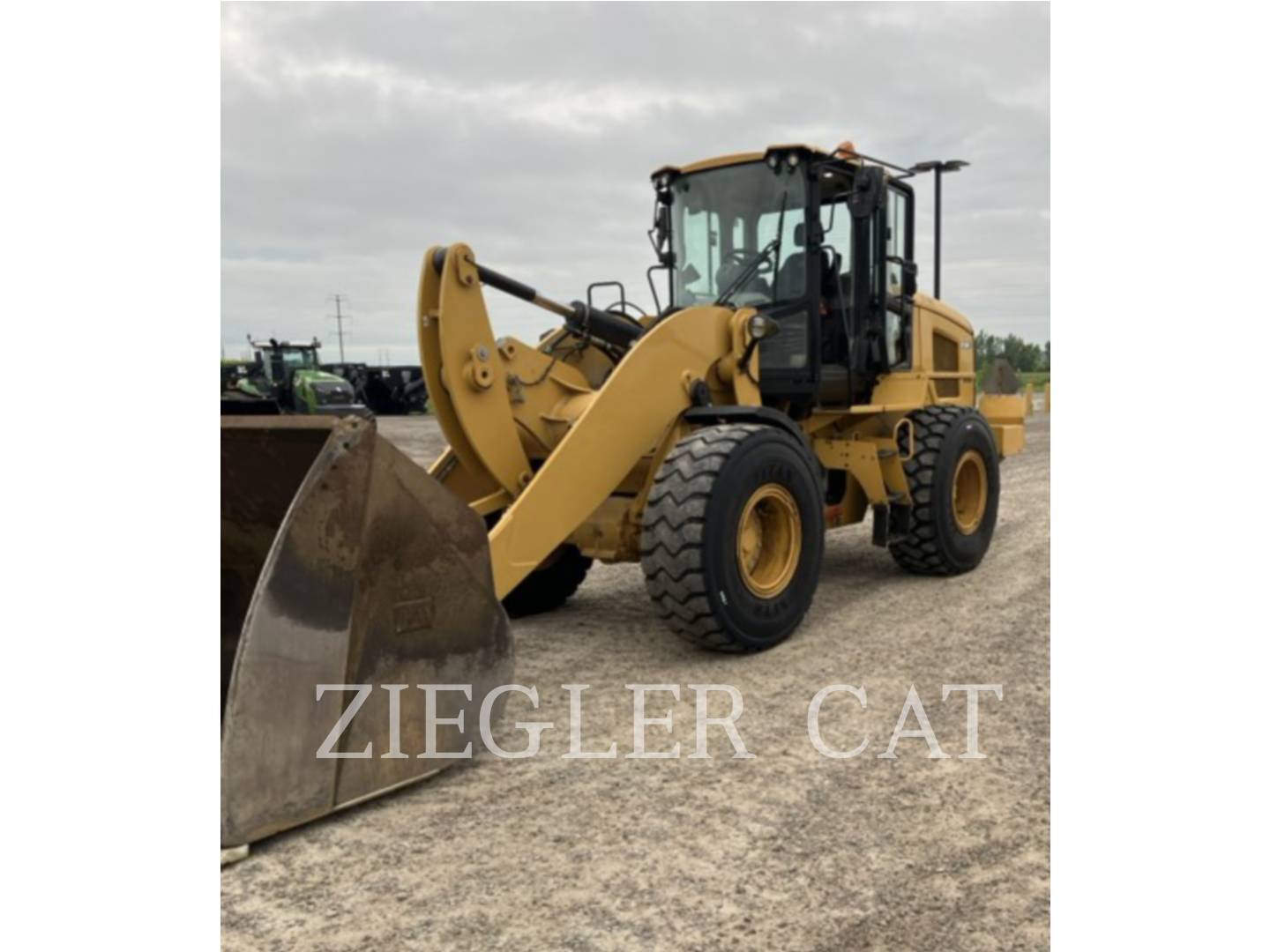

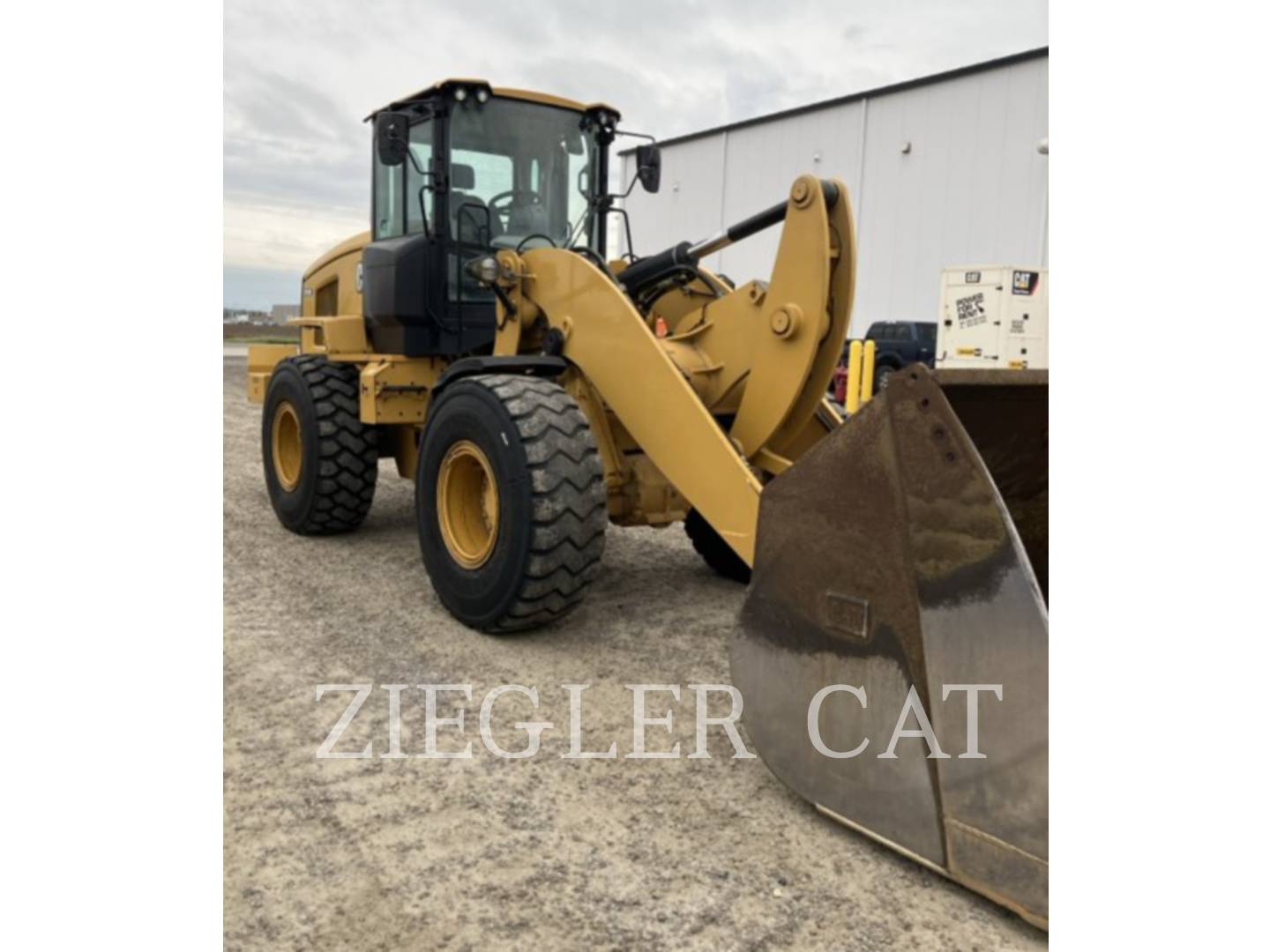

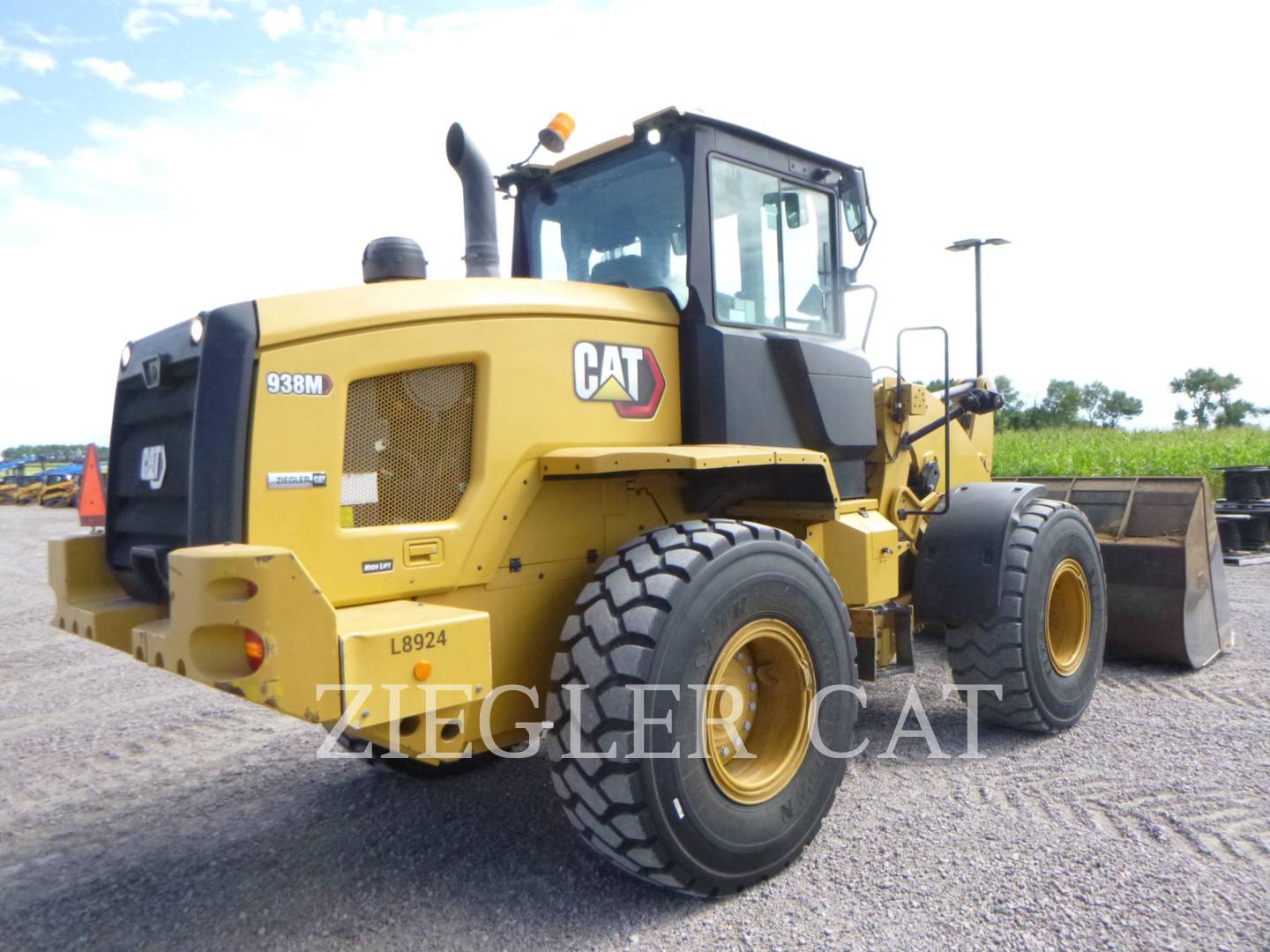

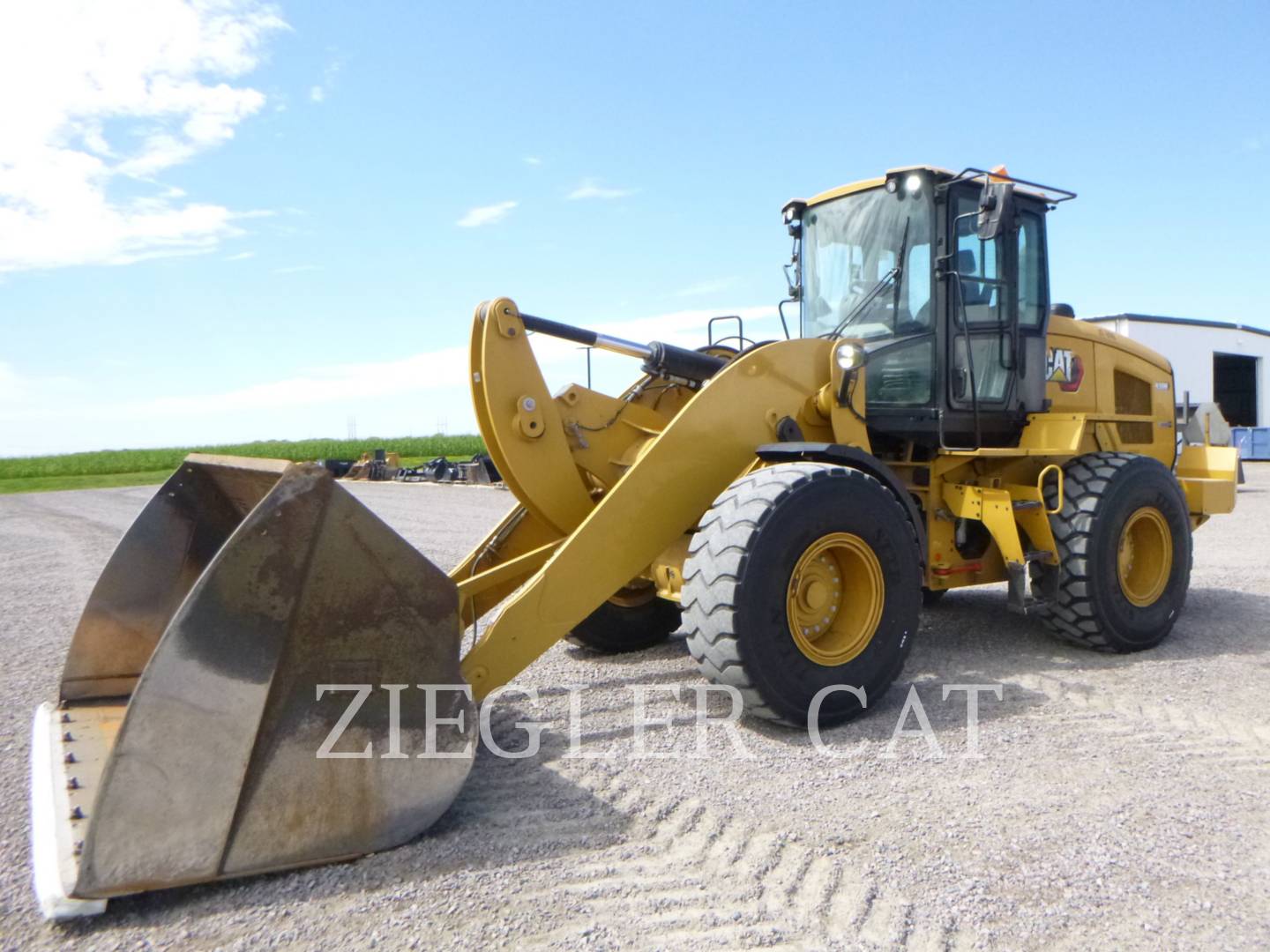

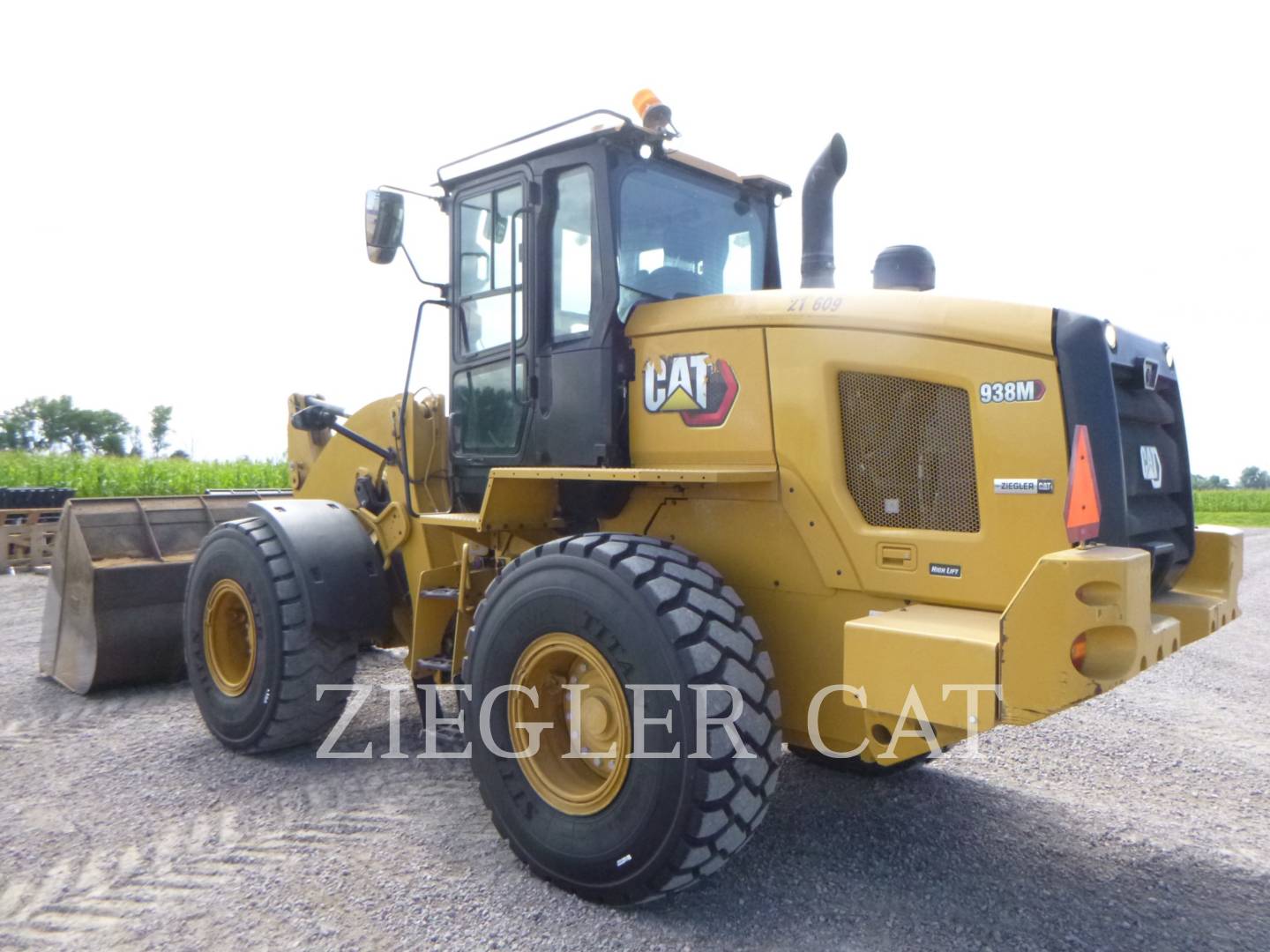

2021 CAT 938M 11,450 engine hrs
Condition
| Logged / Active Codes | Yes | NO ACTIVE CODES |
|---|---|---|
| Machine Starts and is Operable | Yes | |
| Tires are Aired Up and Drivable | Yes | |
| Visible Oil Leaks | No | |
| Body | ||
| Frame | ||
| General |
| Notes - GENERAL APPEARANCE | THE MACHINE HAS A FEW DENTS AND BENDS BUT LOOKS GOOD OVERALL CONSIDERING THE HOURS. | |
|---|---|---|
| Cab or Canopy | ||
| Counterweight | NO PIN. | |
| Crankcase Guard / Battery Box | BATTERY BOX COVERS MINOR DENTS | |
| Decals | ||
| Eng. Enclose Hood / Stack | ||
| Fenders | MINOR DENTS AND BENDS | |
| Front Frame | NO CRACKS WERE SEEN. | |
| Fuel Tank | ||
| Grab Irons | ||
| Guards / Screens | DENT ON THE FRONT DEF TANK GUARD. | |
| Paint | LOOKS GOOD CONSIDERING THE HOURS | |
| Pre-Cleaner Bowl | ||
| Radiator Grill & Shroud | ||
| Rear Frame | NO CRACKS WERE SEEN. | |
| Sheet Metal | ||
| Steps / Ladder |
| Parking Brake Functioning | Yes | |
|---|---|---|
| ROPS Certification Plate | Yes | CERTIFICATION IS IN PLACE. |
| Safety Decals In Place | Yes | |
| Safety Decals Legible | Yes | |
| Safety Locks / Pins | Yes | |
| Service Brakes Functioning | Yes | |
| Back Up Alarm | ||
| Camera(s) | ||
| Horn | ||
| ROPS | THE ROPS ARE CLEAN. | |
| Seat Belt / Date | FUNCTIONAL | |
| Secondary Exit |
| Diesel Exhaust Fluid (DEF) Level | 100% | |
|---|---|---|
| Fuel Level | 80% | |
| Current O&MM | Yes | |
| Air Conditioner | COOLING NORMAL. | |
| Armrests | ||
| Cab Filter / Heat Vent Louvres | ||
| Dash Console | ||
| Door Latches / Hinges / Seals | ||
| Floor Boards / Mats | ||
| Gauges | ||
| Headliner | ||
| Heater / Defroster | ||
| Hour Meter | ACCURATE | |
| Hydraulic Controls | ||
| Interior Lights | ||
| Interior Plastic / Fabric | ||
| Mirrors | THE LEFT MIRROR WON'T ADJUST VERTICALLY AND IS LOOSE ON MOUNT | |

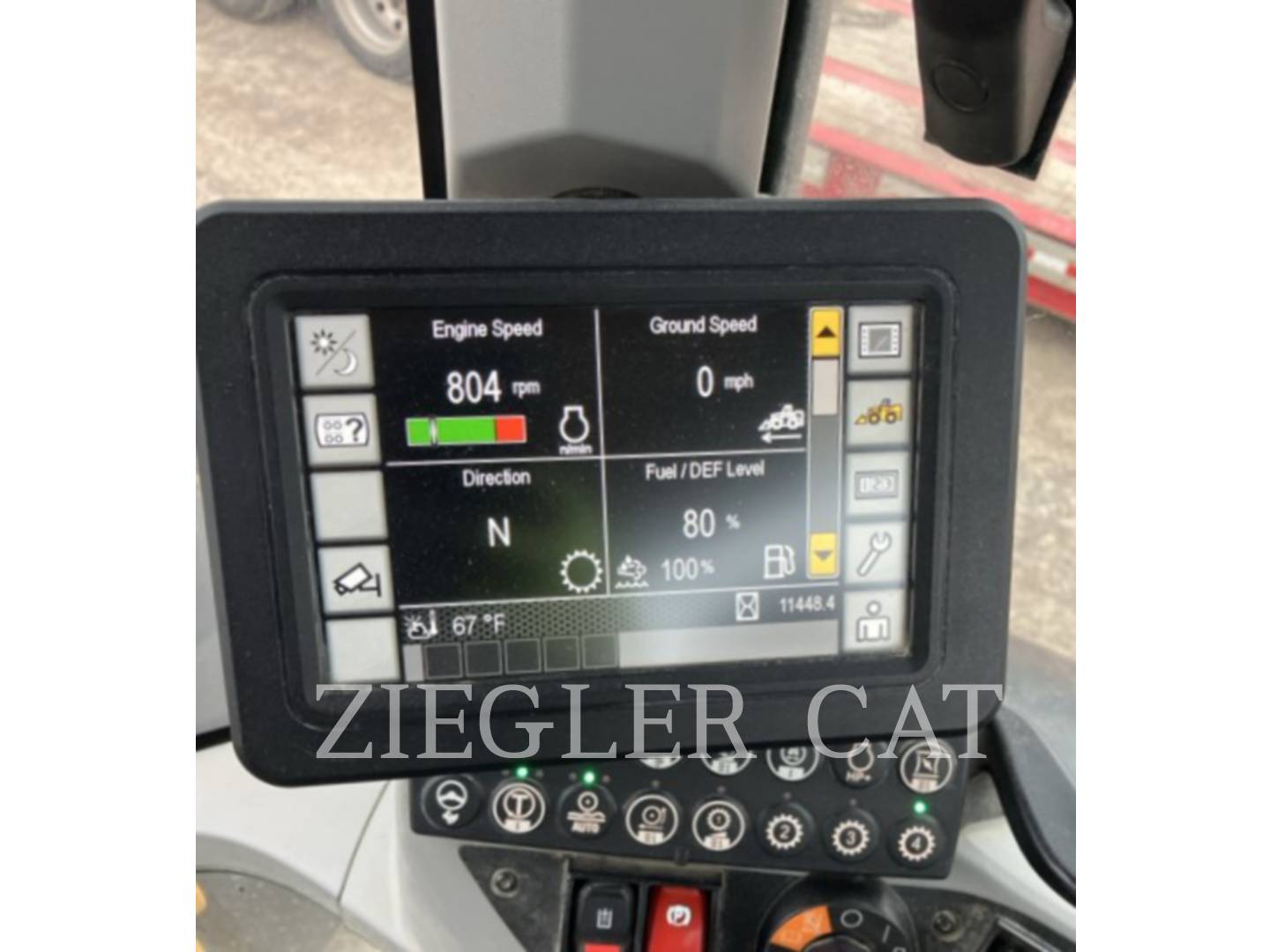

| Monitoring Display | THE WARNING ALARM IS NOT WORKING. | |
| Radio | THE RADIO IS NOT WORKING & ANTENNA IS BROKEN. | |
| Seat Cushions / Suspension / Type | THE SUSPENSION HAS MINOR PLAY AND THE SEAT CUSHION IS TORN | |
| Switches | ||
| Transmission Controls | ||
| Windows | ||
| Windshield Wipers | WASHER TANK PLASTIC GUARD IS CRACKED. |
| Blow By | No | |
|---|---|---|

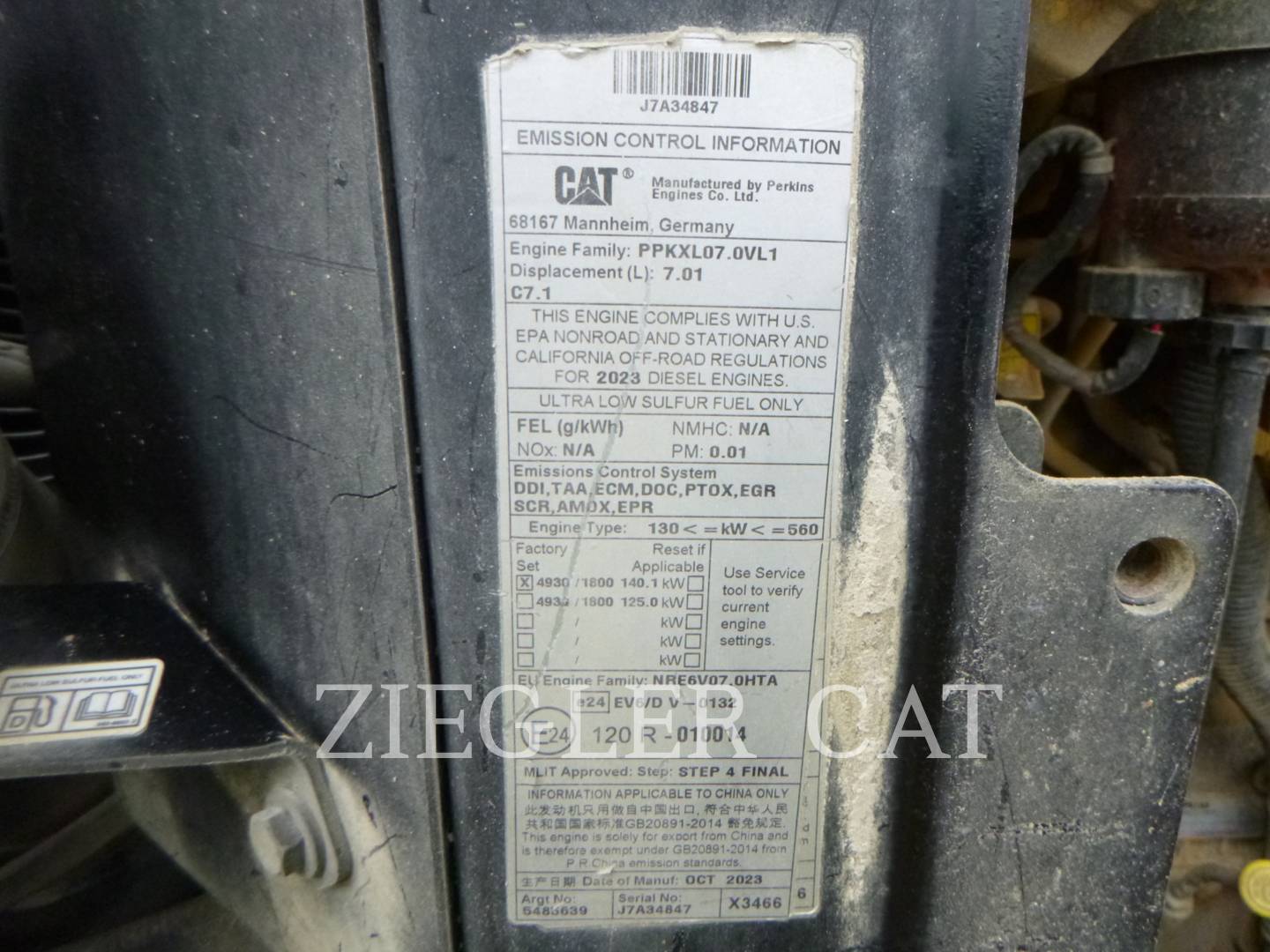

| Emissions Decal Legible | Yes | TIER 4 FINAL. |
| Fuel Leaks | No | |
| Has Engine been rebuilt? | Yes | REMAN ENGINE INSTALLED 5-24 AT 6973 HOURS |
| Knocking | No | |
| Oil Leaks | No | |
| Service Needed | No | THE OIL WAS SAMPLED DURING THIS INSPECTION & RETURNED NORMAL. |
| Water in Oil | No | |

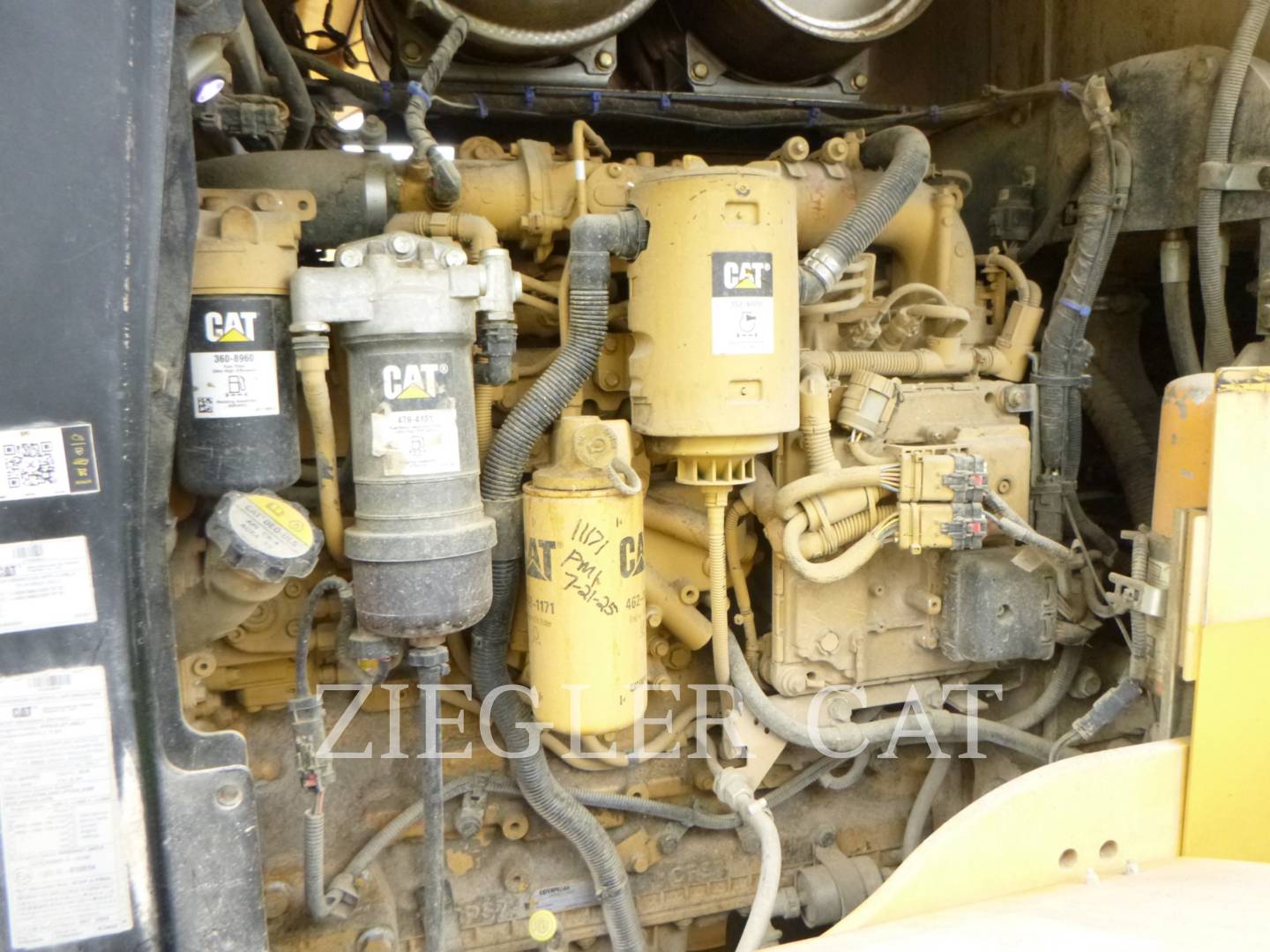

| Notes - ENGINE | REMAN ENGINE INSTALLED 5-24 AT 6973 HOURS. THE ENGINE IS RUNNING SMOOTH WITH NORMAL POWER. | |
| Oil Pressure (H/L/N) | NORMAL | |
| Smoke Color (B/D/L/W) | NORMAL | |
| Engine Oil Level / Condition | ||
| Engine Supports / Mounts | ||
| Exhaust / Muffler / Stack | ||
| Fuel Injection System | ||
| Governor | ||
| Intake / Air Filters | ||
| Operating Condition | ||
| Turbocharger / Blower |
| Aftertreatment System Codes | No | |
|---|---|---|
| Leaks / Type | No | |
| Notes - EMISSIONS | COMPLETE NEW EMISSIONS MODULE WAS INSTALLED 8-24 AT 7030 HOURS. THE EMISSIONS SYSTEM IS FUNCTIONING NORMAL. | |
| Aftertreatment Heat Shields / Guards | ||
| DEF Lines / Wiring | ||
| Diesel Exhaust Fluid (DEF) Tank | ||
| Diesel Particulate Filter (DPF) Condition / Service Hours |
| Compression in Radiator | No | |
|---|---|---|
| Coolant Leaks | No | |
| Oil in Anti-Freeze | No | |
| Standard Radiator | Yes | |
| Notes - COOLING SYSTEM | THE COOLING SYSTEM IS FUNCTIONING NORMAL IN 75 DEGREE WEATHER. | |
| Anti-Freeze Level / Color / Condition | NORMAL LEVEL & COLOR. | |
| Belts / Pulleys - COOLING SYSTEM | ||
| Coolers | ORIG | |
| Fan | ||
| Fan Drive / Type | HYDRAULIC. | |
| Fan Shrouds / Guards | ||
| Hoses / Tubes | ||
| Radiator | ORIG | |
| Water Pump |
| Block Heater | Yes | |
|---|---|---|
| Ether Aid | Yes | |
| Signal Lights | Yes | |
| Alternator | ||
| Batteries / Cables / Master Disconnect | ||
| Beacon / Strobe | ||
| Product Link / Condition | PLE641 | |
| Starter / Type | ||
| Wiring | ||
| Work Lights | ONE LIGHT IS OUT |
| Mag Screens Checked | No | |
|---|---|---|
| Transmission - Noisy | No | |
| Notes - TRANSMISSION | THE TRANSFER CASE WAS REBEARINGED AND RESEALED 12-24 AT 8614 HOURS. THE CHARGE PUMP WAS REPLACED 5-25 AT 10344 HOURS. | |
| Case | ||
| Controls - TRANSMISSION | ||
| Cooler | ORIG | |
| Drive Shaft | ||
| Lines / Fittings - TRANSMISSION | ||
| Oil Filter Condition (CUT) - TRANSMISSION | THE HYDRAULIC/HYDROSTATIC OIL WAS SAMPLED DURING THIS INSPECTION & RETURNED NORMAL | |
| Operating Condition - TRANSMISSION | ||
| Pump - TRANSMISSION | ||
| Seals | ||
| Temp / Pressure Gauges | ||
| Transmission - Forward Shifts | ||
| Transmission - Reverse Shifts | ||
| Universal Joints - TRANSMISSION | THE FRONT DRIVESHAFT WAS REPLACED ALONG WITH CARRIER BEARING 1-25 AT 9083 HOURS. |
| Notes - STEERING | THE MACHINE NEEDS THE ARTICULATION JOINTS RECONDITIONED | |
|---|---|---|
| Articulate P & B | THE ARTICULATION JOINTS ARE WORN. | |
| Hand Metering Unit | ||
| Lines / Fittings - STEERING | ||
| Pumps | ORIG | |
| Steering Cylinder | ||
| Steering Linkage | TIGHT OVERALL. | |
| STEERING STOPS | BOTH STEERING STOPS ARE CRACKING. | |
| Steering Valves / Pumps | ORIG | |
| Steering Wheel Tilt / Extend | THE STEERING WHEEL PIVOT HAS MINOR PLAY. | |
| Valves |
| Holds In Park | Yes | |
|---|---|---|
| Leaks - BRAKE | No | |
| Notes - BRAKE | THE ACCUMULATOR CHARGING VALVE WAS REPLACED 1-24 AT 4821 HOURS. ALL BRAKES ARE FUNCTIONAL. | |
| Control Valve | ||
| Lines / Tubes | ||
| Parking Brake - BRAKE | ||
| Pedal | ||
| Pump - BRAKE | ORIG | |
| Type (Wet, Dry) | ORIGINAL. WET INTERNAL. |
| Leaks - HYDRAULICS | No | |
|---|---|---|
| Notes - HYDRAULICS | THE IMPLEMENT HYDRAULICS ARE PERFORMING FAIR TO NORMAL WITH EXCEPTION TO THE RIDE CONTROL. | |
| Accumulator Charge - Ride Control | THE RIDE CONTROL IS FIRM BUT TURNING ON. | |
| Bucket & Hoist Kickout | THE LIFT KICK OUT IS NOT WORKING. | |
| Control Linkage | ||
| Filter Condition (CUT) | THE HYDRAULIC/HYDROSTATIC DRIVE OIL WAS SAMPLED DURING THIS INSPECTION AND IT RETURNED NORMAL. | |
| Hoses & Tubes - HYDRAULICS | NO LINES FROM THE LOWER LOADER ARMS TO THE COUPLER FOR THE AUX CIRCUIT. | |
| Lift Cylinders | ||
| Overall Operating Condition | ||
| Pumps & Valves | ORIG | |
| Tank | ||
| Tilt Cylinder |
| High Lift | Yes | |
|---|---|---|
| Bucket Capacity | 5.5 YDS | |
| Bucket S/N - BUCKET | 371-2337. TAG IS MISSING. | |
| Bucket Bottom | THE R.H. SKID IS WEARING OFF. | |
| Bucket Floor | NO CURRENT CRACKS. | |
| Bucket Linkage - BUCKET | THE LOWER LOADER ARM TO COUPLER JOINTS ARE IN GOOD FUNCTIONAL CONDITION ALONG WITH THE TILT LINKAGE. | |
| Bucket Sides | ||
| Cutting Edges | ||
| Loader Frame | ||
| Loader Pins & Bushings | MINIMAL PLAY. | |
| Quick Coupler | FUNCTIONING NORMAL. |
| Notes - FINAL DRIVES | BOTH AXLE OILS WERE SAMPLED DURING THIS INSPECTION & BOTH RETURNED NORMAL. THE DRIVETRAIN IS PERFORMING NORMAL. | |
|---|---|---|
| Differentials | ORIG | |
| Front Axle | ORIG | |
| Rear Axle | ORIG | |
| Trunion | FAIR TO NORMAL OVERALL | |
| Wheel Lugs & Rims - FINAL DRIVES |
| Notes - TIRES | ALL TIRES ARE FUNCTIONAL WITH THE FRONT TIRES BEING WORN. | |
|---|---|---|
| Tire Size - TIRES | 20.5R25 | |
| Left Front |
Life Left: 35% Recapped: No Tread Cuts Chunks: No Side Cuts Section: No |
|
| Left Rear |
Life Left: 80% Recapped: No Tread Cuts Chunks: No Side Cuts Section: No |
|
| Right Front |
Life Left: 35% Recapped: No Tread Cuts Chunks: No Side Cuts Section: No |
|
| Right Rear |
Life Left: 80% Recapped: No Tread Cuts Chunks: No Side Cuts Section: No |
| comment 1 | THE MACHINE IS CURRENTLY RUNNING SMOOTH WITH A REMAN ENGINE AND NEW EMISSIONS MODULE THAT WAS INSTALLED AT 6973 HOURS. THE HYDROSTATIC DRIVE IS FUNCTIONING FAIR TO NORMAL WITH A GOOD SAMPLE RETURN. | |
|---|---|---|
| comment 2 | THE LOADER ARM JOINTS ARE TIGHT OVERALL. THE STEERING LINKAGE IS TIGHT. | |
| comment 3 | LEVEL 4PM COMPLETED 6-25 AT 10876 HOURS AND A LEVEL 2PM COMPLETED 8-25 11434 HOURS. THE NEXT SERVICE DUE IS A LEVEL 1PM IN 235 HRS. |
Comments
A/C
HEATER
LIGHTS
RADIO
STROBE
LIMITED SLIP REAR
R/C
3RD VALVE
FUSION Q/C
PRODUCT LINK
20.5 X 25 TIRES
5.5 CY LM BUCKET
Features
