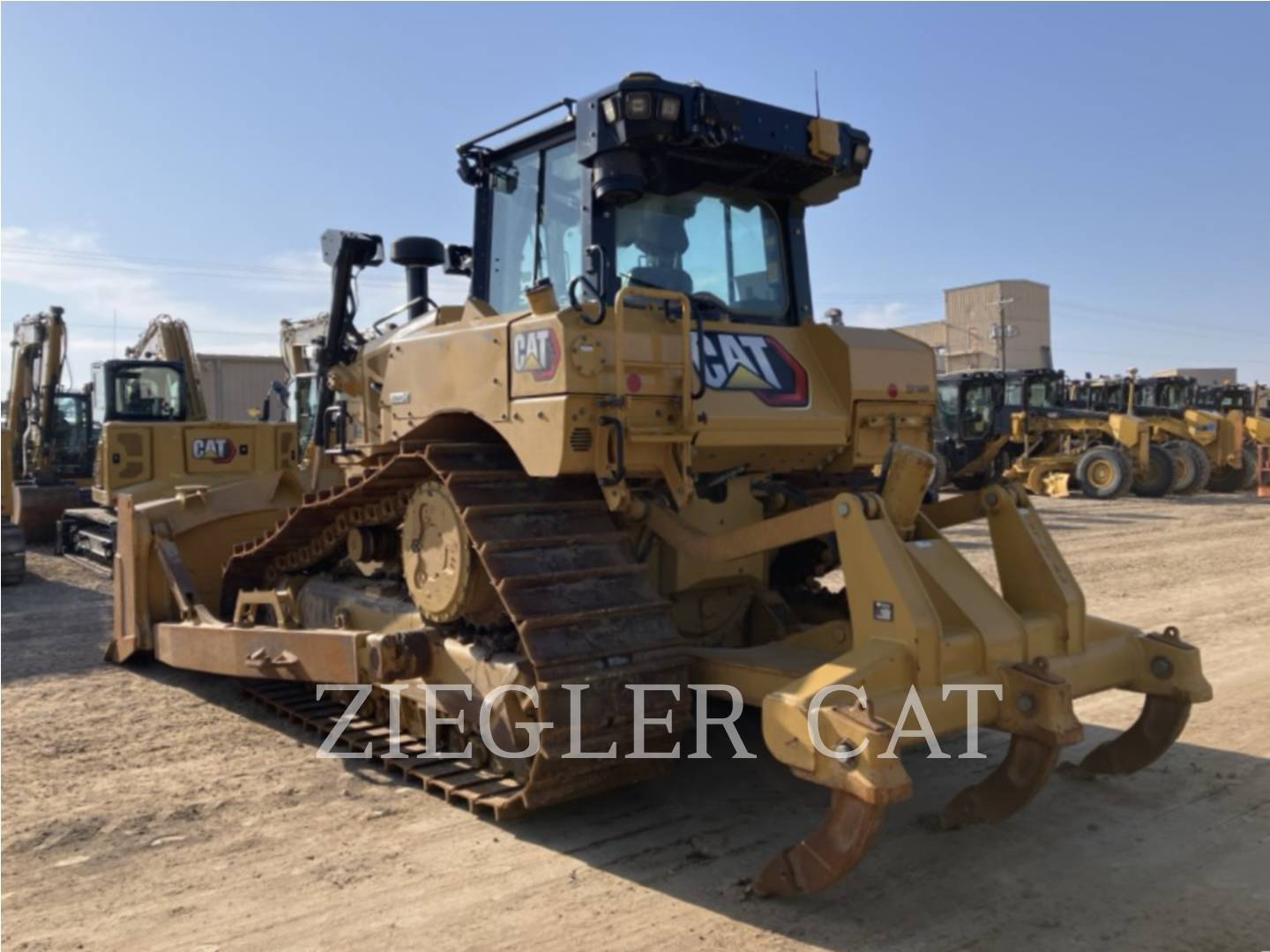

2020 CAT D6XE 5,481 engine hrs
Condition
| ET Product Status Report Download | Yes | |
|---|---|---|
| Logged / Active Codes | Yes | No active codes |
| Machine Starts and is Operable | Yes | |
| S.O.S. (All Compartments) | Yes | Sampled engine, hyd, and power train |
| Visible Oil Leaks | No | |
| Body | ||
| Frame | ||
| General |
| Notes - GENERAL APPEARANCE | Belly pans full of dirt | |
|---|---|---|
| Battery Box | ||
| Belly Pans | ||
| Bumper | ||
| Cab or Canopy | ||
| Decals | ||
| Engine Enclosures | ||
| Fenders | Left side has minor damage | |
| Fuel Tank | ||
| Grab Irons | ||
| Hard Nose P&B | ||
| Hood | ||
| Main Frame Welds | ||
| Paint | ||
| Pre-Cleaner Bowl | ||
| Radiator Grill | ||
| Screens | ||
| Sheet Metal | ||
| Steps / Ladder | ||
| Transmission Guard |
| Parking Brake Functioning | Yes | |
|---|---|---|
| ROPS Certification Plate | Yes | |
| Safety Decals In Place | Yes | |
| Safety Decals Legible | Yes | |
| Safety Locks / Pins | Yes | |
| Service Brakes Functioning | Yes | |
| Back Up Alarm | ||
| Camera(s) | ||
| Horn | ||
| ROPS | ||
| Seat Belt / Date | ||
| Secondary Exit |
| Diesel Exhaust Fluid (DEF) Level - OPERATOR STATION | 7/8 full | |
|---|---|---|
| Fuel Level - OPERATOR STATION | 7/8 full | |
| Current O&MM | Yes | |
| Sound Proofing | Yes | |
| Air Conditioner | Cooling 60F. Poor air flow in cab. | |
| Armrests | Right side arm rest slide adjust doesn't work. Left side cable is hard to disengage | |
| Cab Filter / Heat Vent Louvres | ||
| Dash Console | Rear plastic is busted | |
| Door Latches / Hinges / Seals | ||
| Floor Boards / Mats | ||
| Gauges | ||
| Headliner | ||
| Heater / Defroster | Poor air flow in cab. | |
| Hour Meter - GAUGES, OPERATION STATION, CONSOLE | ||
| Hydraulic Controls | ||
| Interior Lights | ||
| Interior Plastic / Fabric | ||
| Mirrors | ||
| Monitoring Display | ||
| Pans/Guards | ||
| Radio | ||
| Seat Cushions / Suspension / Type | Seat comfort control switches are broken. | |
| Switches | ||
| Transmission Controls | ||
| Visor / Sunshade | ||
| Windows | ||
| Windshield Wipers | Door and rear washers don’t spray. |
| Blow By | No | |
|---|---|---|
| Emissions Decal Legible | Yes | |
| Fuel Leaks | No | |
| Knocking | No | |
| Oil Leaks | Yes | Level 2 leak at hose on right side of engine |
| Water in Oil | No | |
| Oil Pressure (H/L/N) | Normal | |
| Smoke Color (B/D/L/W) | Normal | |
| Belts / Pulleys - ENGINE | ||
| Engine Oil Level / Condition | ||
| Engine Supports / Mounts | ||
| Exhaust / Muffler / Stack | ||
| Fuel Injection System | ||
| Governor | ||
| Intake / Air Filters | Clamp on right rear of engine for the intake tube fell off and is wedged against the pipe. Pipe is dented | |
| Operating Condition - ENGINE | ||
| Turbocharger / Blower |
| Display | ||
|---|---|---|
| GNSS Antennas #1 | ||
| GNSS Antennas #2 | ||
| GNSS Receiver #1 | ||
| GNSS Receiver #2 | ||
| GPS Radio | ||
| Sensor Blade |
| Aftertreatment System Codes | No | |
|---|---|---|
| Leaks / Type | No | |
| Aftertreatment Heat Shields / Guards | ||
| DEF Lines / Wiring | ||
| Diesel Exhaust Fluid (DEF) Tank | ||

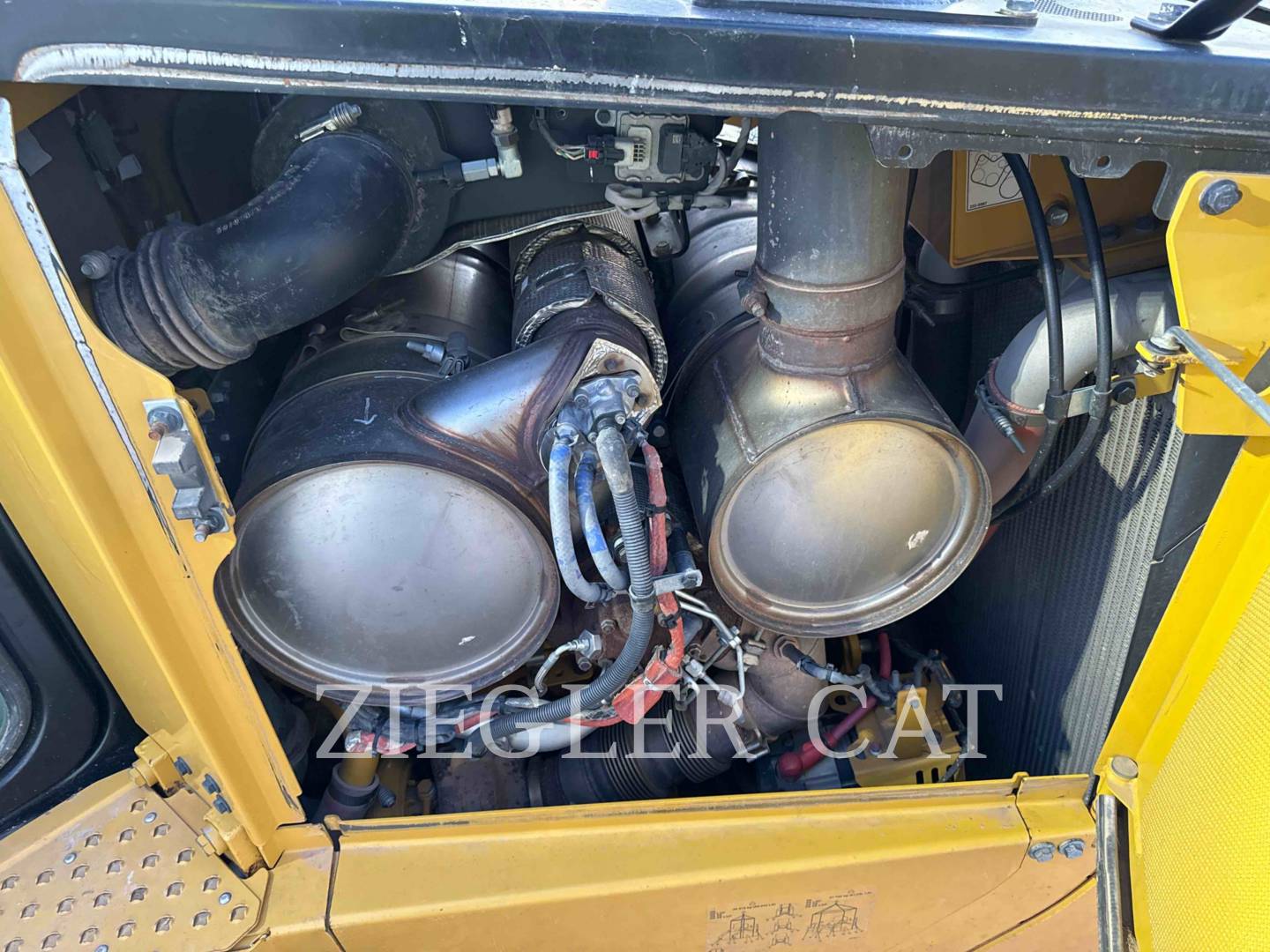

| Diesel Particulate Filter (DPF) Condition / Service Hours | Last ash service at 4980 hrs |
| Compression in Radiator | No | |
|---|---|---|
| Coolant Leaks | No | |
| Oil in Anti-Freeze | No | |
| Standard Radiator | Yes | |
| Anti-Freeze Level / Color / Condition | -35F | |
| Belts / Pulleys - COOLING SYSTEM | ||
| Coolers | ||
| Fan | ||
| Fan Drive / Type | ||
| Fan Shrouds / Guards | ||
| Hoses / Tubes | ||
| Radiator | ||
| Water Pump |
| Active Codes | No | |
|---|---|---|
| Block Heater | Yes | |
| Ether Aid | Yes | |
| Alternator | ||
| Batteries / Cables | ||
| Pre-Heater | ||
| Product Link / Condition | ||
| Starter | ||
| Wiring | ECM wires rubbing a tube. | |
| Work Lights |
| Leaks - TRANSMISSION | No | |
|---|---|---|
| Transmission - Noisy | No | |
| Notes - TRANSMISSION | Electric drive. | |
| Controls - TRANSMISSION | ||
| Cooler | ||
| Lines / Fittings - TRANSMISSION | ||
| Operating Condition - TRANSMISSION | ||
| Pump - TRANSMISSION | ||
| Temp / Pressure Gauges | ||
| Transmission - Forward Shifts | ||
| Transmission - Reverse Shifts |
| Differential Steer | ||
|---|---|---|
| Differential Steering Controls | ||
| Pump / Motor | ||
| Steering Operating Condition | ||
| Steering Valve |
| Parking Brake Operation | ||
|---|---|---|
| Service Brake Operation |
| Leaks - HYDRAULICS | No | |
|---|---|---|
| Control Linkage - HYDRAULICS | ||
| Hose Lines | ||
| Hydraulic Valves | ||
| Lift Cylinders | Right lift cylinder has level 2 leak as rod is scored | |
| Mounts / Yokes | 1/16-1/8” play | |
| Overall Operating Condition | When going into float the machine picks up first then let’s go into float | |
| Pumps | ||
| Tank / Sight Glass / Cap | ||
| Tilt Cylinder | 1/8” play |
| Back of Blade | ||
|---|---|---|
| Cutting Edge & Bits | Can be turned. | |
| Face / Moldboard | ||
| Push Arm | ||
| Spill Rack | ||
| Tilt Arms | 1/8” play | |
| Trunnions | 3/16 movement in push arm to Trunnion. Shims can be removed |
| Notes - RIPPER / GRAPPLE / WINCH | Diamond ripper, 3 shank | |
|---|---|---|
| Beam / Frame | ||
| Lines / Fittings - RIPPER / GRAPPLE / WINCH | Ripper lines rub | |
| Pins & Bushings | Upper left front bushing don’t take grease, lower rear left bushing don’t take grease. | |
| Ripper Lift Cylinder | Retainer plate for rod end pin has a bolt broken off. | |
| Shanks / Get |
| Pins & Bushings Turned? | No | |
|---|---|---|
| Equalizer Bar | Tight. 1/16” play in pins and bushings | |
| Link / Brand / Part Number | 248-2307 | |
| Guiding Guard - Left | Left front is bent | |
| Guiding Guard - Right | ||
| Track Frame - Left | ||
| Track Frame - Right | ||
| Carrier Rollers Front |
Left Measurement: 195 Left Percent Worn: 16% Right Measurement: 195 Right Percent Worn: 16% |
|
| Idlers Front |
Left Measurement: 25 Left Percent Worn: 8% Right Measurement: 25 Right Percent Worn: 8% |
|
| Idlers Rear |
Left Measurement: 25 Left Percent Worn: 8% Right Measurement: 25 Right Percent Worn: 8% |
|
| Links |
Left Measurement: 126 Left Percent Worn: 46% Right Measurement: 126 Right Percent Worn: 46% |
|
| Pins & Bushings (External) |
Left Measurement: 70 Left Percent Worn: 40% Right Measurement: 70 Right Percent Worn: 40% |
|
| Track Roller 1 |
Left Measurement: 17 Left Percent Worn: 12% Right Measurement: 17 Right Percent Worn: 12% |
|
| Track Roller 2 |
Left Measurement: 17 Left Percent Worn: 12% Right Measurement: 17 Right Percent Worn: 12% |
|
| Track Roller 3 |
Left Measurement: 17 Left Percent Worn: 12% Right Measurement: 17 Right Percent Worn: 12% |
|
| Track Roller 4 |
Left Measurement: 17 Left Percent Worn: 12% Right Measurement: 21 Right Percent Worn: 36% |
|
| Track Roller 5 |
Left Measurement: 17 Left Percent Worn: 12% Right Measurement: 17 Right Percent Worn: 12% |
|
| Track Roller 6 |
Left Measurement: 17 Left Percent Worn: 12% Right Measurement: 17 Right Percent Worn: 12% |
|
| Track Roller 7 |
Left Measurement: 17 Left Percent Worn: 12% Right Measurement: 17 Right Percent Worn: 12% |
|
| Track Roller 8 |
Left Measurement: 19 Left Percent Worn: 24% Right Measurement: 17 Right Percent Worn: 12% |
|
| Track Shoe Grouser Height |
Left Measurement: 65 Left Percent Worn: 23% Right Measurement: 65 Right Percent Worn: 23% |
| Magnetic Plugs Removed & Checked? | Yes | |
|---|---|---|
| Housings, Left | ||
| Housings, Right | ||
| Planetaries / Differential, Left | ||
| Planetaries / Differential, Right |
| comment 1 | Has Trimble 3d. All components were reporting in monitor. |
|---|
Comments
DIFF STEER
SU DOZER
DIAMOND MULTI SHANK RIPPER
30" SG SHOES
REV FAN
REAR CAMERA
HEATED & COOLED SEAT
PRODUCT LINK
Features
