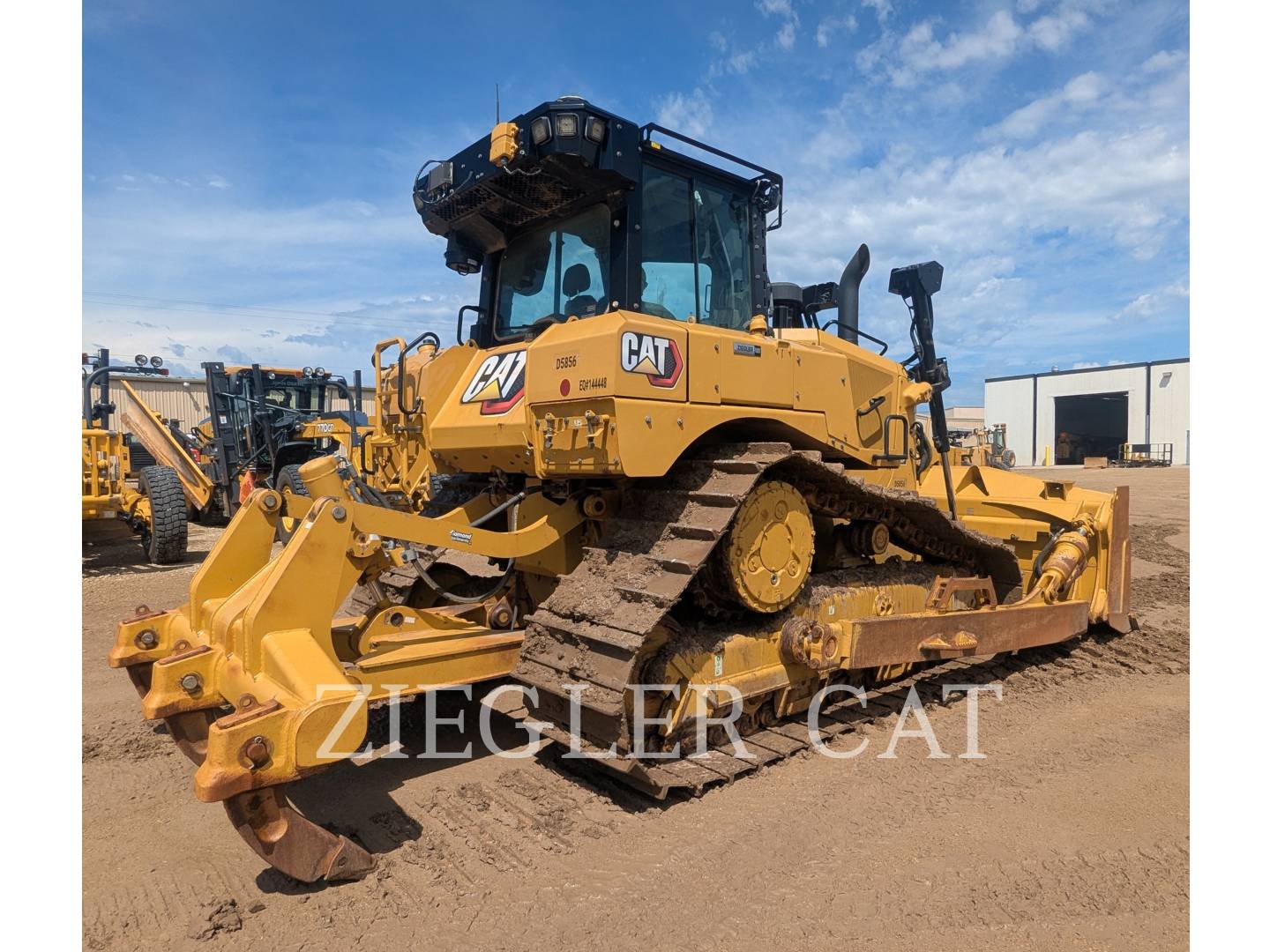

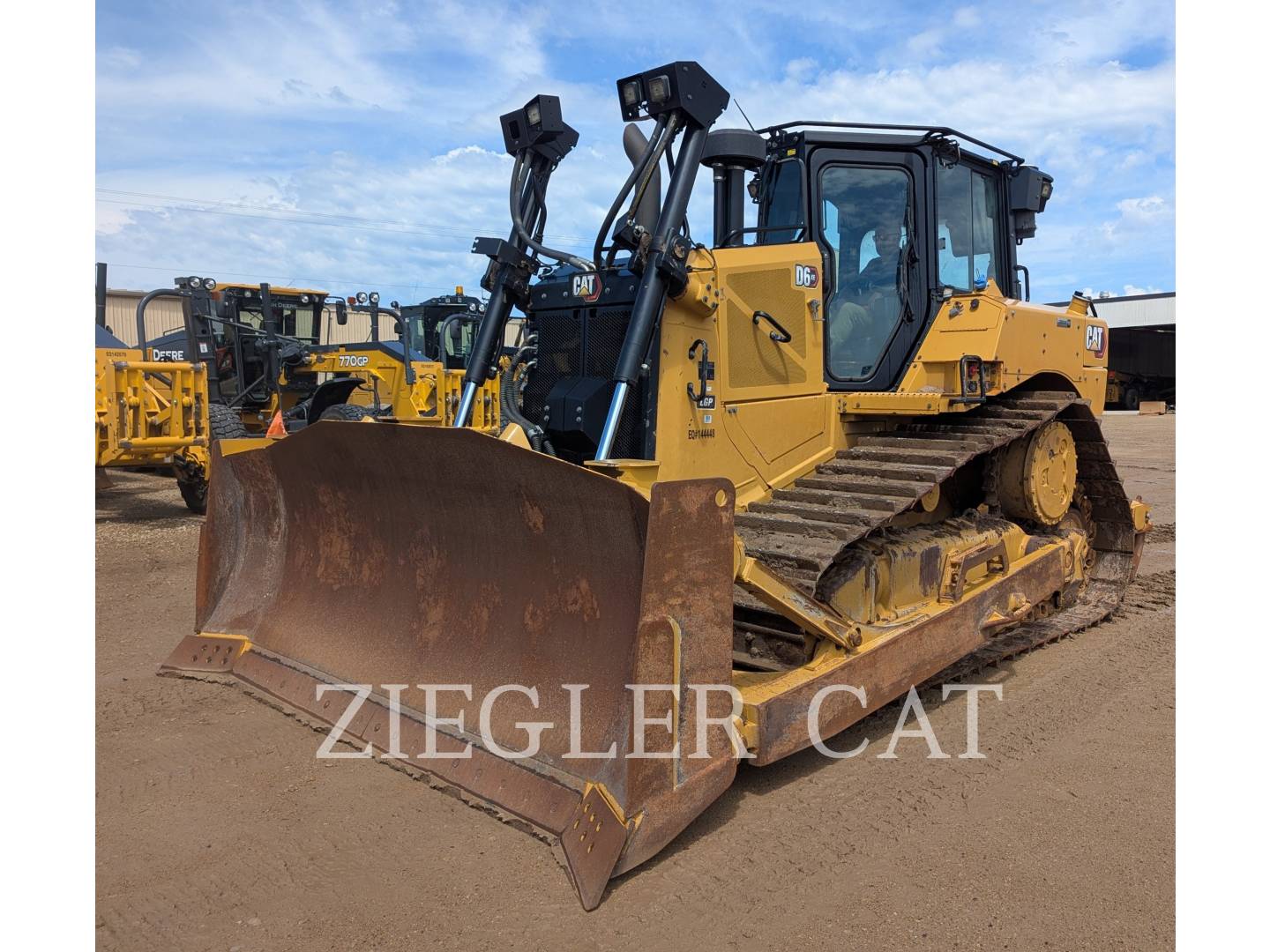

2020 CAT D6XE 6,956 engine hrs
Condition
| ET Product Status Report Download | Yes | |
|---|---|---|
| Logged / Active Codes | Yes | Active 1888-3 code: Product link antenna |
| Machine Starts and is Operable | Yes | |
| Visible Oil Leaks | No | |
| Body | ||
| Frame | ||
| General |
| Cleaning Required | Yes | Belly pans are full. |
|---|---|---|
| Battery Box | ||
| Belly Pans | ||
| Bumper | ||
| Cab or Canopy | ||
| Decals | ||
| Engine Enclosures | ||
| Fenders | ||
| Fuel Tank | ||
| Grab Irons | ||
| Hard Nose P&B | ||
| Hood | ||
| Main Frame Welds | ||
| Paint | ||
| Pre-Cleaner Bowl | ||
| Radiator Grill | ||
| Sheet Metal | ||
| Steps / Ladder | ||
| Transmission Guard |
| Parking Brake Functioning | Yes | |
|---|---|---|
| ROPS Certification Plate | Yes | |
| Safety Decals In Place | Yes | |
| Safety Decals Legible | Yes | |
| Service Brakes Functioning | Yes | |
| Back Up Alarm | ||
| Camera(s) | ||
| Horn | ||
| ROPS | ||
| Seat Belt / Date | ||
| Secondary Exit |
| Diesel Exhaust Fluid (DEF) Level - OPERATOR STATION | 1/3 | |
|---|---|---|
| Fuel Level - OPERATOR STATION | 1/4 | |
| Current O&MM | Yes | |
| Current Parts Manual | No | |
| Current Safety Manual | Yes | |
| Sound Proofing | Yes | |
| Air Conditioner | Cooling 50F. Evaporator fans vibrate. | |
| Armrests | ||
| Cab Filter / Heat Vent Louvres | ||
| Dash Console | Back plastic behind seat is broken | |
| Door Latches / Hinges / Seals | Left door unlatches by itself while driving. | |
| Floor Boards / Mats | ||
| Gauges | ||
| Headliner | ||
| Heater / Defroster | Had a hard time getting machine up to temp. | |
| Hour Meter - GAUGES, OPERATION STATION, CONSOLE | ||
| Hydraulic Controls | ||
| Interior Lights | ||
| Monitoring Display | ||
| Pans/Guards | ||
| Radio | ||
| Seat Cushions / Suspension / Type | Seat suspension is on the floor and won’t air up. Compressor won’t run. | |
| Switches | ||
| Transmission Controls | ||
| Windows | Could not get windows to slide open. | |
| Windshield Wipers | Side door and rear window washers don’t work |
| Blow By | No | |
|---|---|---|
| Emissions Decal Legible | Yes | |
| Fuel Leaks | No | |
| Knocking | No | |
| Oil Leaks | Yes | Level 2 leak from a hose on right side of engine |
| Service Needed | No | |
| Water in Oil | No | |
| Oil Pressure (H/L/N) | Normal | |
| Smoke Color (B/D/L/W) | Normal | |
| Belts / Pulleys - ENGINE | ||
| Engine Oil Level / Condition | ||
| Engine Supports / Mounts | ||
| Exhaust / Muffler / Stack | ||
| Fuel Injection System | ||
| Governor | ||
| Intake / Air Filters | ||
| Operating Condition - ENGINE | ||
| Turbocharger / Blower |
| Display | ||
|---|---|---|
| GNSS Antennas #1 | ||
| GNSS Antennas #2 | ||
| GNSS Receiver #1 | ||
| GNSS Receiver #2 | ||
| GPS Radio | ||
| Sensor Blade |

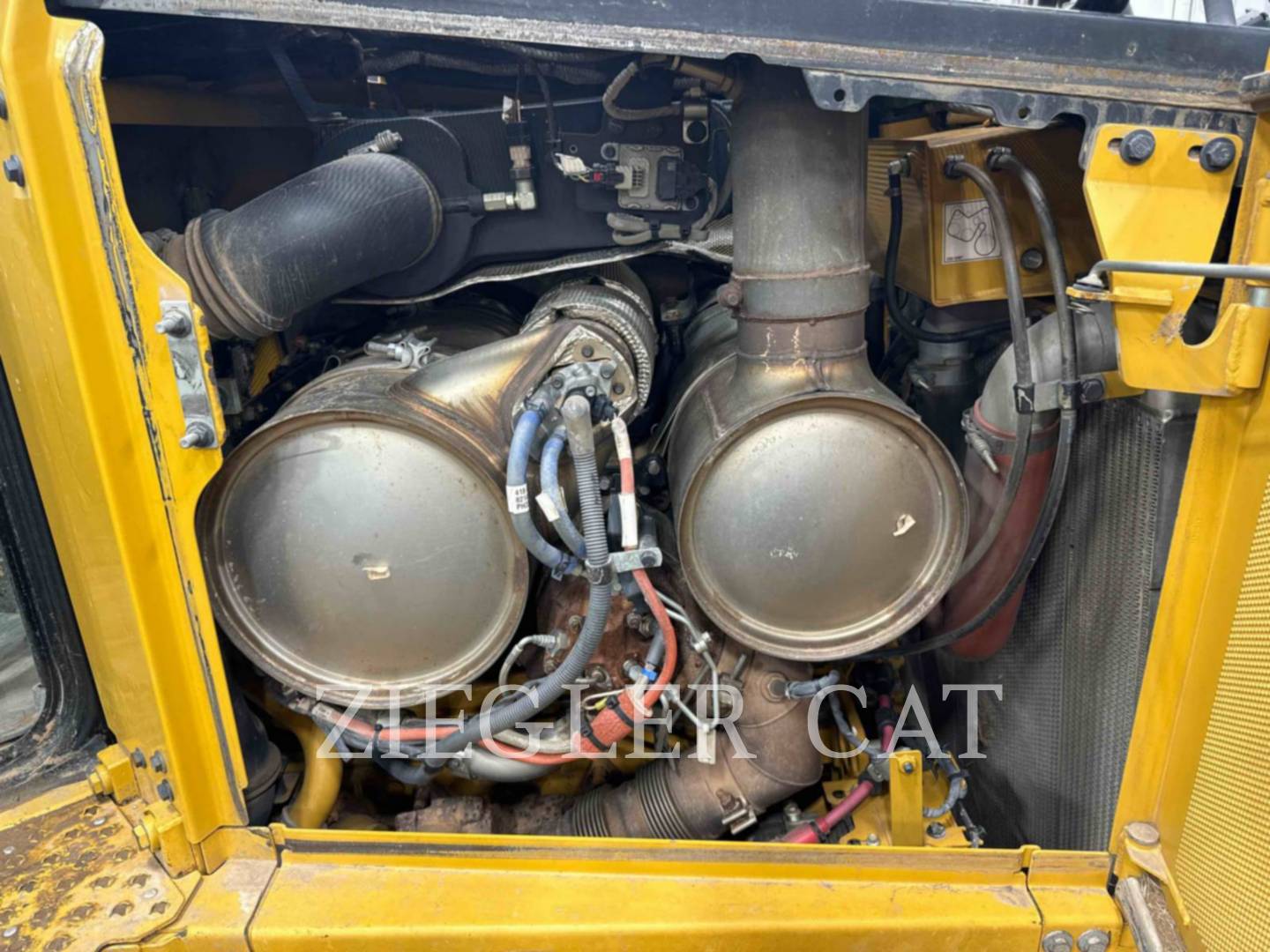

| Aftertreatment System Codes | No | |
|---|---|---|
| Leaks / Type | No | |
| Aftertreatment Heat Shields / Guards | ||
| DEF Lines / Wiring | ||
| Diesel Exhaust Fluid (DEF) Tank | ||
| Diesel Particulate Filter (DPF) Condition / Service Hours | Last ash service at 5040hrs |
| Compression in Radiator | No | |
|---|---|---|
| Coolant Leaks | No | |
| Oil in Anti-Freeze | No | |
| Standard Radiator | Yes | |
| Anti-Freeze Level / Color / Condition | -32F | |
| Belts / Pulleys - COOLING SYSTEM | ||
| Coolers | ||
| Fan | ||
| Fan Drive / Type | ||
| Fan Shrouds / Guards | ||
| Hoses / Tubes | ||
| Radiator | ||
| Water Pump |
| Block Heater | Yes | |
|---|---|---|
| Ether Aid | Yes | |
| Alternator | Charging at 28v | |
| Batteries / Cables | Batteries are weak. | |
| Pre-Heater | ||
| Starter | ||
| Wiring | ||
| Work Lights | Missing right front outer light on lift cylinder. Inside light on right lift cylinder doesn't work |
| Leaks - TRANSMISSION | No | |
|---|---|---|
| Controls - TRANSMISSION | ||
| Cooler | ||
| Lines / Fittings - TRANSMISSION | ||
| Operating Condition - TRANSMISSION | ||
| Pump - TRANSMISSION | ||
| Temp / Pressure Gauges | ||
| Transmission - Forward Shifts | ||
| Transmission - Reverse Shifts |
| Differential Steer | ||
|---|---|---|
| Differential Steering Controls | ||
| Pump / Motor | ||
| Steering Operating Condition | ||
| Steering Valve |
| Parking Brake Operation | ||
|---|---|---|
| Service Brake Operation |
| Leaks - HYDRAULICS | No | |
|---|---|---|
| Control Linkage - HYDRAULICS | ||
| Hose Lines | ||
| Hydraulic Valves | Accumulator has no charge, can’t lower blade down with engine off | |
| Lift Cylinders | Rod caps to blade have 1/8 to 3/16 movement | |
| Mounts / Yokes | Has 1/8 to 3/16 movement | |
| Overall Operating Condition | ||
| Pumps | ||
| Tank / Sight Glass / Cap | ||
| Tilt Cylinder | Has 1/8 to 3/16 movement |
| Back of Blade | ||
|---|---|---|
| Cutting Edge & Bits | ||
| Face / Moldboard | ||
| Pins | ||
| Push Arm | 3/16” movement | |
| Spill Rack | ||
| Trunnions | 1/8” movement |
| Beam / Frame | ||
|---|---|---|
| Lines / Fittings - RIPPER / GRAPPLE / WINCH | Hoses rubbing on a guard mount on the lift cylinder. Guard is missing | |
| Pins & Bushings | All joints are starting to have moderate movement. | |
| Ripper Lift Cylinder | Rod end pin retainer is missing and bolts are broken off. | |
| Shanks / Get | Teeth are getting worn down |
| Pins & Bushings Turned? | No | |
|---|---|---|
| Equalizer Bar | Center has 1/8 to 3/16 movement. Outer have 1/16 to 1/8 movement. | |
| Guiding Guard - Left | Center guard missing bolt and one is loose. | |
| Guiding Guard - Right | ||
| Track Frame - Left | ||
| Track Frame - Right | ||
| Carrier Rollers Front |
Left Measurement: 195 Left Percent Worn: 16% Right Measurement: 195 Right Percent Worn: 16% |
|
| Idlers Front |
Left Measurement: 26 Left Percent Worn: 16% Right Measurement: 26 Right Percent Worn: 16% |
|
| Idlers Rear |
Left Measurement: 26.5 Left Percent Worn: 20% Right Measurement: 26 Right Percent Worn: 16% |
|
| Links |
Left Measurement: 127 Left Percent Worn: 38% Right Measurement: 127 Right Percent Worn: 38% |
|
| Pins & Bushings (External) |
Left Measurement: 69 Left Percent Worn: 52% Right Measurement: 69 Right Percent Worn: 52% |
|
| Track Roller 1 |
Left Measurement: Bearing out Right Measurement: 17.5 Right Percent Worn: 15% |
|
| Track Roller 2 |
Left Measurement: Bearing out Right Measurement: 17.5 Right Percent Worn: 15% |
|
| Track Roller 3 |
Left Measurement: Bearing out Right Measurement: 17.5 Right Percent Worn: 15% |
|
| Track Roller 4 |
Left Measurement: Bearing out Right Measurement: Bearing out |
|
| Track Roller 5 |
Left Measurement: Bearing out Right Measurement: 15 |
|
| Track Roller 6 |
Left Measurement: 15 Right Measurement: 27 Right Percent Worn: 67% |
|
| Track Roller 7 |
Left Measurement: 15 Right Measurement: 15 |
|
| Track Roller 8 |
Left Measurement: 15 Right Measurement: 15 |
|
| Track Shoe Grouser Height |
Left Measurement: 69 Left Percent Worn: 50% Right Measurement: 69 Right Percent Worn: 50% |
| Magnetic Plugs Removed & Checked? | Yes | |
|---|---|---|
| Housings, Left | ||
| Housings, Right | ||
| Planetaries / Differential, Left | ||
| Planetaries / Differential, Right |
Comments
DIFF STEER
SU DOZER

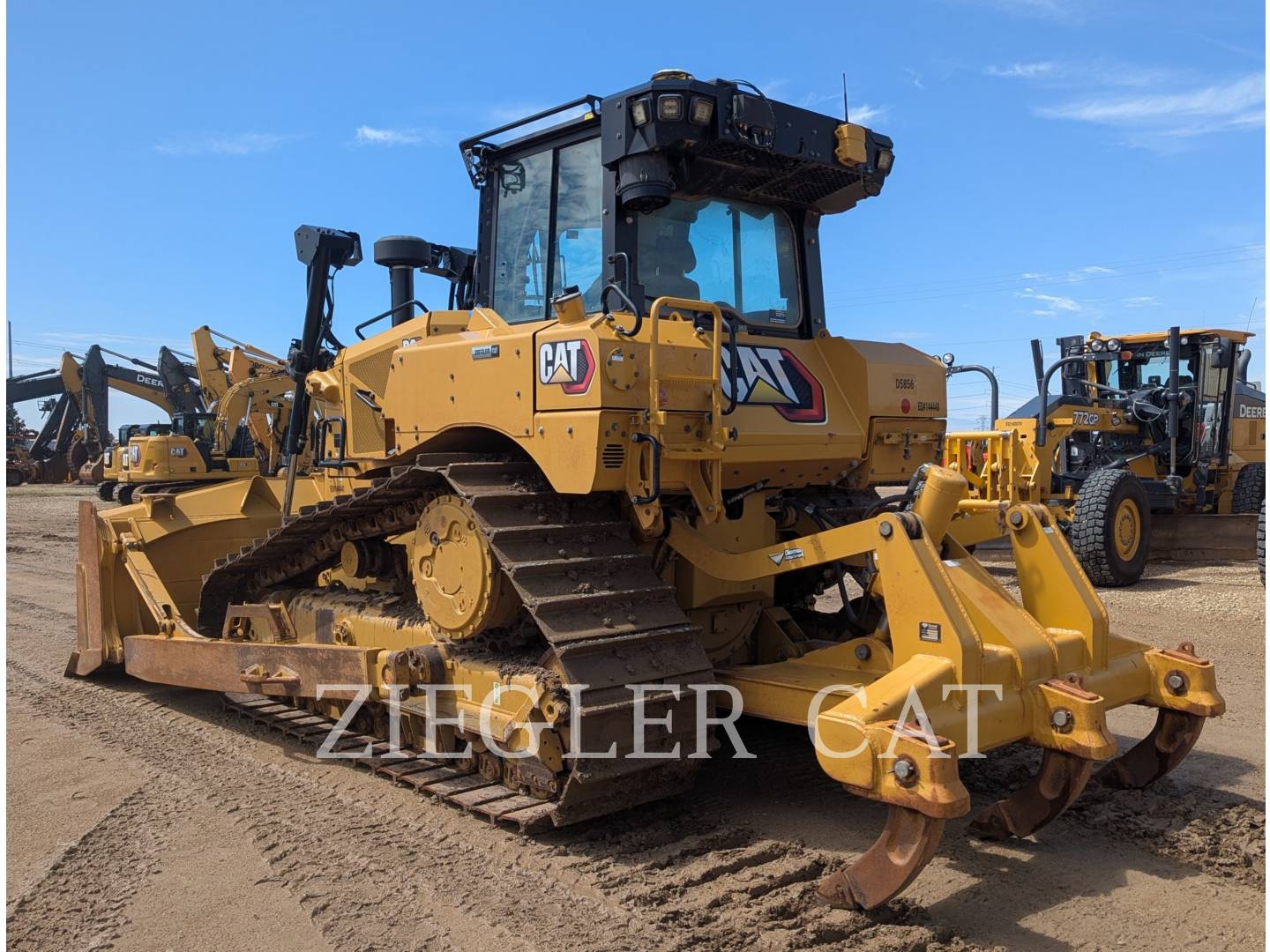

DIAMOND MULTI SHANK RIPPER
30" SG SHOES
REV FAN
REAR CAMERA
HEATED & COOLED SEAT
PRODUCT LINK.
