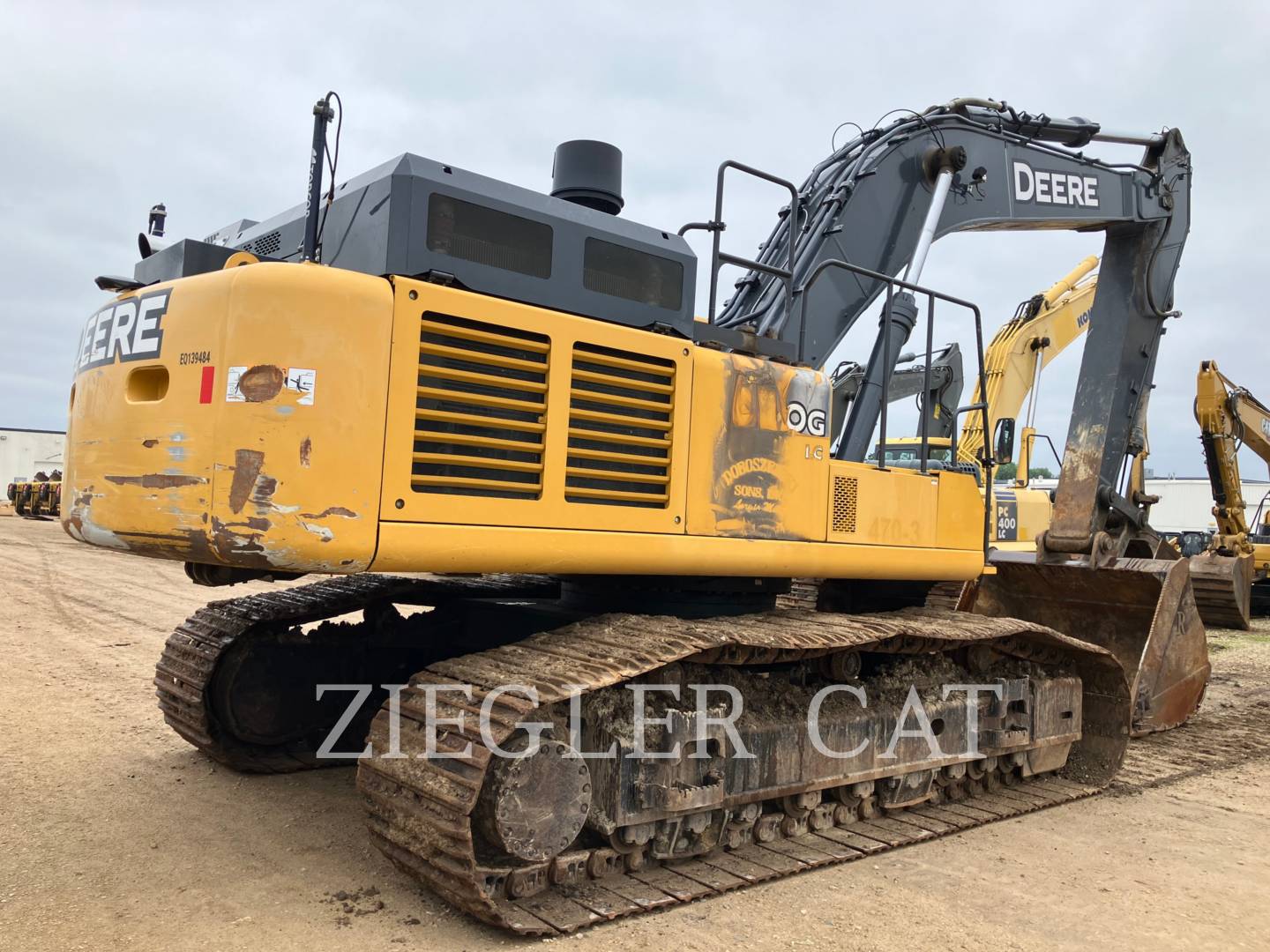

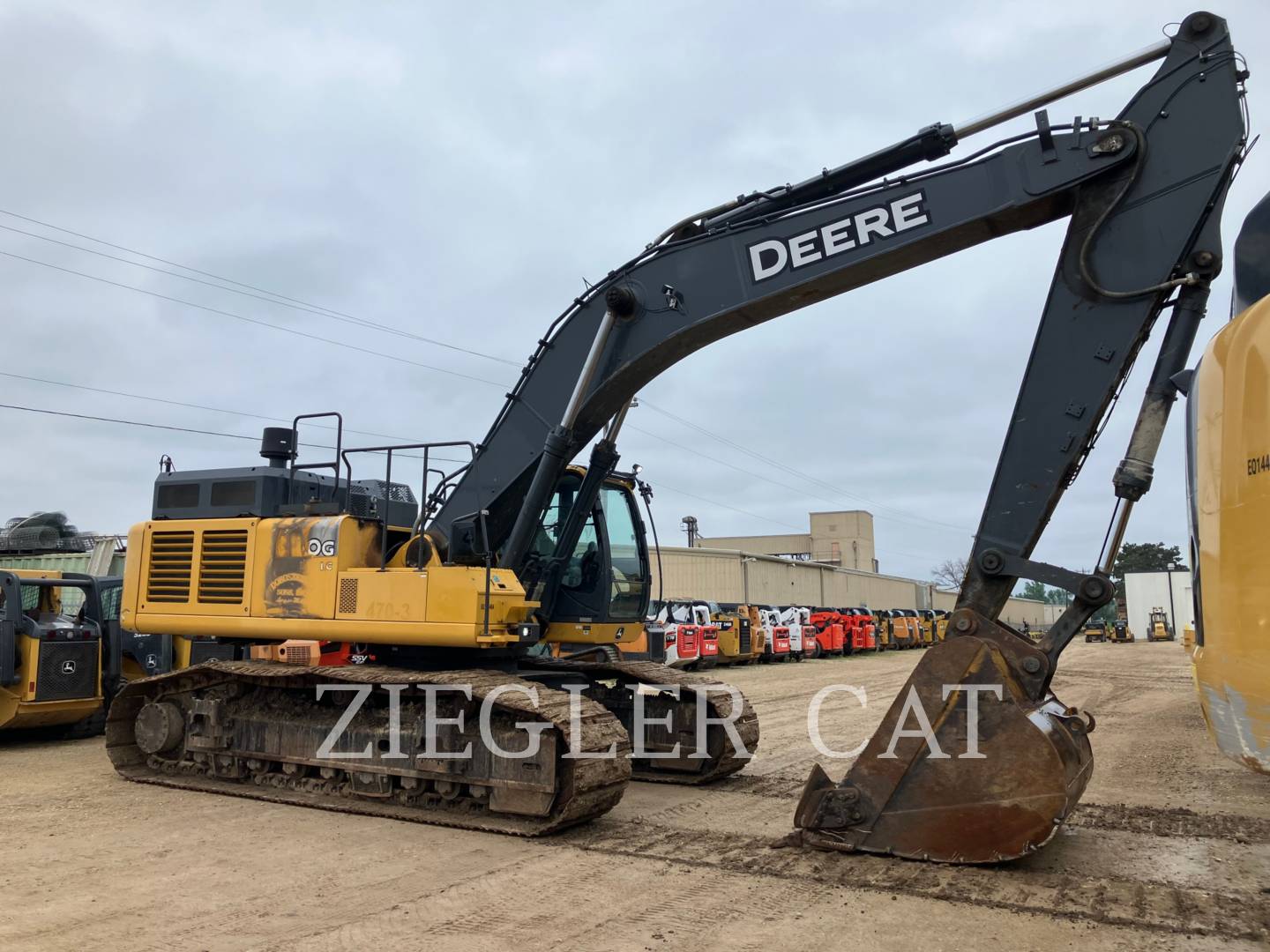

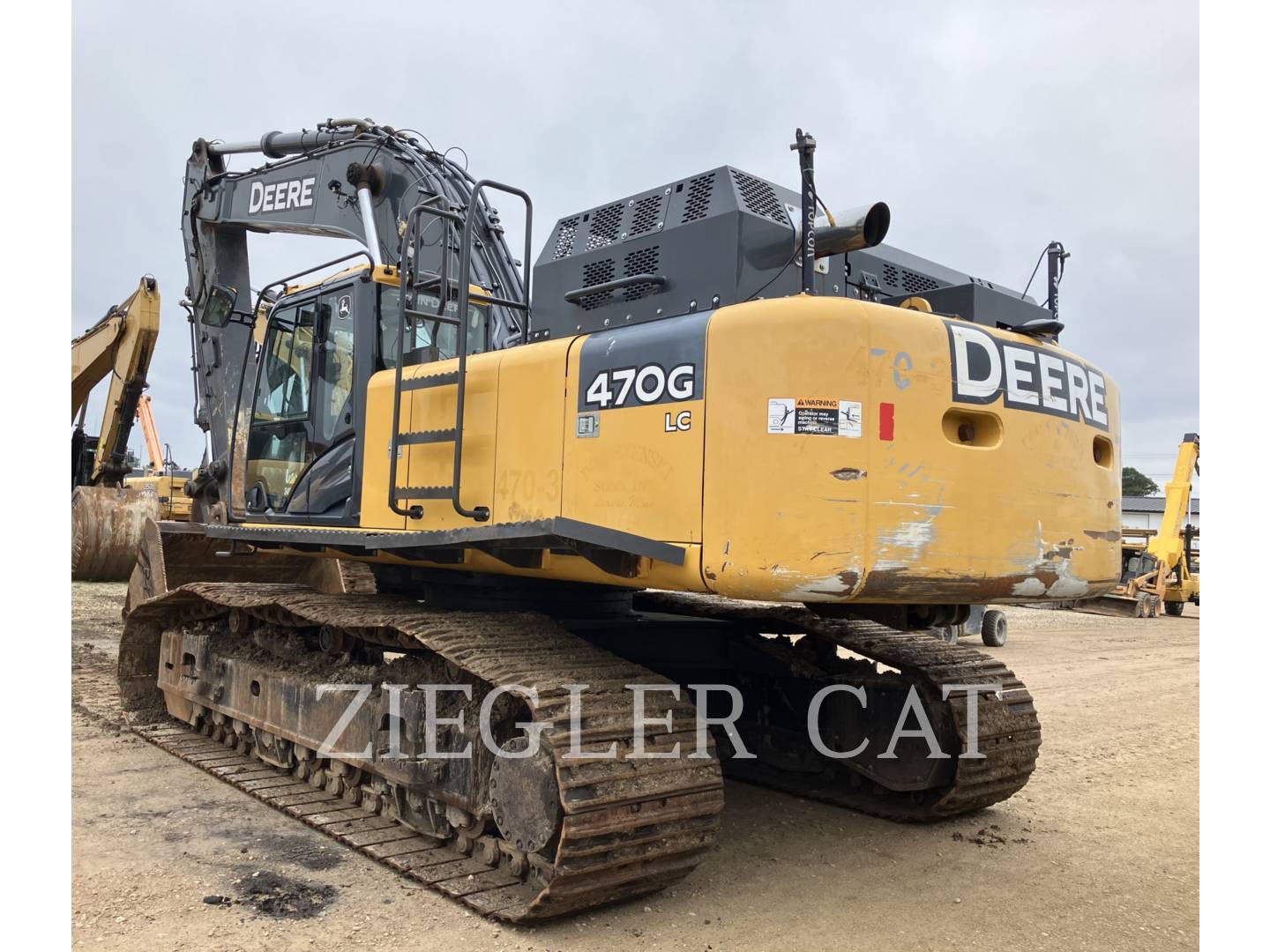

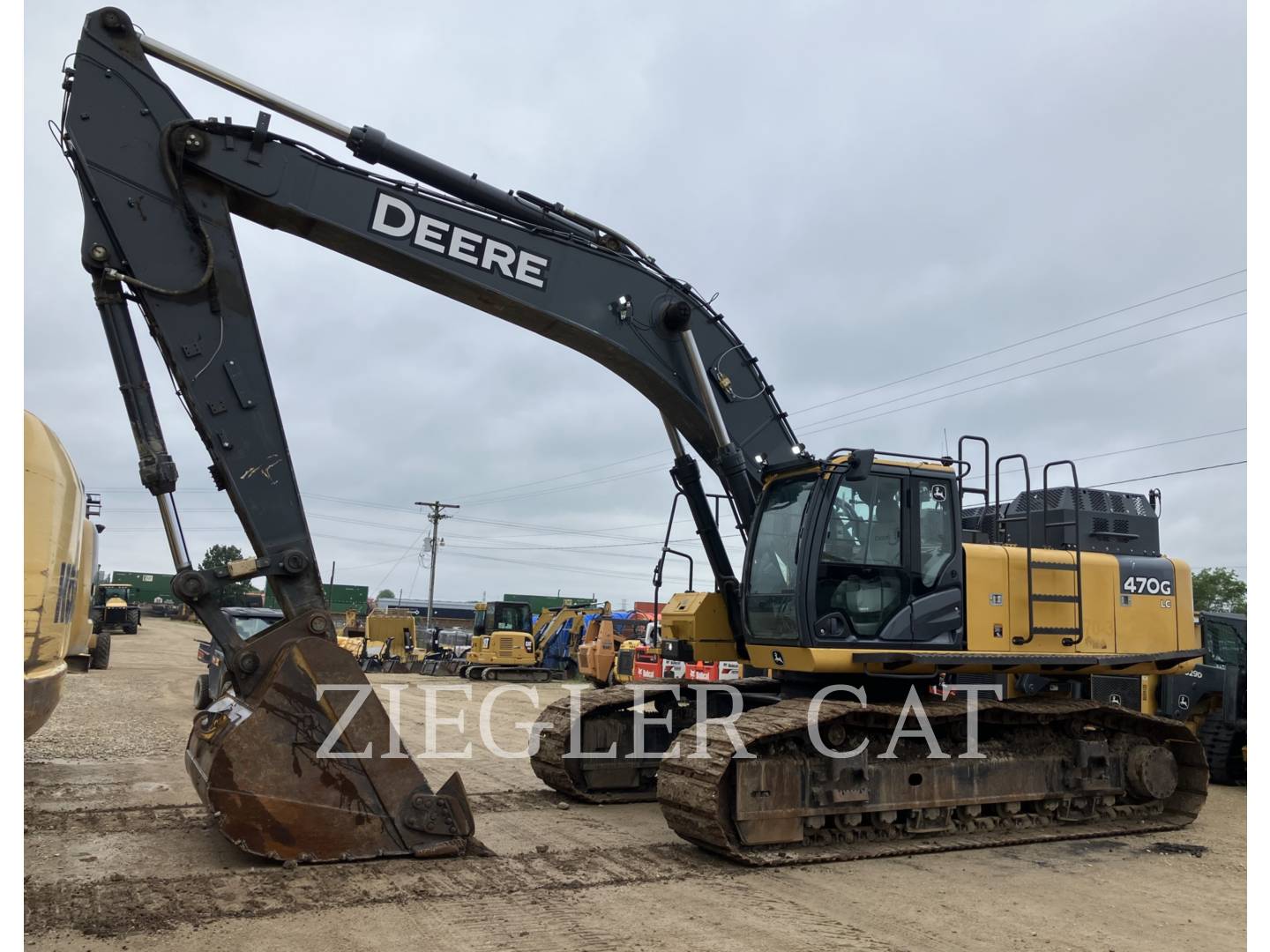

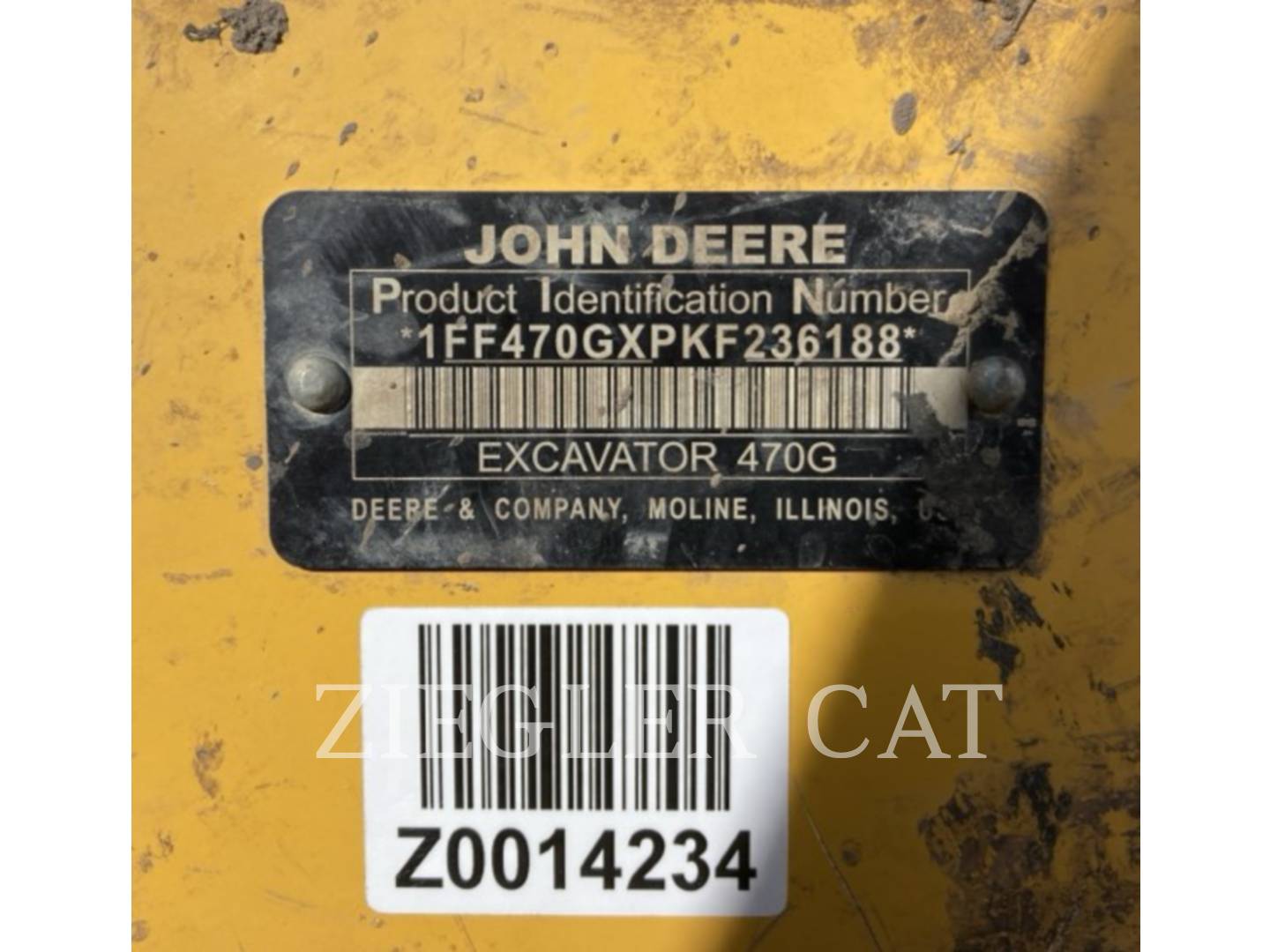

2019 DEERE & CO. 470G 8,596 engine hrs
Condition
| Logged / Active Codes | No | |
|---|---|---|
| Machine Starts and is Operable | Yes | |
| Visible Oil Leaks | Yes | |
| Body | ||
| Frame | ||
| General |
| Notes - GENERAL APPEARANCE | THE MACHINE HAS A FEW BENDS PRIMARILY TO THE CATWALK. | |
|---|---|---|
| Bumper | ||
| Car Body | ||
| Catwalk | CATWALK IS BENT IN THE BACK AND MODERATE IN THE FRONT. | |

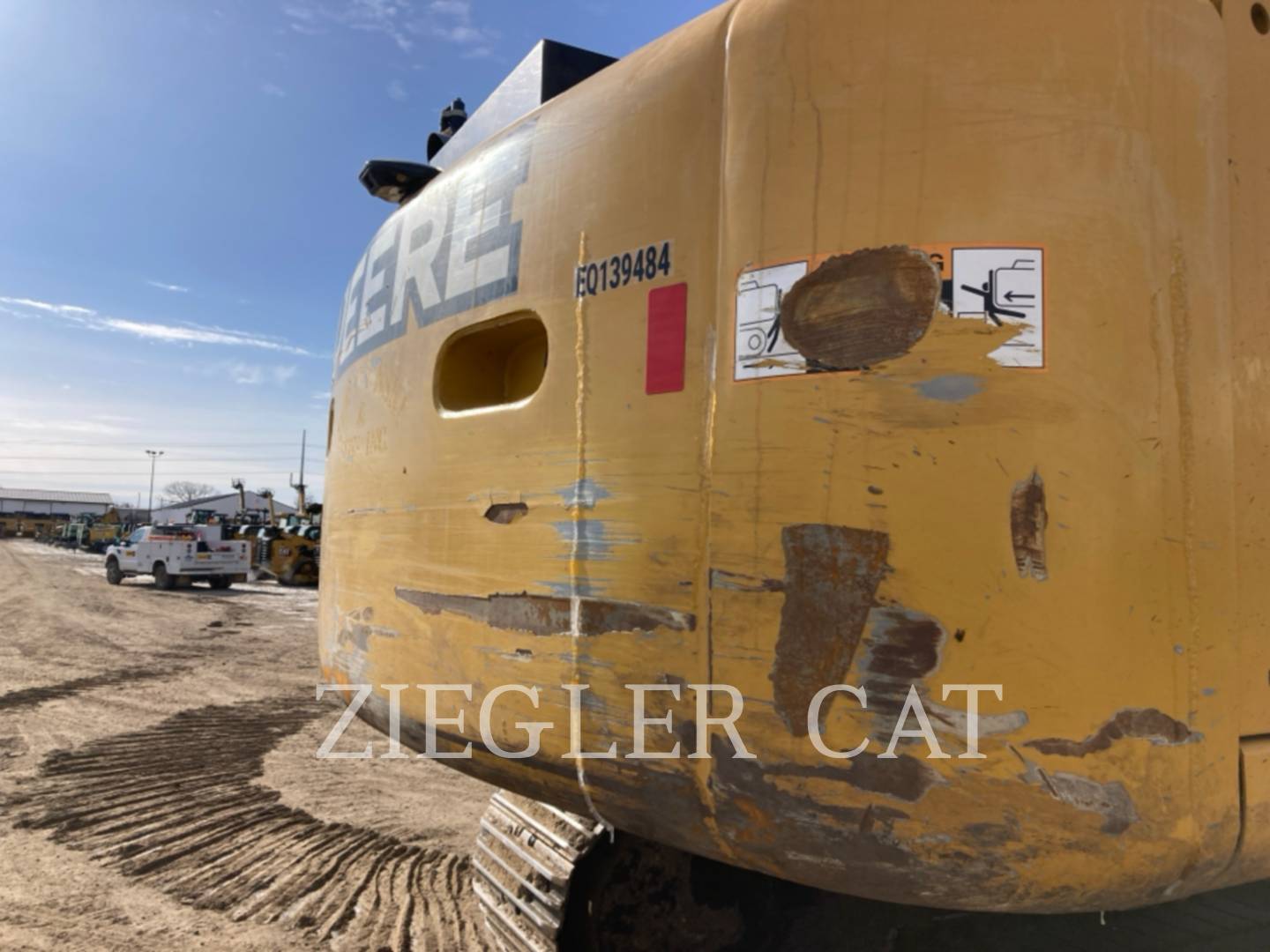

| Counterweight | ||
| Crankcase Guard / Battery Box | ||
| Decals | ||
| Draw Bar | ||
| Eng. Enclose Hood / Stack | ||
| Fuel Tank | ||
| Grab Irons | ||

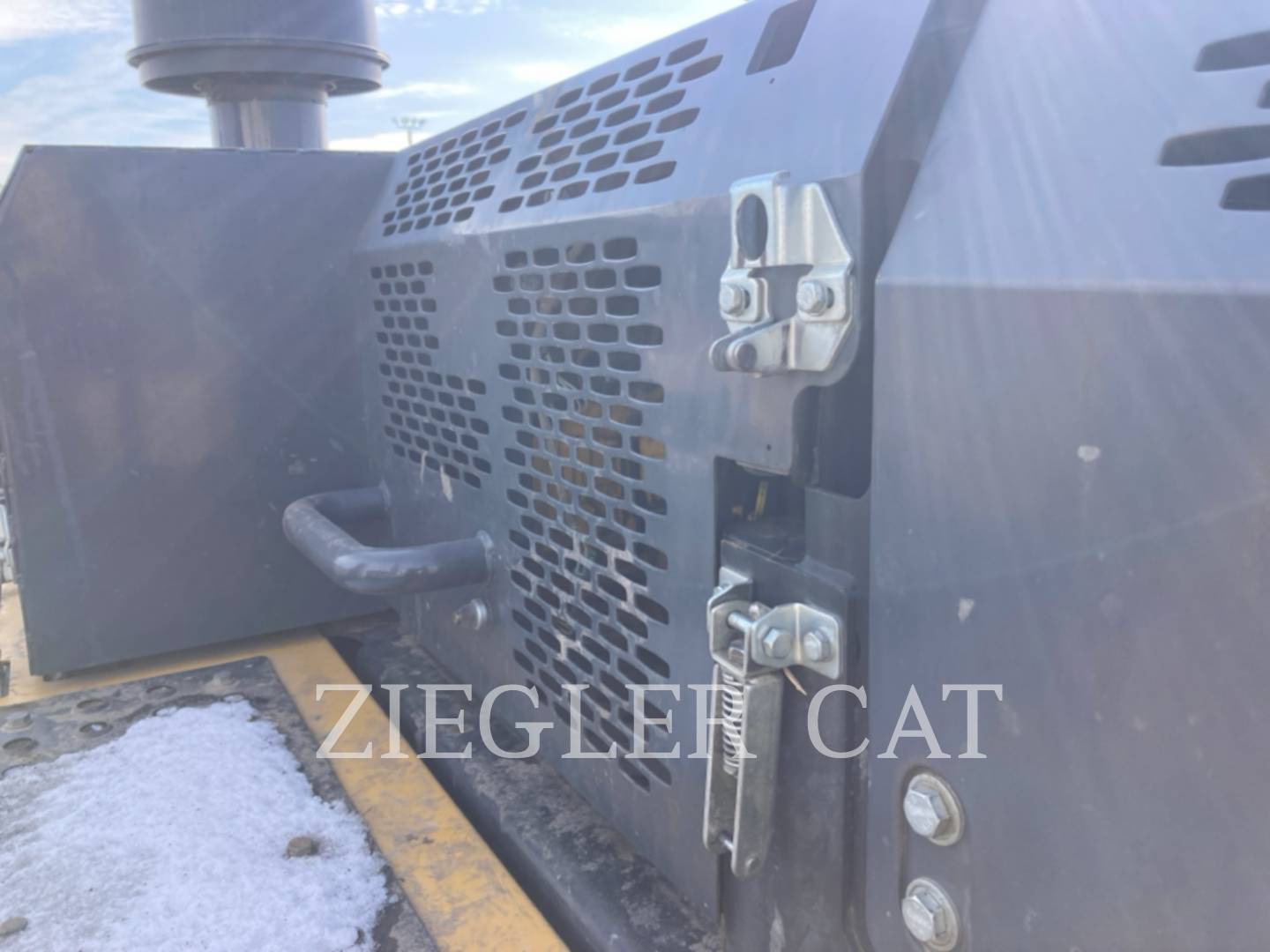

| Hood | ONE HOOD LATCH IS BROKEN | |
| Main Frame Welds | ||
| Paint | ||
| Radiator Grill & Shroud | ||
| Sheet Metal | ||
| Steps / Ladder |
| ROPS | Yes | THE ROPS ARE CLEAN. |
|---|---|---|
| ROPS Certification Plate | Yes | CERTIFICATION IS IN PLACE. |
| Safety Decals In Place | Yes | |
| Safety Decals Legible | Yes | |
| Camera(s) | ||
| Horn | ||
| Seat Belt / Date | FUNCTIONAL | |
| Travel Alarm |
| Diesel Exhaust Fluid (DEF) Level - OPERATOR STATION | 100% | |
|---|---|---|
| Fuel Level - OPERATOR STATION | 100% | |
| Current O&MM | Yes | |
| Air Conditioner | COOLING | |
| Armrests | ||
| Cab Filter / Heat Vent Louvres | ||
| Dash Console | ||
| Door Latches / Hinges / Seals | ||
| Floor Boards / Mats | ||
| Gauges | ||
| Headliner | ||
| Heater / Defroster | ||

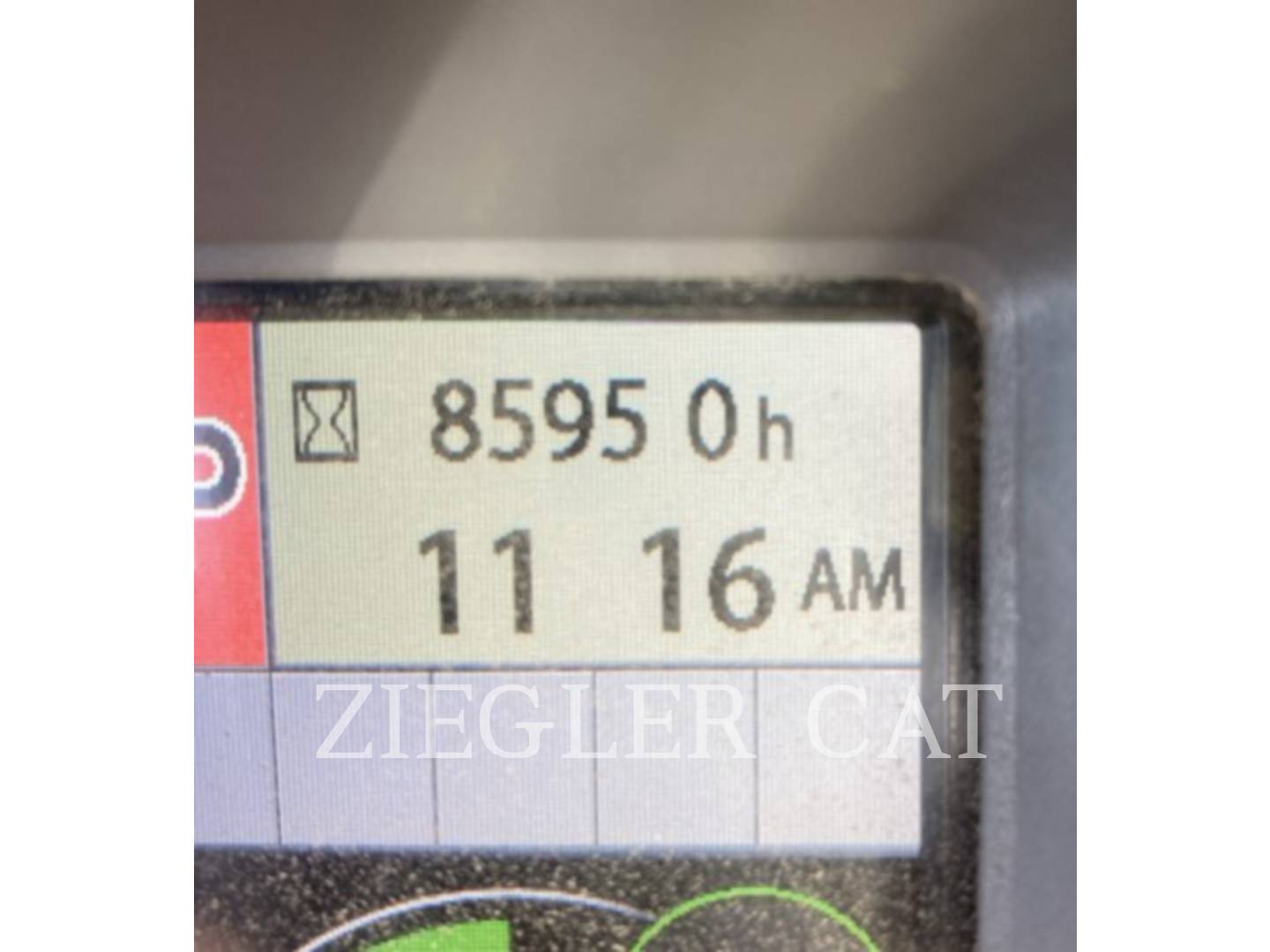

| Hour Meter - GAUGES, OPERATION STATION, CONSOLE | ACCURATE. | |
| Hydraulic Controls | ||
| Interior Lights | ||
| Interior Plastic / Fabric | ||
| Mirrors | ||
| Monitoring Display | ||
| Radio | ||
| Seat Cushions / Suspension / Type | ||
| Switches | ||
| Travel Controls (Type) | ||
| Windows | ||
| Windshield Wipers |
| Blow By | Yes | MINOR SO NORMAL. |
|---|---|---|

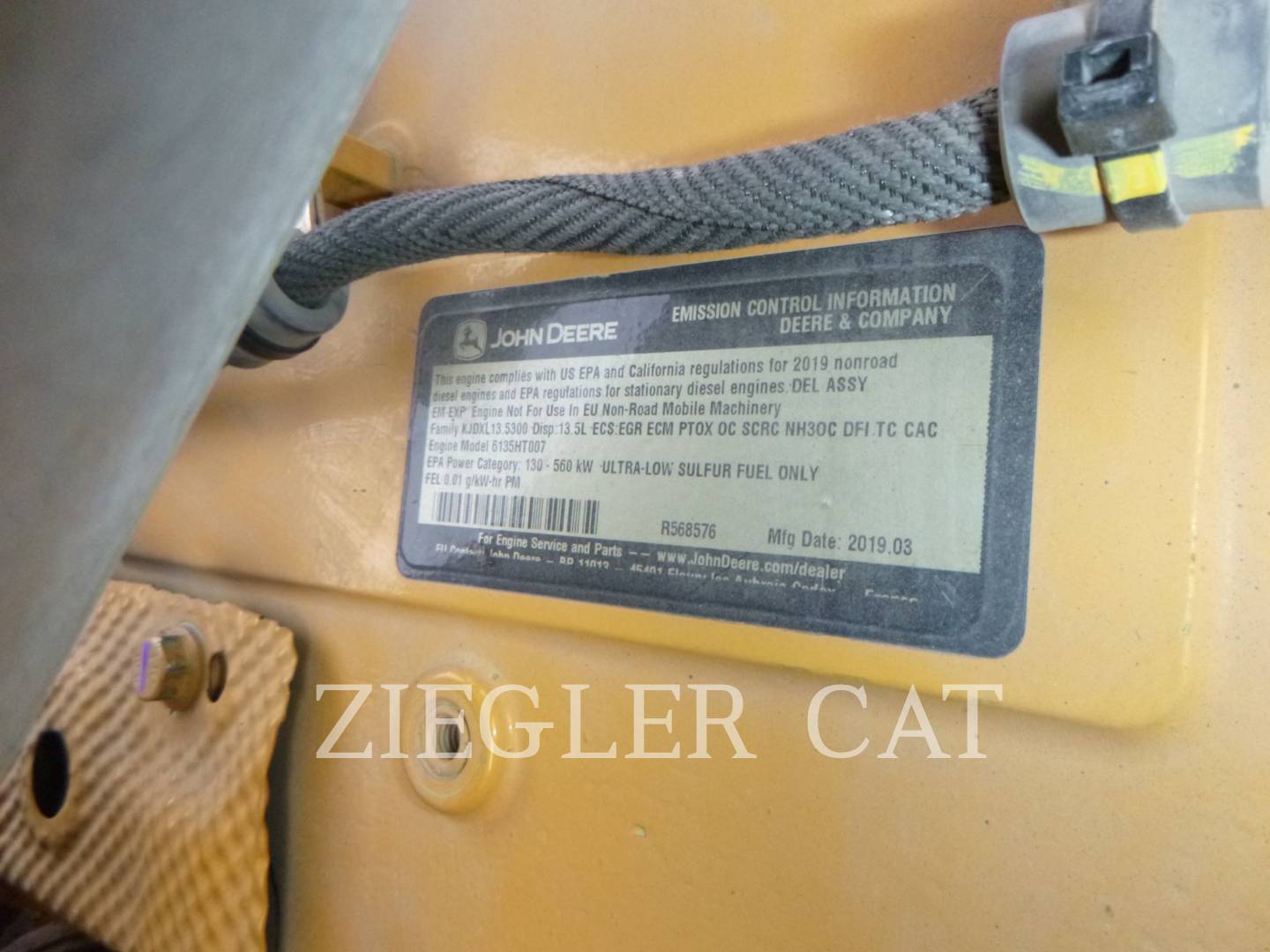

| Emissions Decal Legible | Yes | TIER 4 FINAL. |
| Fuel Leaks | No | |
| Knocking | No | |
| Oil Leaks | No | |
| Water in Oil | No | |

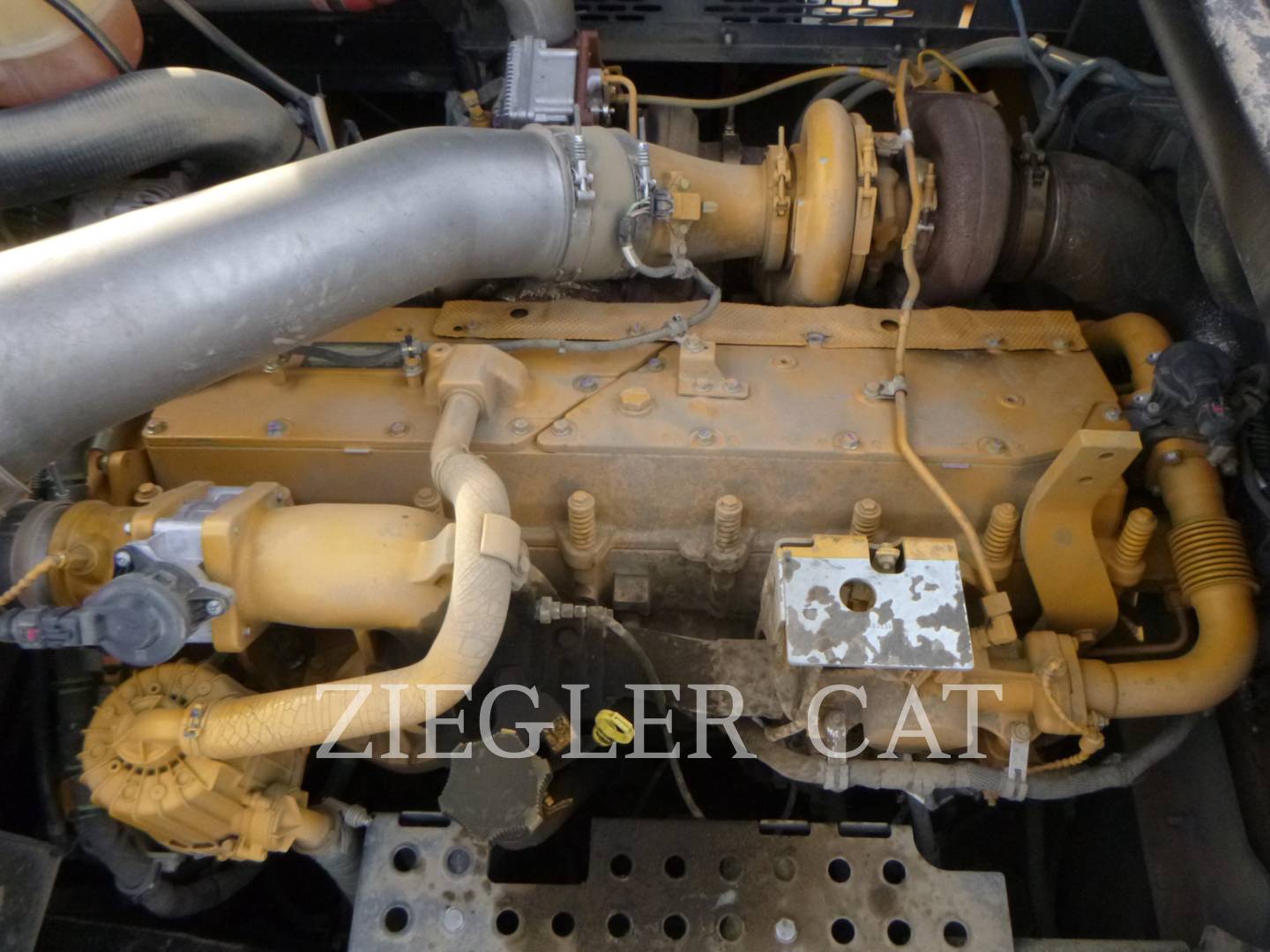

| Notes - ENGINE | THE ENGINE IS RUNNING SMOOTH WITH NORMAL POWER. | |
| Oil Pressure (H/L/N) | NORMAL | |
| Smoke Color (B/D/L/W) | NORMAL | |
| Belts / Pulleys - ENGINE | ||
| Engine Oil Level / Condition | ||
| Engine Supports / Mounts | ||
| Exhaust / Muffler / Stack | ||
| Fuel Injection System | ||
| Governor | ||
| Intake / Air Filters | ||
| Operating Condition - ENGINE | ||
| Turbocharger / Blower |
| Aftertreatment System Codes | No | |
|---|---|---|
| Leaks / Type | Yes | LEVEL 1 LEAK ON TOP OF THE TANK. |
| Notes - EMISSIONS | THE EMISSIONS SYSTEM IS FUNCTIONING NORMAL | |
| Aftertreatment Heat Shields / Guards | ||
| DEF Lines / Wiring | ||
| Diesel Exhaust Fluid (DEF) Tank | ||
| Diesel Particulate Filter (DPF) Condition / Service Hours |
| Compression in Radiator | No | |
|---|---|---|
| Coolant Leaks | No | |
| Oil in Anti-Freeze | No | |
| Standard Radiator | Yes | |
| Notes - COOLING SYSTEM | THE COOLING SYSTEM IS PERFORMING NORMAL IN 75 DEGREE WEATHER. | |
| Anti-Freeze Level / Color / Condition | NORMAL COLOR & LEVEL. | |
| Belts / Pulleys - COOLING SYSTEM | ||
| Coolers | ||
| Fan | ||
| Fan Drive / Type | ||
| Fan Shrouds / Guards | ||
| Hoses / Tubes | ||
| Radiator | ||
| Water Pump |
| Block Heater | Yes | |
|---|---|---|
| Ether Aid | Yes | |
| Alternator | ||
| Batteries / Cables / Master Disconnect | ||
| Lighting | ||
| Starter | ||
| Wiring |
| Notes - HYDRAULICS | THE HYDRAULICS ARE PERFORMING NORMAL BUT THE SWING GEAR IS SHOWING WEAR. | |
|---|---|---|
| Swing Drive Oil Level | BOTH DRIVES HAVE NORMAL LEVELS & CLEAN APPEARING OIL. | |
| Boom Cylinder | ||
| Bucket Cylinder | ||
| Control Linkage | ||
| Hose Lines | SUPPLY HOSE LEAKS TO LEVEL 2 | |
| Hydraulic Swivel | ||
| Operating Condition - HYDRAULICS | ||
| Pump Drive | LEVEL 1 WEEP | |
| Pumps & Valves | ||
| Stick Cylinder | ||
| Swing Gear | THERE IS MOVEMENT IN THE SWING GEAR WITH ROUGH PERFORMANCE AND A GROWL. | |
| Swing Motors | ||
| Tank | ||
| Travel Motors | TRACKING STRAIGHT AND SPOT TURNING ON DRY MATERIAL. |
| Boom Length (Actual Length) | 23 FOOT | |
|---|---|---|
| Notes - BOOM | THE BOOM MOUNT HAS 1/16 INCH PLUS MOVEMENT ALONG WITH BOOM CYLINDERS. | |
| Boom Condition | ||
| Boom Pins | ||
| Pins & Bushings - BOOM |
| Notes - STICK | THE BOOM TO STICK JOINT HAS MINOR MOVEMENT | |
|---|---|---|
| Stick Length | 12 FOOT 10 INCHES | |
| Pins & Bushings - STICK | ||
| Stick Conditions | ||
| Stick Pins |
| Brand | RAVALING DIG BUCKET | |
|---|---|---|
| Notes - BUCKET | THE BUCKET IS IN GOOD FUNCTIONAL CONDITION BUT THE BUCKET CONNECTING JOINTS WILL NEED REPAIR AS DESCRIBED. | |
| Width | 82 INCH WITH 89 INCH CUT. | |
| Bucket Bottom | ||
| Bucket Linkage | THE H-LINK TO BUCKET HAS BEARING WEAR AND THE H-LINK TO LINKS & LINKS TO STICK ARE GOOD. THE STICK END IS WORN OUT AND WILL REQUIRE MACHINING TO REPAIR. | |
| Bucket Mounts | ||
| Bucket Sides | ||
| Cutting Edges | ||
| Teeth / Adapters | WIDE TEETH |

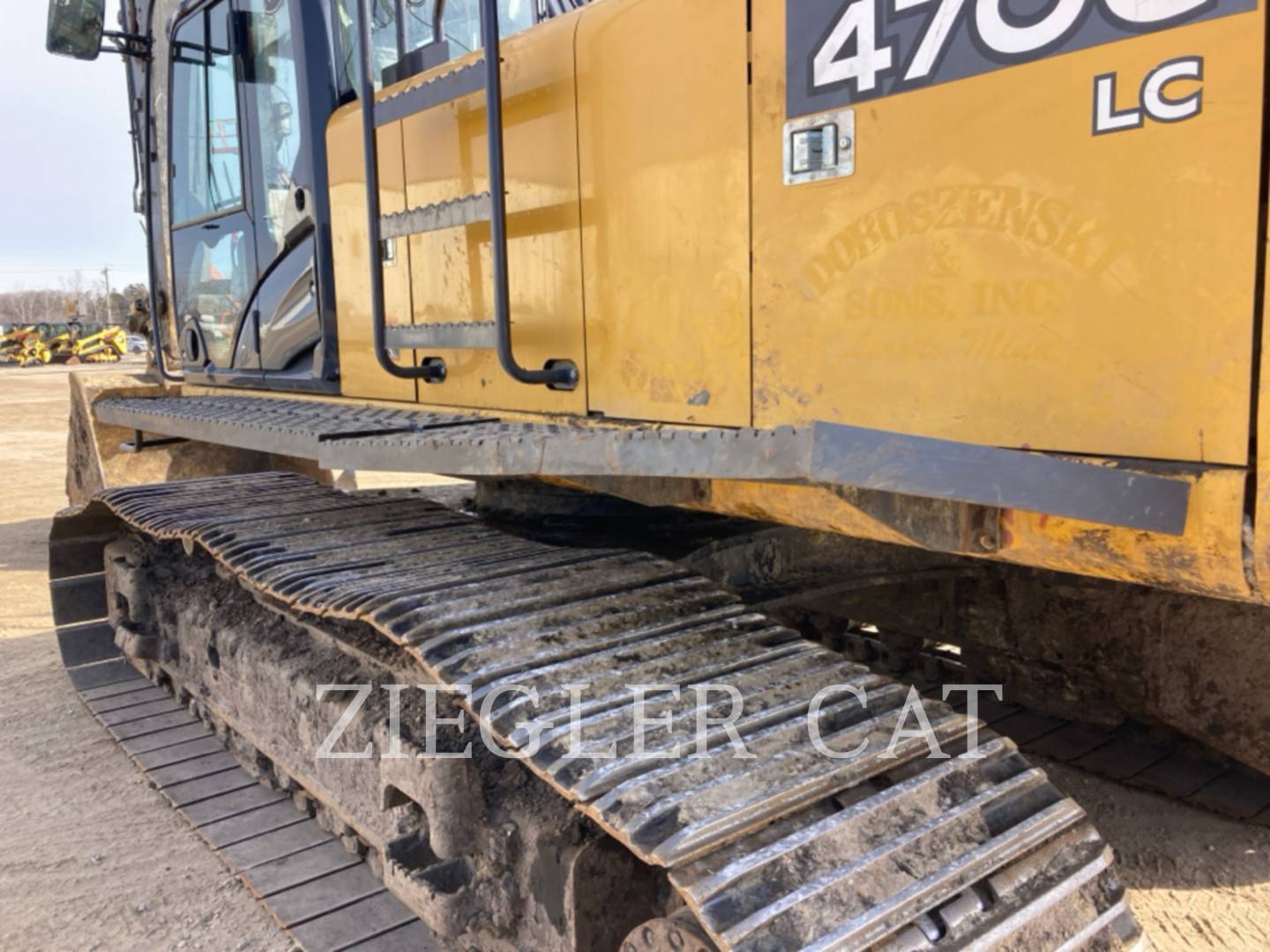

| Cannon | BOTH TRACKS ARE A LITTLE SLACK BUT NOT COMPLETELY COMPRESSED SO CAN ADJUST AS NEEDED. | |
|---|---|---|
| Carrier Rollers | . | |
| Link Part Number | 216 SL | |
| Track Shoes Width / Type | 35.5 INCH TRIPLE GROUSER. | |
| Track Frame - Left | ||
| Track Frame - Right | ||
| Carrier Rollers Front |
Left Measurement: 160MM Left Percent Worn: 100% Right Measurement: 159.75MM Right Percent Worn: 102% |
|
| Carrier Rollers Rear |
Left Measurement: CENTER 165MM REAR 158MM Left Percent Worn: 120% Right Measurement: CENTER 165.5MM REAR 157MM Right Percent Worn: 130% |
|
| Idlers Front |
Left Measurement: 26MM Left Percent Worn: 35% Right Measurement: 26MM Right Percent Worn: 35% |
|
| Links |
Left Measurement: 126MM Left Percent Worn: 40% Right Measurement: 126MM Right Percent Worn: 40% |
|
| Pins & Bushings (External) |
Left Measurement: 67.5MM Left Percent Worn: 80% Right Measurement: 67.5MM Right Percent Worn: 80% |
|
| Pins & Bushings (Internal) |
Left Measurement: 871MM Left Percent Worn: 16% Right Measurement: 871MM Right Percent Worn: 16% |
|
| Segments |
Left Percent Worn: 85% Right Percent Worn: 85% |
|
| Track Roller 9 |
Left Measurement: AVE 193MM Left Percent Worn: 39% Right Measurement: 193MM Right Percent Worn: 39% |
|
| Track Shoe Grouser Height |
Left Measurement: 34.75MM Left Percent Worn: 11% Right Measurement: 34.75MM Right Percent Worn: 11% |
| Housings, Left | ||
|---|---|---|
| Housings, Right | ||
| Planetaries / Differential, Left | ||
| Planetaries / Differential, Right |
| comment 1 | THE MACHINE IS CURRENTLY IN DAILY USE WITH THE ENGINE RUNNING SMOOTH AND THE HYDRAULICS ARE PERFORMING NORMAL |
|---|
Comments
HEATER
A/C
LIGHTS
STANDARD RADIO
REARVIEW CAMERA
AIR SUSPENSION SEAT
HEATED SEAT
JD LINK
EITHER AID
ENGINE COOLANT HEATER
TIER 4 FINAL EMISSIONS
SWIVEL GUARD
L.H. CATWALKS
HAND CONTROLLED PATTERN CHANGER
HYDRAULIC REVERSING FAN
HYDRAULIC COUNTERWEIGHT REMOVAL SYSTEM
23' BOOM
12' 10" STICK
RAVALING 82" DIG BUCKET
SIDE CUTTERS & WIDE TEETH
Features
