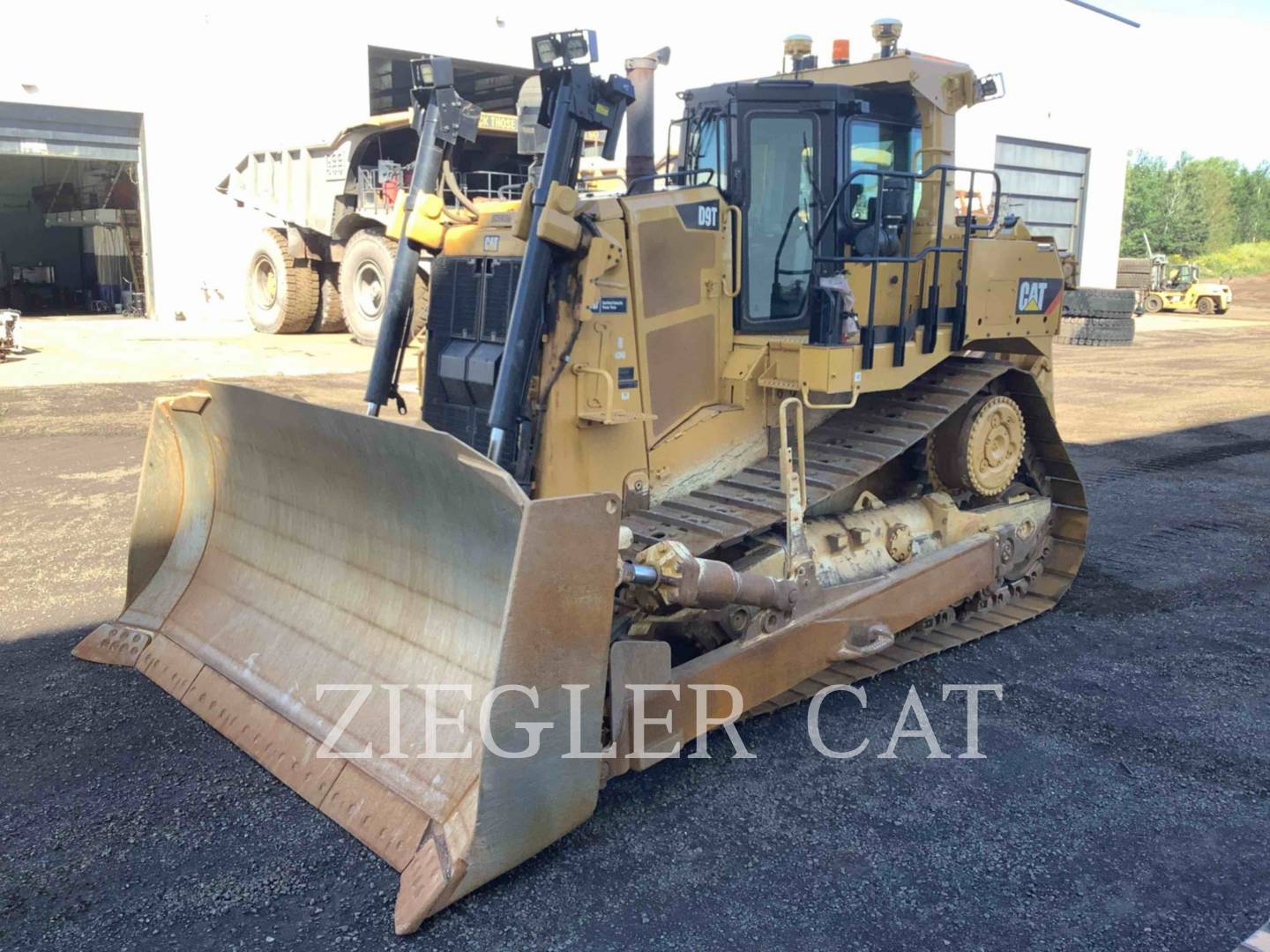

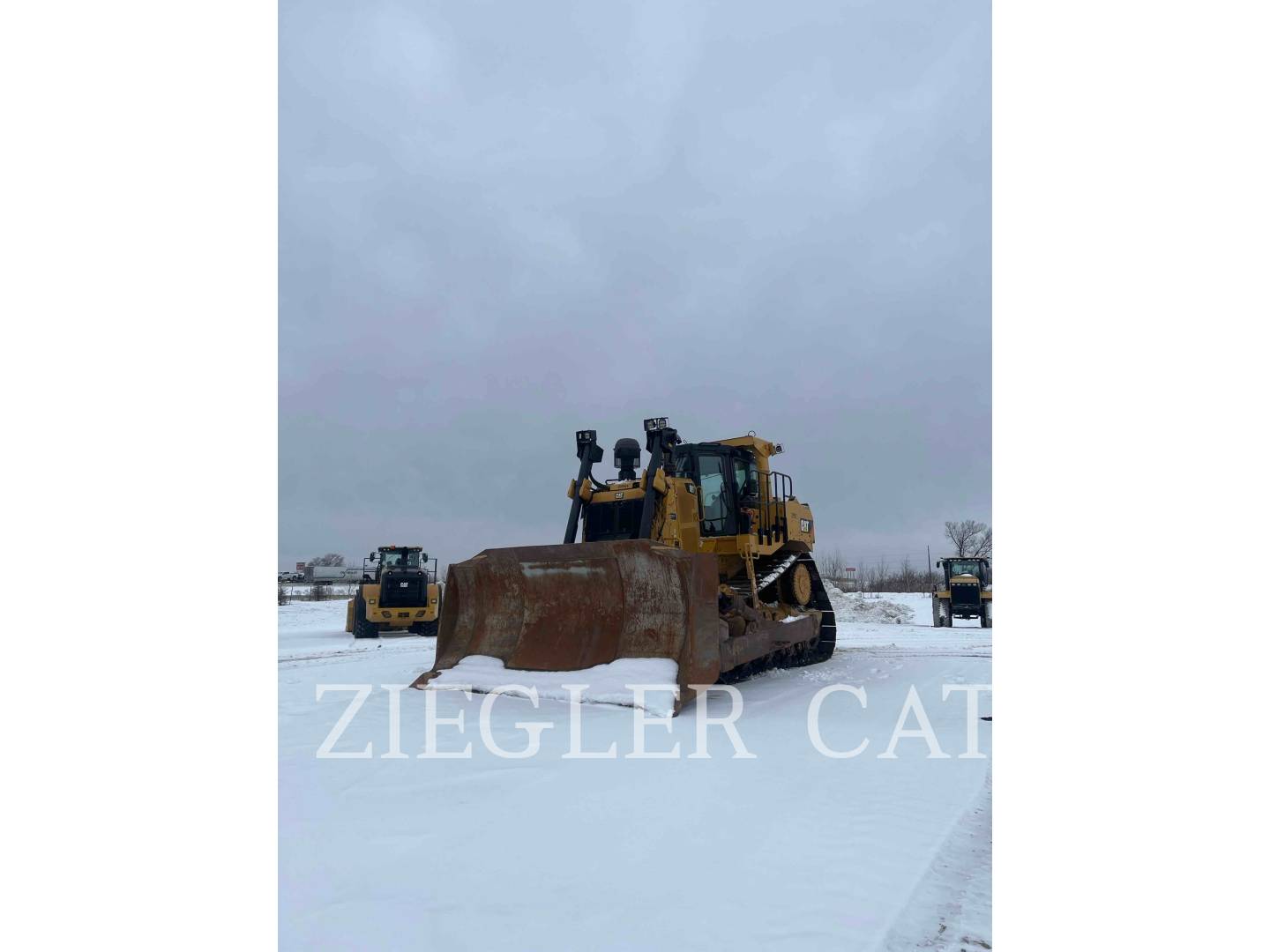

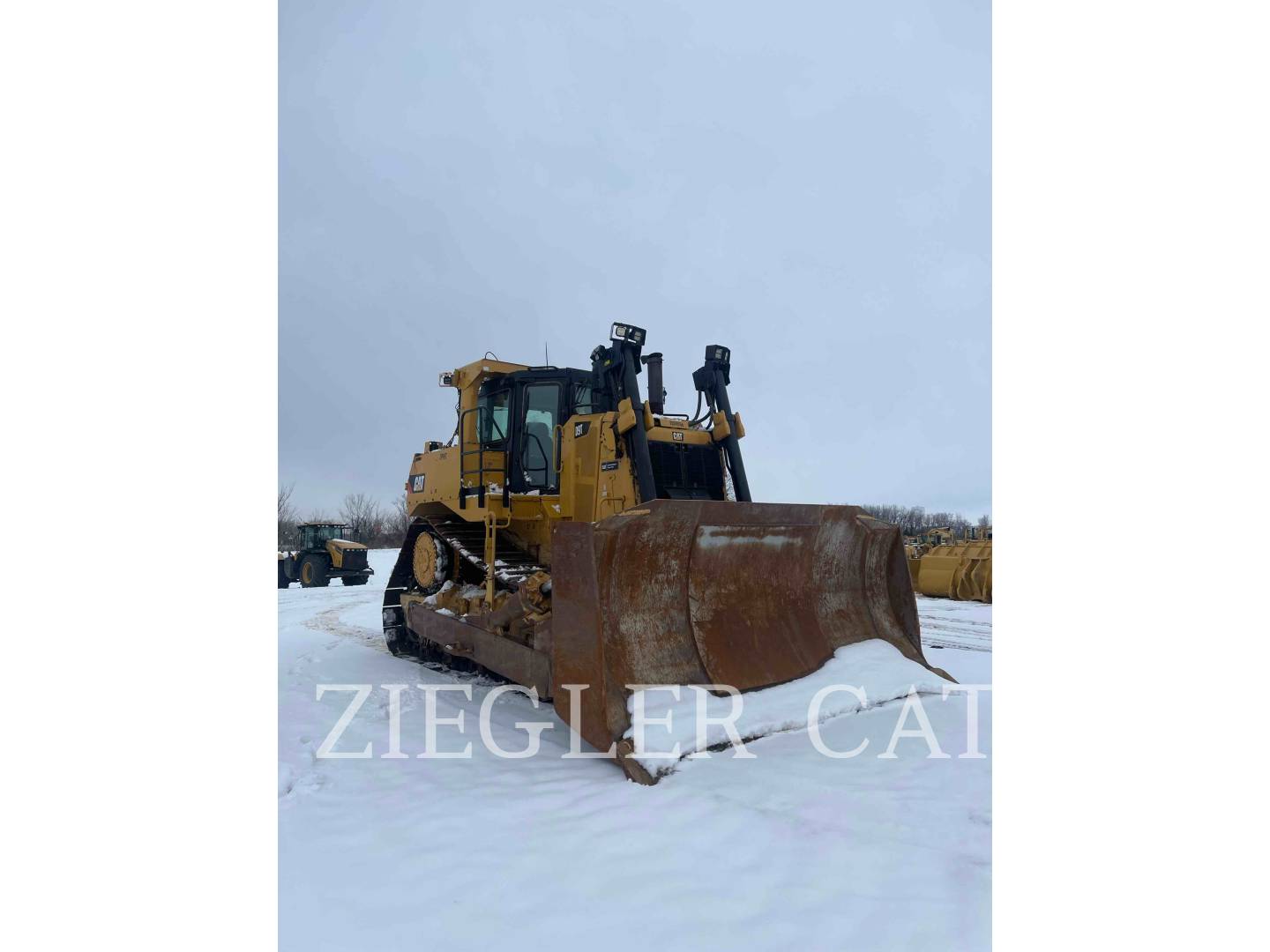

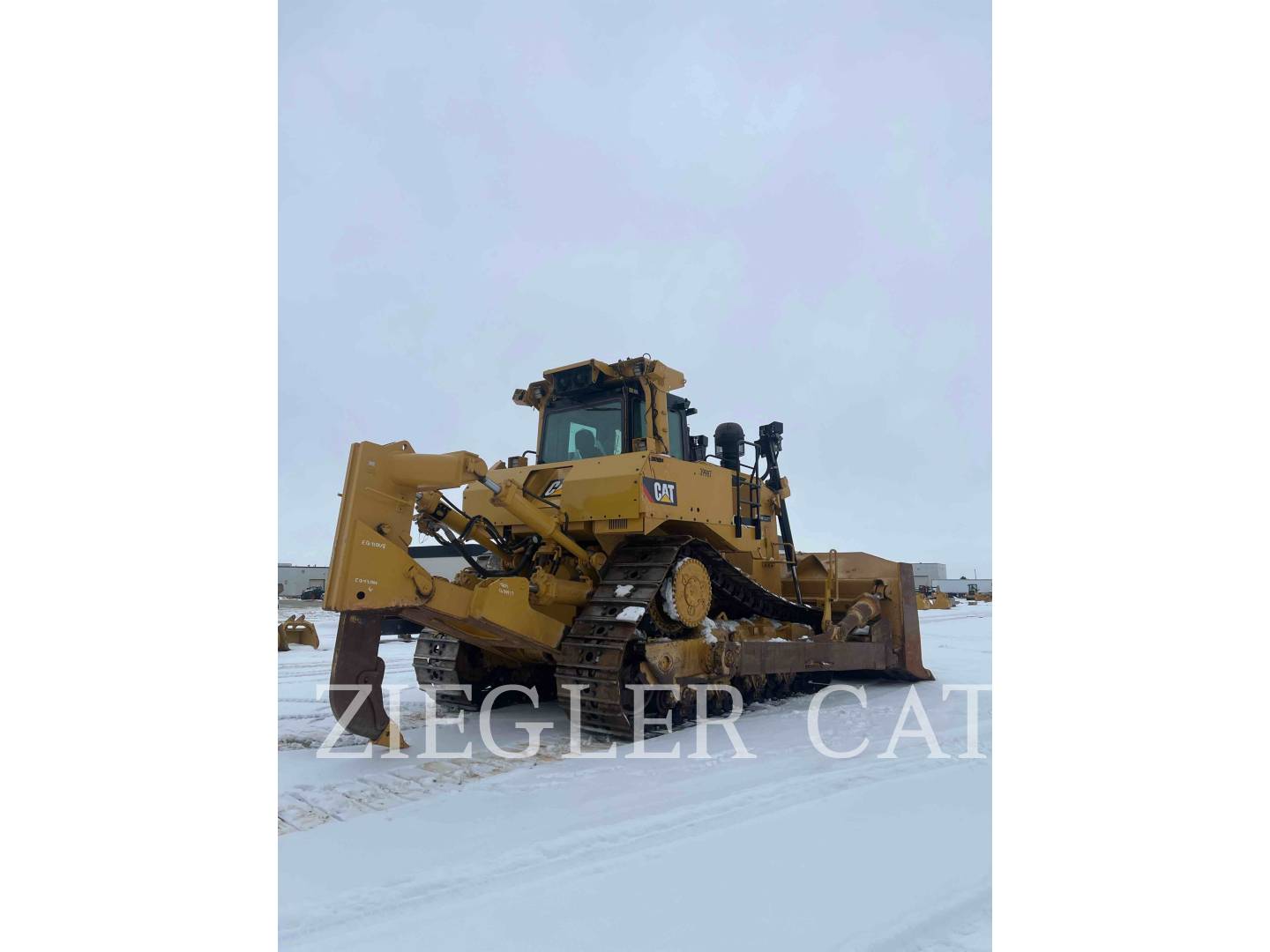

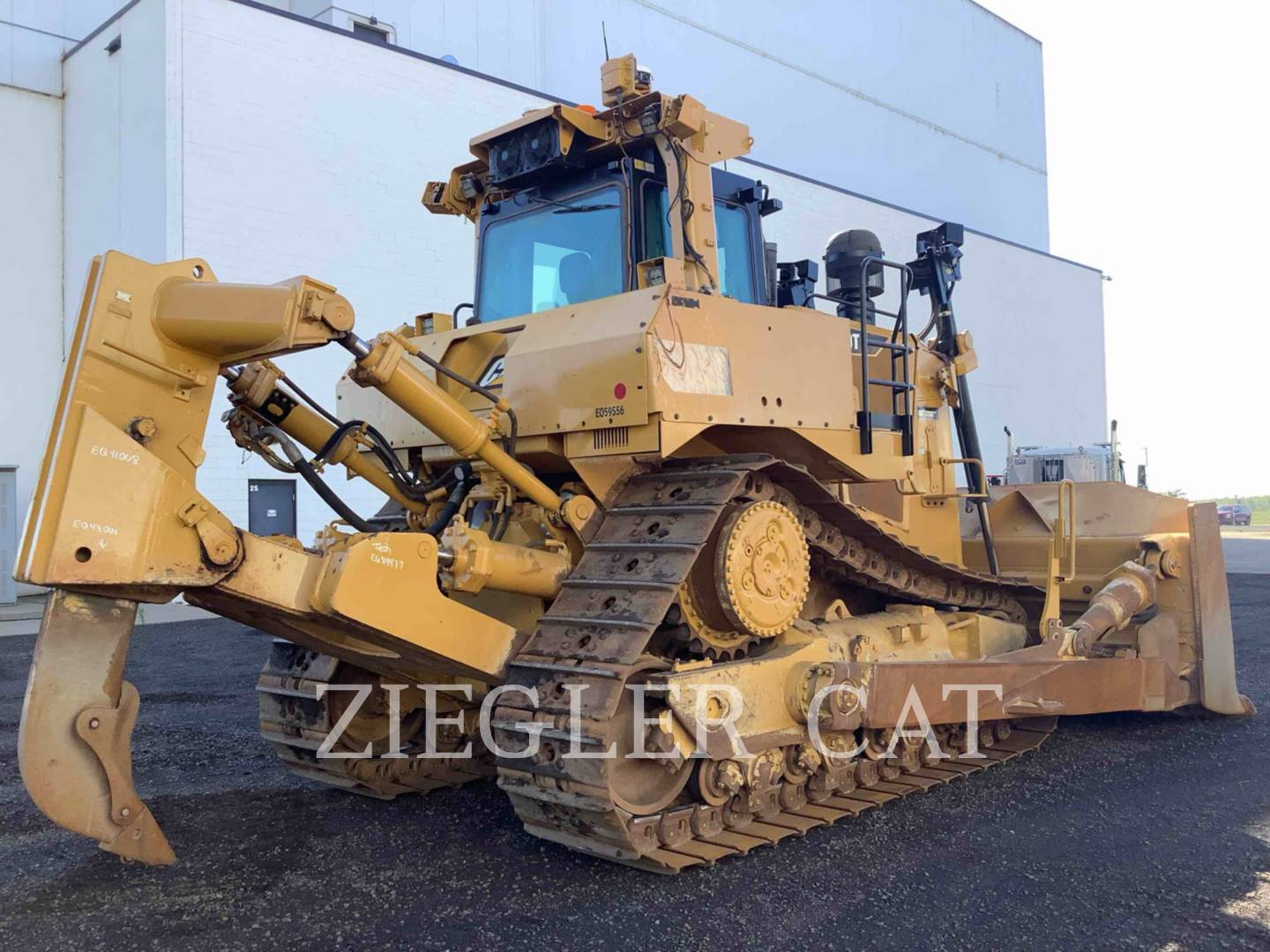

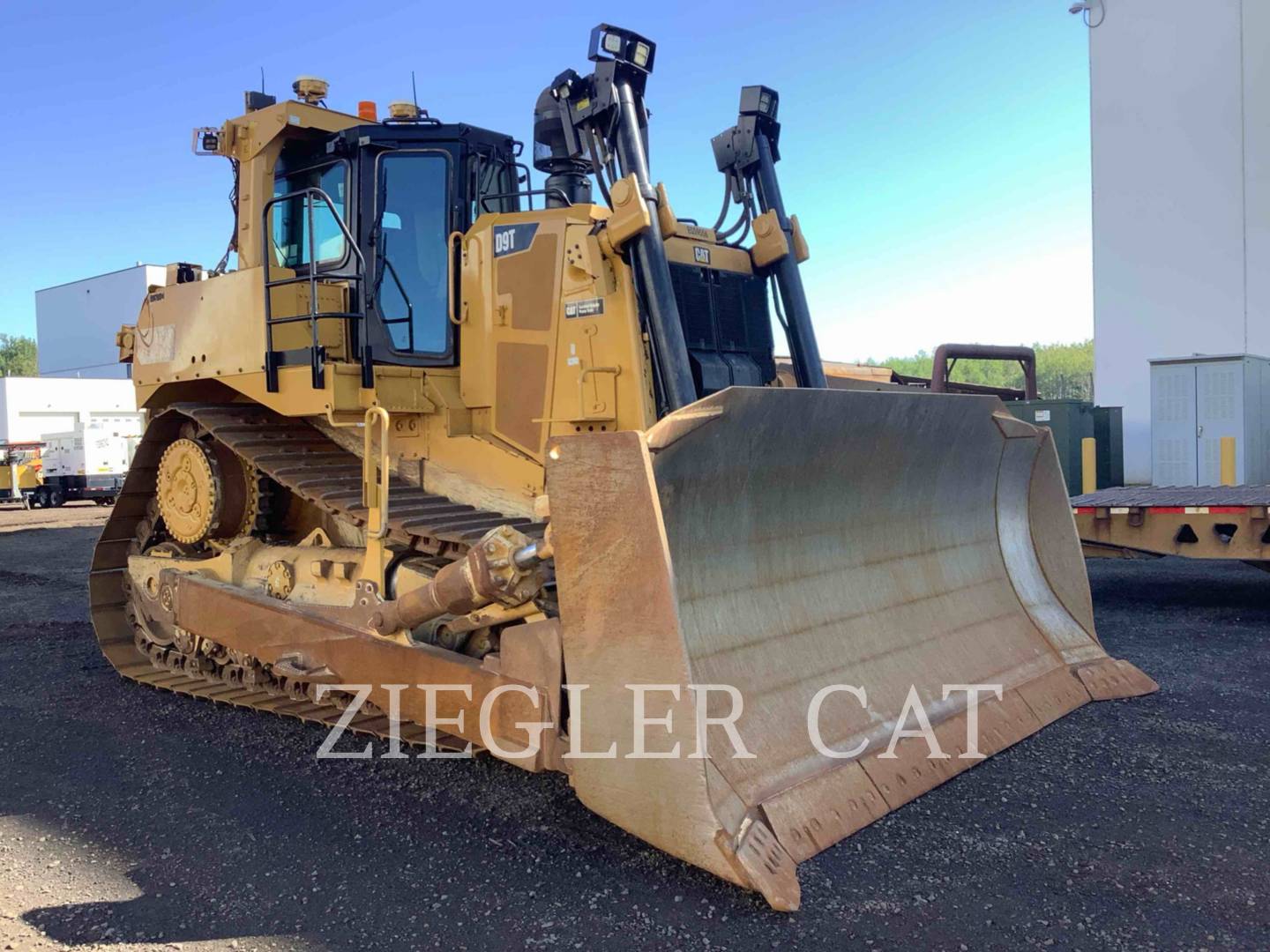

2013 CAT D9T 2,854 engine hrs

Comments

Ziegler rebuild 9-2022 at machine hours 29,878

Features

  • 9SU/U DOZER, DUAL TILT GUARD
  • BATTERY GROUP COLD
  • BOTTOM GRDS, PART
  • CARRIER ROLLERS
  • Customer Value Agreement (CVA) 2 year / 24 month CVA
  • CYL GP, AUTOCARRY
  • D9T
  • D9T TRACTOR, US
  • ENGINE COOLANT, STD (-37C)
  • EXHAUST, WRAPPED
  • FINAL DRIVES, STANDARD
  • GLASS, IMPACT RESISTANT
  • GUARD, FUEL TANK
  • HEATER,ENGINE COOL
  • HYDRAULICS, DUAL
  • LANGUAGE, ADVISOR1
  • LGHT, WARN, STROBE
  • LIGHTS, 11 LED
  • MACH CTRL, PERFORM
  • MOUNTING GP, LIGHT
  • OPERATORS AR,QUICK

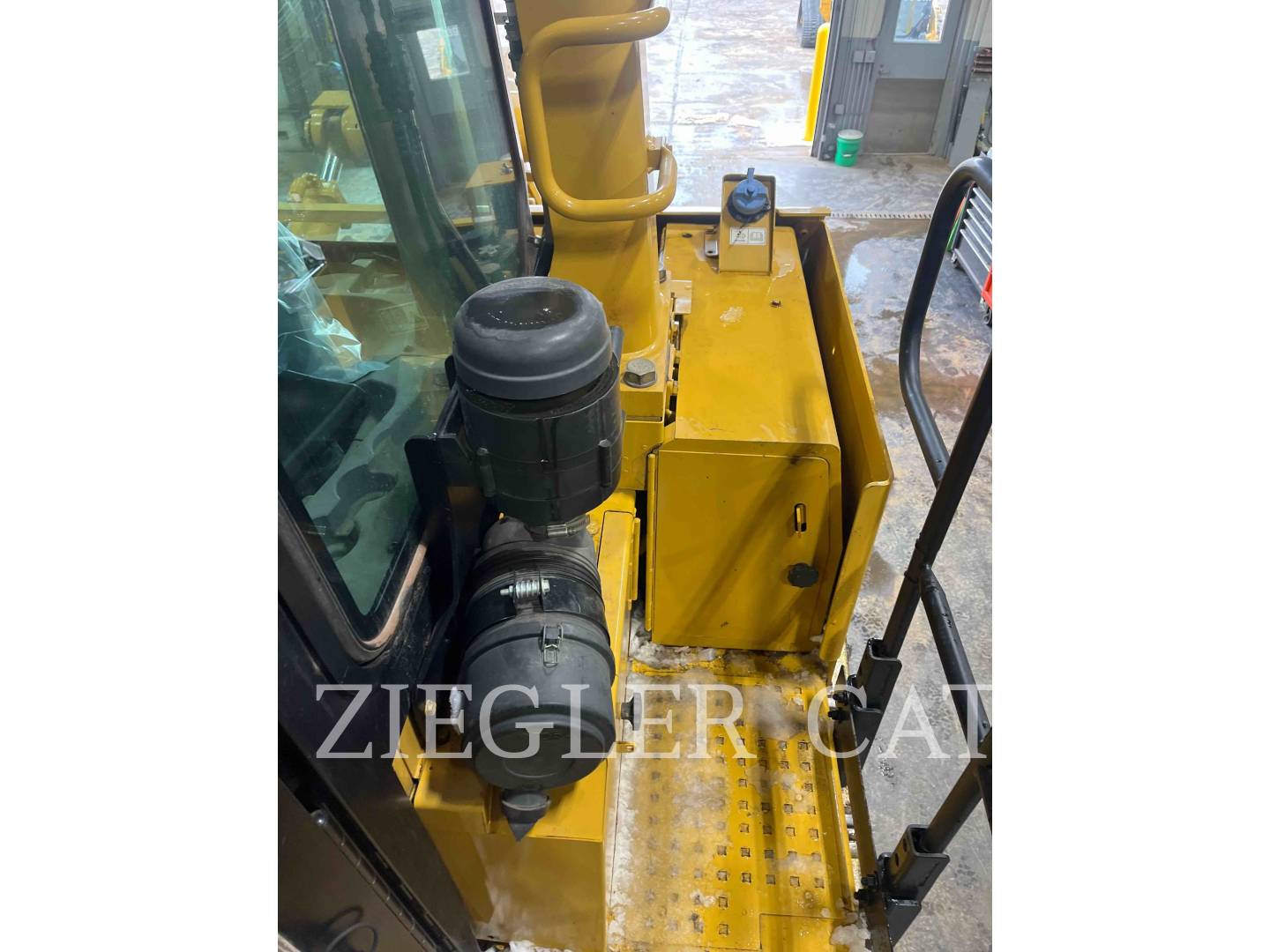

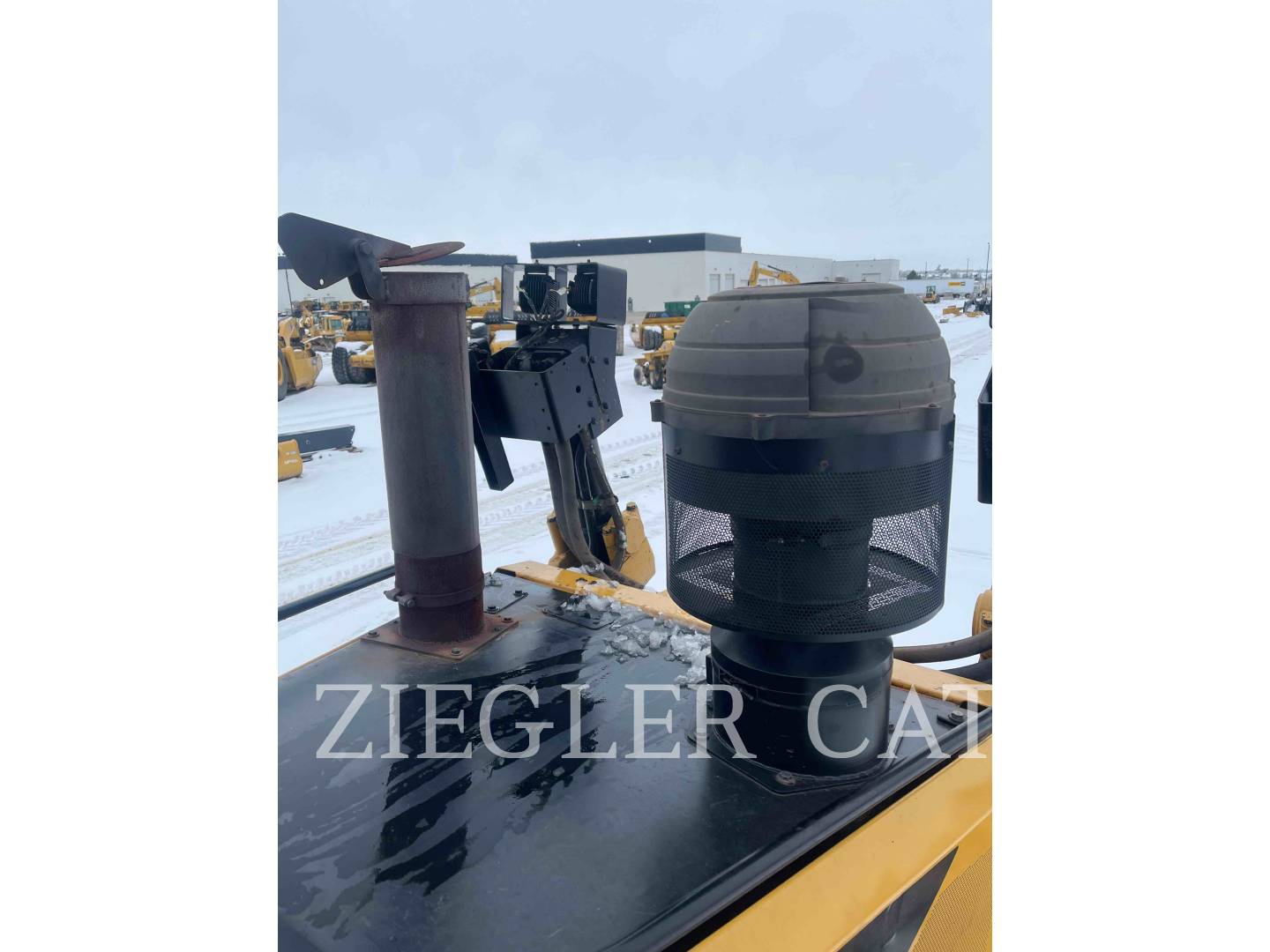

  • PRECLEANER, POWERED

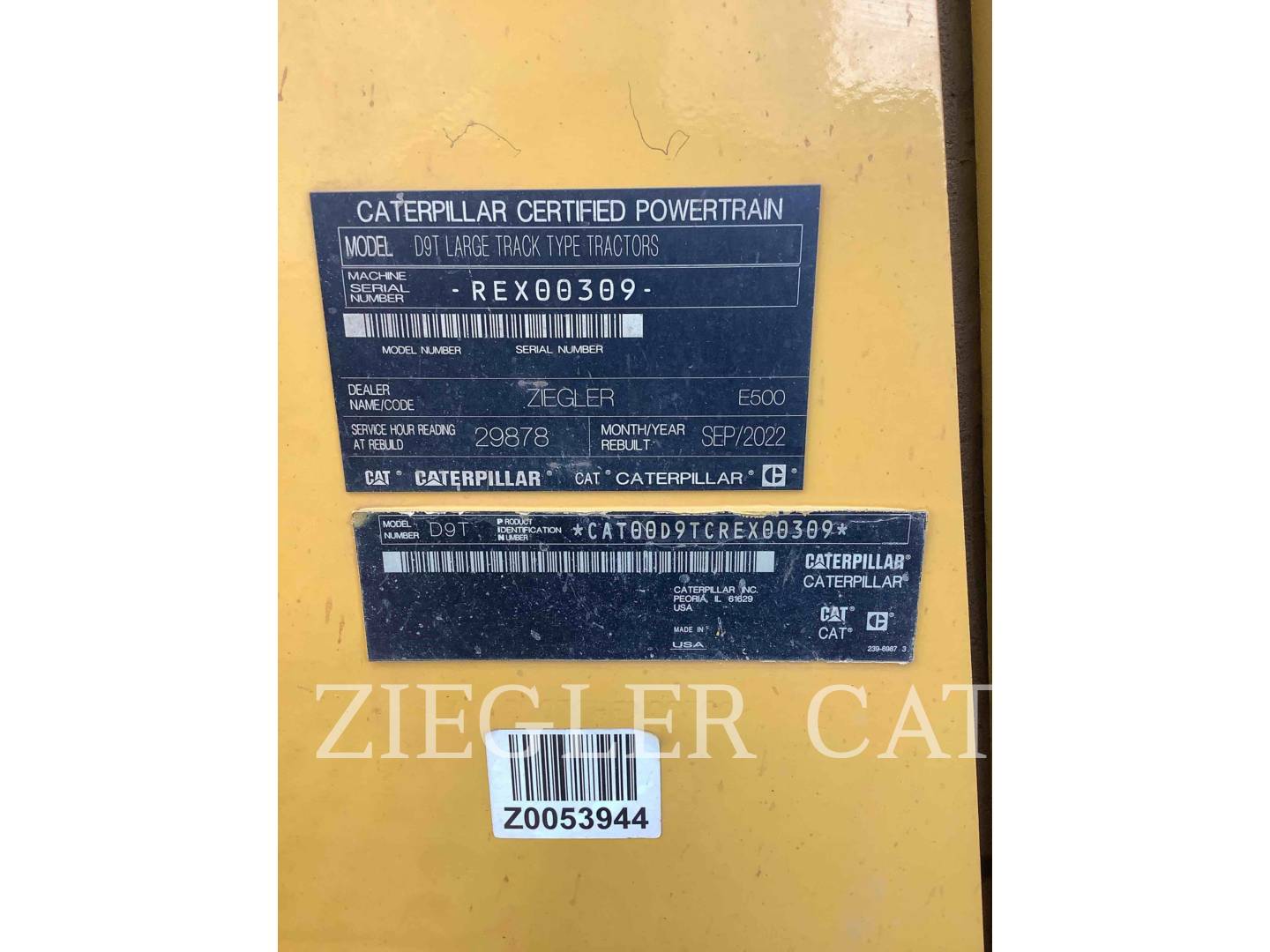

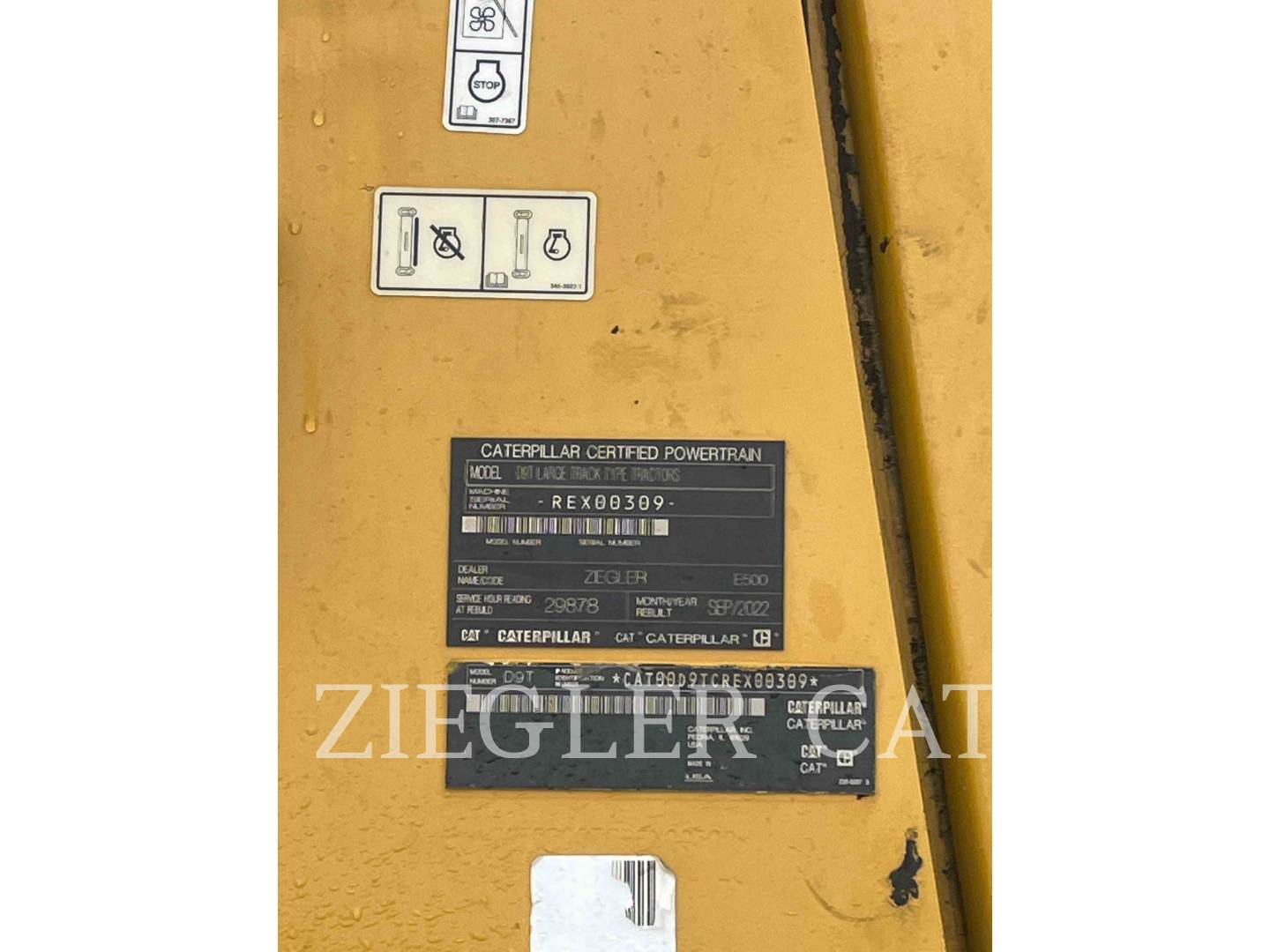

  • Rebuild Cat Certified Rebuild Ziegler rebuild 9-2022 at machine hours 29,878

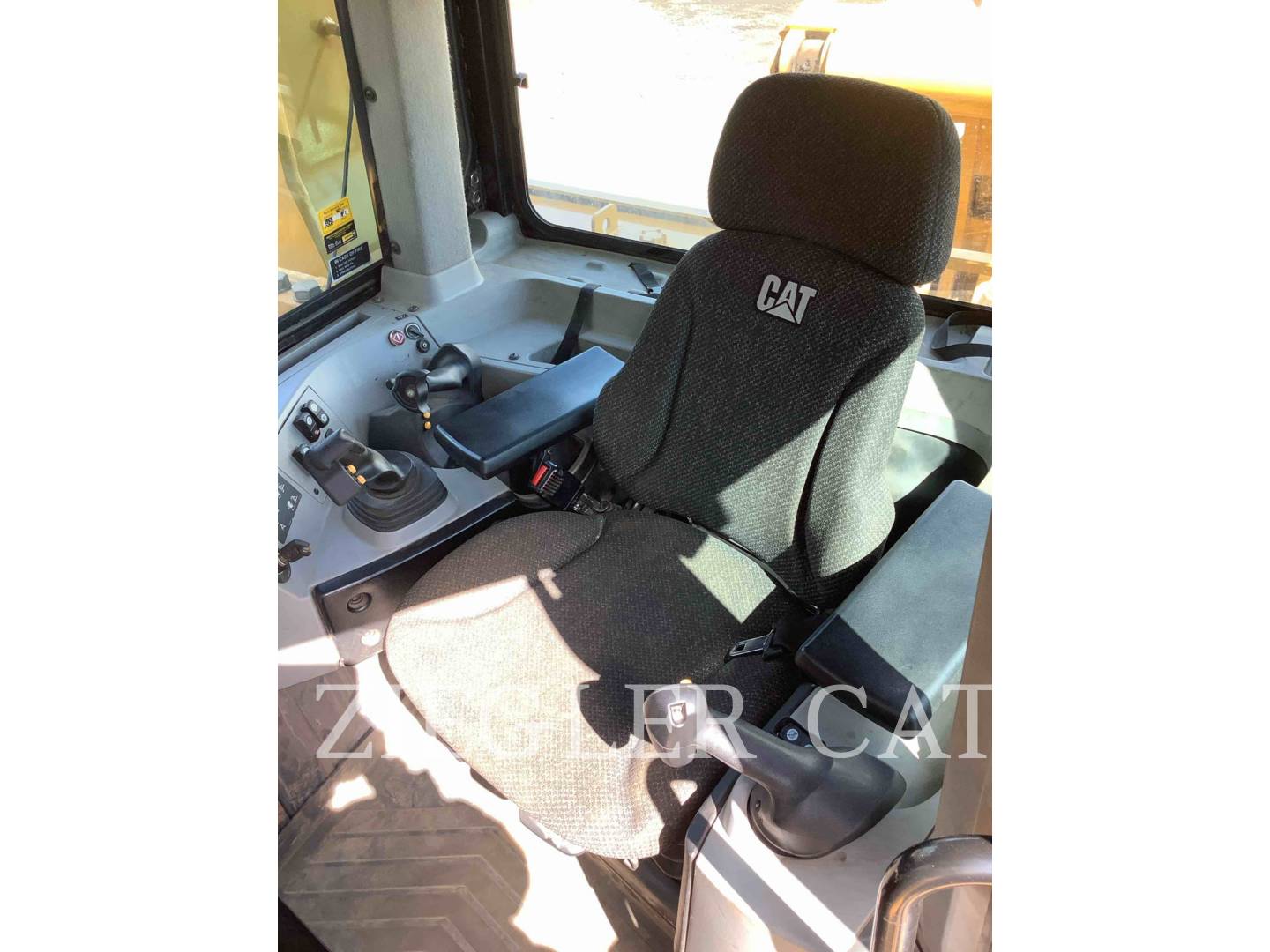

  • SEAT, HEATED & VENTILATED
  • START AR, PRELUBE
  • STOCKPILE ARNGMT
  • TRACK 760MM ES TP
  • TRUNNIONS, WIDE DOZER
  • UNDERCARRIAGE, BASIC
  • VIMS 3G W/ GSM PRO
  • VISIBILITY AR
  • WINDOW SHADES

Condition

ET Product Status Report Download Yes
Machine Starts and is Operable Yes
Visible Oil Leaks No
Body
● ● ●
Frame
● ● ●
General
● ● ●

Battery Box
● ● ●
Belly Pans
● ● ●
Cab or Canopy
● ● ●
Decals
● ●
Engine Enclosures
● ● ●
Fuel Tank
● ●
Guard bent.
Grab Irons
● ● ●
Guards
● ● ●
Hood
● ● ●
Main Frame Welds
● ● ●
Paint
● ● ●
Pre-Cleaner Bowl
● ● ●

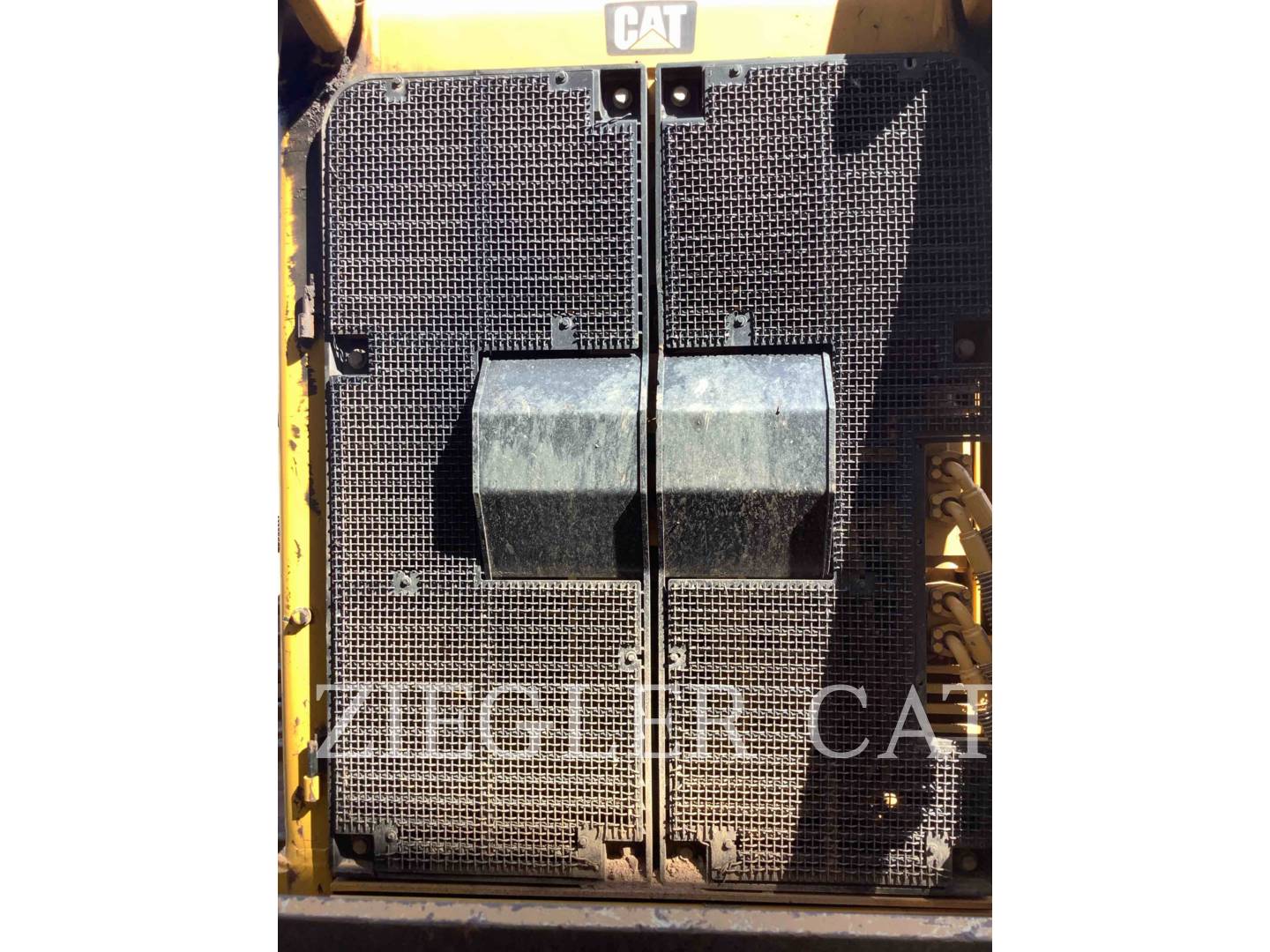

Radiator Grill
● ● ●
Screens
● ● ●
Sheet Metal
● ● ●
Steps / Ladder
● ● ●
Transmission Guard
● ● ●

Parking Brake Functioning Yes
ROPS Certification Plate Yes
Safety Decals In Place Yes
Safety Decals Legible Yes
Safety Locks / Pins Yes
Service Brakes Functioning Yes
Back Up Alarm
● ● ●
Horn
● ● ●
ROPS
● ● ●
Seat Belt / Date
● ● ●
Oct 22
Secondary Exit
● ● ●

Diesel Exhaust Fluid (DEF) Level - OPERATOR STATION 90%
Fuel Level - OPERATOR STATION 100%
Current O&MM No
Current Parts Manual No
Current Safety Manual No
Sound Proofing No
Air Conditioner
● ● ●
Armrests
● ● ●

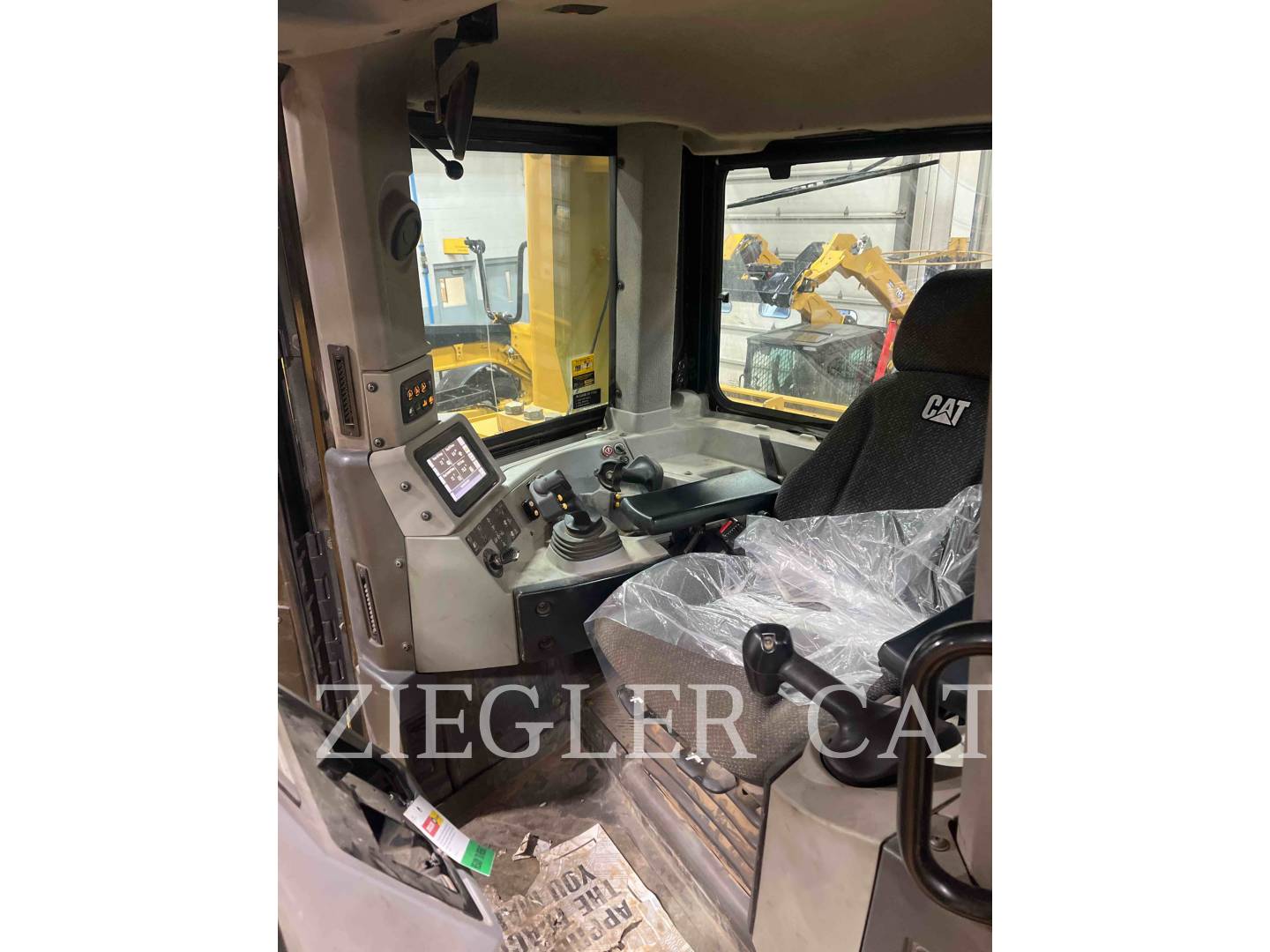

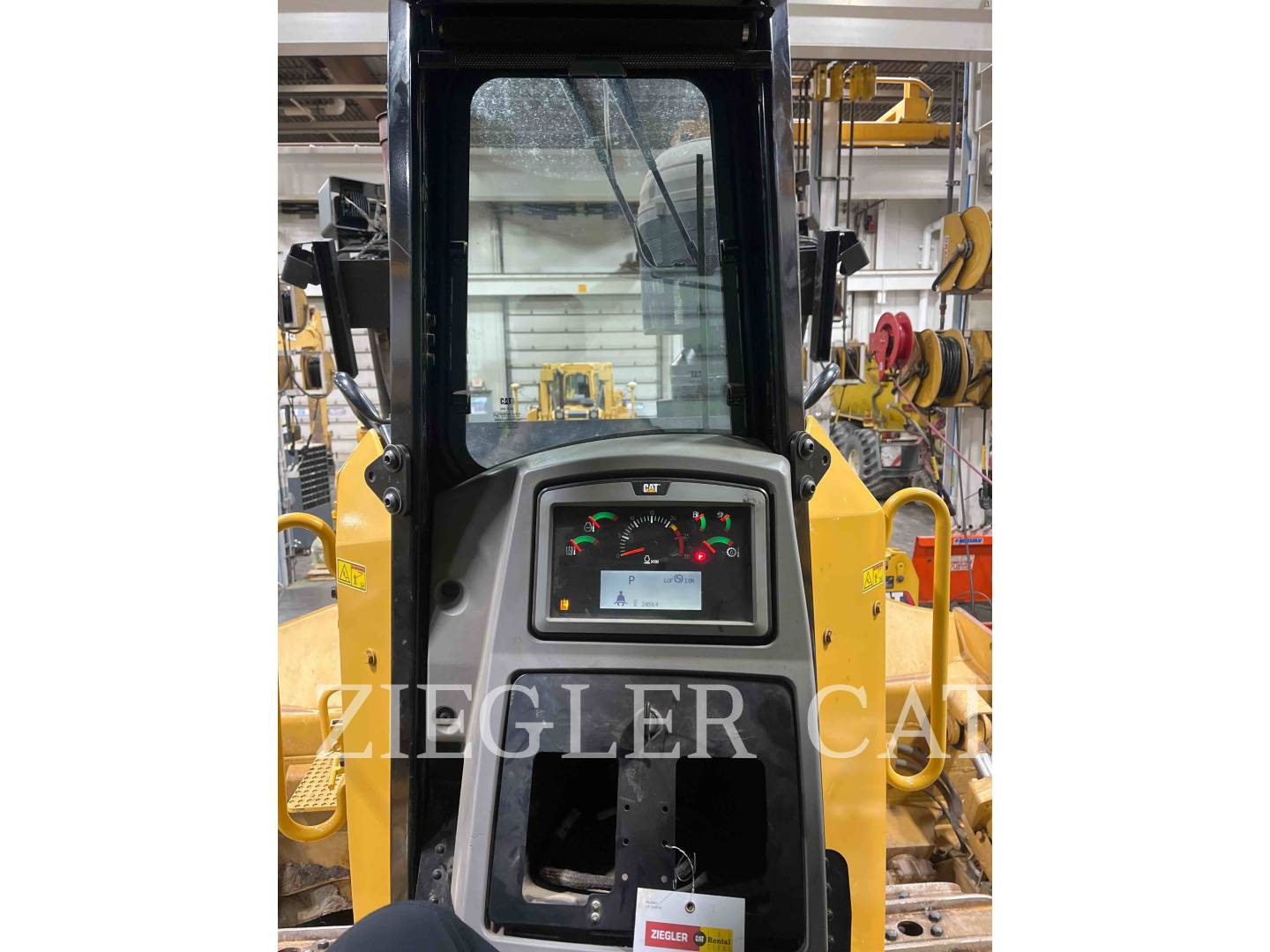

Dash Console
● ● ●
Door Latches / Hinges / Seals
● ● ●

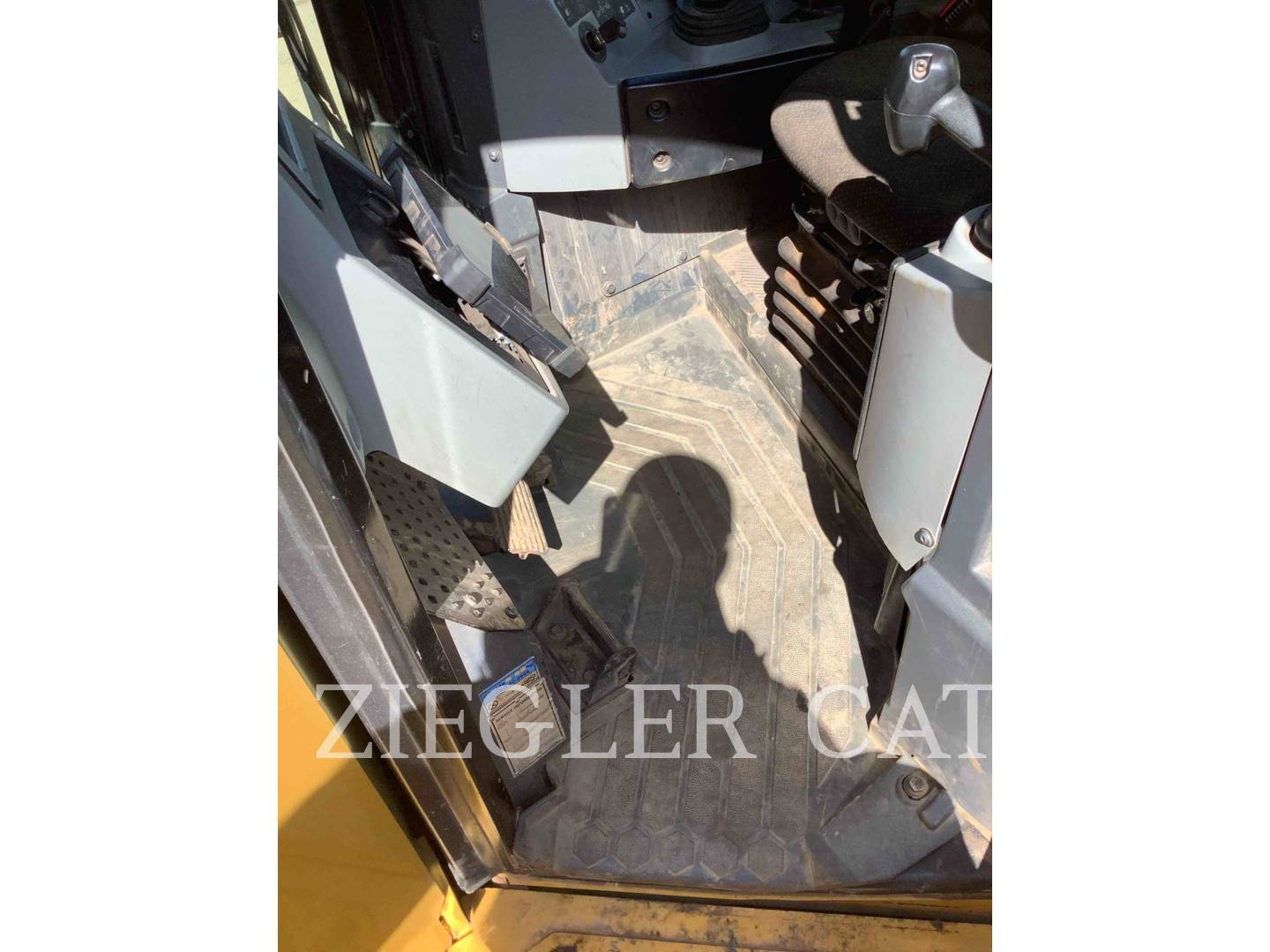

Floor Boards / Mats
● ● ●

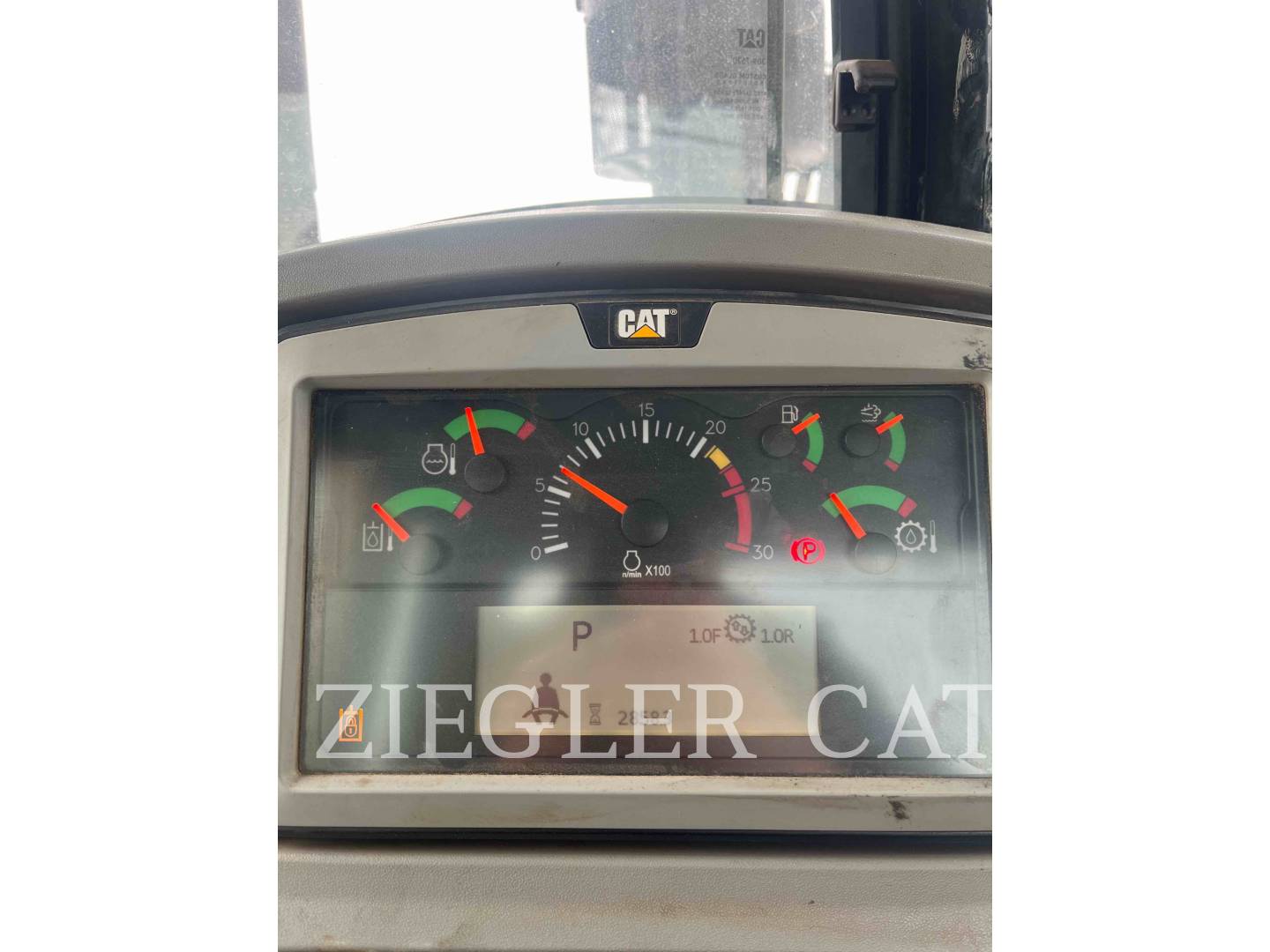

Gauges
● ● ●

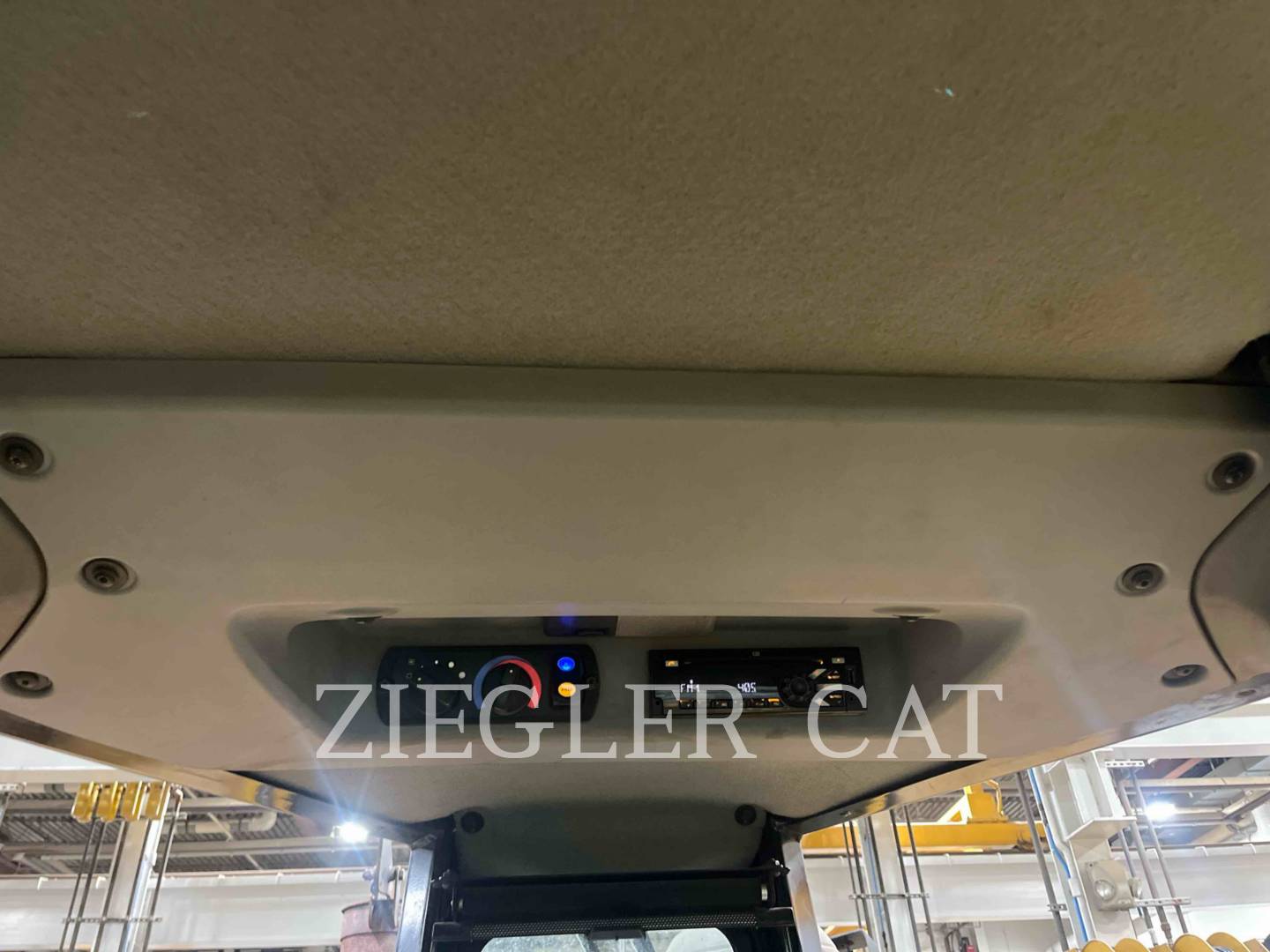

Headliner
● ● ●
Heater / Defroster
● ● ●

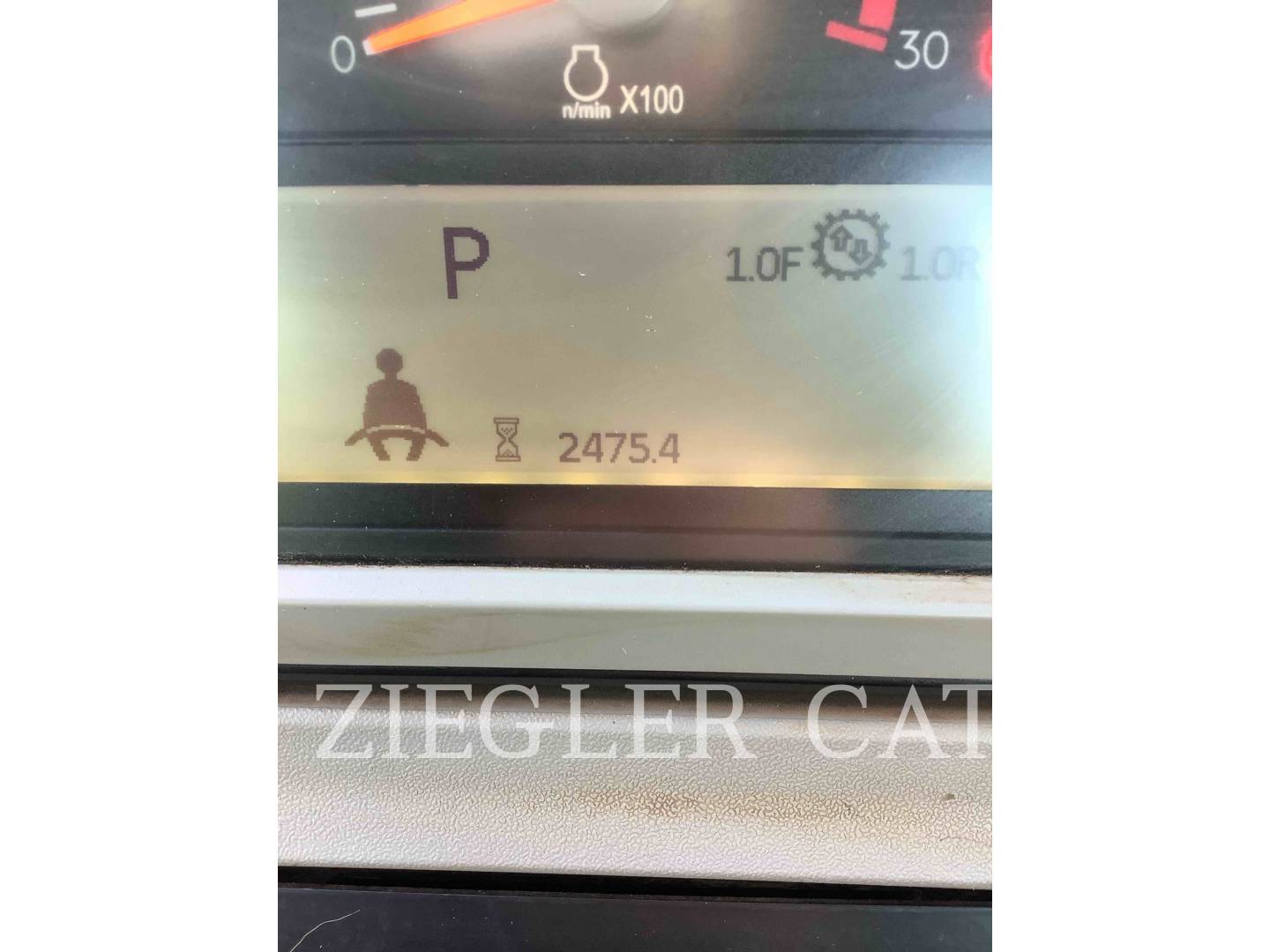

Hour Meter - GAUGES, OPERATION STATION, CONSOLE
● ● ●

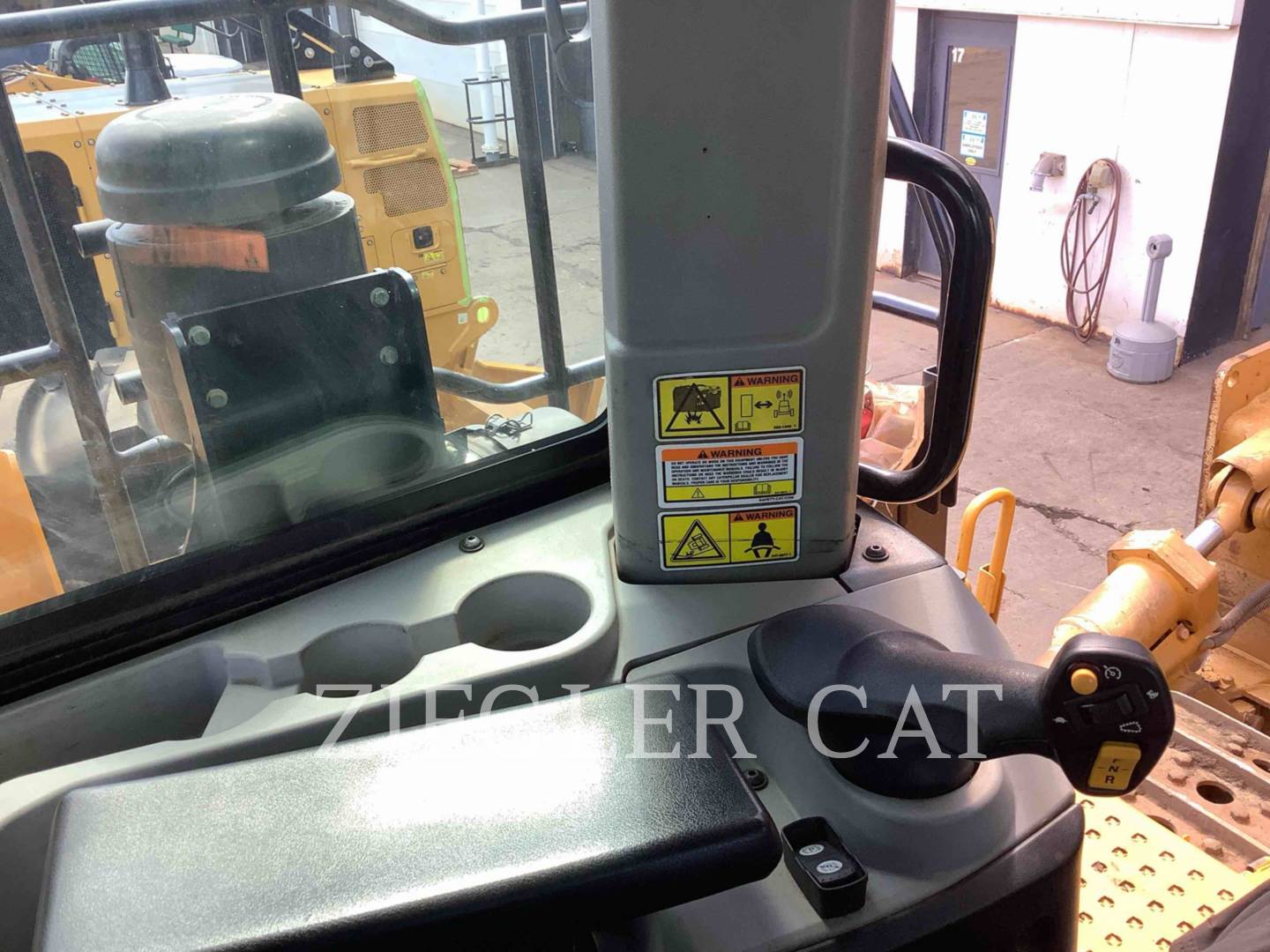

Hydraulic Controls
● ● ●
Interior Lights
● ● ●
Interior Plastic / Fabric
● ●
Mirrors
● ● ●
Monitoring Display
● ● ●
Pans/Guards
● ● ●
Radio
● ●

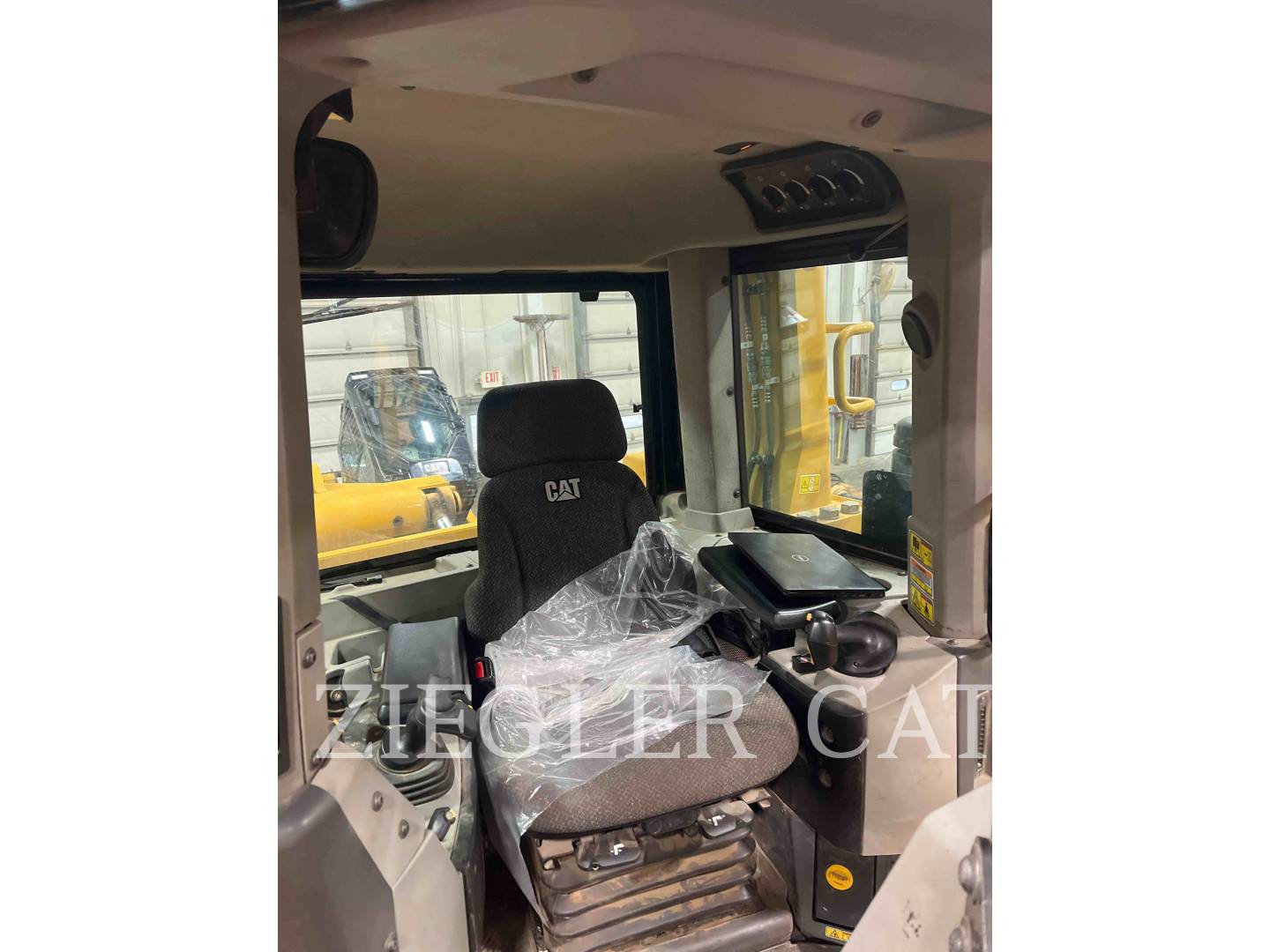

Seat Cushions / Suspension / Type
● ● ●
Switches
● ● ●
Transmission Controls
● ● ●
Visor / Sunshade
Rear sunshade missing
Windows
● ● ●
Windshield Wipers
● ●

Apparent Other Engine Damage No
Blow By No
Fuel Leaks No
Has Engine been rebuilt? Yes
Knocking No
Oil Leaks No
Pre Lube System Yes
Water in Oil No

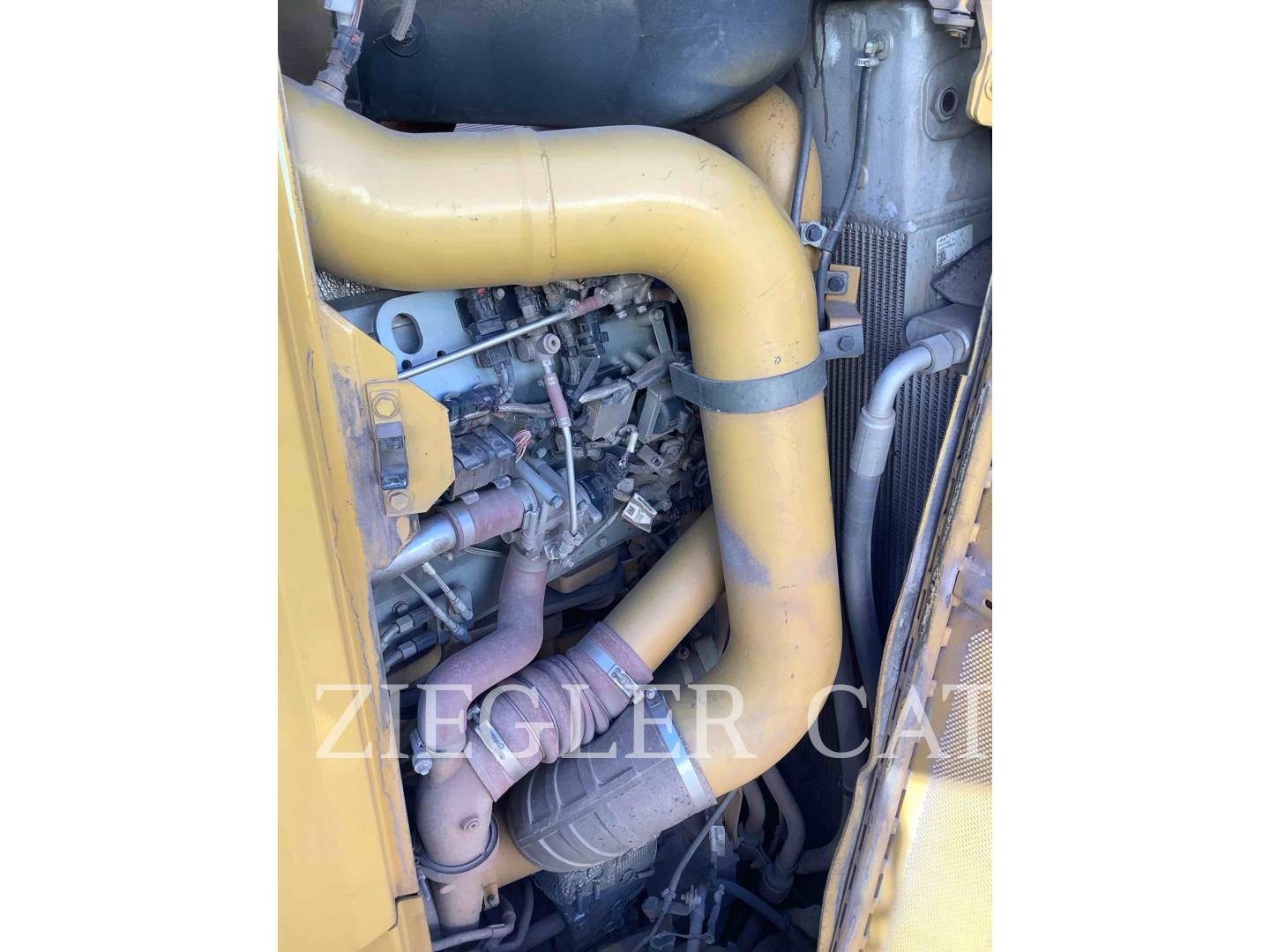

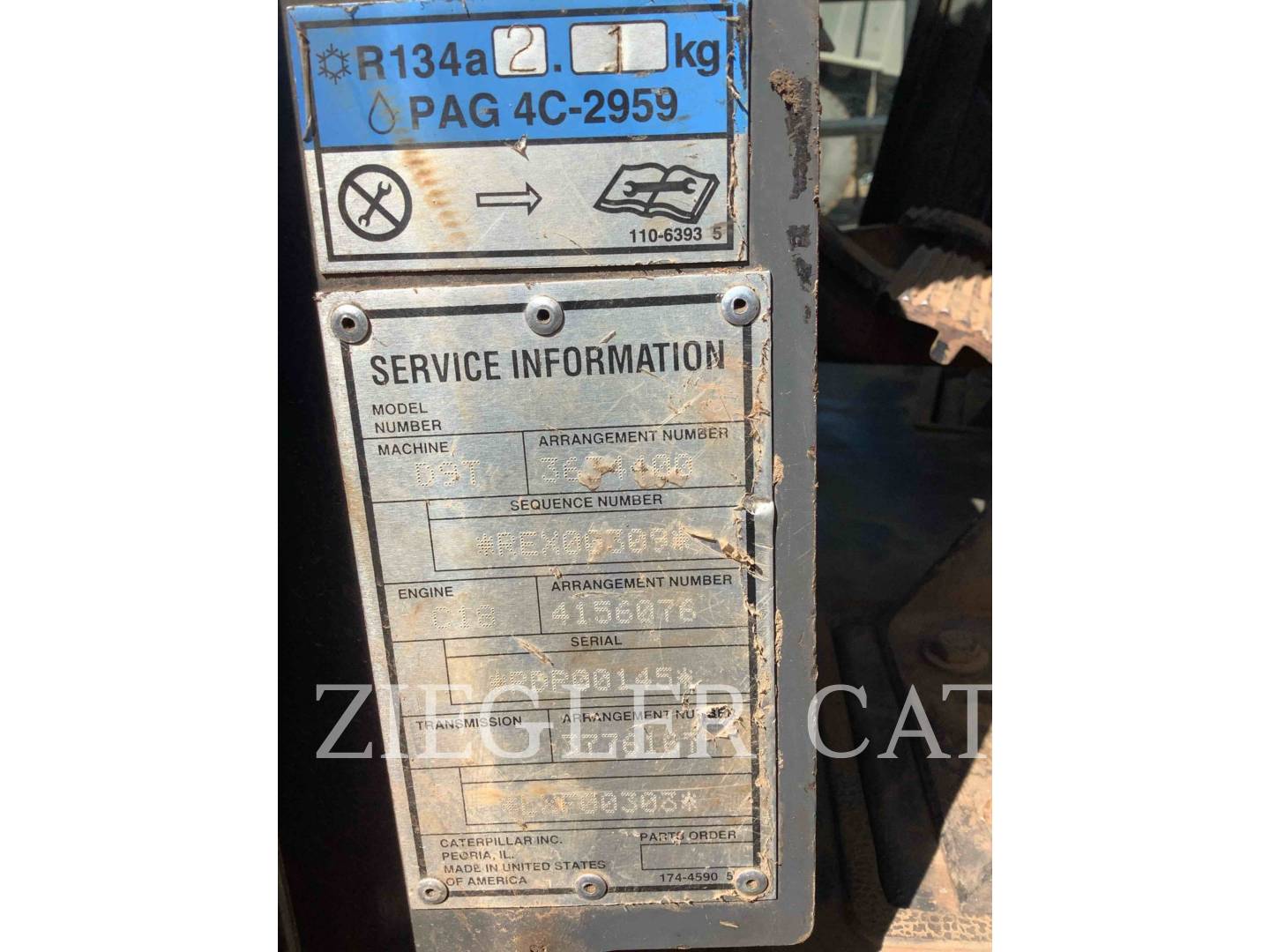

Arrangement Number - ENGINE 4156076
Engine S/N RDP00145
Hours On Engine 2506
Oil Pressure (H/L/N) Normal
Smoke Color (B/D/L/W) Ok

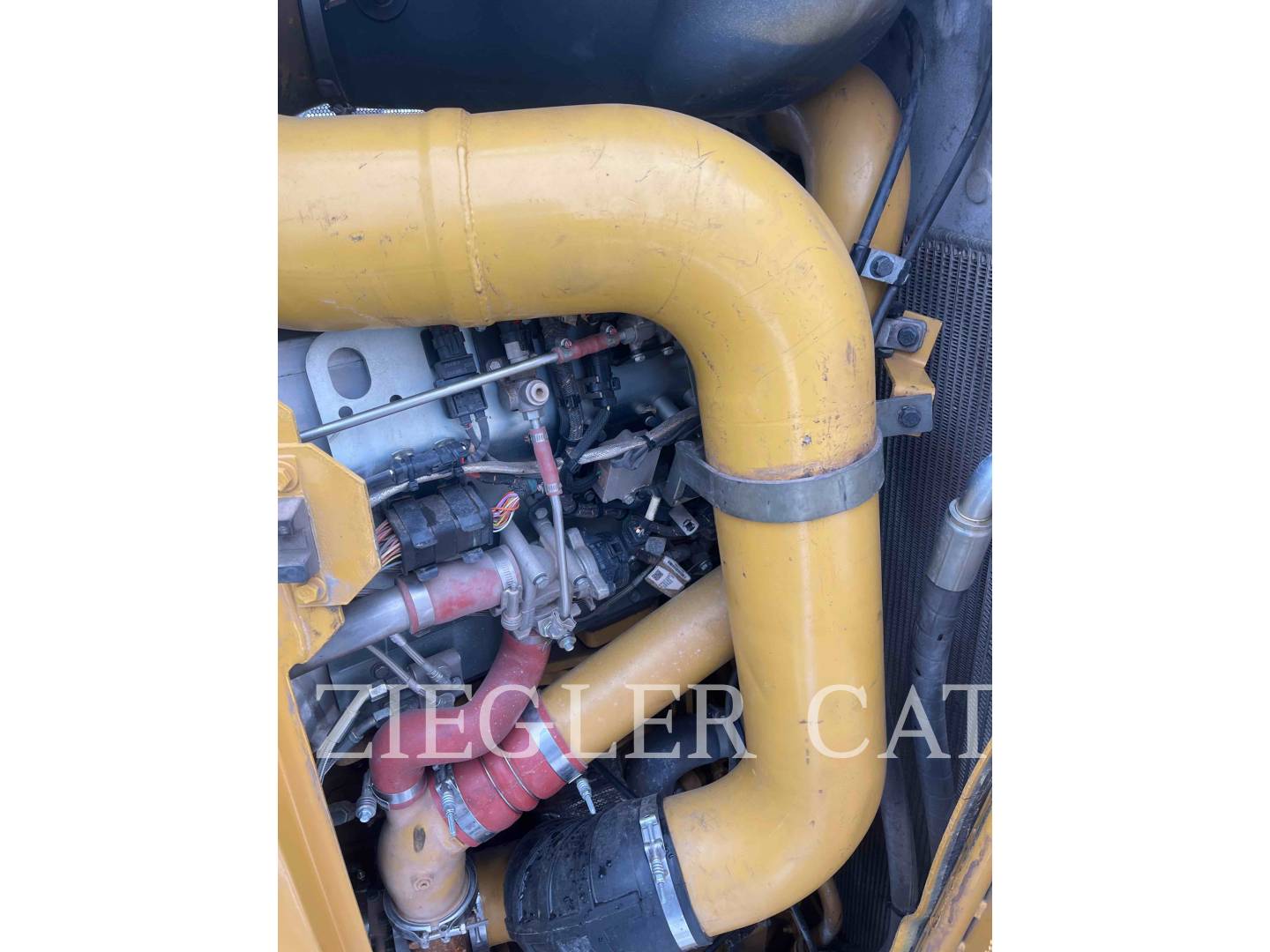

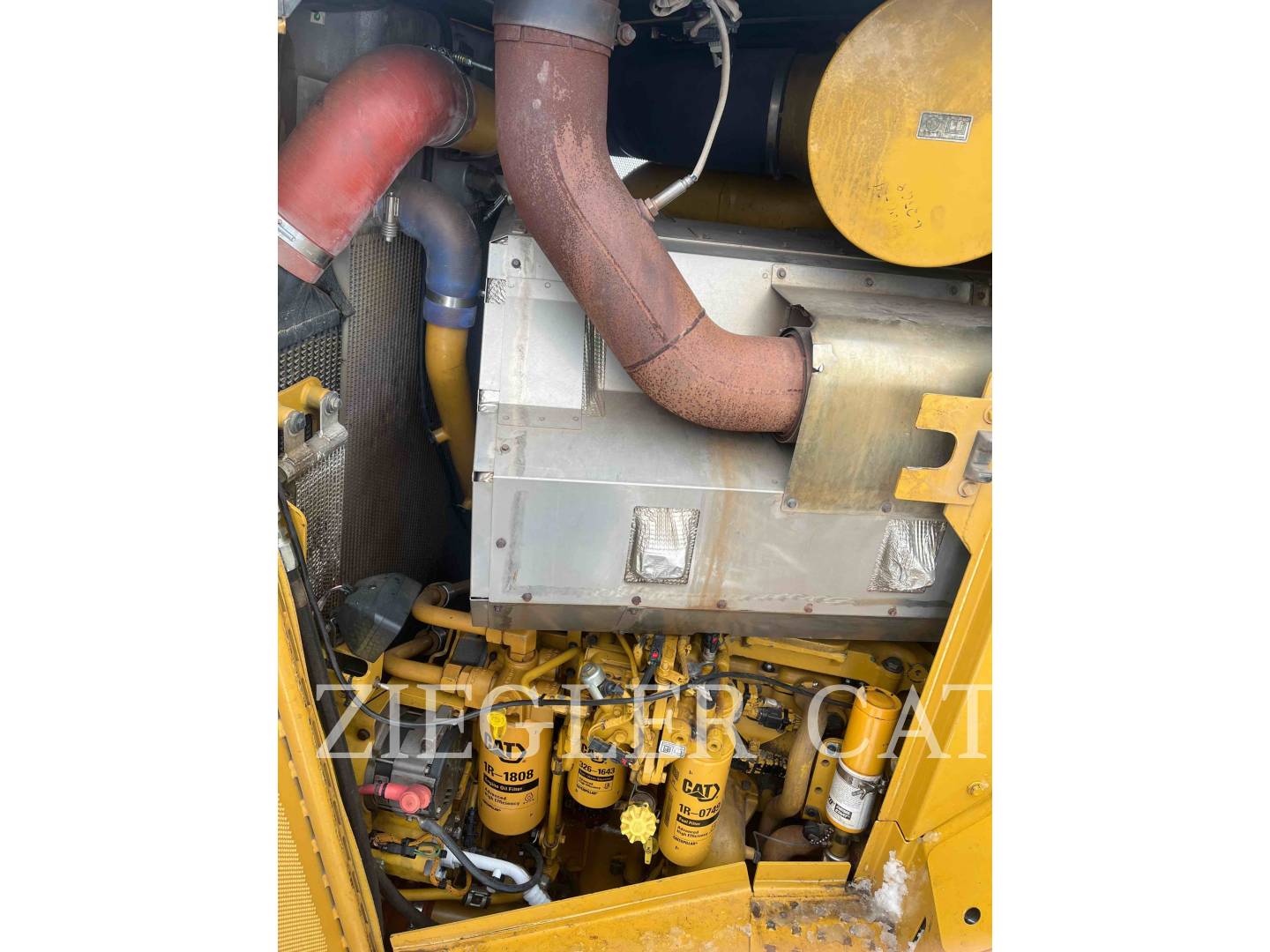

Engine Oil Level / Condition
● ● ●
Exhaust / Muffler / Stack
● ●

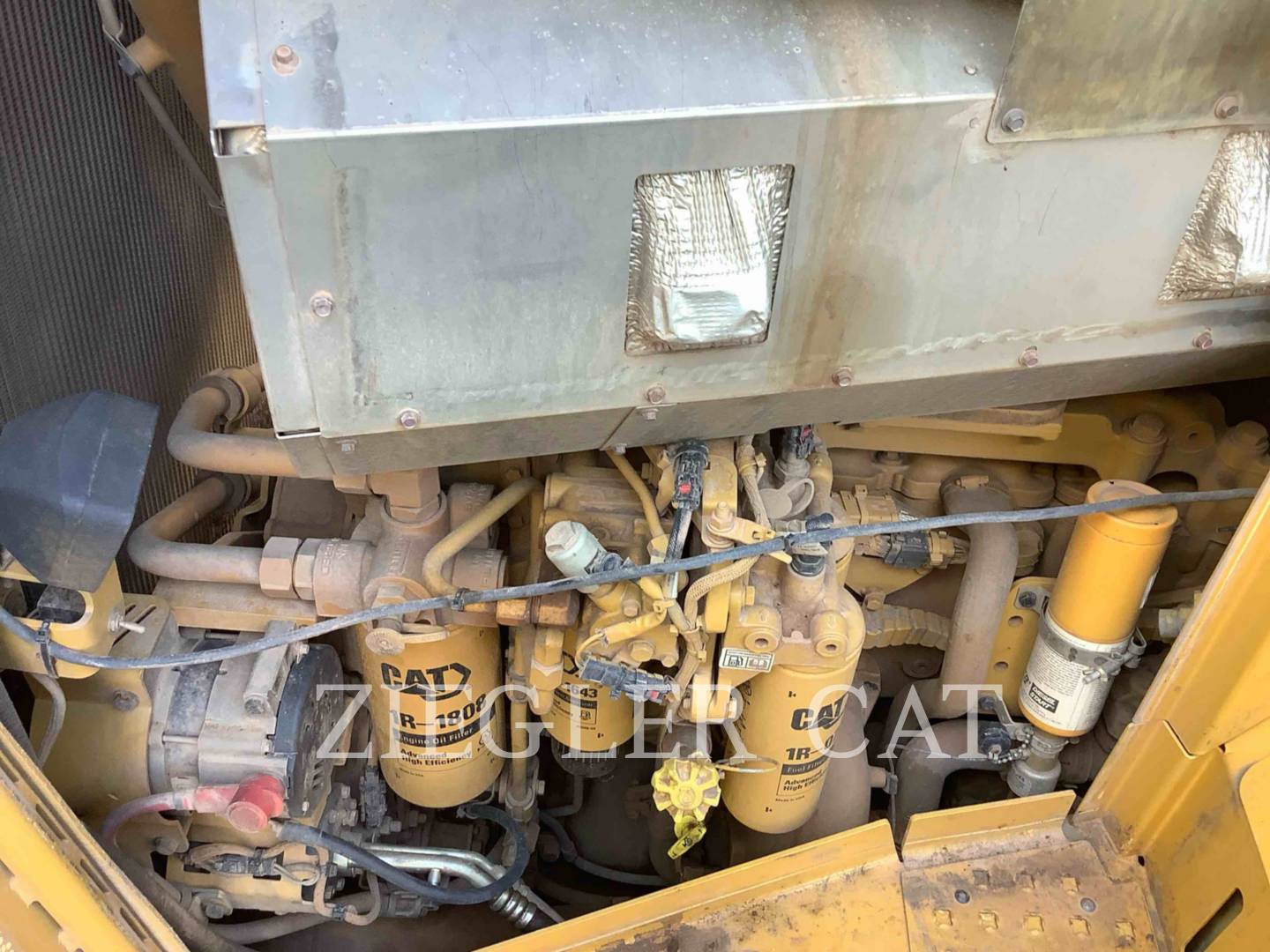

Fuel Injection System
● ● ●
Governor
● ● ●
Operating Condition - ENGINE
● ● ●
Turbocharger / Blower
● ● ●

Display
● ● ●

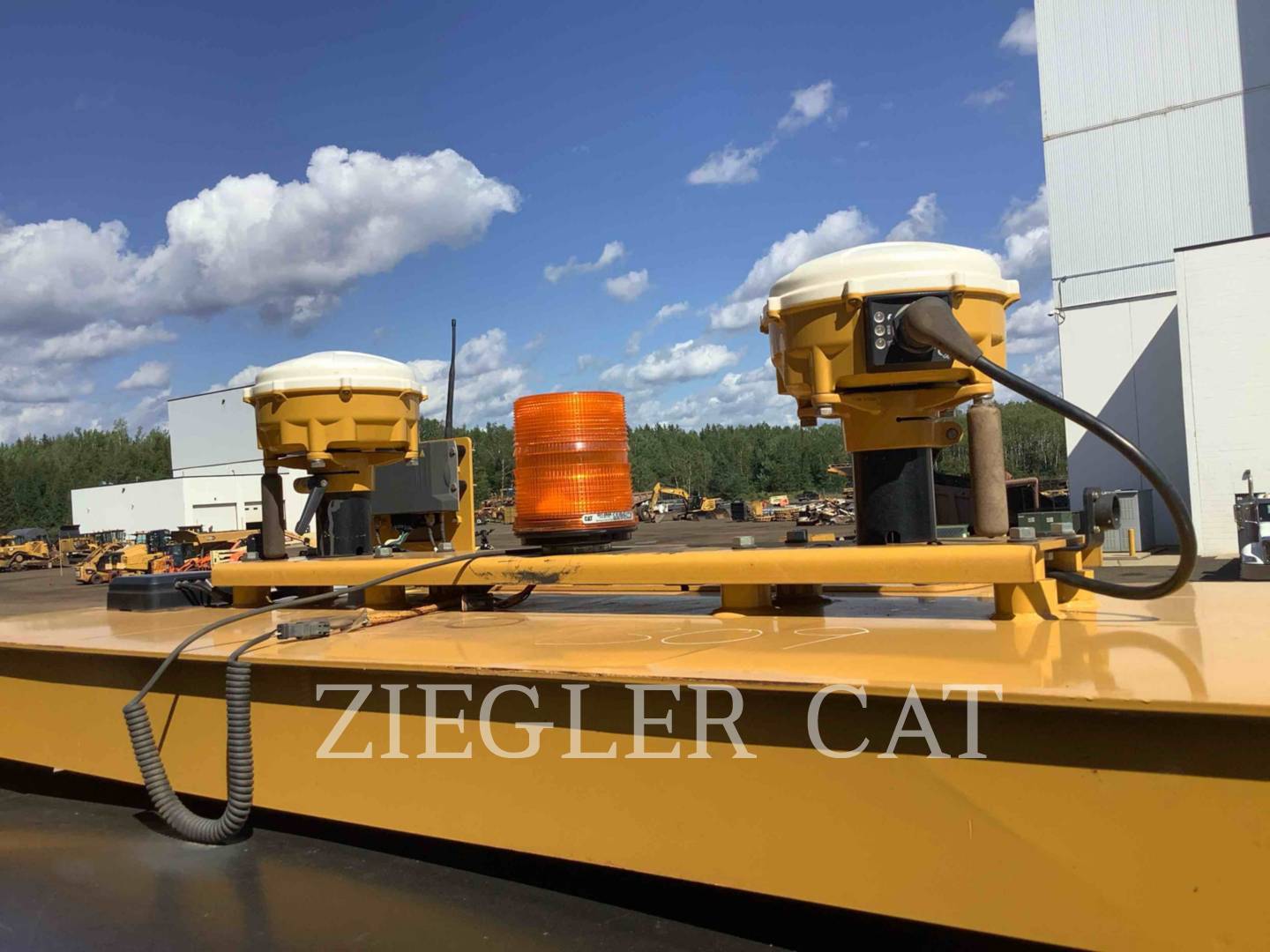

GNSS Antennas #1
● ● ●
GNSS Antennas #2
● ● ●
GNSS Receiver #1
● ● ●
GNSS Receiver #2
● ● ●
GPS Radio
● ● ●
Mast #1
● ● ●
Mast #2
● ● ●
Sensor Blade
● ● ●
Sensor C-Frame
● ● ●

Aftertreatment System Codes No
Leaks / Type No
Aftertreatment Heat Shields / Guards
● ● ●
DEF Lines / Wiring
● ● ●
Diesel Exhaust Fluid (DEF) Tank
● ● ●
Diesel Particulate Filter (DPF) Condition / Service Hours
● ● ●

Compression in Radiator No
Coolant Leaks No
Oil in Anti-Freeze No
Standard Radiator Yes
Anti-Freeze Level / Color / Condition
● ● ●
Belts / Pulleys - COOLING SYSTEM
● ● ●
Coolers
● ● ●
Fan
● ● ●
Fan Drive / Type
● ● ●
Fan Shrouds / Guards
● ●
Hoses / Tubes
● ● ●
Radiator
● ● ●
Water Pump
● ● ●

Active Codes No
Block Heater Yes
Ether Aid Yes
Jump Start Terminal Yes
Alternator
● ● ●
Batteries / Cables
● ●
Product Link / Condition
● ● ●
Starter
● ● ●
Wiring
● ● ●
Work Lights
● ●
Beacon not working

Leaks - TRANSMISSION Yes Wet bottom transmission
Powershift Yes
Transmission - Noisy No
Case
● ● ●
Controls - TRANSMISSION
● ● ●
Cooler
● ● ●
Lines / Fittings - TRANSMISSION
● ● ●
Operating Condition - TRANSMISSION
● ● ●
Pump - TRANSMISSION
● ● ●
Seals
● ● ●
Temp / Pressure Gauges
● ● ●
Torque Converter (Stall Speed)
● ● ●
Transmission - Forward Shifts
● ● ●
Transmission - Reverse Shifts
● ● ●
Transmission Oil Filter Condition / Service Hours
● ● ●
Valves
● ● ●

Differential Steer
● ● ●
Differential Steering Controls
● ● ●
Pump / Motor
● ● ●
Steering Clutch
● ● ●
Steering Linkage
● ● ●
Steering Operating Condition
● ● ●
Steering Valve
● ● ●

Holding What Gear? 1
Parking Brake Operation
● ● ●
Service Brake Operation
● ● ●

Leaks - HYDRAULICS Yes
Control Linkage - HYDRAULICS
● ● ●
Hose Lines
● ●
Hydraulic Oil Filter Condition / Service Hours
● ● ●
Hydraulic Valves
● ● ●

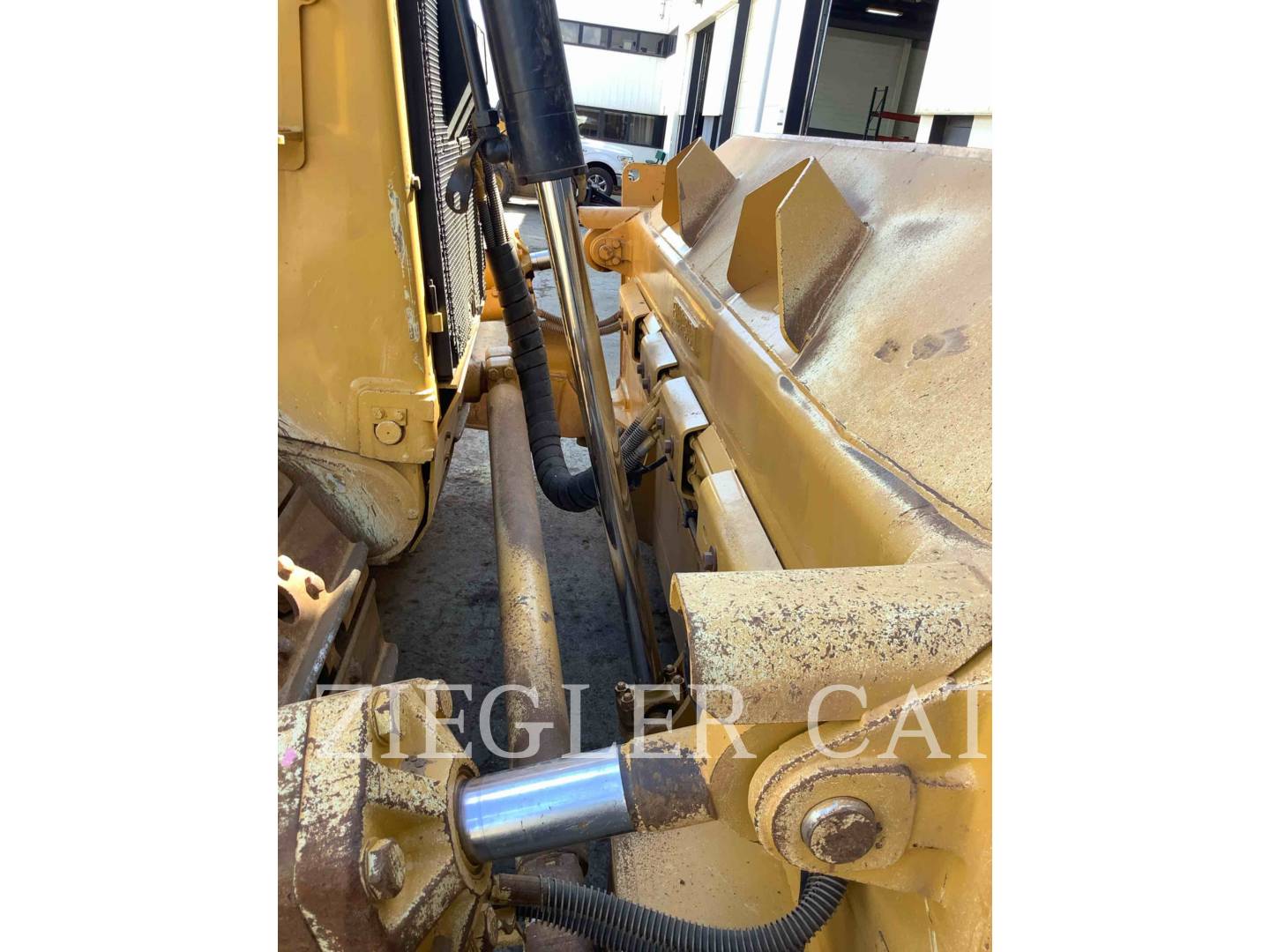

Lift Cylinders
● ● ●
Mounts / Yokes
● ●
Tilt cylinders loose 1/4”, lift 1/8”
Overall Operating Condition
● ● ●
Pumps
● ● ●
Tank / Sight Glass / Cap
● ● ●

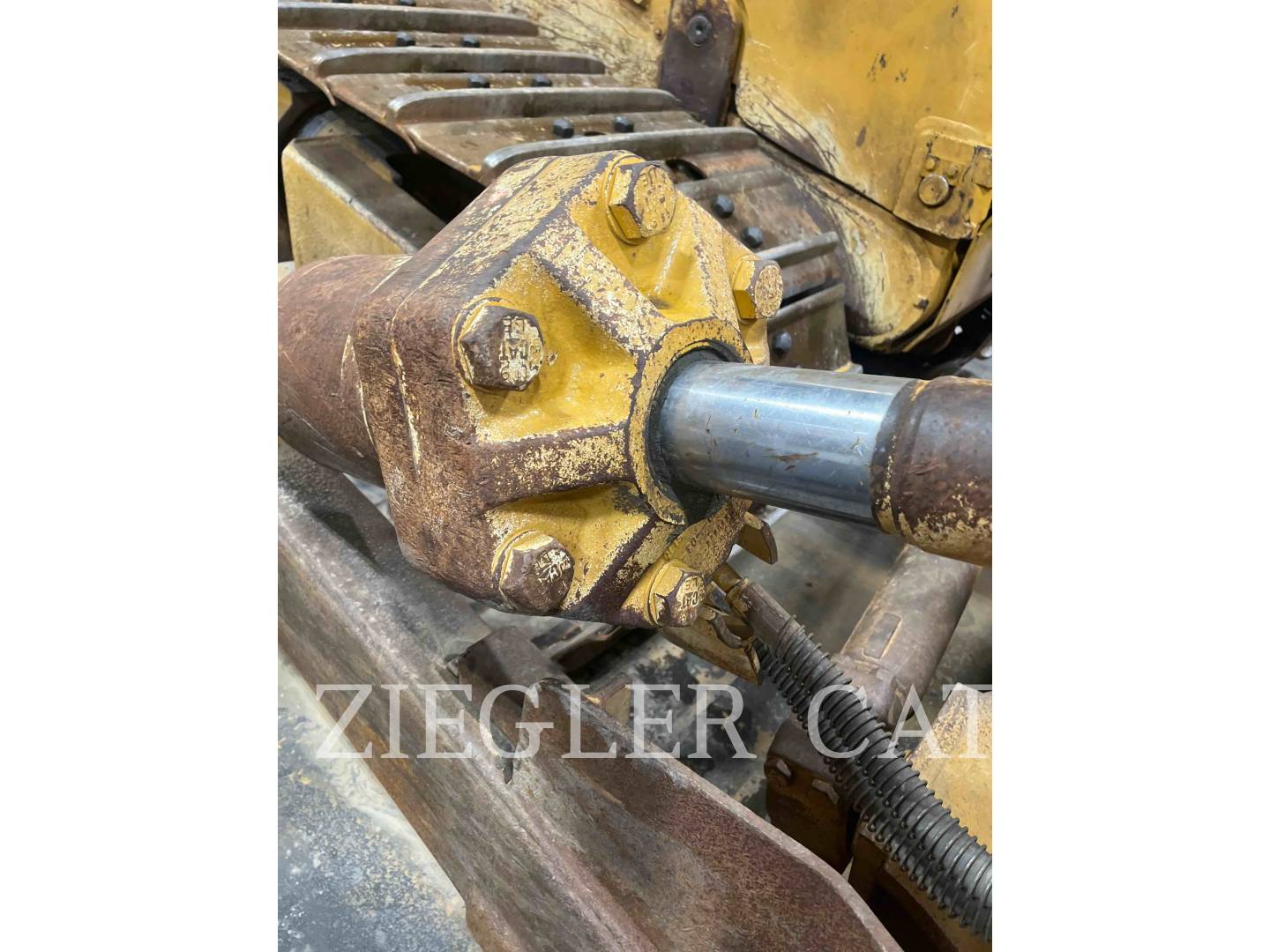

Tilt Cylinder
● ●
Left leaking Level 1

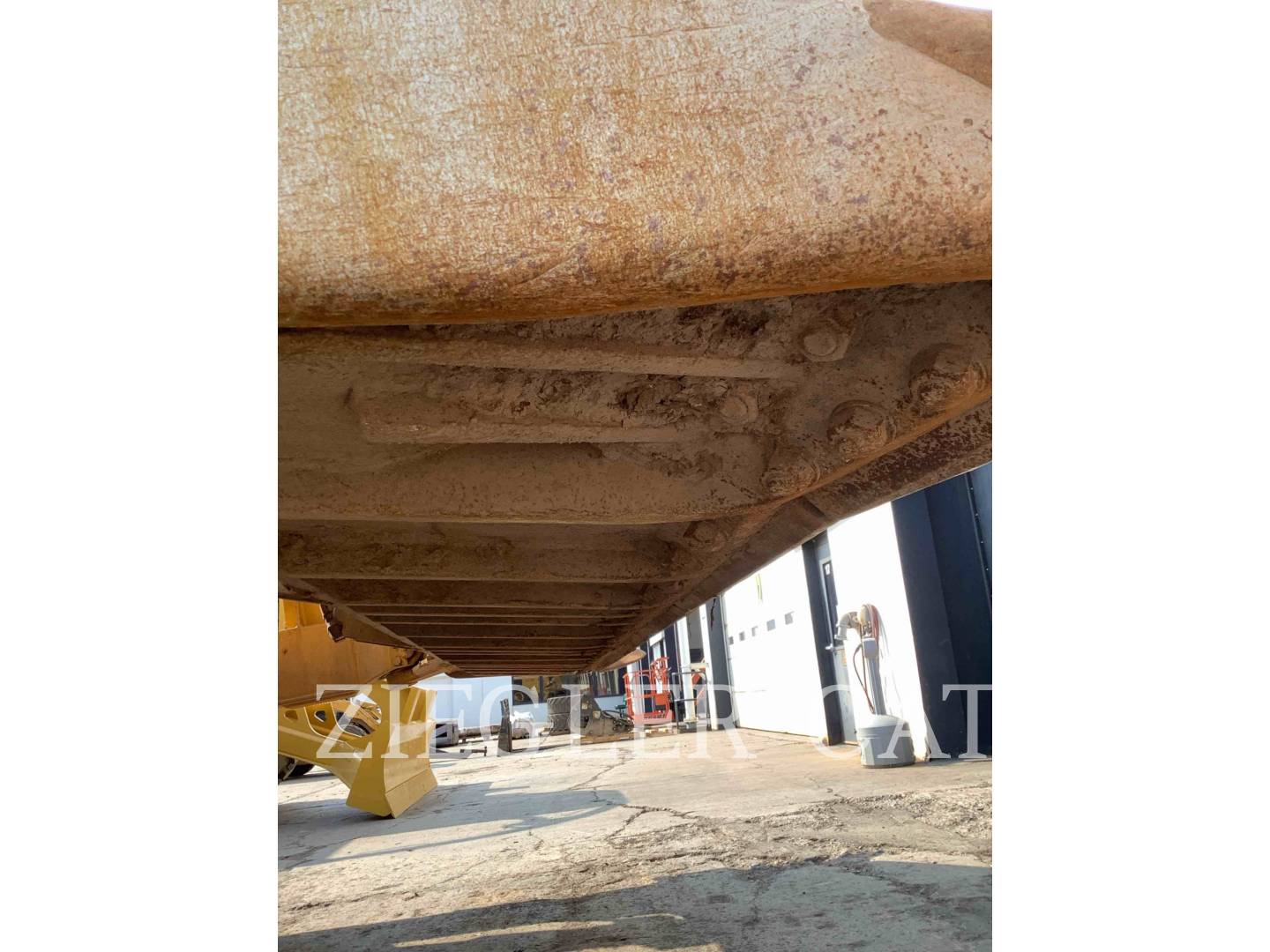

Notes - BLADE All showing typical movement unless otherwise noted Could use shimming
Back of Blade
● ●
C Frame / Mounts / Bearings
● ●
Cutting Edge & Bits
● ●
Needs turn
Face / Moldboard
● ●
Pins
● ●
Push Arm
● ●
Spill Rack
● ●
Stabilizer Link
● ●
Tilt Arms
● ●
Trunnions
● ●

Beam / Frame
● ●
Lines / Fittings - RIPPER / GRAPPLE / WINCH
● ●
Ripper Lift Cylinder
● ● ●
Ripper Tilt Cylinder
● ● ●
Shanks / Get
● ●

Pins & Bushings Turned? No
Cannon / Track Adjuster Recoils level 1 leak
Equalizer Bar Ok
Link / Brand / Part Number 9w2744
Pivot Shaft Ok
Track Shoes Width / Type 760 moderate service
Track Frame - Left
● ●
Recoil level 1 leak
Track Frame - Right
● ●
Recoil level 1 leak
Idlers Front
Left Measurement: 22
Left Percent Worn: 16%
Right Measurement: 22
Right Percent Worn: 16%
Idlers Rear
Left Measurement: 22
Left Percent Worn: 16%
Right Measurement: 22
Right Percent Worn: 16%
Links
Left Measurement: 165 Lesser
Left Percent Worn: 8%
Right Measurement: 165 Lesser
Right Percent Worn: 8%
Pins & Bushings (External)
Left Measurement: 82.6
Left Percent Worn: 45%
Right Measurement: 82.6
Right Percent Worn: 45%
Segments
Left Measurement: 260
Left Percent Worn: 25%
Right Measurement: 260
Right Percent Worn: 25%
Track Roller 1
Left Measurement: 19
Left Percent Worn: 15%
Right Measurement: 19
Right Percent Worn: 15%
Track Roller 2
Left Measurement: 18
Left Percent Worn: 12%
Right Measurement: 18
Right Percent Worn: 12%
Track Roller 3
Left Measurement: 22
Left Percent Worn: 8%
Right Measurement: 22
Right Percent Worn: 8%
Track Roller 4
Left Measurement: 22
Left Percent Worn: 8%
Right Measurement: 22
Right Percent Worn: 8%
Track Roller 5
Left Measurement: 22
Left Percent Worn: 8%
Right Measurement: 22
Right Percent Worn: 8%
Track Roller 6
Left Measurement: 23
Left Percent Worn: 14%
Right Measurement: 22
Right Percent Worn: 8%
Track Roller 7
Left Measurement: 18
Left Percent Worn: 12%
Right Measurement: 18
Right Percent Worn: 12%
Track Roller 8
Left Measurement: 18
Left Percent Worn: 12%
Right Measurement: 18
Right Percent Worn: 12%
Track Shoe Grouser Height
Left Measurement: 42 moderate impact
Left Percent Worn: 68%
Right Measurement: 42 moderate impact
Right Percent Worn: 68%

Magnetic Plugs Removed & Checked? No
Housings, Left
● ● ●
Housings, Right
● ● ●
Planetaries / Differential, Left
● ● ●
Planetaries / Differential, Right
● ● ●

comment 1 Ziegler Rebuild 9-2022 at 29878 machine hours.
