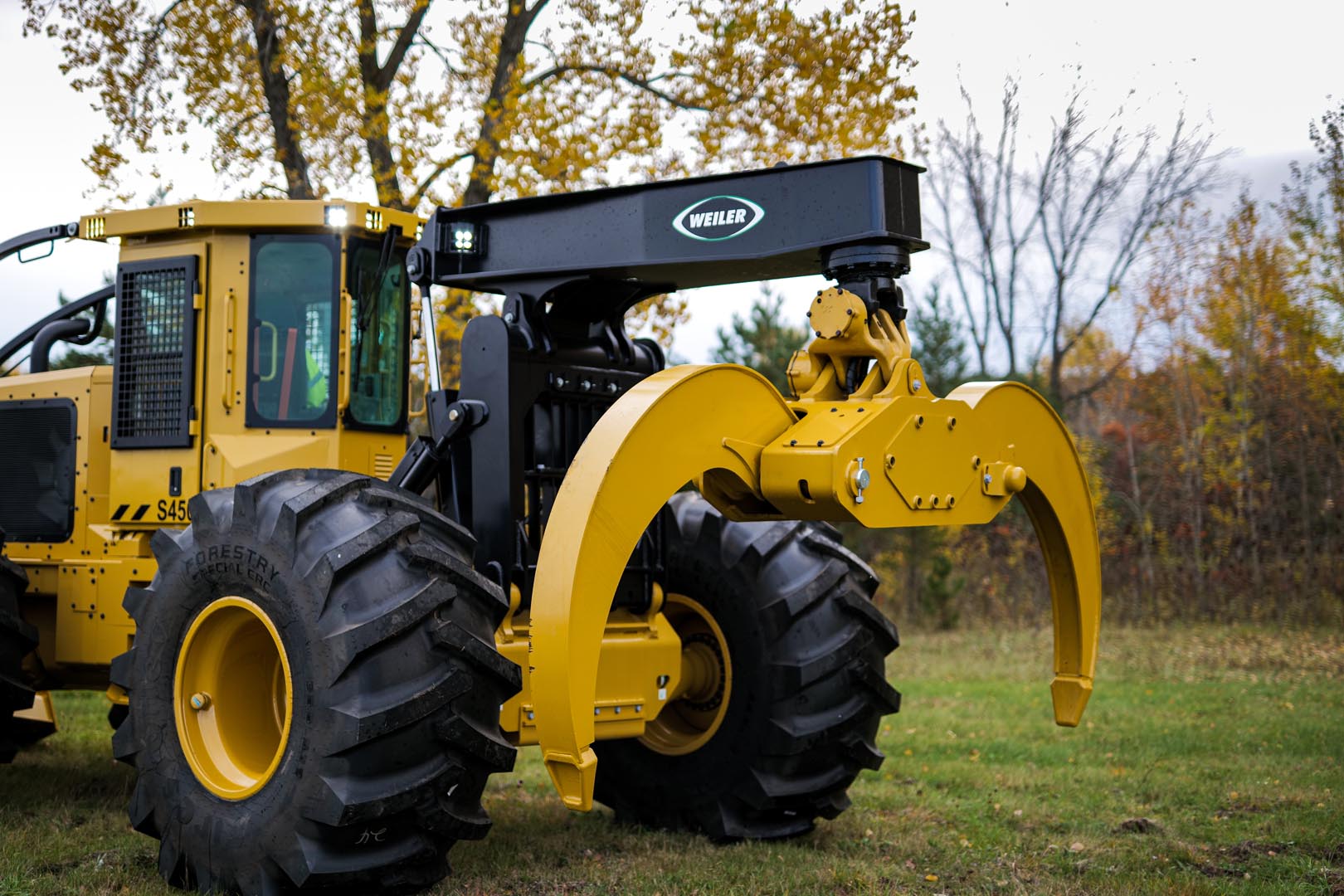

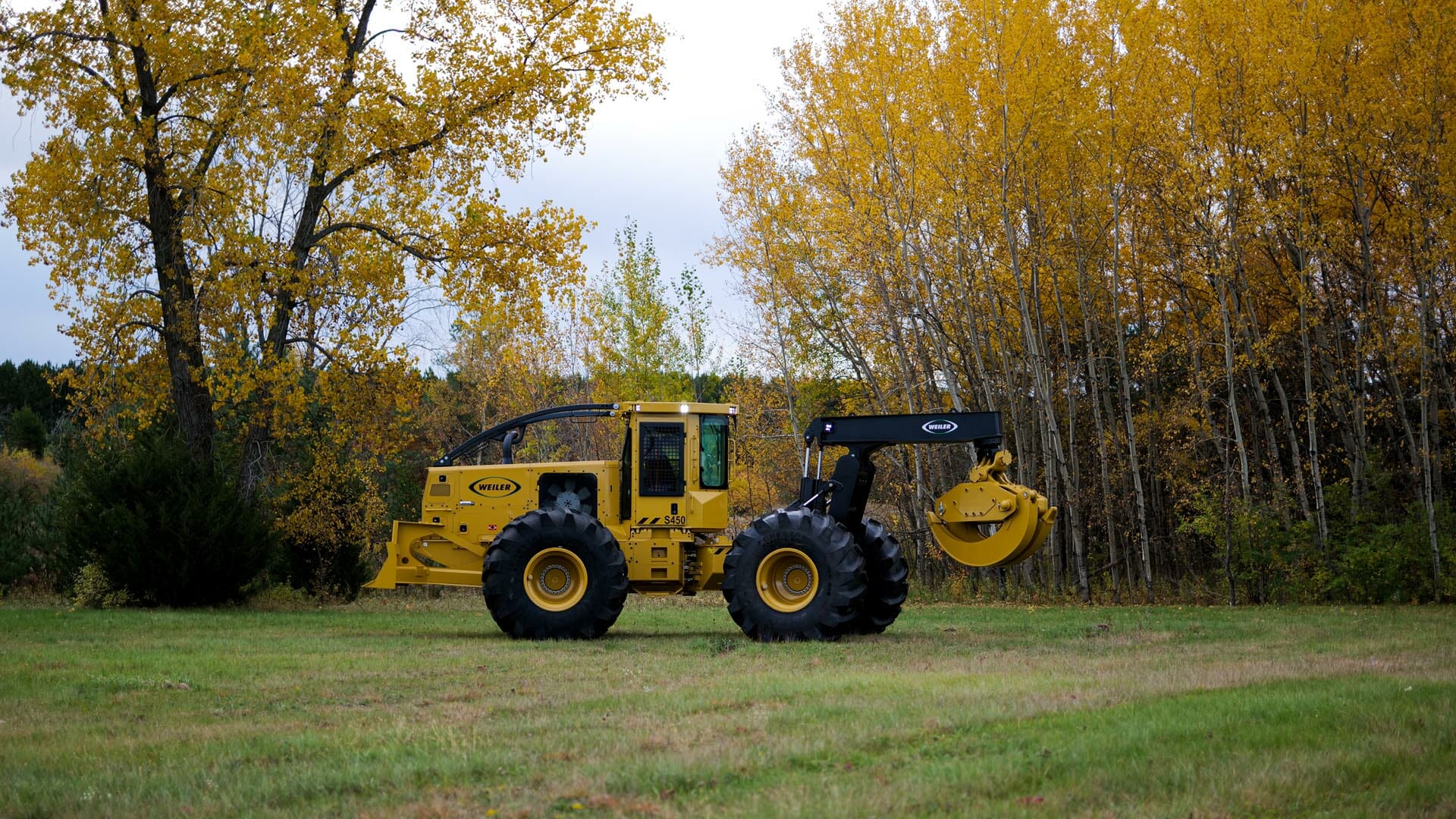

Wheel Skidder
Weiler wheel skidders deliver greater reliability and durability with improved transmission and axles along with a refined electrical system. The lock up torque converter powershift transmission and independent front and rear differential locks deliver powerful pulling while strong multifunctioning hydraulics improve overall performance.
Specifications
Units for specifications
S250
| Engine Model | CAT 7.1 Tier 4 Final |
|---|---|
| Gross Power | 203 hp |
| Engine Speed | 2200 rpm |
| Fuel Capacity | 83.2 gal |
| DEF Capacity | 5.0 gal |
| Wheelbase | 143.8” |
| Weight | 45,359 lbs |
| Transport Width | 10’ 7” |
| Transport Height | 11’ 1” |
| Transport Length | 27’ 4” |
| Ground Clearance | 21.7” |
| HD Box Grapple Capacity | 14.4 ft2 |
| HD Box Grapple Opening | 126.2 |
| Biomass Grapple Capacity | 15.7 ft2 |
| Biomass Grapple Opening | 136.3” |
S350
| Engine Model | CAT 7.1 Tier 4 Final |
|---|---|
| Gross Power | 225 hp |
| Engine Speed | 2200 rpm |
| Fuel Capacity | 99.8 gal |
| DEF Capacity | 5.0 gal |
| Wheelbase | 149.4” |
| Weight | 45,888 lbs |
| Transport Width | 10’ 7” |
| Transport Height | 11’ 1” |
| Transport Length | 27’ 10” |
| Ground Clearance | 21.7” |
| HD Box Grapple Capacity | 16.6 ft2 |
| HD Box Grapple Opening | 127” |
| Biomass Grapple Capacity | 18 ft2 |
| Biomass Grapple Opening | 145” |
S450
| Engine Model | CAT 7.1 Tier 4 Final |
|---|---|
| Gross Power | 250 hp |
| Engine Speed | 2200 rpm |
| Fuel Capacity | 99.8 gal |
| DEF Capacity | 5.0 gal |
| Wheelbase | 155.1” |
| Weight | 48,333 lbs |
| Transport Width | 12’ 2” |
| Transport Height | 11’ 4” |
| Transport Length | 29’ |
| Ground Clearance | 24.1” |
| HD Box Grapple Capacity | 19 ft2 |
| HD Box Grapple Opening | 135” |
| Biomass Grapple Capacity | 20.8 ft2 |
| Biomass Grapple Opening | 150” |
S550
| Engine Model | CAT 7.1 Tier 4 Final |
|---|---|
| Gross Power | 275 hp |
| Engine Speed | 2200 rpm |
| Fuel Capacity | 99.8 gal |
| DEF Capacity | 5.0 gal |
| Wheelbase | 160.7” |
| Weight | 49,336 lbs |
| Transport Width | 12’ 2” |
| Transport Height | 11’ 4” |
| Transport Length | 29’ 7” |
| Ground Clearance | 24.1” |
| HD Box Grapple Capacity | 22 ft2 |
| HD Box Grapple Opening | 143.8” |
| Biomass Grapple Capacity | 23.8 ft2 |
| Biomass Grapple Opening | 155” |
