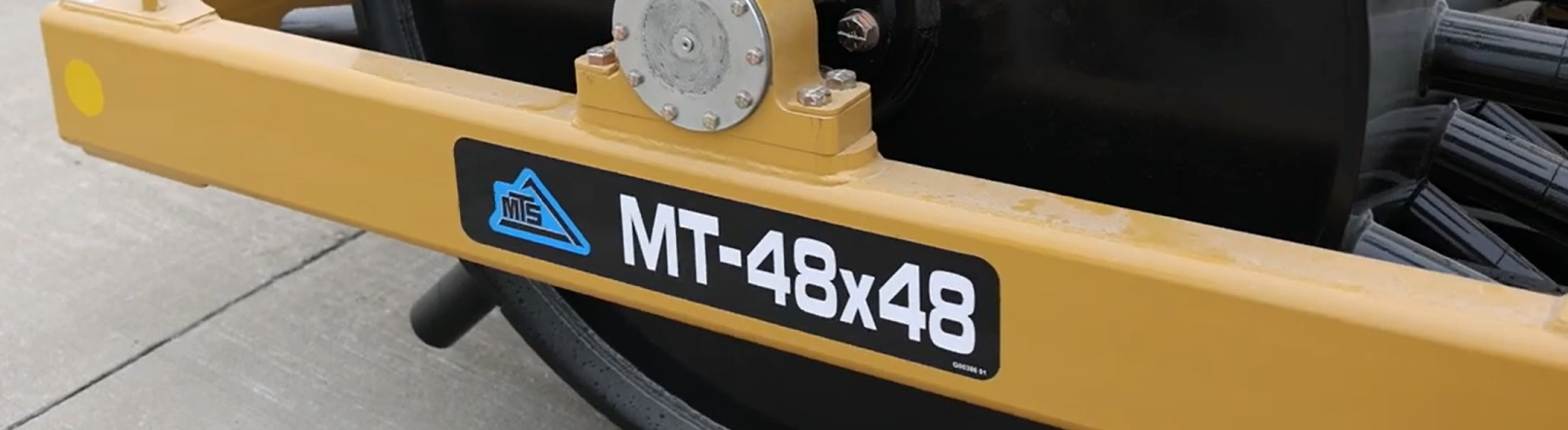

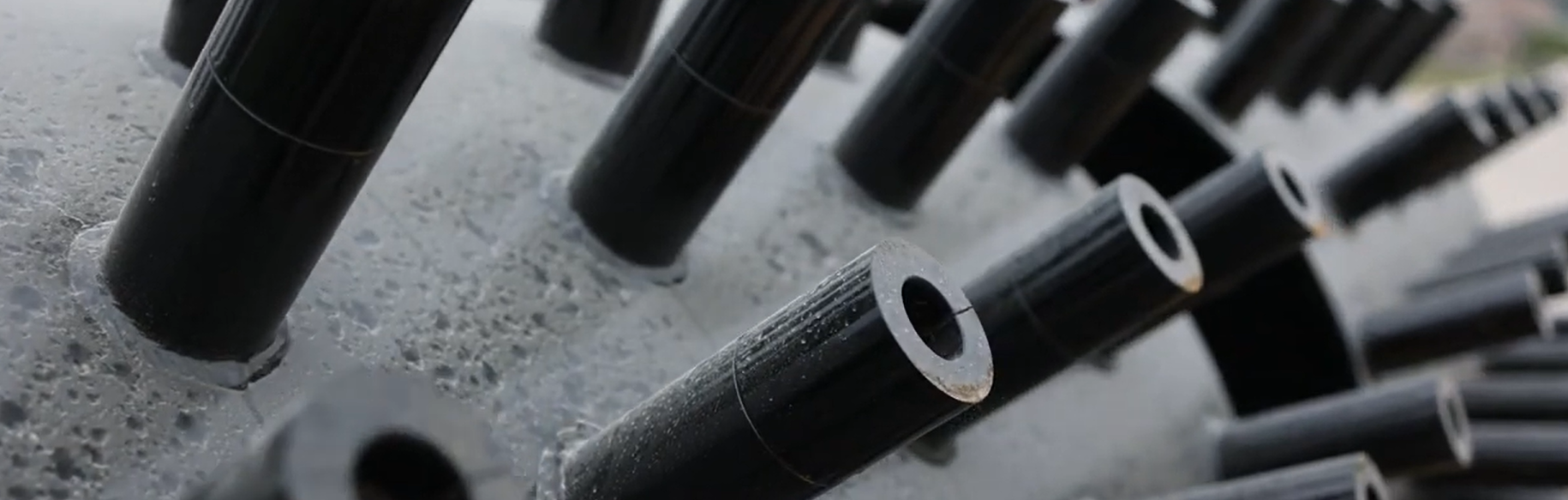

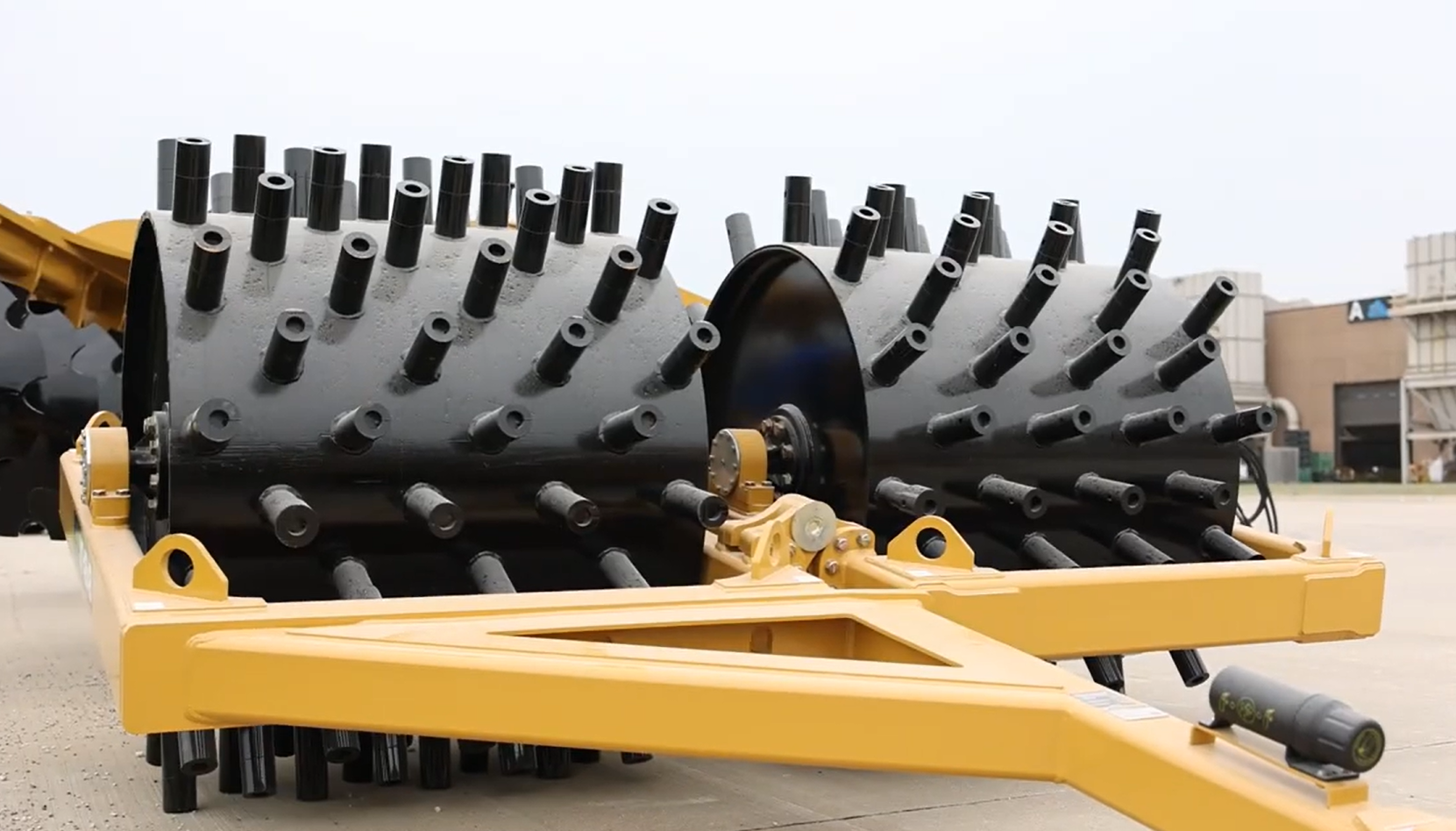

The MT-48×48 design creates “Dirt on Dirt” wear points to extend the life of the foot tips. Designed to be pulled individually or in tandem, it features five grease zerks, a proprietary replaceable tip design, and no hard surface welding required to maintain its life. It utilizes sizeable oil-bathed bearing packs for drum rotation. The sheepsfoot roller can also be ordered in a double or triple ballast drum configuration for maximum compaction.
Specifications
Units for specifications
| Weight | 12,000 lbs |
|---|---|
| Length | 174 in. |
| Width | 122 in. |
| Height | 63 in. |
| Drum Diameter | 48 in. |
| Recommended Pull Unit | Min. 150 HP |
