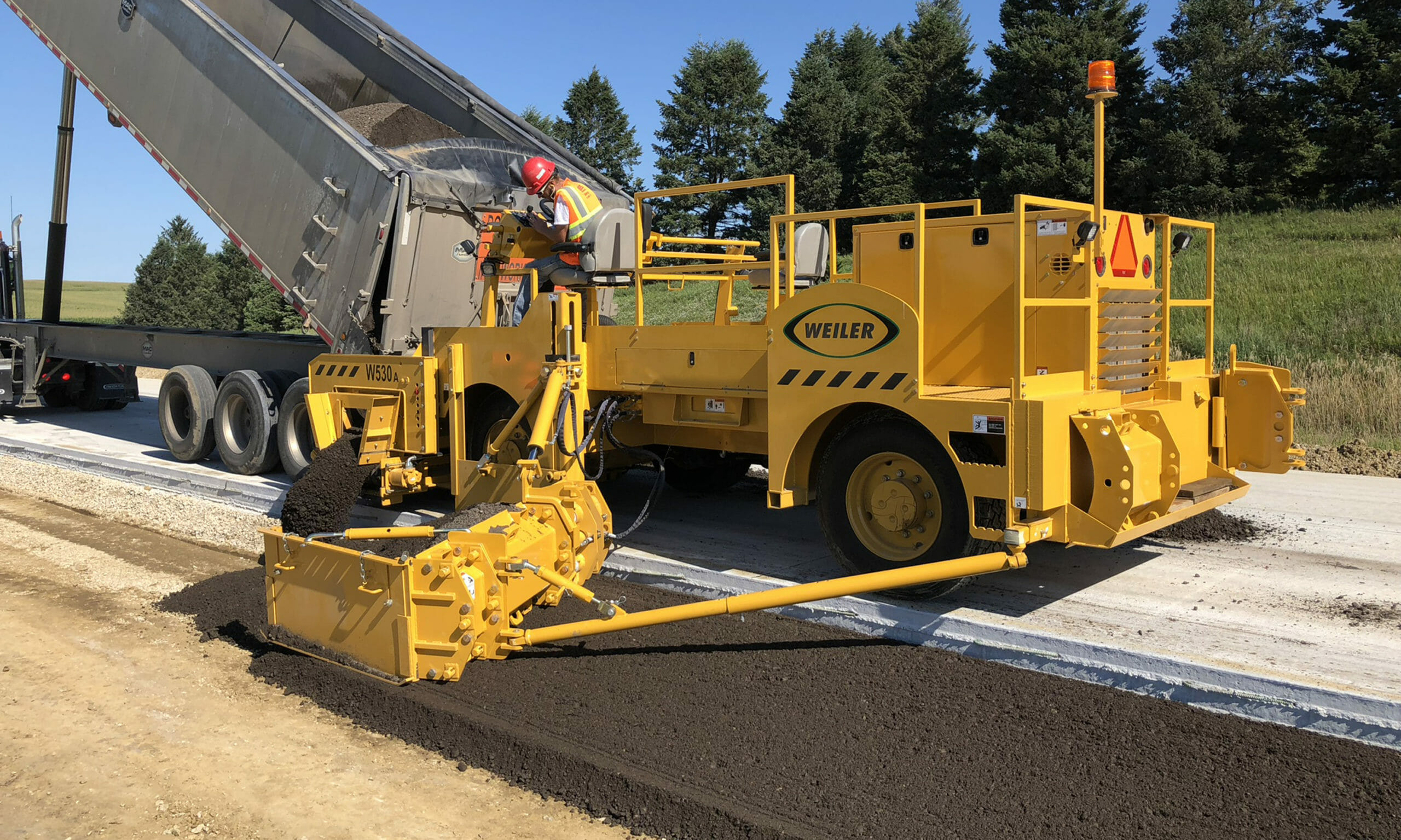

A 3.5 yd3 (2.6 m3) hopper means fewer truck exchanges during the workday. The 24” (610 mm) wide belt and 400 fpm (121 mpm) belt speed provides quick placement of materials to either side of the machine. The hydraulically adjustable dump hopper accommodates varying trucks.
Specifications
Units for specifications
Specifications
| Weight | 26,327 lb |
|---|---|
| Length | 22' 4" |
| Operating Width | 10' |
| Height | 7' 8" |
| Wheelbase | 130" |
| Hopper Capacity | 3.5 yd |
| Conveyor Length | 10' |
| Conveyor Width | 24" |
| Belt Speed | 400 fpm |
| Max Working Speed | 350 fpm |
| Transport Speed | 12 mph |
| Engine | Cat® C3.4B/C4.4 Tier 4 |
| Rear Steer Turning Radius | 8' |
| Fuel Capacity | 74 gal |
| Hydraulic Capacity | 60 gal |
