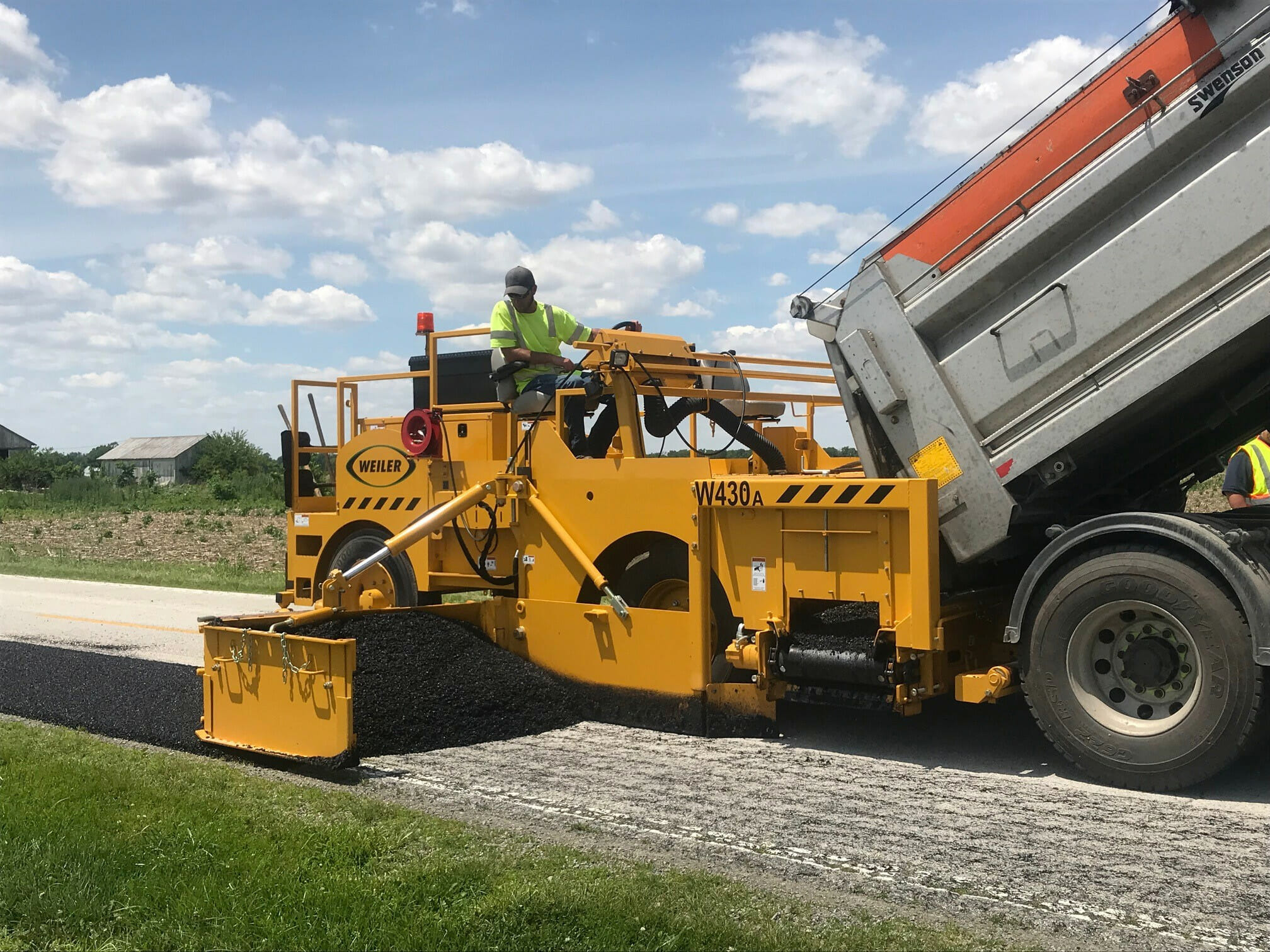

All controls are located on a single panel within easy reach of the operator. The operator is located back from the dump hopper and toward the outer edge of the machine for increased visibility.
Specifications
Units for specifications
Specifications
| Weight | 19,500 lb |
|---|---|
| Length | 19' |
| Operating Width | 10' |
| Transport Width | 10' |
| Height | 7' 11" |
| Wheelbasex | 117" |
| Hopper Capacity | 3.24 yd |
| Conveyor Length | 10' |
| Conveyor Width | 24" |
| Belt Speed | 400 fpm |
| Max Working Speed | 274 fpm |
| Transport Speed | 11 mph |
| Engine | Cat® C3.4B Tier 4 |
| Horsepower | 74 hp |
| Turning Radius | 13' |
| Rear Steer Turning Radius | 8' |
| Fuel Capacity | 64 gal |
| Hydraulic Capacity | 52 gal |
