Caterpillar

988 GC Wheel Loader

Engine Power - ISO 14396: 2002

449 hp

Operating Weight

112426 lb

Bucket Capacity Range

6.4-7.6 m3 (8.3-10 yd3)

Overview

The Cat® 988 GC Wheel Loader helps you move more material at a low cost per hour for a fast return on your investment. This machine offers significant fuel savings and up to 10% lower owning and operating cost than the 988K.

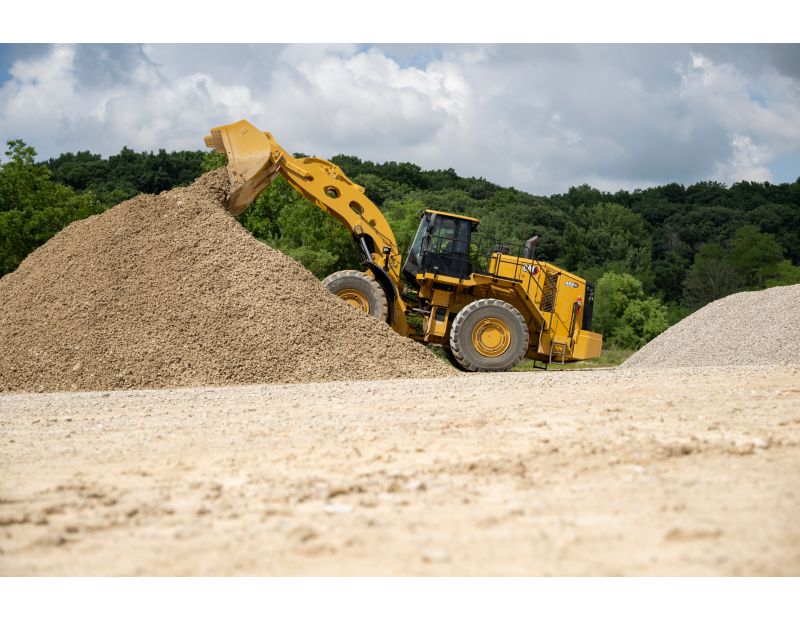

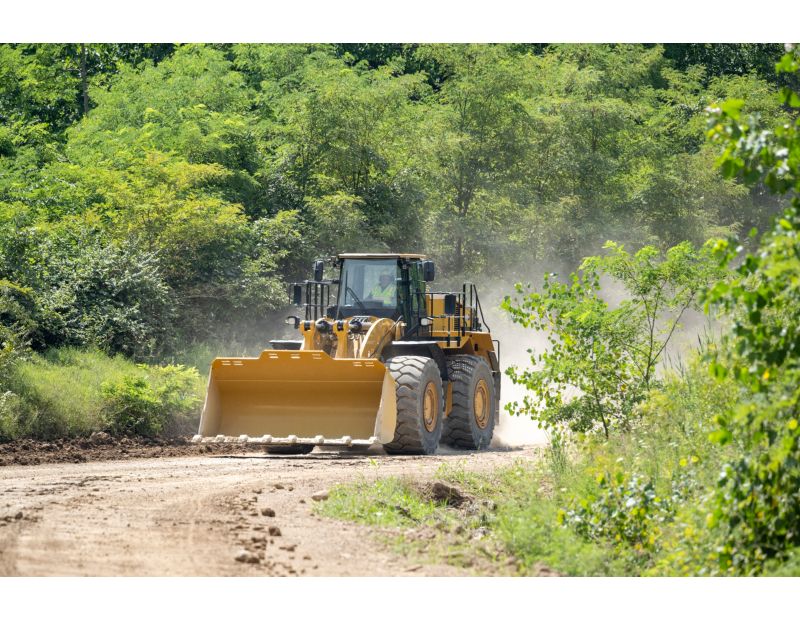

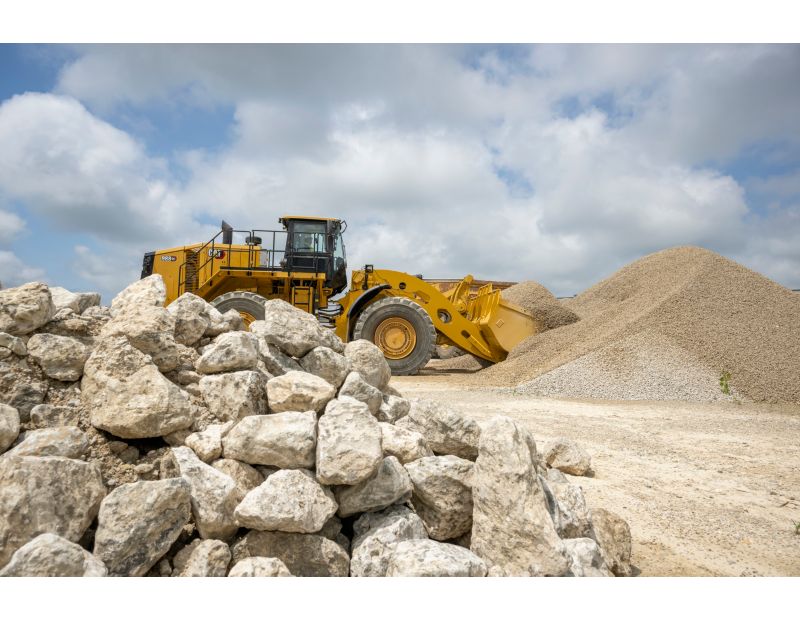

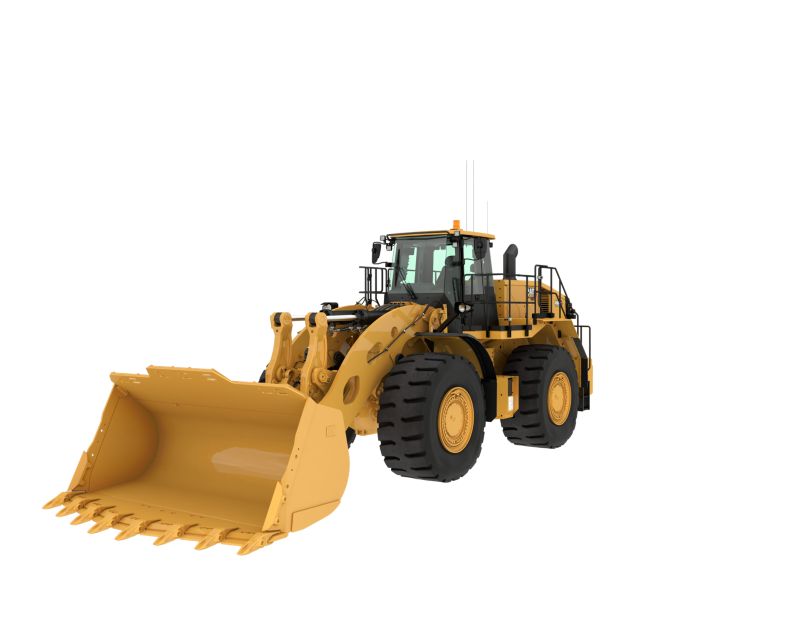

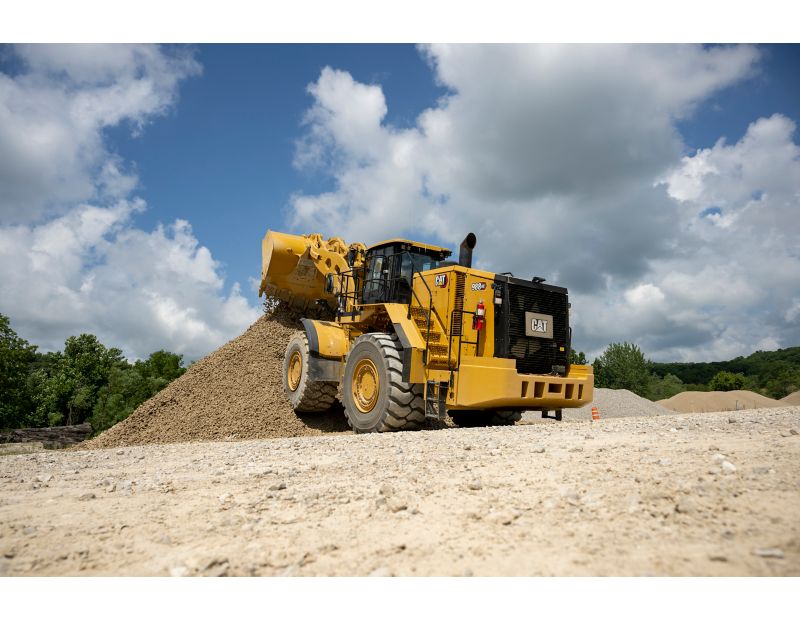

Photos

Videos

  • Introduction Video – 988 GC Large Wheel Loader (YouTube)
  • Walkaround Video – 988 GC Large Wheel Loader (YouTube)

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Interior

360° Interior view. Double click on the image to zoom in on any area of the product.

Showroom

Virtual Product Tour. Double click on the hotspots to see in on any area of the product.

Ready to Purchase?

Buy Now

Specifications

  • Engine
    Spec Value
    Engine Power - ISO 14396: 2002 449 hp
    Engine Model Cat® C15
    Rated Speed 2000 rpm
    Peak Power Speed 1600 rpm
    Gross Power - SAE J1995:2014 456 hp
    Net Power - SAE J1349:2011 373 hp
    Bore 5.4 in
    Stroke 6.75 in
    Displacement 927 in³
    Peak Torque - 1,200 rpm - SAE J1995 1778 ft·lbf
    Torque Rise 16%
    Note (1) Two engine emission options are available: 1. Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan emission standards. 2. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
    Note (2) Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator.
  • Operating Specifications
    Spec Value
    Operating Weight 112426 lb
    Bucket Capacity Range 6.4-7.6 m3 (8.3-10 yd3)
    Rated Payload - Quarry Face 12.5 ton (US)
    Cat Truck Match - High Lift 772/773/775
  • Transmission
    Spec Value
    Transmission Type Cat planetary power shift
    Forward - 1 5 mile/h
    Forward - 2 8 mile/h
    Reverse - 1 5 mile/h
    Reverse - 2 8 mile/h
    Direct Drive - Forward 1 Lock-up disabled
    Direct Drive - Forward 2 8 mile/h
    Direct Drive - Forward 3 14 mile/h
    Direct Drive - Forward 4 24 mile/h
    Direct Drive - Reverse 1 Lock-up disabled
    Direct Drive - Reverse 2 9 mile/h
    Direct Drive - Reverse 3 16 mile/h
    Direct Drive - Reverse 4 25.4 mile/h
    Note Travel speeds based on 35/65-R33 tires.
  • Hydraulic System - Lift/Tilt
    Spec Value
    Lift/Tilt System - Circuit EH - Load Sense
    Lift/Tilt System - Pump Variable displacement piston
    Maximum Flow at 2,165 rpm 159 gal/min
    Relief Valve Setting - Lift/Tilt 4598 psi
    Cylinders, Double Acting - Lift, Bore and Stroke 190 mm x 1216 mm (7.5 in x 48 in)
    Cylinders, Double Acting - Tilt, Bore and Stroke 170 mm x 722 mm (6.7 in x 28.4 in)
    Pilot System Variable displacement piston
  • Hydraulic Cycle Times
    Spec Value
    Rack Back 3.8 s
    Raise 7.5 s
    Dump 3 s
    Lower Float Down 4.6 s
    Total Hydraulic Cycle Time - Empty Bucket 18.9 s
  • Hydraulic System - Steering
    Spec Value
    Steering System - Circuit Pilot, load sensing
    Steering System - Pump Piston, variable displacement
    Maximum Flow 52 gal (US)
    Relief Valve Setting - Steering 4000 psi
    Total Steering Angle 70°
    Steering Cycle Times - High Idle 3 s
    Steering Cycle Times - Low Idle 5.2 s
  • Air Conditioning System
    Spec Value
    Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.8 kg (3.9 lb) of refrigerant, which has a CO2 equivalent of 2.574 metric tonnes (2.837 tons).
  • Axles
    Spec Value
    Front Fixed
    Rear Trunnion
    Oscillation Angle +/-12.5°
  • Brakes
    Spec Value
    Brakes ISO 3450:2011
  • Operator's Cab
    Spec Value
    ROPS/FOPS ROPS/FOPS meet ISO 3471:2008 and ISO 3449:2005 Level II standards
  • Sound Performance - Tier 4 Final / Stage V
    Spec Value
    Operator Sound Pressure Level (ISO 6396:2008) 73 dB(A)
    Machine Sound Power Level (ISO 6395:2008) 113 dB(A)
    Operator Sound Pressure Level (ISO 6396:2008)* 72 dB(A)
    Machine Sound Power Level (ISO 6395:2008)** 110 dB(A)
    Note (1) * For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives.”
    Note (2) ** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701.
    Note (3) The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
    Note (4) The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
    Note (5) Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
  • Sound Performance - Tier 3 / Stage IIIA
    Spec Value
    Operator Sound Pressure Level (ISO 6396:2008) 74 dB(A)
    Machine Sound Power Level (ISO 6395:2008) 113 dB(A)
    Operator Sound Pressure Level (ISO 6396:2008)* 73 dB(A)
    Machine Sound Power Level (ISO 6395:2008)** 110 dB(A)
    Note (1) * For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives.”
    Note (2) ** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701.
    Note (3) The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
    Note (4) The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
    Note (5) Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
  • Service Refill Capacities
    Spec Value
    Fuel Tank 141 gal (US)
    Cooling System 27 gal (US)
    Engine Crankcase 9 gal (US)
    Diesel Exhaust Fluid Tank 5.5 gal (US)
    Transmission 20 gal (US)
    Differential - Final Drives - Front 49 gal (US)
    Differential - Final Drives - Rear 45 gal (US)
    Note Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to:  20% biodiesel FAME (fatty acid methyl ester) ***  100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
  • Dimensions (Approximate) - High Lift
    Spec Value
    Ground to Top of ROPS 13.5 ft
    Ground to Top of Exhaust Stacks 13.3 ft
    Ground to Top of Hood 10.7 ft
    Rear Axle - Centerline to Bumper 10.3 ft
    Front Axle Centerline to Bucket Tip 15.7 ft
    Wheel Base 12.5 ft
    Maximum Overall Length 39.5 ft
    Ground to Lower Hitch Clearance 1.5 ft
    Clearance at Maximum Lift 12 ft
    B-Pin Height - Maximum Lift 18.7 ft
    Maximum Overall Height - Bucket Raised 25 ft
    Reach - Maximum Lift 7.7 ft
    Note Specifications are calculated with 6.9 m3 (9.0 yd3 ) rock bucket equipped with Michelin XLDD1 35/65 R33 tires.

Standard Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

ELECTRICAL

  • Alarm, back-up
  • Alternator, single 145 amp
  • Batteries, maintenance free
  • Converter, 10/15 amp, 24V to 12V
  • Lighting system (LED, work lights, access and service platform lighting)
  • Starting and charging system, 24V
  • Auxiliary jump start receptacle

OPERATOR ENVIRONMENT

  • Cab precleaner
  • Lights, LED
  • AM/FM radio
  • Graphical Information Display, displays real time operating information, performs calibrations and customizes operator settings
  • Air conditioner
  • Cat Vision, rear vision camera system
  • Cab, sound suppressed and pressurized, integrated rollover protective structure/falling objects protective structure (ROPS/FOPS) radio ready for entertainment, includes antenna, speakers and converter (12‑volt 5-amp) and power port
  • Controls, lift and tilt function
  • Heater, defroster
  • Horn, electric
  • Instrumentation, gauges
    – Coolant temperature
    – Engine hour meter
    – Hydraulic oil temperature
    – Powertrain oil temperature
  • Light, cab, dome
  • Lunchbox, beverage holders
  • CB radio-ready
  • Mirrors, rearview (externally mounted)
  • Seat, Cat Comfort Cloth, air suspension, six-way adjustable
  • Seat belt minder
  • Seat belt, retractable, 76 mm (3 in) wide
  • Steering and Transmission Integrated Control (STIC™) system
  • UV glass
  • Transmission gear indicator
  • Wet-Arm wipers/washers (front and rear)
    – Intermittent front and rear wipers
  • Lights, directional
  • Cat Production Measurement ready

POWERTRAIN

  • Brakes, oil-cooled, multi-disc, service/secondary
  • Case drain screens
  • Electro hydraulic parking brake
  • Engine, C15 MEUI™ diesel, turbocharged/aftercooled
  • Ground level engine shutdown switch
  • Turbine precleaner, engine air intake
  • Starting aid, ether, automatic
  • Throttle lock, electronic
  • Manual switch and automatic fuel priming
  • Torque converter, neutralizer
  • Transmission, planetary power shift, 4F/4R electronic control
  • Cat Integrated Powered Electronics
  • Automatic retarding controls
  • Crankcase guard

ADDITIONAL EQUIPMENT

  • Automatic bucket lift kickout/positioner
  • Base machine price includes a rim allowance
  • Hydraulically driven demand fan
  • Couplings, Cat O-ring face seals
  • Doors, service access (locking)
  • Ecology drains for engine, radiator, hydraulic tank
  • Fuel tank, 535 L (141 gal)
  • Hoses, Cat XT™
  • Hydraulic, steering and brake filtration/screening system
  • Cat Clean Emission Module
  • Oil sampling valves
  • Premixed 50 percent concentration of extended life coolant with freeze protection to –34° C (–29° F)
  • Rear access to cab and service platform
  • Steering, load sensing
  • Toe kicks
  • Vandalism protection caplocks

Optional Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

POWERTRAIN

  • High ambient cooling – software
  • Engine block heater 120V or 240V
  • Antifreeze -50°C (-58°F)

OPERATOR ENVIRONMENT

  • Cat Production Measurement
  • Cat Detect, object detection system

ADDITIONAL EQUIPMENT

  • Front and rear roading fenders
  • Cold Weather Starting
  • Tire Pressure Monitoring System
