Caterpillar

XQP100

Rating Prime

100 kVA

Frequency

50/60 Hz

Voltage

127 - 480 V

Overview

This XQP100 generator set provide low fuel consumption performance. With a robust, rental or mobile-ready construction, the product line is designed to be easily transported around project sites safely and efficiently. Heavy-duty bases with integrated fork lift pockets allow the unit to be dragged and lifted with ease, while Clipsal or CEE socket options are available on select models to reduce installation time and provide trouble-free power distribution.

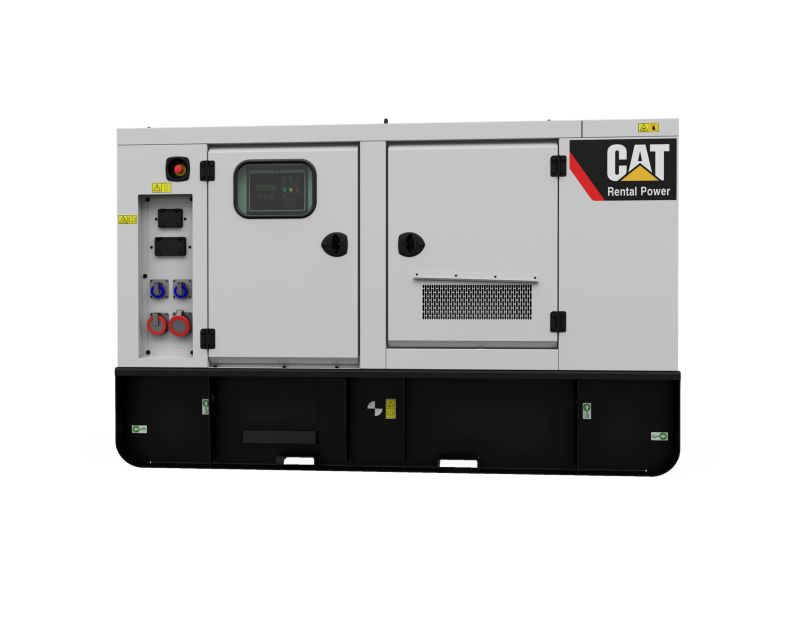

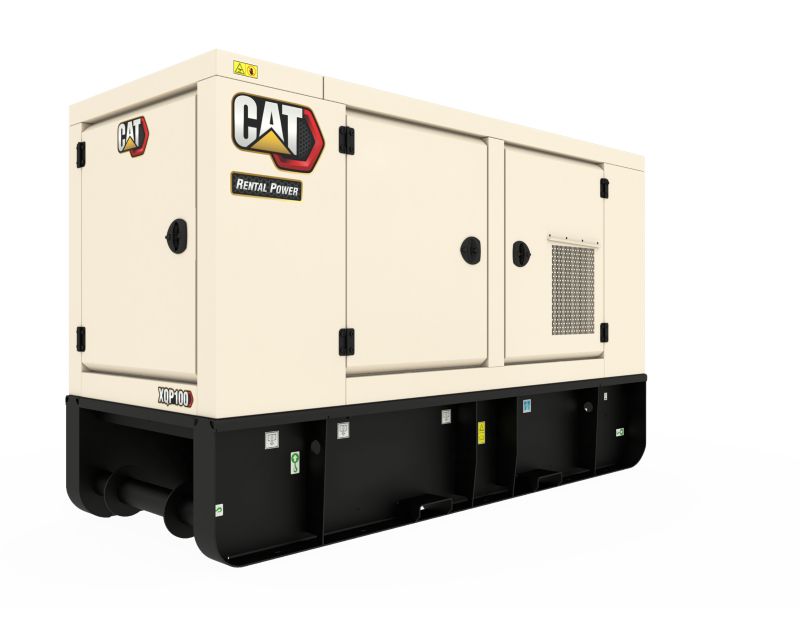

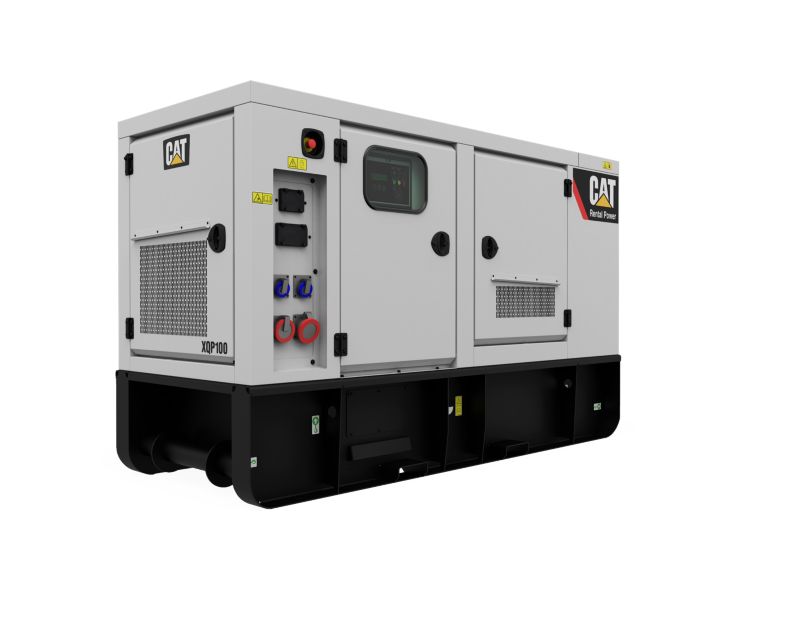

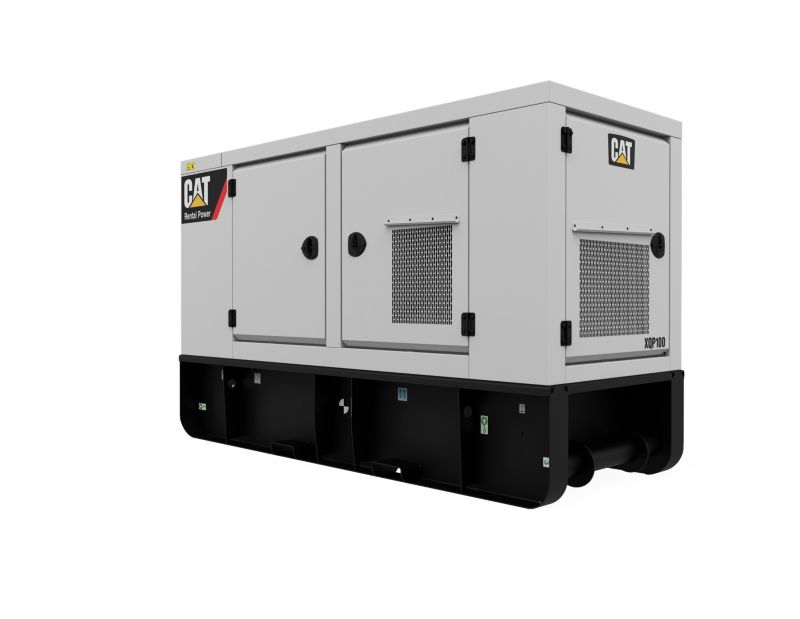

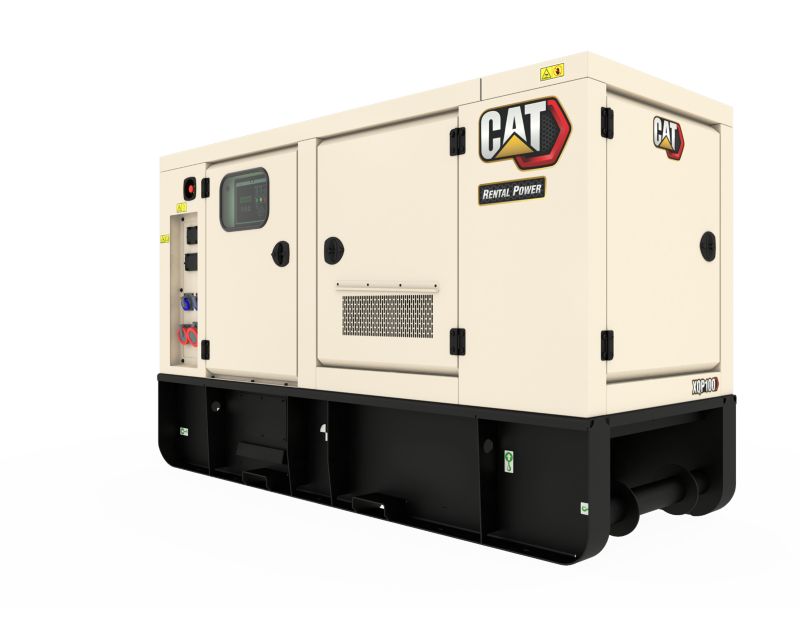

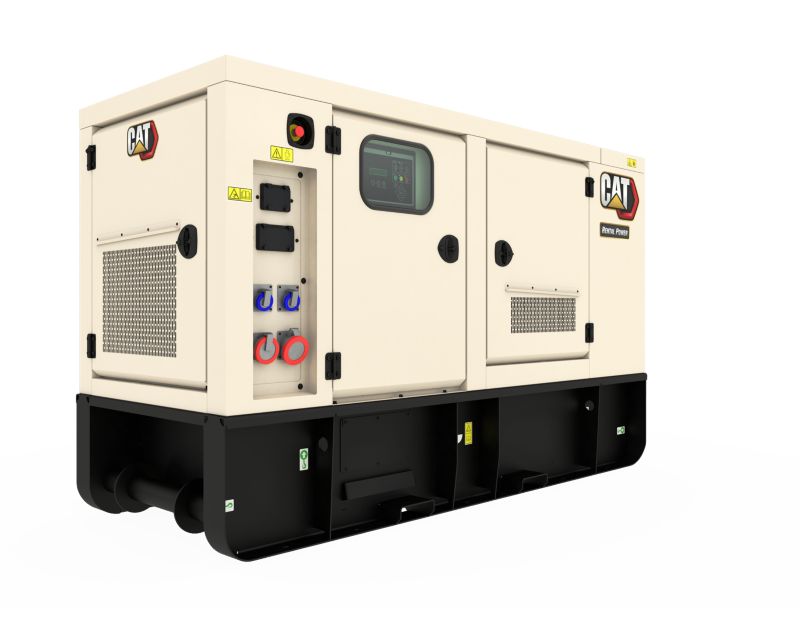

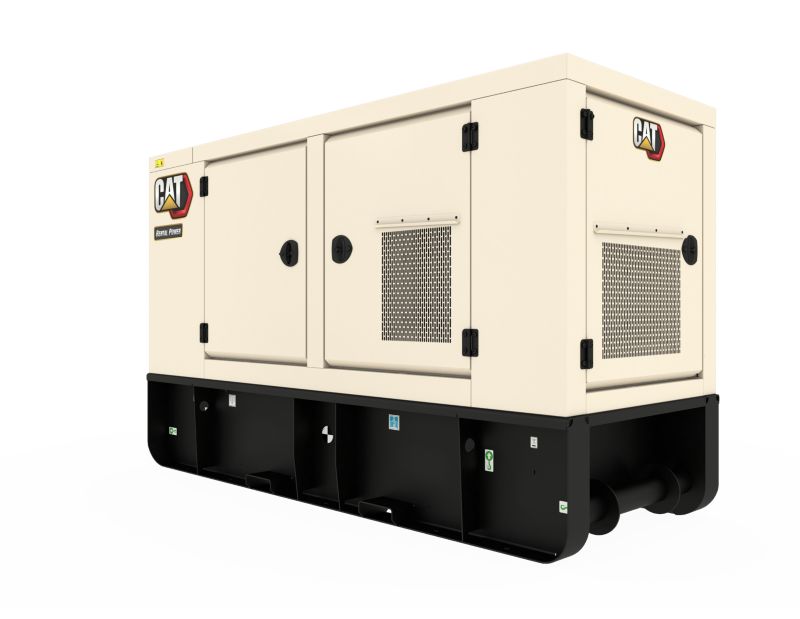

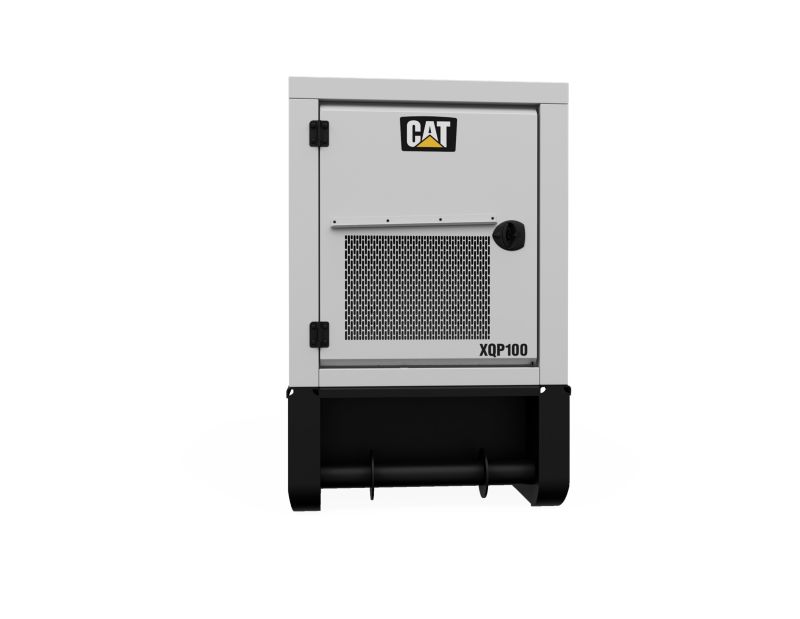

Photos

Videos

  • Cat Rental Power XQP Product Robust Design Features
  • Cat Rental Power XQP Product Electrical Features

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Showroom

XQP100, Virtual Product Tour

Features

Specifications

  • Generator Set
    Spec Value
    Rating Prime 100 kVA
    Frequency 50/60 Hz
    Voltage 127 - 480 V
  • Engine
    Spec Value
    Engine Cat C4.4
    Fuel Diesel
  • Dimensions
    Spec Value
    Weight - With Lube Oil and Coolant 4469 lb
  • Fuel Consumption EU Stage IIIA
    Spec Value
    100% Load 50Hz 6.2 gal/hr
    100% Load 60Hz 7.3 gal/hr
    75% Load 50Hz 5.4 gal/hr
    75% Load 60Hz 5.9 gal/hr
    50% Load 50Hz 3.9 gal/hr
    50% Load 60Hz 4.2 gal/hr
  • Fuel consumption Best Fuel Efficiency
    Spec Value
    100% Load 50Hz 6 gal/hr
    100% Load 60Hz 7.1 gal/hr
    75% Load 50Hz 4.5 gal/hr
    75% Load 60Hz 5.3 gal/hr
    50% Load 50Hz 3.1 gal/hr
    50% Load 60Hz 3.7 gal/hr
  • Noise rating (with enclosure) EU Stage IIIA
    Spec Value
    Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 77.5 dB(A)
    Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) 79.5 dB(A)
  • Noise rating (with enclosure) Best Fuel Efficiency
    Spec Value
    Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 80.3 dB(A)
    Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) 81.6 dB(A)

Standard Equipment

CAT C4.4 Diesel Engine

  • Turbo charged.

Generator

  • LC3114F frame.

Air Filter

  • Cyclonic/paper with dust cup and service indicator.

Cat Connect remote monitoring

  • Provides package monitoring and management.

Cooling System

  • Package mounted radiator with vertical air discharge. Filled from factory.

Charging / Starting System

  • 12V heavy duty starting motor and charging alternator c/w battery isolator.

Fuel System

  • 24hr dual wall fuel tank with 3 way directional valve for external supply.

Control Panel

  • Digital EMCP4.2B set mounted controller.

Distribution

  • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off.

Structure

  • Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. Base frame is wider than enclosure to protect generator set during transportation.

Enclosure

  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance.

Exhaust

  • Integrated spark arresting silencer.

Lube Oil

  • On engine primary and secondary oil filters. Filled from factory.

General

  • Factory tested and inspected.
