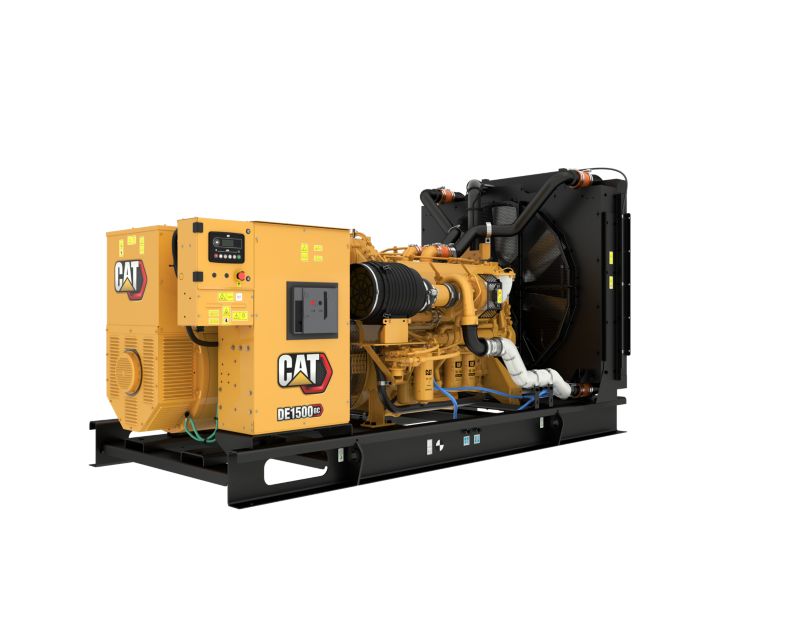

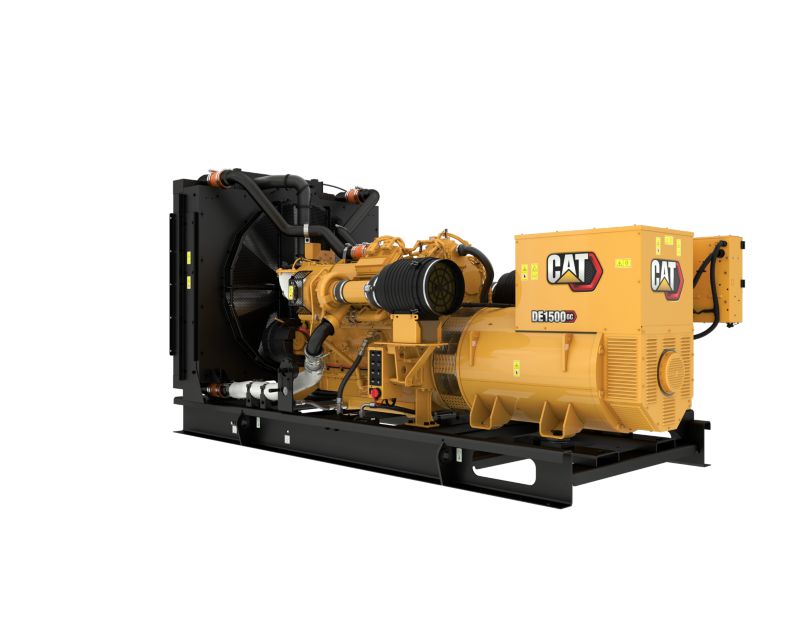

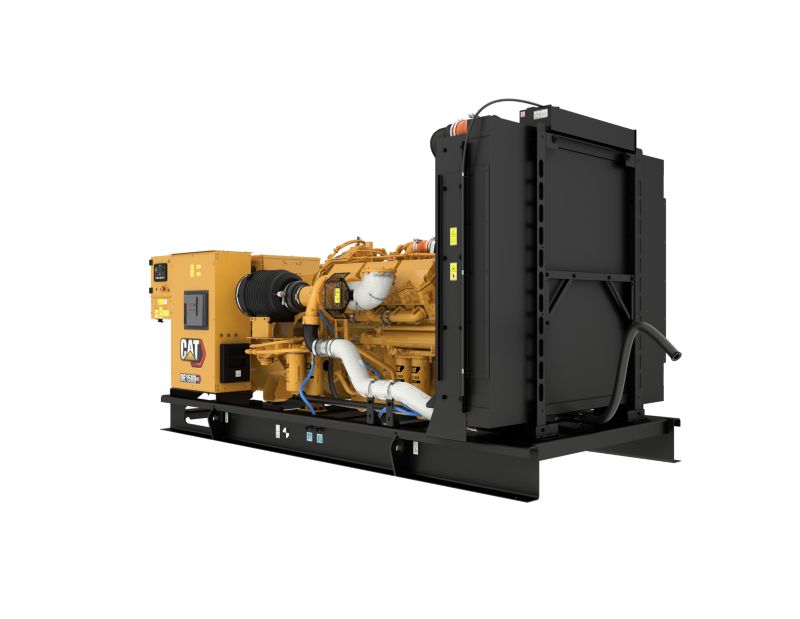

1500 kVA Generator Set for Standby applications
Features
-
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
-
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
-
SR500 Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
-
GCCP1.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Site-specific programming for specific customer requirements
-
Cooling System
- Designed to operate in standard ambient temperatures up to 50°C (122°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
-
Certifications
- Low Fuel Consumption
-
One Safe Source
- Components used in the generator set are selected at the design stage to provide optimum package performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
Specifications
Units for specifications
Generator Set Specifications
| Minimum Rating | 1500 kVA |
|---|---|
| Maximum Rating | 1500 kVA |
| Emissions/Fuel Strategy | Low Fuel Consumption |
| Voltage | 400 - 415 Volts |
| Frequency | 50 Hz |
| Speed | 1500 rpm |
| Duty Cycle | Standby |
Engine Specifications
| Engine Model | C32 TA, V-12, 4-Stroke Water-Cooled Diesel |
|---|---|
| Bore | 5.71 in 145 mm |
| Stroke | 6.38 in 162 mm |
| Displacement | 1958.86 in³ 32.1 l |
| Compression Ratio | 14.0:1 |
| Aspiration | TA |
| Fuel System | EUI |
| Governor Type | Adem™A4 |
Generator Set Dimensions
| Length - Minimum | 164.3 in 4175 mm |
|---|---|
| Length - Maximum | 164.3 in 4175 mm |
| Width - Minimum | 82.3 in 2090.5 mm |
| Width - Maximum | 82.3 in 2090.5 mm |
| Height - Minimum | 89.3 in 2268 mm |
| Height - Maximum | 89.3 in 2268 mm |
| Dry Weight - Genset (minimum) | 16393 lb 7436 kg |
| Dry Weight - Genset (maximum) | 16393 lb 7436 kg |
Standard Equipment
Control Panel
- GCCP1.3
Cooling System
- Radiator
Optional Equipment
Control Panels
- Remote monitoring software
Starting/Charging
- Jacket water heater
General
- Single element or dual element air cleaner
- Circuit breaker panel, based on regional and product configuration
