Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Features
-

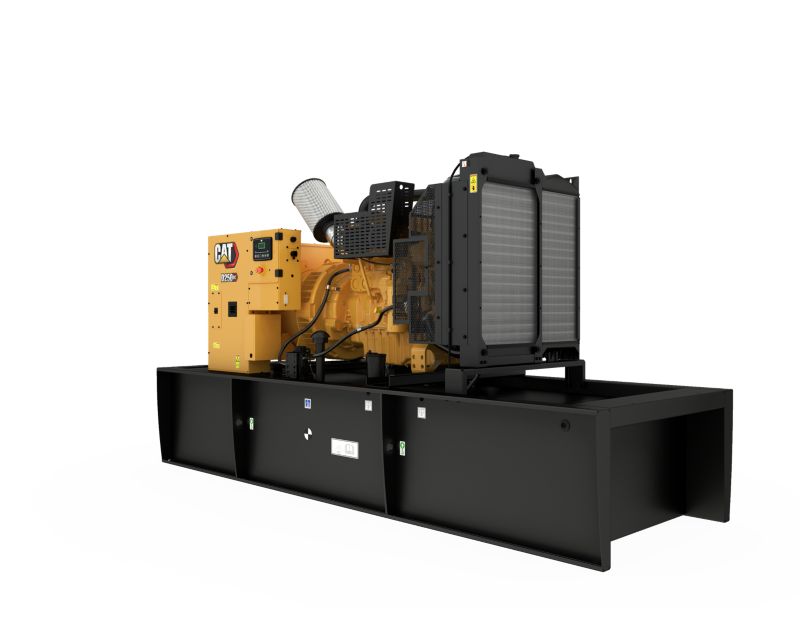

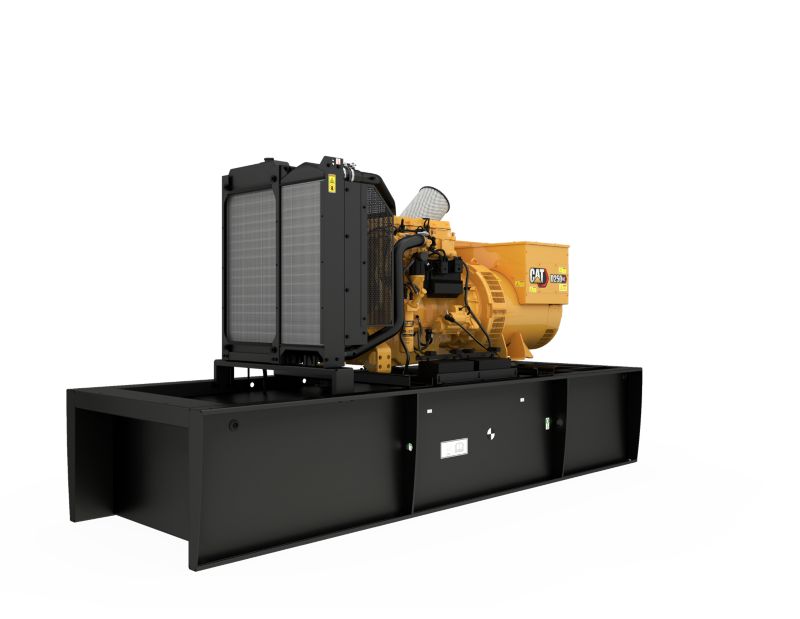

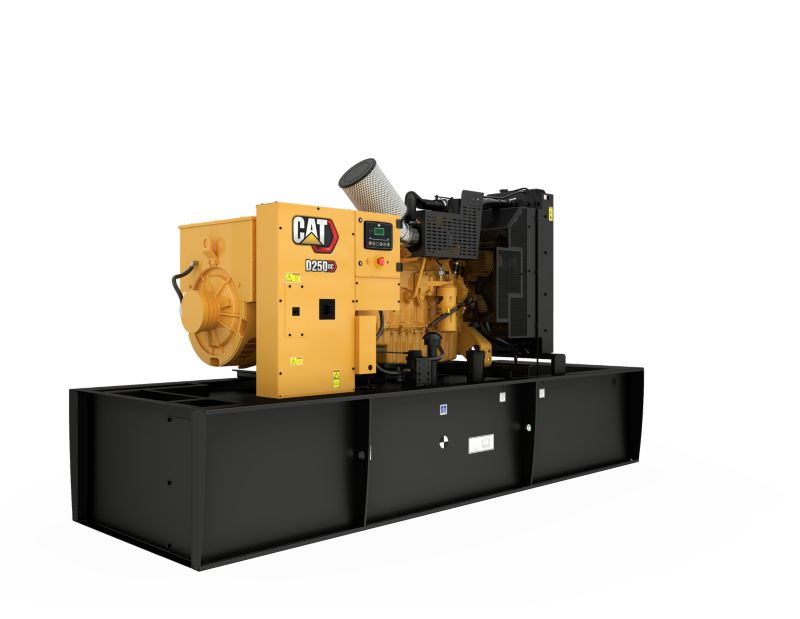

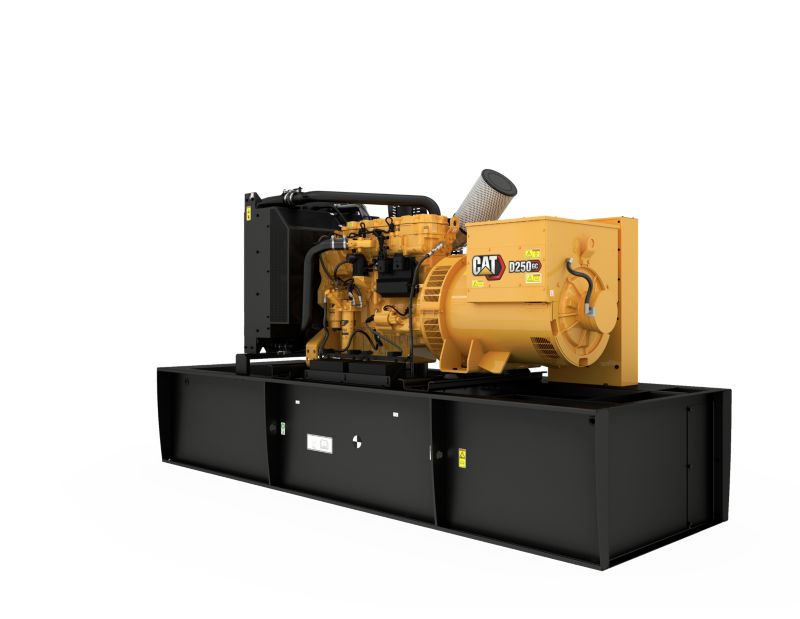

Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
-
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
-
M-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
-
GCCP 1.2 Control Panel
- User-friendly interface and navigation
- Expansion modules and site-specific programming for specific customer requirements
-
Cooling System
- Designed to operate in standard ambient temperatures up to104°F (40°C)
- Contact your Cat Dealer for specific ambient and altitude capabilities
-
Certifications
- UL 2200 Listed
- ULC Certification Available
-
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
-
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Specifications
Units for specifications
Generator Set Specifications
| Maximum Rating | 250 ekW |
|---|---|
| Minimum Rating | 250 ekW |
| Emissions/Fuel Strategy | EPA Stationary Emergency |
| Voltage | 208 to 600 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby |
Engine Specifications
| Engine Model | Cat® C9 In-line 6, 4-cycle Diesel |
|---|---|
| Bore | 4.4 in 112 mm |
| Stroke | 5.9 in 149 mm |
| Displacement | 538 in³ 8.8 l |
| Compression Ratio | 16.3:1 |
| Aspiration | Turbocharged Air-to-Air Aftercooled |
| Fuel System | HEUI |
| Governor Type | Adem™A4 |
Generator Set Dimensions
| Length - Maximum | 155.5 in 3950 mm |
|---|---|
| Width - Minimum | 56.3 in 1430 mm |
| Width - Maximum | 56.7 in 1440 mm |
| Height - Minimum | 67.2 in 1706 mm |
| Height - Maximum | 86.7 in 2202 mm |
| Dry Weight - Genset (minimum) | 5324.2 lb 2415 kg |
| Dry Weight - Genset (maximum) | 6735.1 lb 3055 kg |
Standard Equipment
Air Inlet System
- Air cleaner - Non canister, disposable
- Aftercooler core
- Turbocharger
Control Panel
- GCCP 1.2
Cooling System
- Jacket water pump, gear driven, centrifugal
- Radiator sight gauge
- Blower fan and fan drive with guards
- Thermostats and housing
- Coolant drain valve
- Radiator, package mounted
Exhaust System
- Exhaust manifold - dry
Fuel System
- Fuel priming pump
- Engine fuel transfer pump
- Primary fuel filter w/integral water separator and secondary filter, spin on
- Integral tank base, 24 hours, UL142
Generator Set
- Factory tested to design specifications at full load conditions
- Complete system designed & built at ISO 9001:2000 certified facilities
- All protective devices and control functions simulated and checked
Generators and Generator Attachments
- Easy access to AVR and terminals
- Insulation system, Class H
- Brushless, self-excited 2/3 pitch (600V uses Internal excitation (IE))
- Voltage regulator (single phase sensing)
- Terminal box, IP22 RHS facing, bottom cable entry
- 12 Leads
- Standard winding protection for non-harsh environments with relative humidity ? 95%
- IP23 Protection
Governing System
- Cat electronic governor (ADEM A4)
Lube System
- Oil filler and dipstick
- Lubricating oil, CK-4 (10W-30)
- Shallow oil pan
- Oil filter, spin on
- Fumes disposal to front of radiator
- Oil cooler
- Oil drain with valve
Mounting System
- Includes lifting provisions and termination points for coolant and lube oil drain lines
- Captive linear vibration isolators between base and engine-generator
Protection
- Safety shutoff - Overspeed
- Safety shutoff - High water temperature
- Safety shutoff - Low oil pressure
Starting/Charging System
- 24-volt electric starting motor
- 24V, 45 Amp Charging alternator
General
- Vibration damper
- Lifting eyes
- Parts book
Optional Equipment
Air Inlet System
- Air cleaner (Non canister disposable)
Bases, Mounting & Fuel Tanks
- Integral tank base, 24 hours, UL142
- Audio & visual fuel alarm (@90% fuel level)
- Wide Base - Skid
- Fuel tank pill pipe & lockable cap
Circuit breaker
- 400A LS/I
- 600A LS/I
- 1200A LSI
- 600A LSI
- 1200A LS/I
- Auxiliary contacts
- 400A LSI
- 800A LSI
- 800A LS/I
Control System
- Twist release, Red button emergency stop
- Product link remote monitoring hardware
- 16 -light NFPA 99/110 Annunciator
- Volt free contacts
- Ground fault relay
- 20A GFCI (Ground Fault Circuit Interrupter)
- Audible alarm Gp
- 100A Load center
Enclosures
- E-Stop
- AC & DC Source lights

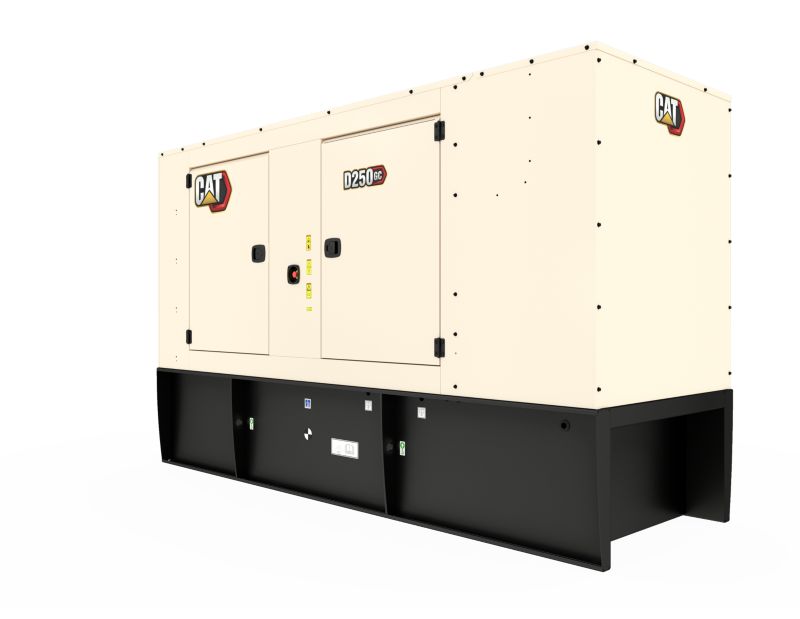

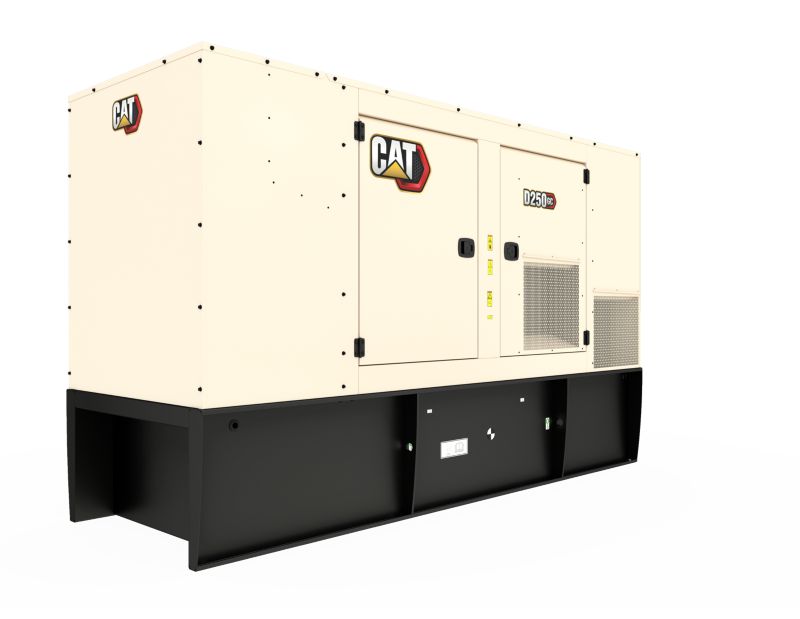

- Sound attenuated Level 2 enclosure (White)
Exhaust System
- 6" Muffler - 25 dBA attenuation
- Flexible exhaust connection
- Manifold and turbocharger guards
Generator
- Permanent magnet excitation (PMG) generator
- Space heater
Starting System
- Standard battery set: 1000 CCA, 90 amp/hr.
- Battery charger (UL Certified)
- Jacket water heater
General
- CSA Certification
- Extended Service Coverage
- Generator test report
- UL2200 Certification
