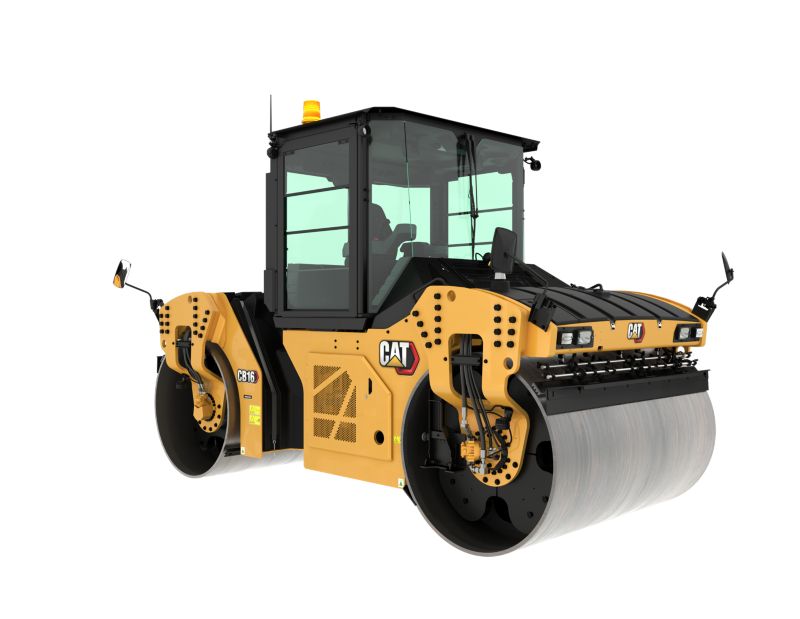

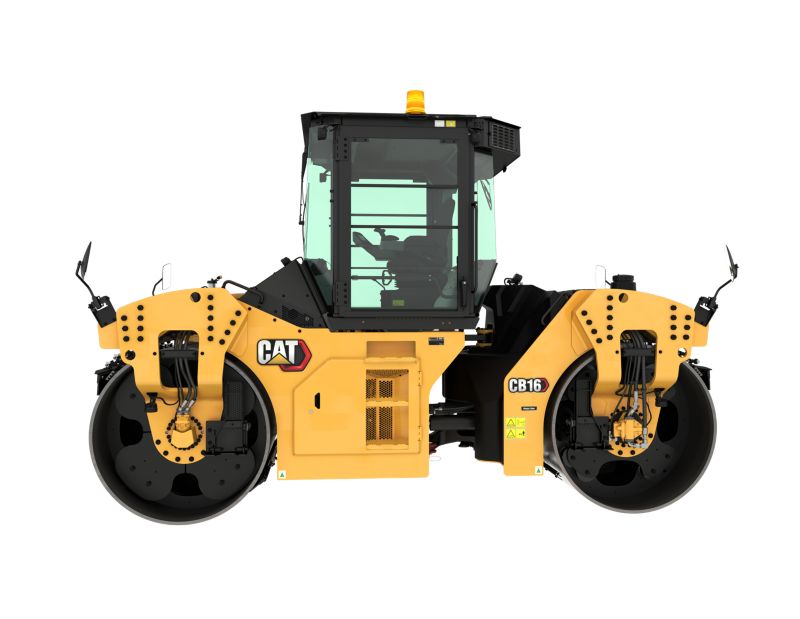

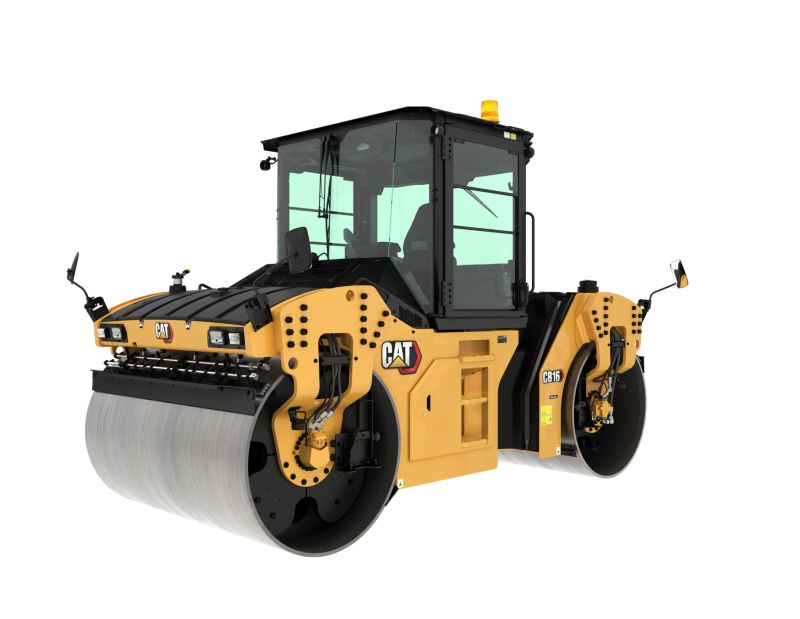

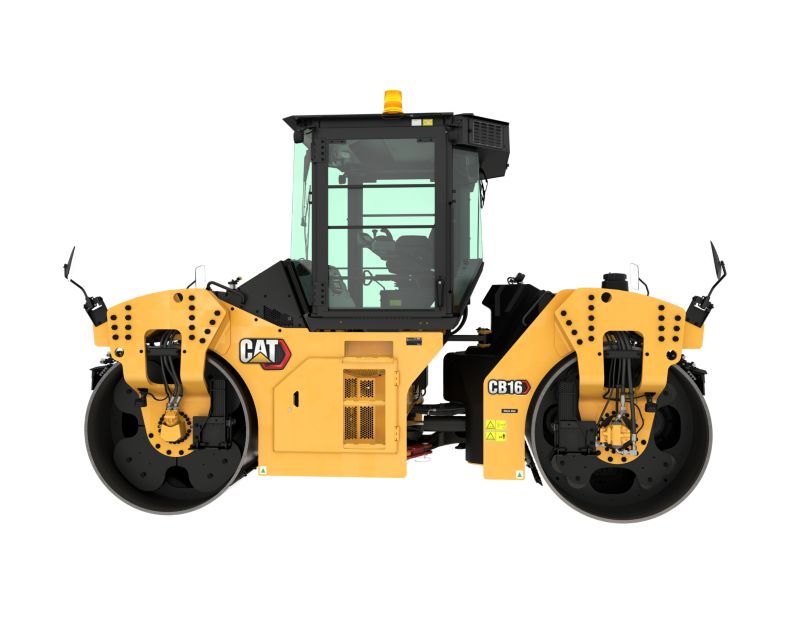

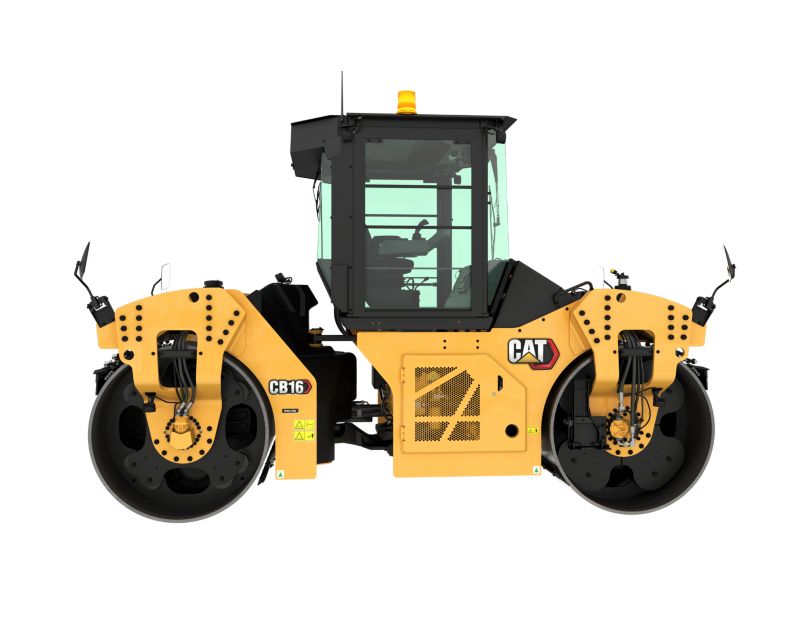

CB16 Tandem Vibratory Roller

Standard - Operating Weight

31941 lb

Standard Compaction Width

84 in

Static Linear Load

204 lb/in


The CB16 asphalt compactor offers enhancements that simplify operation, provide versatility, and deliver excellent fuel economy. Rotary dials, oscillatory vibration, and 360 degreeseating make this compactor a perfect match for urban streets, rural roads, highways, interstates and other high-production applications.



  • Oscillatory Vibration System
  • Simplified 8 Button Control Panel
  • Pass Count and Temperature Mapping
  • Asphalt Compaction With Oscillation

360° View


360º Exterior view. Double click on the image to zoom in on any area of the product.


360º Interior view. Double click on the image to zoom in on any area of the product.



  • Weights
    Spec Value
    Standard - Operating Weight 31941 lb
    Maximum Operating Weight 34255 lb
    Static Linear Load 204 lb/in
  • Operating Specifications
    Spec Value
    Standard Compaction Width 84 in
    Drum Offset 6 in
    Curb Clearance 28 in
    Ground Clearance 11.5 in
  • Engine
    Spec Value
    Engine Model Cat C4.4
    Gross Power 142 HP
  • Travel Speeds
    Spec Value
    High 8 mile/h
    Low 4.5 mile/h
  • Dimensions
    Spec Value
    Overall Length 15.5 ft
    Wheel Base 11.25 ft
    Height - With ROPS/FOPS 10 ft
    Overall Width 92 in
  • Vibratory System
    Spec Value
    Centrifugal Force per Drum - Maximum 31069 lb
    Centrifugal Force per Drum - Minimum 12409 lb
    Maximum Amplitude 0.041 in
    Minimum Amplitude 0.01 in
    Maximum Frequency 3800 V/m
    Minimum Frequency 2520 V/m
    Vibration Selection Independent per drum, front only, rear only, both
  • Service Refill Capacities
    Spec Value
    Fuel Tank Capacity 66 gal (US)
    Water Spray Tank Capacity 264 gal (US)

Standard Equipment

Operating Environment

  • 180 degree seat positioning with sliding station
  • Adjustable armrests
  • Platform ROPS/FOPS
  • Propel lever with 4-button control
  • Steering wheel - fixed position, left side
  • Suspension seat - no heat
  • 76 mm (3 in) high visibility seatbelt
  • Vandalism protection


  • Product Link™ PLE743
  • Remote Flash
  • Remote Troubleshooting


  • Cat C4.4, 4-cylinder

Electrical System

  • 150 amp alternator
  • 12-volt charging system
  • Automotive-type fuse system
  • Maintenance-free batteries
  • Cat Electronic Technician (Cat ET)
  • Remote start/charge receptacle

Service and Maintenance

  • Maintenance-free Hitch
  • 3 yr/3000 hr conventional vibratory system service interval
  • 2 yr/2000 hr oscillatory vibration system service interval
  • Grouped filters with ground level access
  • Remote access drains
  • Sampling ports for Scheduled Oil Sampling
  • Site gauges


  • Backup Alarm
  • Warning horn (front & rear)
  • LED Working Lights
  • Steps, front drum fuel refill
  • Warning, LED safety beacons

Optional Equipment

Operating Environment

  • 360 degree seat positioning with sliding station
  • Steering wheel - elevated position, left side
  • Suspension seat w/ heat
  • Seat headrest


  • Infrared asphalt temperature sensors
  • CMV accelerometer - front drum
  • GNSS Mapping - temperature and passcount
  • Machine to machine communication
  • Product Link PLE783


  • Offset hitch

Vibratory System

  • Biodegradeable hydraulic oil
  • Five amplitude vibratory system
  • Two amplitude/two frequency vibratory system
  • Versa Vibe™ vibratory system
  • Two amplitude/two frequency w/Oscillation vibratory system
  • Versa Vibe w/Oscillation vibratory system
  • Cocoa mats
  • Mats - water distribution
  • Freeze protection - water spray system
  • Rear drum oscillation kit - field installed drum


  • LED Working Lights with turn signals
  • LED Roading Lights
  • Mirror package
  • Steps, rear drum water spray refill
