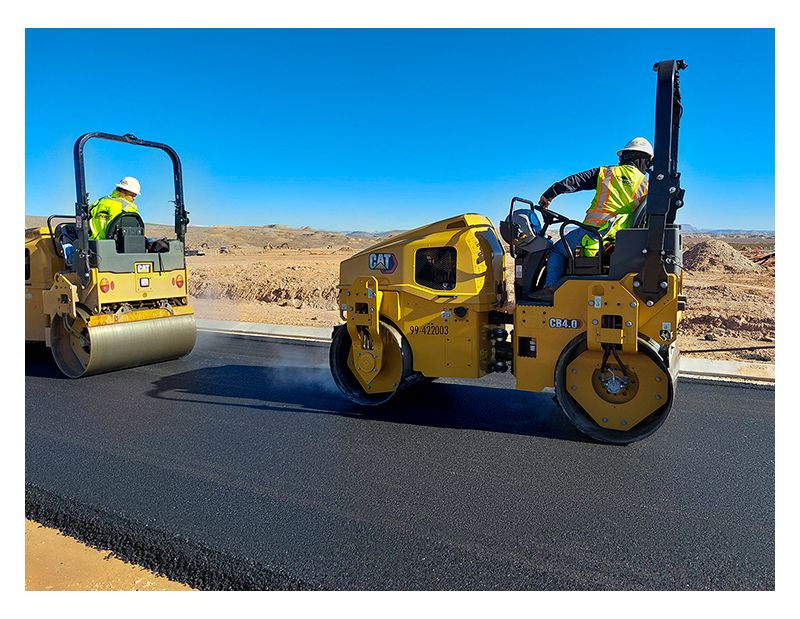

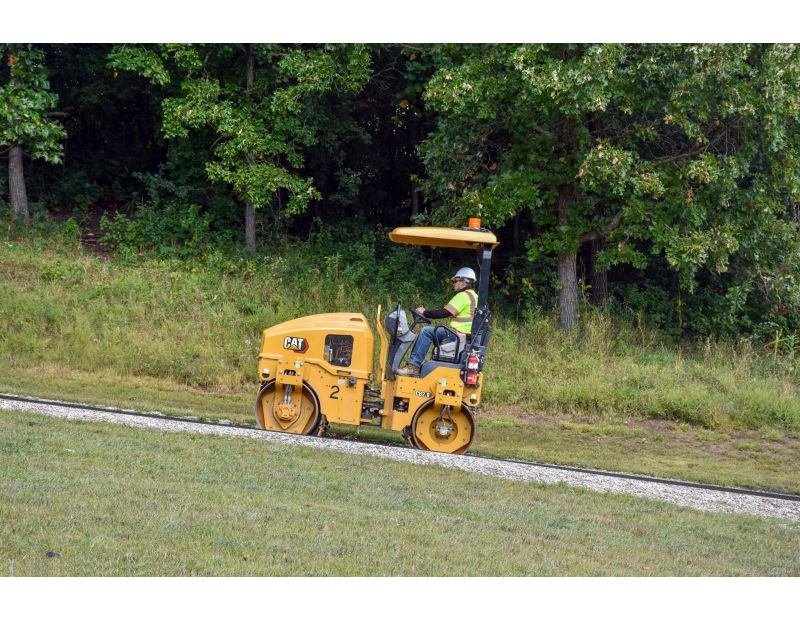

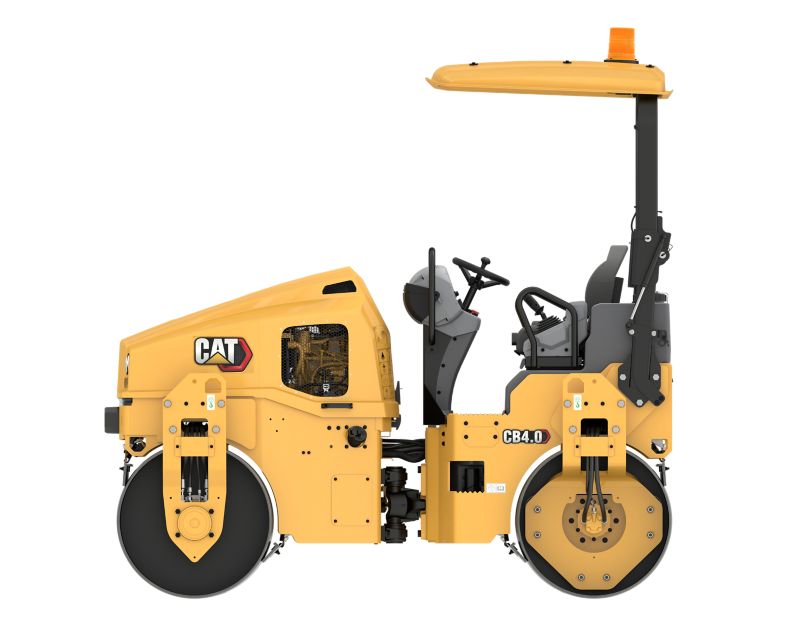

The CB4.0 is a 3-5 metric ton compactor with 1300 mm (51 in) drums. It’s a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs.
Features
-
Simple to Operate
-
Proven Productivity
-
Technology Ready
-
Superior Safety
-
Easy to Service
Specifications
Units for specifications
Weights
| Standard Operating Weight with ROPS | 7971 lb 3623 kg |
|---|---|
| Maximum Operating Weight with ROPS | 9493 lb 4315 kg |
| Static Linear Load | 59.8 lb/in 13.9 kg/cm |
| Operating Weight - At Front Drum with ROPS/FOPS | 3837 lb 1744 kg |
| Operating Weight - At Rear Drum with ROPS/FOPS | 4134 lb 1879 kg |
Dimensions
| Compaction Width | 51.2 in 1300 mm |
|---|---|
| Overall Length | 112.3 kg/cm 2853 mm |
| Overall Width | 55.1 in 1400 mm |
| Drum Width | 51.2 in 1300 mm |
| Drum Diameter | 31.5 in 800 mm |
| Wheel Base | 80.7 in 2050 mm |
| Height - ROPS | 104.7 in 2660 mm |
Operating Specifications
| Drum Offset | 2 in 50 mm |
|---|---|
| Curb Clearance | 19.6 in 499 mm |
| Ground Clearance | 11.2 in 284 mm |
| Travel Speed - Maximum | 8.1 mile/h 13 km/h |
| Turning Radius - Inside Drum Edge | 115.2 in 2926 mm |
| Turning Radius - Outside Drum Edge | 166.4 in 4226 mm |
Engine
| Engine Power (1) | 36 kW 48.2 hp |
|---|---|
| Engine Model | C1.7T |
Vibratory System
| Frequency | 55/45 Hz (3300/2700 vpm) |
|---|---|
| Nominal Amplitude - High | 0.02 in 0.5 mm |
| Centrifugal Force - Maximum | 7524 lb/ft 33.47 kN |
Service Refill Capacities
| Fuel Tank Capacity | 21.43 gal (US) 81 l |
|---|---|
| Water Spray Tank Capacity | 79 gal (US) 300 l |
Standard Equipment
OPERATOR ENVIRONMENT
- Adjustable Suspension Seat with Operator Presense Switch
- ROPS Folding
- Seat Belt - 75 mm (3 in) high visibility orange
- Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
- 12-volt Power Outlet
- Horn, Backup Alarm
COMPACTON SYSTEM
- Folding Scrapers
- Vibe Selection - front, rear, or both
- Pressurized, Triple-Filtration Spray System with Test Mode
POWERTRAIN
- Auto Engine Off and Auto Warmup
- Air Cleaner, Dual Element
- Engine Belt Guard
TECHNOLOGY
- Telematics
ELECTRICAL
- LED Working Lights
OTHER
- Vandal Protection - lockable hood, fuel fill, and controls cover
- Machine Life and Tiedowns
- Offsets Hitch
Optional Equipment
OPERATOR ENVIRONMENT
- ROPS Fixed
- Sun Canopy
- Seat - Side Shift
- Dual Propel Levers
COMPACTON SYSTEM
- Fixed Scrapers
- Cocoa Mats
- Edge Cutter Ready
- Water Sprayer Antifreeze Kit
- Ballast Kit - 400 kg (880 lb)
- Ballast Kit - 542 kg (1194.91 lb)
POWERTRAIN
- Traction Control
TECHNOLOGY
- Remote Flash / Troubleshoot
- CMV - Compaction Measurement Value
ELECTRICAL
- Battery Disconnect
- LED Roading Lights
- Rotating Amber Beacon
OTHER
- Biodegradeable Hydraulic Oil
- Bumpers
- Single Point Lift
- Custom Paint
