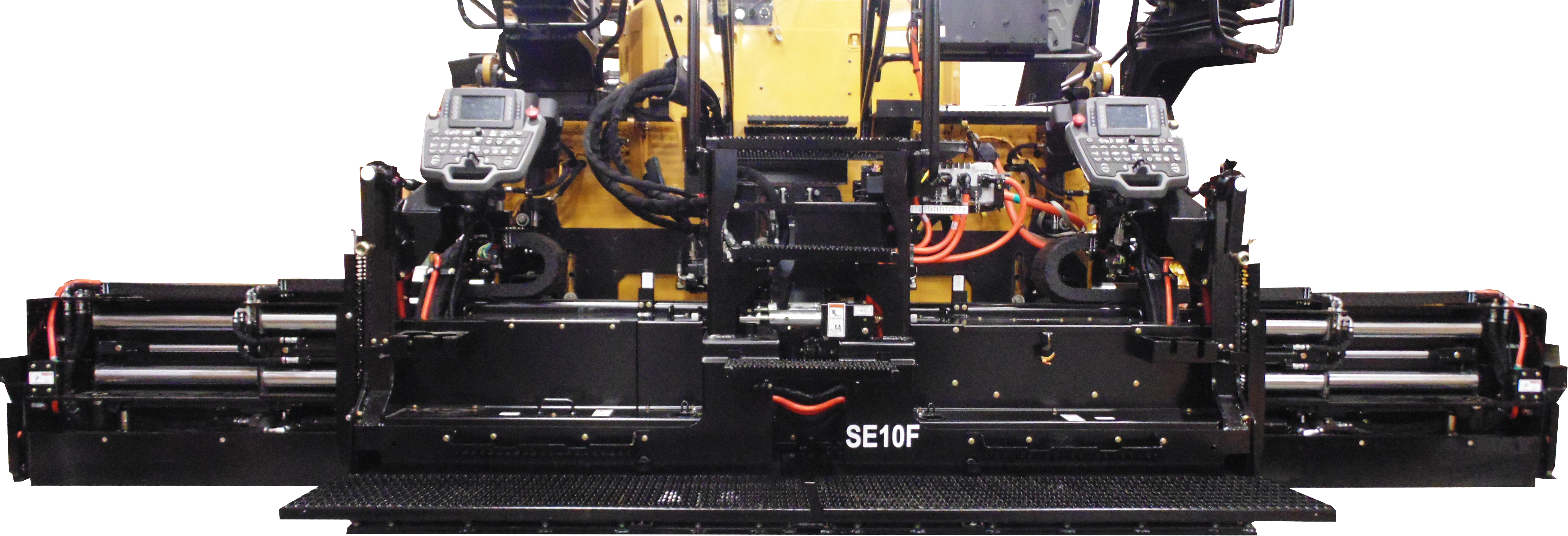

A balanced design along with a rigid frame prevents flexing while in-line extension cylinders and full wrap-around slider bearings reduce extension deflection. Trailing edge screed plate adjusters are easily accessible for quick leveling.
Specifications
Units for specifications
Specifications
| Paving Width | 10' - 19' 6" |
|---|---|
| Max Paving Width | 26' |
| Extension Travel | 57" |
| Weight | 7,800 lb |
| Length w/ End Gates | 91" |
| Width w/ End Gates | 10' 8" |
| Height | 75" |
| Main Plate Width | 24" |
| Ext. Plate Width | 9" |
