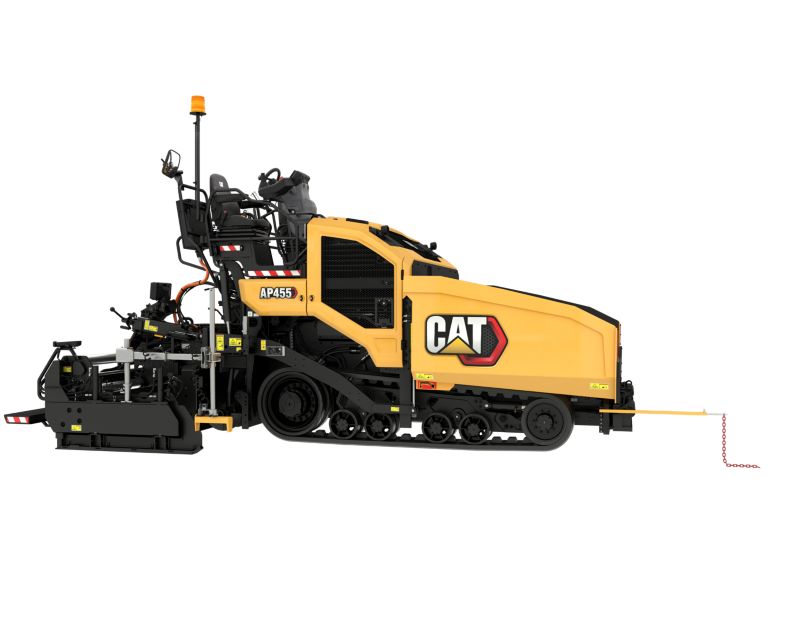

The AP455 Mobil-trac™ asphalt paver delivers excellent traction and mobility as-well-as, easy set-up, and a wide paving range, making it the perfect fit for urban streets, parking lots, rural roads and many other small to intermediate-type applications.
Cat
AP455
Overview
Photos
-

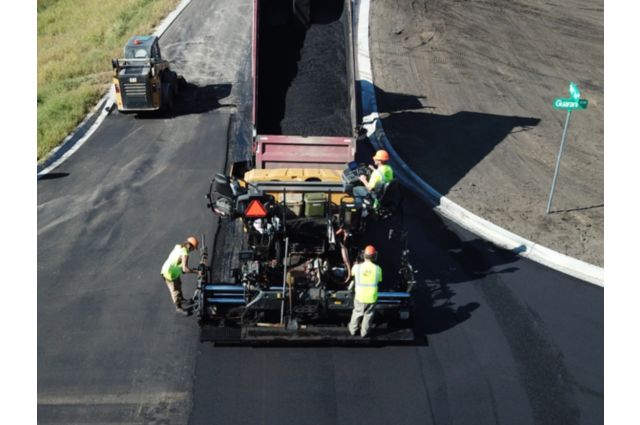

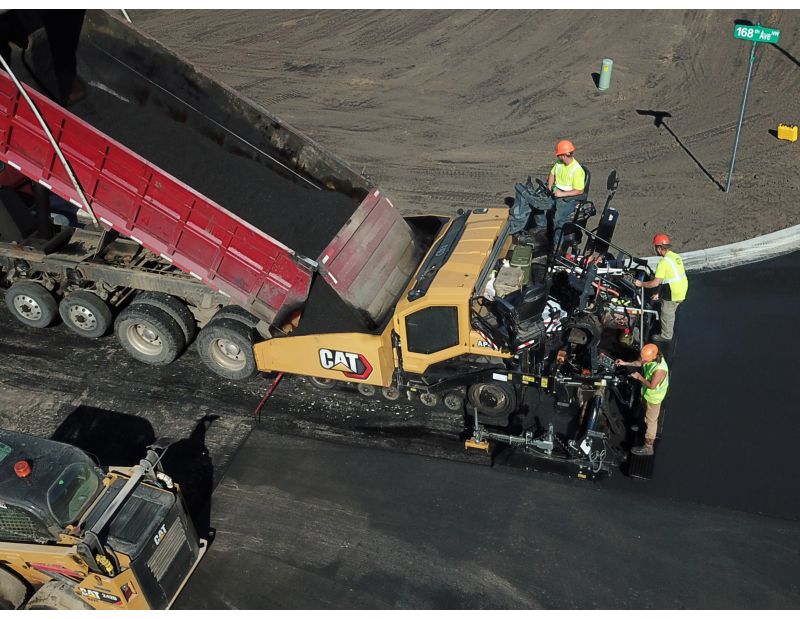

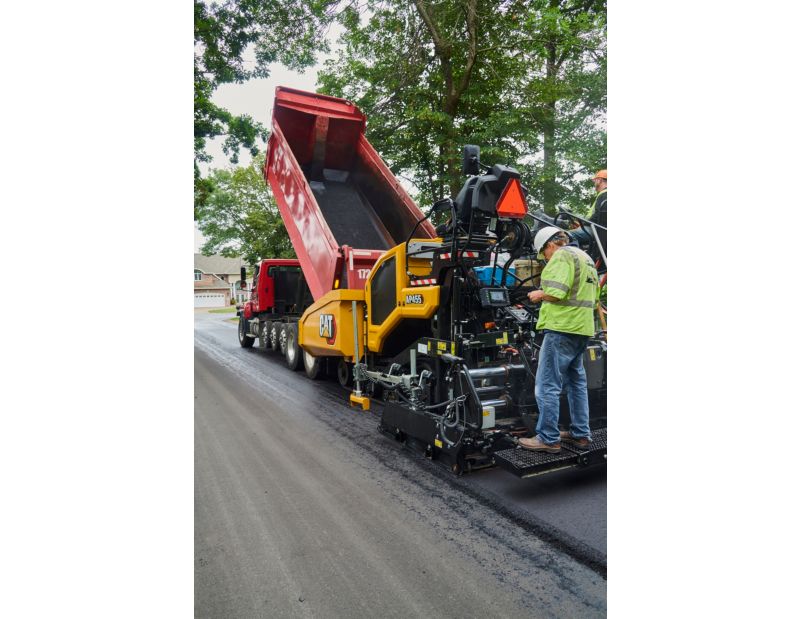

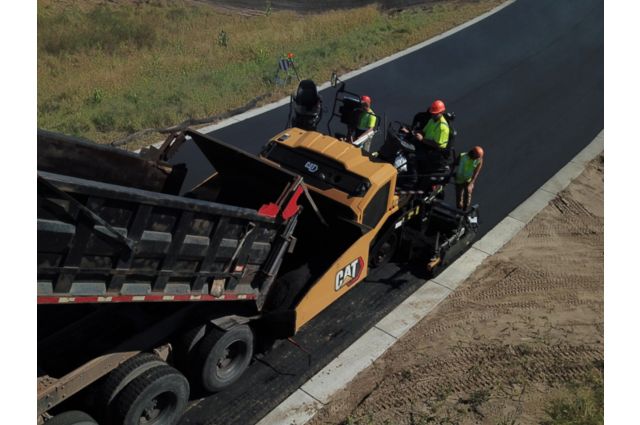

AP455 Paver -
AP455 Paver -
AP455 Paver -
AP455 Paver -
AP455 Paver
360° View
Exterior
360º Exterior view. Double click
Interior
360º Interior View. Double click
Documents
Features

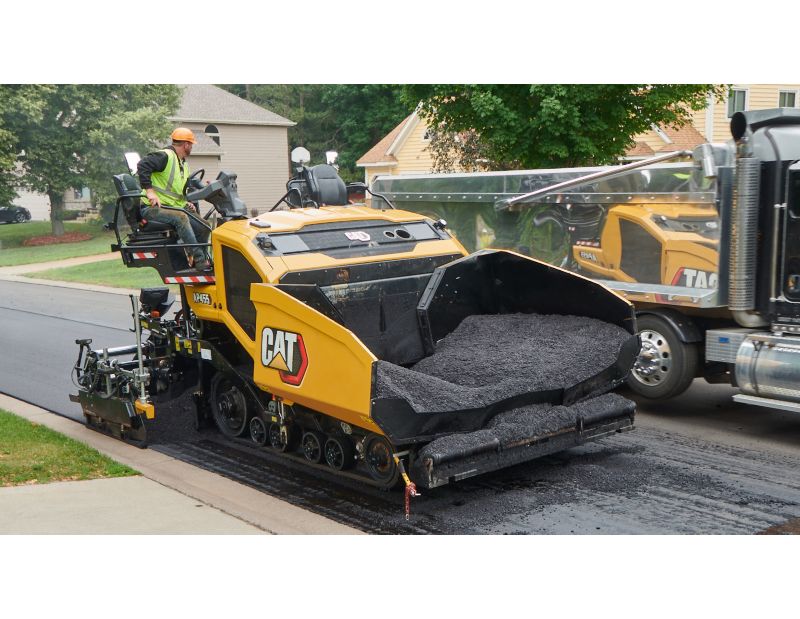

Compact Size, Big Opportunities
- The compact size and small footprint simplify maneuverability in tight spaces for efficient work in urban-type applications
- Tight 90 turning capability enables the paver to rotate and cover tracks on a return paving pass
- Standard paving range utilizing the SE47 V screed is 2.4 m - 4.7 m (8' - 15'6") with a maximum width of 6.1 m (20')
- Standard paving range utilizing the SE47 FM screed is 2.4 m - 4.7 m (8' - 15'6") with a maximum width of 5.9 m (19' 6")
- Paving depths up to 250 mm (10") supports aggregate paving applications
Compact Size, Big Opportunities
- The compact size and small footprint simplify maneuverability in tight spaces for efficient work in urban-type applications
- Tight 90 turning capability enables the paver to rotate and cover tracks on a return paving pass
- Standard paving range utilizing the SE47 V screed is 2.4 m - 4.7 m (8' - 15'6") with a maximum width of 6.1 m (20')
- Standard paving range utilizing the SE47 FM screed is 2.4 m - 4.7 m (8' - 15'6") with a maximum width of 5.9 m (19' 6")
- Paving depths up to 250 mm (10") supports aggregate paving applications

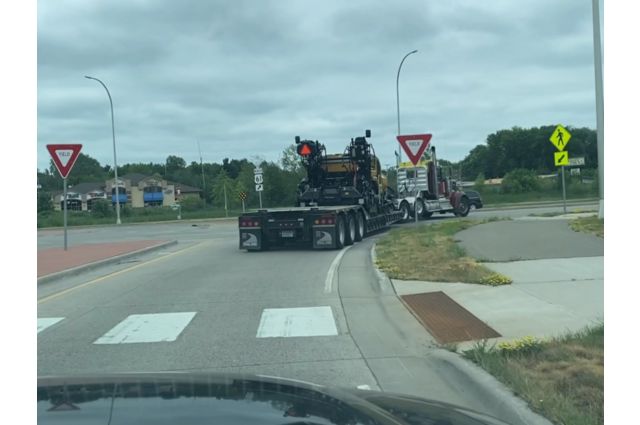

Transport Made Easy
- Paver and screed combination weight of 14.3 mt (31,500 lb) enables easy transport on a variety of trailer types
- Length of less than 5.5 m (18' 1") and width of 2.6 m (8' 6") accommodates machine transport without special permits
- The front-loading angle of 18 degreesand high front bumper clearance reduces the need for additional blocking when loading onto various trailer designs
- Front, middle, and rear tie-down locations make securing the paver efficient for quick travel to the next job site
Transport Made Easy
- Paver and screed combination weight of 14.3 mt (31,500 lb) enables easy transport on a variety of trailer types
- Length of less than 5.5 m (18' 1") and width of 2.6 m (8' 6") accommodates machine transport without special permits
- The front-loading angle of 18 degreesand high front bumper clearance reduces the need for additional blocking when loading onto various trailer designs
- Front, middle, and rear tie-down locations make securing the paver efficient for quick travel to the next job site
Exceptional Mobility
- Mobil-trac ™ undercarriage provides exceptional mobility, outstanding traction, and fast travel speeds for unmatched maneuverability around the job site
- Counter-rotating tracks provide excellent maneuverability in tight quarters
- Self-tensioning accumulators, center guide blocks, and rugged internal belt cables help ensure durability
- Rubber-coated components help shed asphalt and prevent accumulation
- Efficient track plow design pushes material away from the tracks and helps eliminate cold patches caused by track compression
Exceptional Mobility
- Mobil-trac ™ undercarriage provides exceptional mobility, outstanding traction, and fast travel speeds for unmatched maneuverability around the job site
- Counter-rotating tracks provide excellent maneuverability in tight quarters
- Self-tensioning accumulators, center guide blocks, and rugged internal belt cables help ensure durability
- Rubber-coated components help shed asphalt and prevent accumulation
- Efficient track plow design pushes material away from the tracks and helps eliminate cold patches caused by track compression

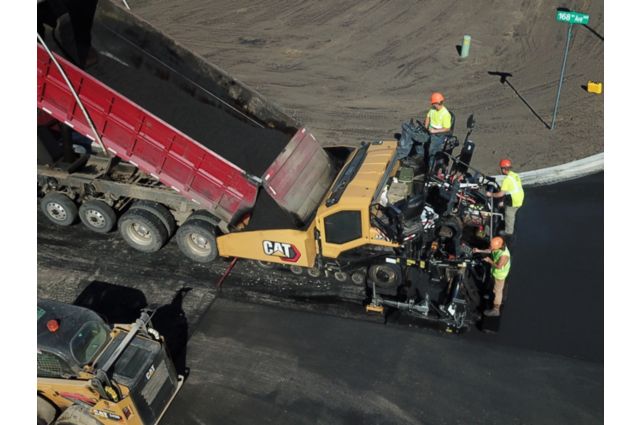

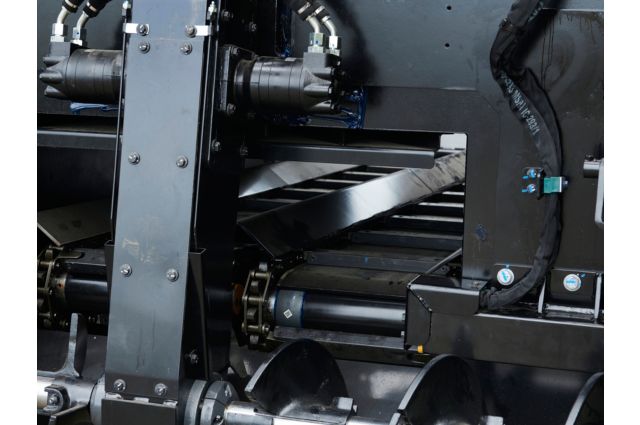

Smooth Material Flow
- Low truck entry height and short front apron enhances material flow while simplifying clean-out
- Feeder system design with 355 mm (14") diameter augers provides consistent material flow across the screed for efficient flow at both narrow and wide paving widths
- Confined auger chamber keeps material moving and helps eliminate stagnate patches
- Independent control of each material feed sensor when utilizing a cut-off shoe, simply turn off the sensor for manual proportional feed system control
Smooth Material Flow
- Low truck entry height and short front apron enhances material flow while simplifying clean-out
- Feeder system design with 355 mm (14") diameter augers provides consistent material flow across the screed for efficient flow at both narrow and wide paving widths
- Confined auger chamber keeps material moving and helps eliminate stagnate patches
- Independent control of each material feed sensor when utilizing a cut-off shoe, simply turn off the sensor for manual proportional feed system control

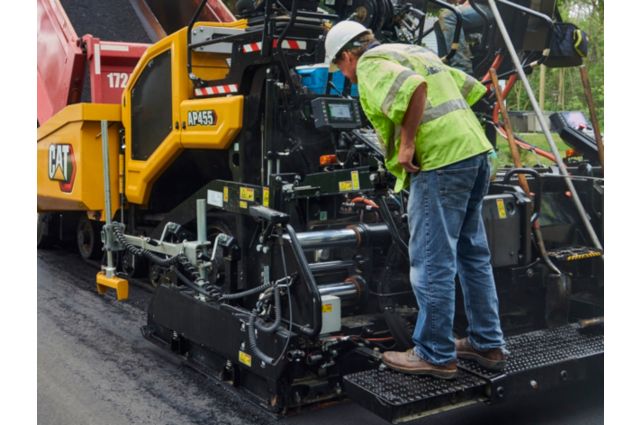

More Comfort
- Ventilation system draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment
- Single sliding console enables operation from either side of the machine
- Dual independent seats swing out 40 degrees beyond the platform for good visibility to curbs and obstacles
- Optimized height and integrated exhaust provide unobstructed visibility around the machine
- Optional screed and paver mounted umbrellas offer protection from direct sun
- Heated seat option delivers comfort in cool weather conditions
- High visibility 76 mm (3") seat belt helps with crew safety compliance
More Comfort
- Ventilation system draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment
- Single sliding console enables operation from either side of the machine
- Dual independent seats swing out 40 degrees beyond the platform for good visibility to curbs and obstacles
- Optimized height and integrated exhaust provide unobstructed visibility around the machine
- Optional screed and paver mounted umbrellas offer protection from direct sun
- Heated seat option delivers comfort in cool weather conditions
- High visibility 76 mm (3") seat belt helps with crew safety compliance

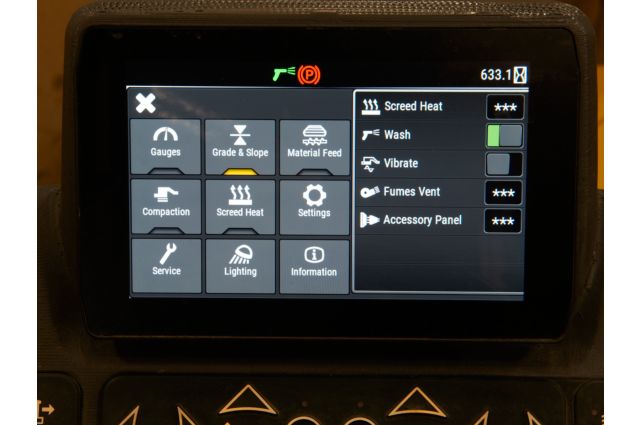

Easy Viewing Displays
- High-definition, touchscreen displays with adjustable brightness control for all types of lighting conditions, including direct sunlight
- New touch screen operating display with simplified menu structures, intuitive graphics, and short-cut keys help simplify machine adjustments
- Single-touch functions from the main screen include screed heat, wash-down system, vibratory activation, ventilation system, and the accessory panel
- Operating displays can be tailored to specific language requirements with multiple options available
- Wash-down system includes level indication
Easy Viewing Displays
- High-definition, touchscreen displays with adjustable brightness control for all types of lighting conditions, including direct sunlight
- New touch screen operating display with simplified menu structures, intuitive graphics, and short-cut keys help simplify machine adjustments
- Single-touch functions from the main screen include screed heat, wash-down system, vibratory activation, ventilation system, and the accessory panel
- Operating displays can be tailored to specific language requirements with multiple options available
- Wash-down system includes level indication

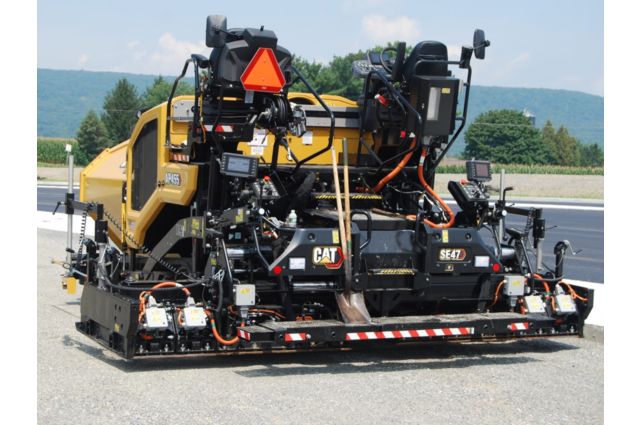

Screeds that Deliver Quality
- SE-Series screeds deliver excellent ride, density, and mat texture while providing superior adjustment capabilities
- Screeds with front-mounted extenders and rear-mounted extenders are available
- Cat Grade Control or Basic Grade Control options available
Screeds that Deliver Quality
- SE-Series screeds deliver excellent ride, density, and mat texture while providing superior adjustment capabilities
- Screeds with front-mounted extenders and rear-mounted extenders are available
- Cat Grade Control or Basic Grade Control options available
Low Owning and Operating Costs
- Durable Cat C3.6 engine provides 90 kW (120 hp) of power and meets U.S. EPA Tier 4 Final and EU Stage V emissions
- Exclusive Eco-mode and Automatic Engine Speed Control reduce fuel consumption and lowers sound levels for better job site communication
- Conveyor bed plates and chain guards are designed to minimize labor requirements and lower replacement costs
- Maintenance-free high torque motors for the auger and conveyor drive systems reduce service requirements
Low Owning and Operating Costs
- Durable Cat C3.6 engine provides 90 kW (120 hp) of power and meets U.S. EPA Tier 4 Final and EU Stage V emissions
- Exclusive Eco-mode and Automatic Engine Speed Control reduce fuel consumption and lowers sound levels for better job site communication
- Conveyor bed plates and chain guards are designed to minimize labor requirements and lower replacement costs
- Maintenance-free high torque motors for the auger and conveyor drive systems reduce service requirements
Product Link™ Elite
- Make timely, fact-based decisions to maximize efficiency, improve productivity, and lower owning and operating costs
- Easily track location, machine hours, fuel usage, and idle time in real time
- Diagnostic codes are made available through online web applications
- Remote flash for easy software updates
- Scheduled maintenance and SOS notification
- Remote disable deactivates the engine for enhanced security
Product Link™ Elite
- Make timely, fact-based decisions to maximize efficiency, improve productivity, and lower owning and operating costs
- Easily track location, machine hours, fuel usage, and idle time in real time
- Diagnostic codes are made available through online web applications
- Remote flash for easy software updates
- Scheduled maintenance and SOS notification
- Remote disable deactivates the engine for enhanced security

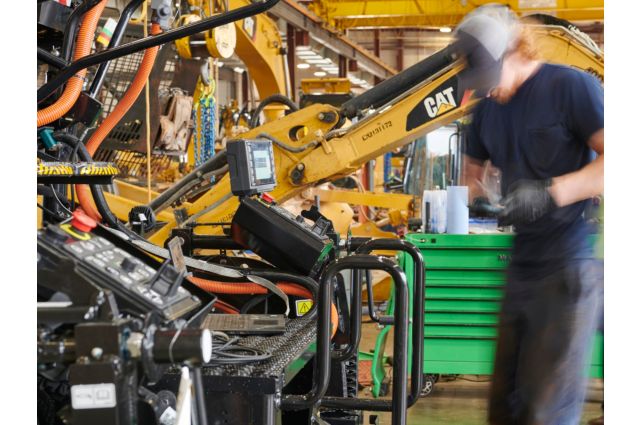

Service and Repair Kits
- Paver and screed service and repair kits include all the parts necessary to complete specific repairs
- Cat genuine parts are manufactured to precise specifications and designed for optimal performane and maximum uptime
- Repair kits are identified by a single part number to make ordering easy
- Select kits are available to be packaged as a kit by the dealer for over the counter purchases or through the dealer service shop
Service and Repair Kits
- Paver and screed service and repair kits include all the parts necessary to complete specific repairs
- Cat genuine parts are manufactured to precise specifications and designed for optimal performane and maximum uptime
- Repair kits are identified by a single part number to make ordering easy
- Select kits are available to be packaged as a kit by the dealer for over the counter purchases or through the dealer service shop
Sustainability
- The Cat® C3.6 engine is available in configurations that meet U.S. EPA Tier 4 Final emission standards.
- Cat U.S. EPA Tier 4 Final diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
- The engine, fuel and hydraulic systems are equipped with ecology drains for easy servicing and to help prevent spillage.
- Cat Scheduled Oil Sampling (S•O•S℠) Services helps reveal excessive wear, contaminated fluids or other “unseen” issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine’s operation and maintenance manual for more information.
- Cat Grade with Grade and Slope for Asphalt Pavers allows for accurate material planning to help reduce overages during the paving process and increase final project quality for a longer lasting road surface.
- Don’t waste fuel idling. Cat VisionLink® online fleet monitoring helps you manage idle time and reduce fuel burn and greenhouse gas emissions.
- VisionLink displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
Sustainability
- The Cat® C3.6 engine is available in configurations that meet U.S. EPA Tier 4 Final emission standards.
- Cat U.S. EPA Tier 4 Final diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
- The engine, fuel and hydraulic systems are equipped with ecology drains for easy servicing and to help prevent spillage.
- Cat Scheduled Oil Sampling (S•O•S℠) Services helps reveal excessive wear, contaminated fluids or other “unseen” issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine’s operation and maintenance manual for more information.
- Cat Grade with Grade and Slope for Asphalt Pavers allows for accurate material planning to help reduce overages during the paving process and increase final project quality for a longer lasting road surface.
- Don’t waste fuel idling. Cat VisionLink® online fleet monitoring helps you manage idle time and reduce fuel burn and greenhouse gas emissions.
- VisionLink displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
Specifications
-
Dimensions
Spec Value Paving Range with SE47 FM 2.4 m - 5.9 m (8' - 19' 6") Paving Range with SE47 V 2.4 m - 6.1 m (8' - 20') Truck Entry Height 22 in Operating Length 19 ft Operating Width 10.75 ft Overall Height 10.75 ft Transport Length 18.1 ft Transport Width 8.5 ft Transport Height 8.6 ft -
Engine
Spec Value Engine Power (1) 120 hp Engine Model (1) Cat C3.6 -
Operating Specifications
Spec Value Maximum Paving Speed 200 ft/min Maximum Travel Speed 7 mile/h Maximum Throughput Capacity 853 ton(US)/h -
Weights
Spec Value Operating weight with SE47 FM 31533 lb Operating weight with SE47 V 31292 lb Shipping Weight - Paver Only 24837 lb -
Service Refill Capacities
Spec Value Fuel Tank 53 gal (US) DEF Tank 5 gal (US) Cooling System - Total 6.3 gal (US) Hydraulic Oil Tank 32 gal (US) Washdown Spray Tank 8.5 gal (US)
Standard Equipment
Operating Environment
- Single sliding console
- Steering guide
- Ventilation system
Technology
- Product Link™ Elite 643 (cellular)
Powertrain
- Cat C3.6, four-cylinder
- Cooling fan, variable speed
- Mobil-trac, smooth belt
Electrical System
- 1400 CCA battery
- 150-amp alternator
- 12-volt charging system
- Automotive-type fuse system
- Auto-reset breaker for material sensors
- Battery, maintenance-free
- Cat Electronic Technician (Cat ET)
- Remote start receptacle
Material Delivery
- Auger extensions, 0.15 m (6")
- Material feed sensors, contact
- Push-roller, adjustable
Service and Maintenance
- Hydraulic oil, Cat HYDO Advanced
- Remote access drains
- Remote flash
- Service repair kits
- Sampling ports for Scheduled Oil Sampling
- Sight Gauges, engine coolant, hydraulic oil
Safety
- Alarm, back-up
- Horn, warning (front & rear)
- Lights, LED Working
- Mirror package
Optional Equipment
Operating Environment
- Canopy
- Deceleration pedal
- Heated seat
- Friction Steering
- Umbrella
- Side shields
- Windshield
Technology
- Cat Grade Control
- Basic Grade Control
- Product Link™ Elite 683 Cellular/Satellite
Powertrain
- Ballast - front weights
Material Delivery
- Auger extensions, 0.46 m (1.5')
- Mainframe extensions, power
- Mainframe extensions, manual
- Material feed sensors, sonic
- Truck hitch
- Wash-down pump and reel
Safety
- Lights, LED Roading
- Warning beacon, LED
- Lights, LED Roading
- Warning beacon, LED
