Blades
Cat® Blades efficiently doze, plow and move material. Specialized designs mean the perfect match for every job.
Angle Blades - Compact Products
Box Blades
Coal U-Blades
-
13.38 m³ (17.5 yd³) Coal Blade
- Width
- 168.0 in
- Wing Angle
- 30.0 °
- Height
- 64.0 in
-
14.8 m³ (19.4 yd³) Coal U-Blade
- Width
- 193.0 in
- Wing Angle
- 30.0 °
- Height
- 70.0 in
-
21.41 m³ (28.0 yd³) Coal U-Blade
- Width
- 218.0 in
- Wing Angle
- 30.0 °
- Height
- 78.0 in
-
36.70 m³ (48.0 yd³) Coal U-Blade
- Width
- 226.0 in
- Wing Angle
- 30.0 °
- Height
- 101.0 in
-
52.0 m³ (68.0 yd³) Coal U-Blade
- Width
- 265.0 in
- Wing Angle
- 30.0 °
- Height
- 110.0 in
-
63.46 m³ (83.0 yd³) Coal U-Blade
- Width
- 270.0 in
- Wing Angle
- 30.0 °
- Height
- 121.0 in
-
65.75 m³ (86.0 yd³) Coal U-Blade
- Width
- 290.0 in
- Wing Angle
- 30.0 °
- Height
- 120.0 in
-
74.93 m³ (98.0 yd³) Coal U-Blade
- Width
- 322.0 in
- Wing Angle
- 30.0 °
- Height
- 120.0 in
-
9.66 m³ (13 yd³) Coal U-Blades
- Width
- 168.0 in
- Wing Angle
- 30.0 °
- Height
- 58.0 in
Cushion Dozer Blades
Dozer Blades
-

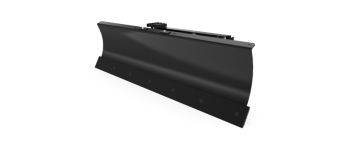

2007 mm (79 in) Dozer Blade
- Blade Width
- 79 in
- Width - Fully Angled
- 68.9 in
- Maximum Blade Angle - Right/Left of Center
- 30 degrees
-
2337 mm (92 in) Dozer Blade
- Blade Width
- 92 in
- Width - Fully Angled
- 80.7 in
- Maximum Blade Angle - Right/Left of Center
- 30 degrees
-
2337 mm (92 in) Dozer Blade with Smart Technology
- Blade Width
- 92 in
- Width - Fully Angled
- 80.7 in
- Maximum Blade Angle - Right/Left of Center
- 30 degrees
Grader Blades
-
GB120 Grader Blade
- Overall Width
- 78.4 in
- Blade Width
- 78 in
- Width - Fully Angled
- 68.8 in
-

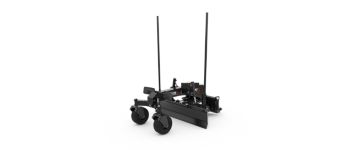

GB120 Grader Blade with Wings and Smart Technology
- Overall Width
- 84.6 in
- Blade Width
- 78 in
- Width - Fully Angled
- 90.2 in
-
GB124 Grader Blade
- Overall Width
- 96.4 in
- Blade Width
- 96 in
- Width - Fully Angled
- 84.4 in
-
GB124 Grader Blade with Wings and Smart Technology
- Overall Width
- 102.6 in
- Blade Width
- 96 in
- Width - Fully Angled
- 105.8 in
Landfill U-Blades
-
18.35 m³ (24.0 yd³) Landfill U-Blade
- Width
- 168.0 in
- Wing Angle
- 30.0 °
- Height
- 82.0 in
-
23.32 m³ (30.5 yd³) Landfill U-Blade
- Width
- 194.0 in
- Wing Angle
- 30.0 °
- Height
- 90.0 in
-
23.70 m³ (31.0 yd³) Landfill U-Blade
- Width
- 217.0 in
- Wing Angle
- 30.0 °
- Height
- 82.0 in
-
38.23 m³ (50.0 yd³) Landfill U-Blade
- Width
- 214.0 in
- Wing Angle
- 30.0 °
- Height
- 86.0 in
Reclamation U-Blades
Variable Radius Semi-U Blades
Woodchip U-Blades
-
15.3 m³ (20.0 yd³) Woodchip U-Blade
- Width
- 168.0 in
- Wing Angle
- 30.0 °
- Height
- 74.0 in
-
23.8 m³ (30.8 yd³ ) Woodchip U-Blade
- Width
- 193.0 in
- Wing Angle
- 30.0 °
- Height
- 90.0 in
-
28.3 m³ (37.0 yd³) Woodchip U-Blade
- Width
- 216.0 in
- Wing Angle
- 30.0 °
- Height
- 92.0 in
-
45.9 m³ (60.0 yd³) Woodchip U-Blade
- Width
- 215.0 in
- Wing Angle
- 30.0 °
- Height
- 122.0 in
-
72.6 m³ (95.0 yd³) Woodchip U-Blade
- Width
- 265.0 in
- Wing Angle
- 30.0 °
- Height
- 132.0 in
