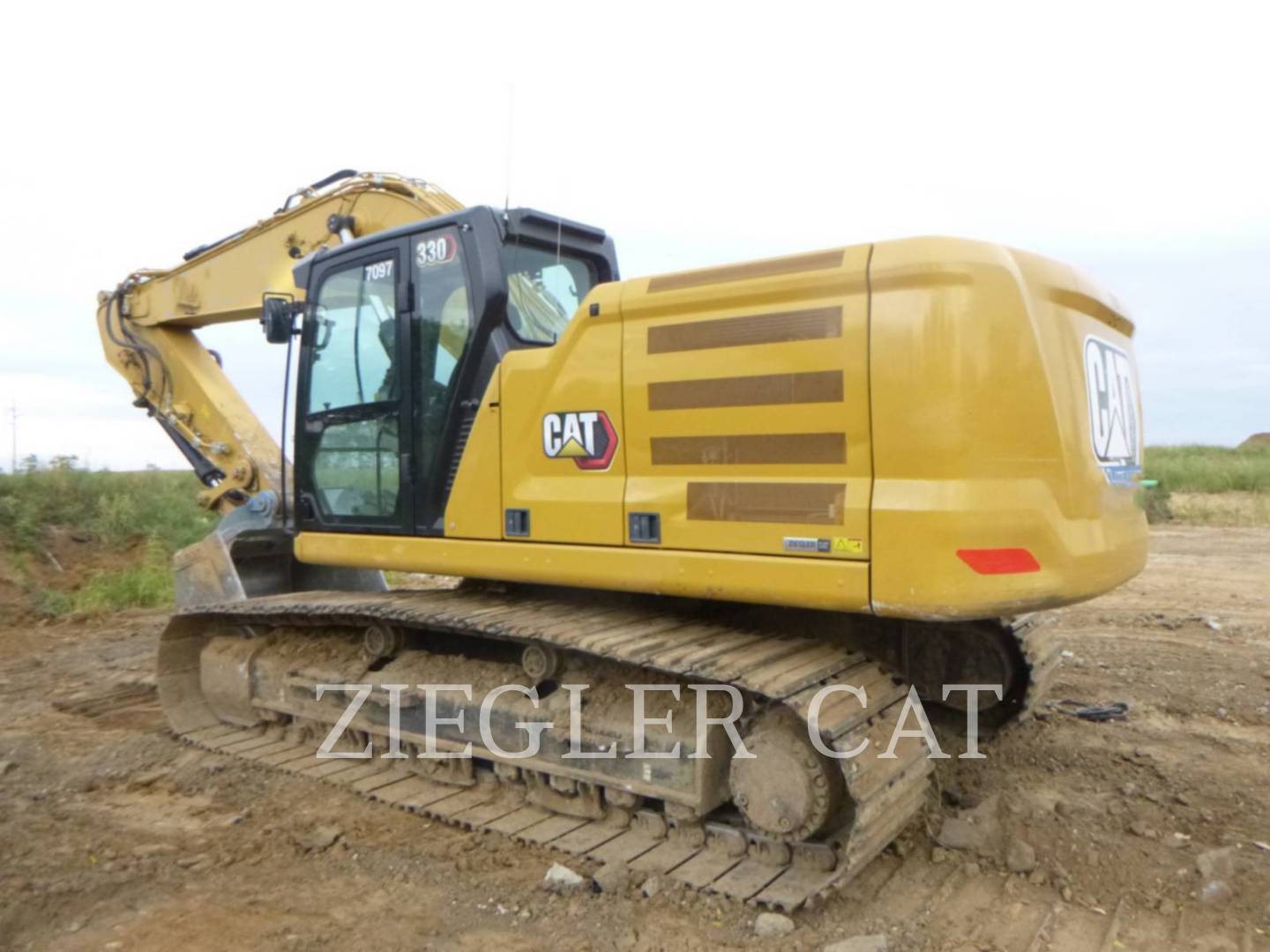

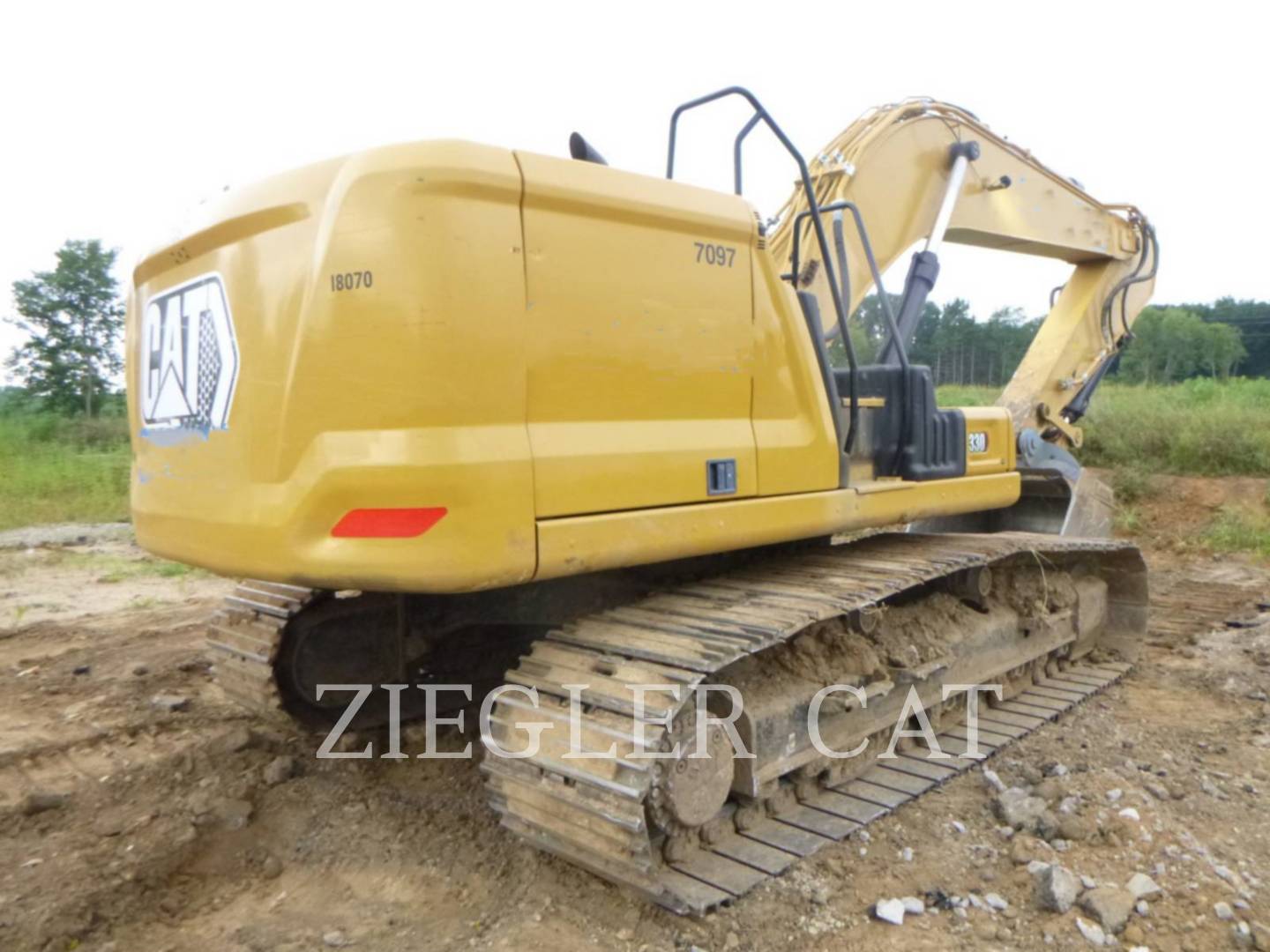

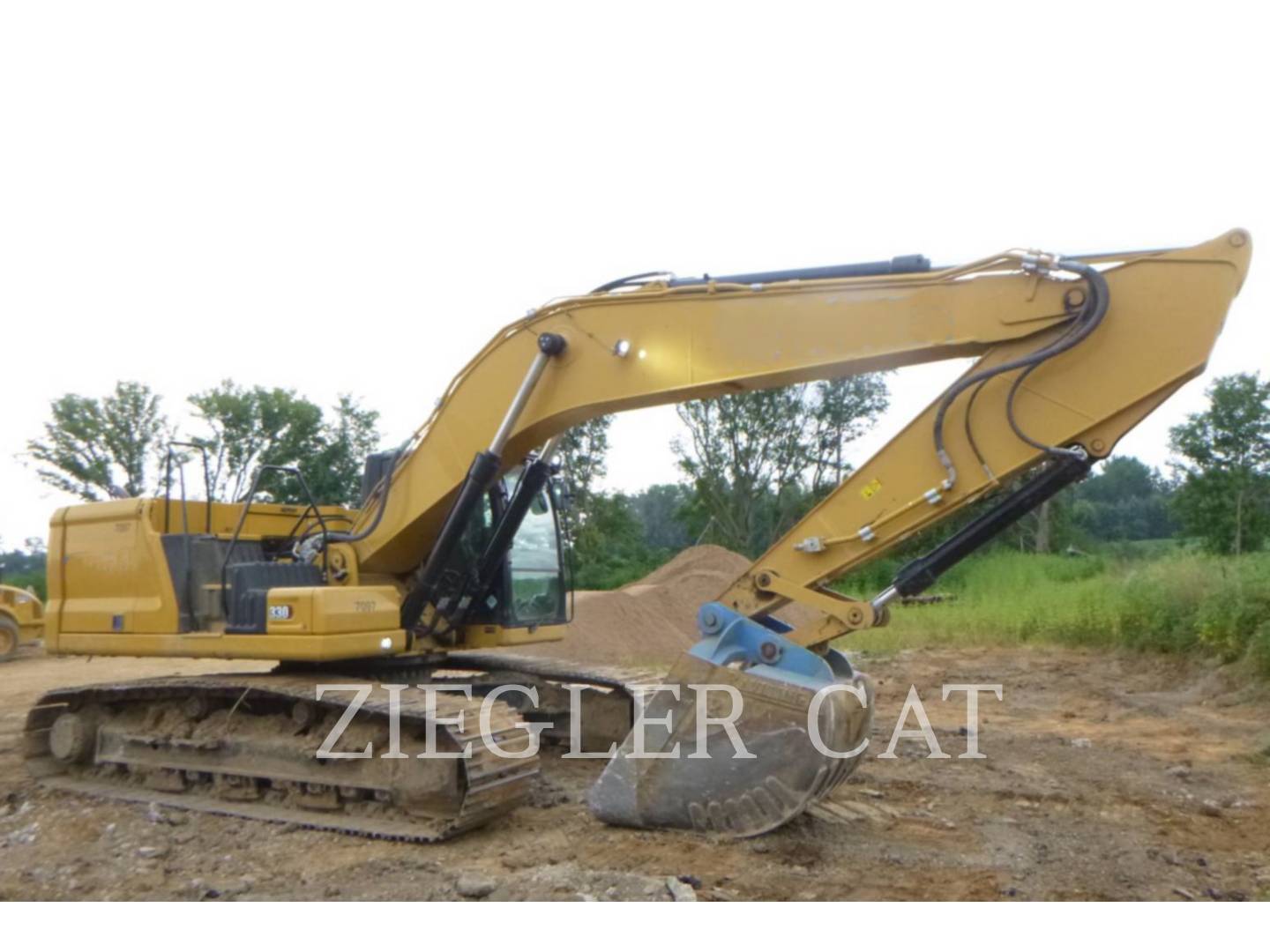

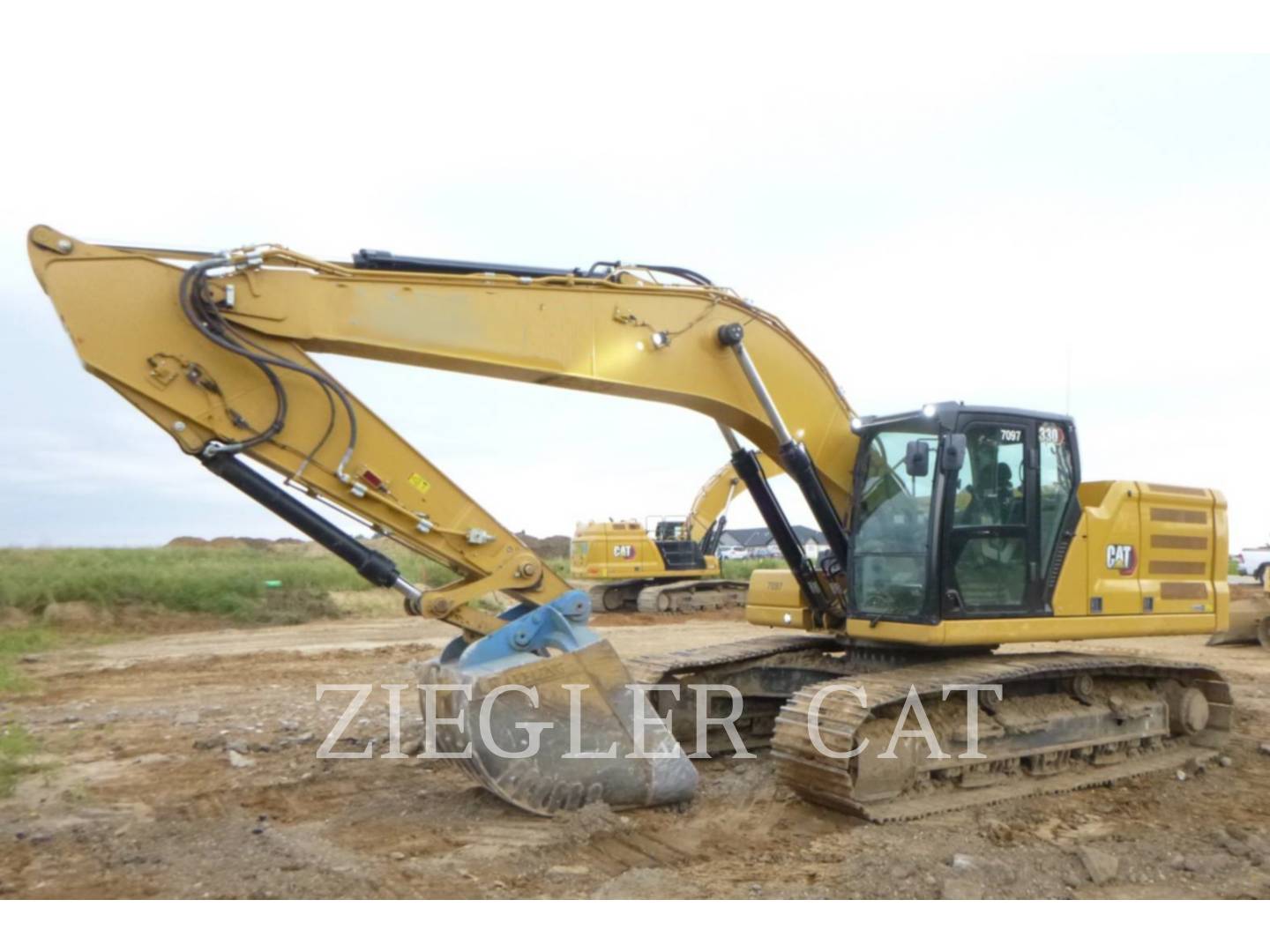

2020 CAT 330-07 4,801 engine hrs
Condition
| ET Product Status Report Download | Yes | |
|---|---|---|
| Logged / Active Codes | Yes | LOGGED CODES, NONE ARE ACTIVE. |
| Machine Starts and is Operable | Yes | |
| Visible Oil Leaks | Yes | SEE ENGINE SECTION. |
| Body | ||
| Frame | ||
| General |
| Notes - GENERAL APPEARANCE | THE MACHINE IS STRAIGHT OVERALL | |
|---|---|---|
| Bumper | THE LOWER FRONT CAB BUMPER HAS A MINOR DENT. | |
| Car Body | ||
| Counterweight | ||
| Crankcase Guard / Battery Box | ||
| Decals | ||
| Draw Bar | ||
| Eng. Enclose Hood / Stack | ||
| Engine Doors | ||
| Fuel Tank | ||
| Grab Irons | ||
| Hood | ||
| Main Frame Welds | ||
| Paint | LOOKS GOOD OVERALL. | |
| Sheet Metal | ||
| Steps / Ladder |
| ROPS | Yes | THE ROPS ARE CLEAN. |
|---|---|---|
| ROPS Certification Plate | Yes | CERTIFICATION IS IN PLACE. |
| Safety Decals In Place | Yes | |
| Safety Decals Legible | Yes | |
| Camera(s) | ||
| Horn | ||
| Seat Belt / Date | ||
| Travel Alarm |
| Current O&MM | Yes | |
|---|---|---|
| Air Conditioner | COOLING NORMAL. | |
| Armrests | ||
| Cab Filter / Heat Vent Louvres | ||
| Dash Console | ||
| Door Latches / Hinges / Seals | ||
| Floor Boards / Mats | ||
| Gauges | ||
| Headliner | ||
| Heater / Defroster | ||

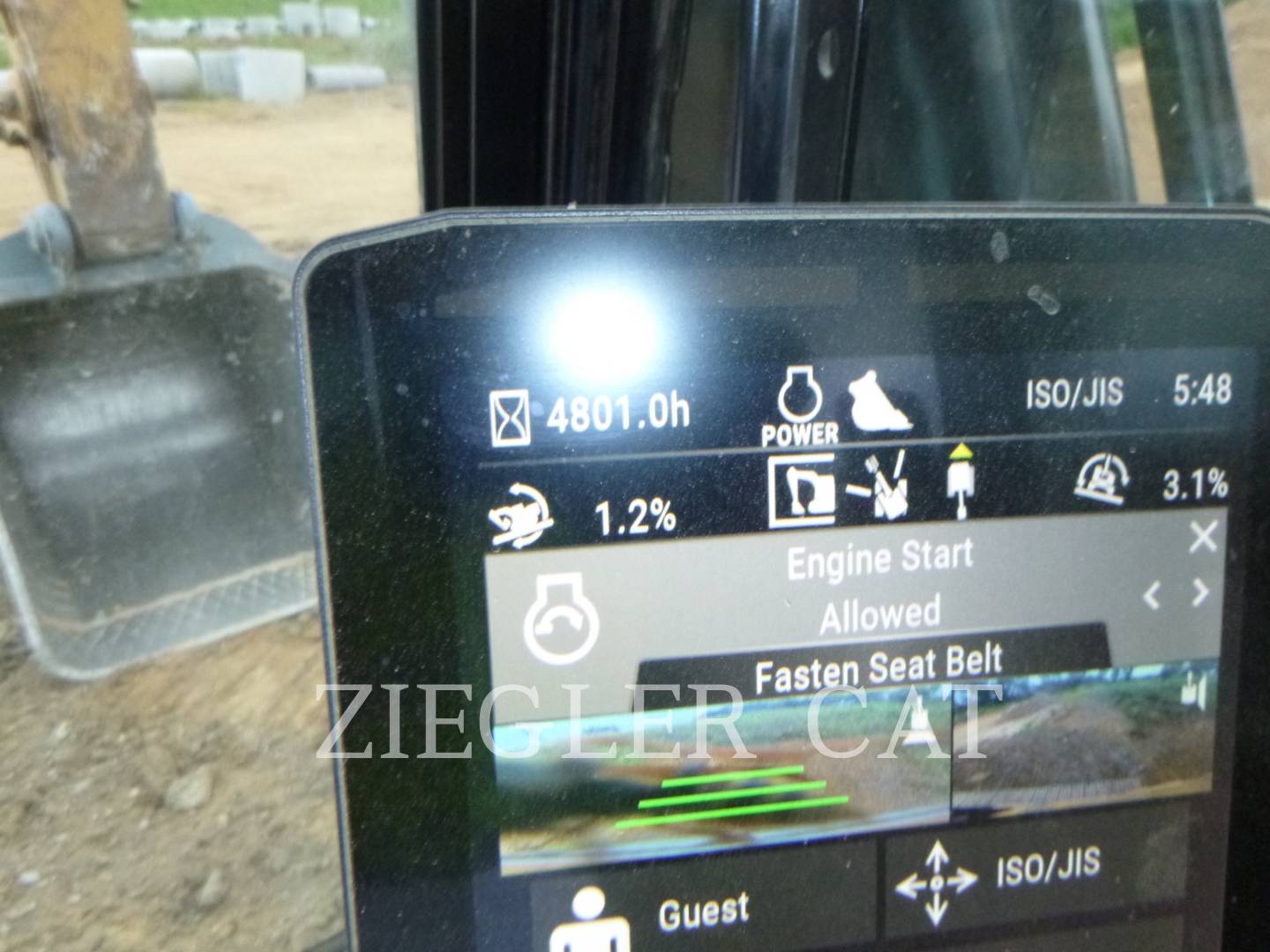

| Hour Meter - GAUGES, OPERATION STATION, CONSOLE | ACCURATE | |
| Interior Lights | ||
| Interior Plastic / Fabric | ||
| Mirrors | ||
| Monitoring Display | ||
| Radio | ||
| Seat Cushions / Suspension / Type | ||
| Switches | ||
| Travel Controls (Type) | THE TRAVEL HANDLES HAVE BEEN REMOVED. | |
| Visor / Sunshade | ||
| Windows | ||
| Windshield Wipers |
| Blow By | No | |
|---|---|---|

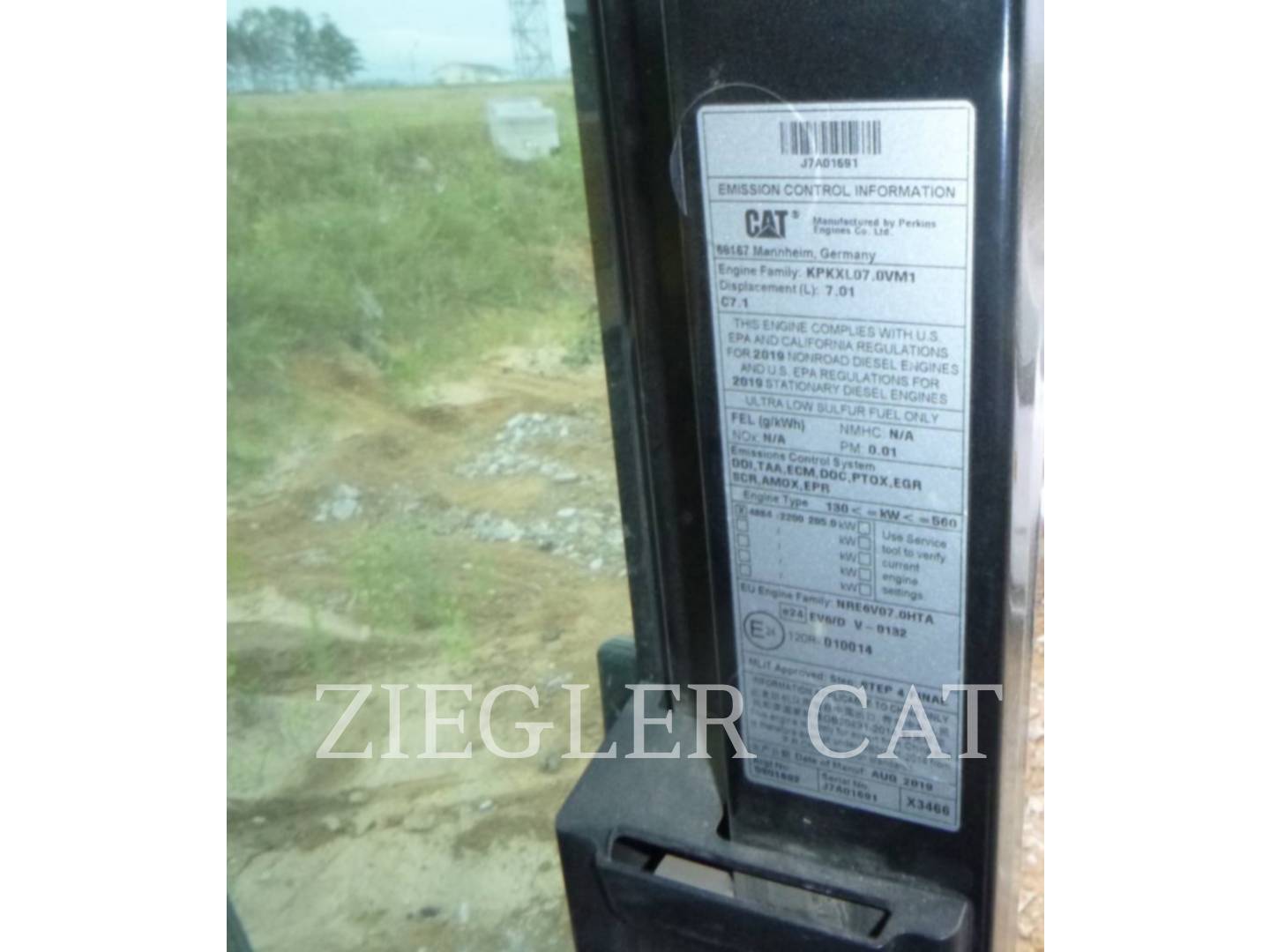

| Emissions Decal Legible | Yes | TIER 4 FINAL. |
| Fuel Leaks | No | |
| Knocking | No | |
| Oil Leaks | Yes | THE WATER PUMP MOUNT & OR THE FRONT ENGINE COVER ARE LEAKING TO LEVEL 2. |
| Pre Lube System | No | |
| Service Needed | No | THE OIL WAS CHANGED & SAMPLED AT 4778 HOURS WITH SAMPLE RETURNING NORMAL. |
| Water in Oil | No | |

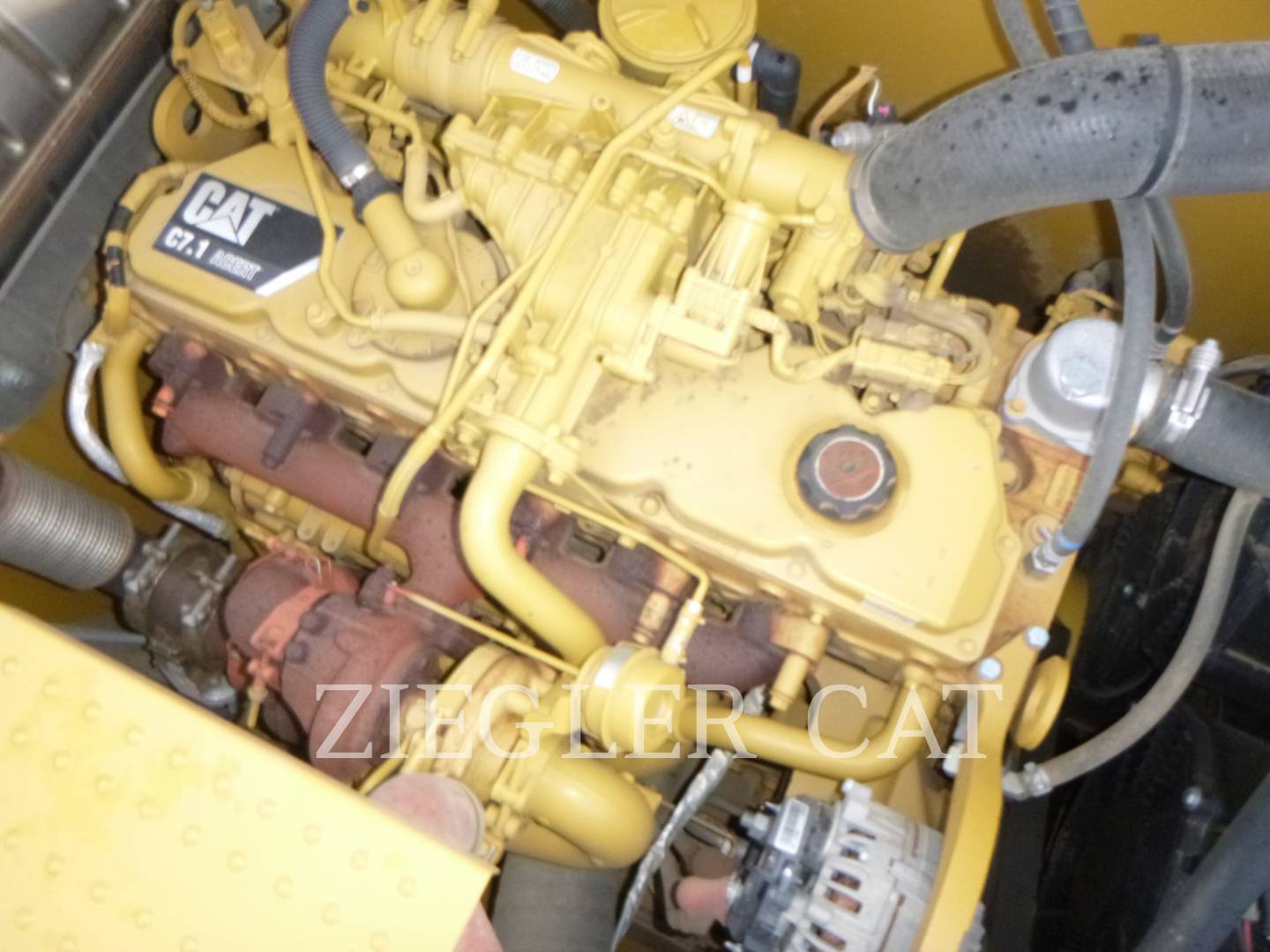

| Notes - ENGINE | THE ENGINE IS RUNNING SMOOTH. | |
| Oil Pressure (H/L/N) | NORMAL | |
| Smoke Color (B/D/L/W) | NORMAL | |
| Engine Oil Level / Condition | ||
| Engine Supports / Mounts | ||
| Exhaust / Muffler / Stack | ||
| Fuel Injection System | ||
| Governor | ||
| Intake / Air Filters | ||
| Operating Condition - ENGINE | ||
| Turbocharger / Blower |
| Aftertreatment System Codes | No | |
|---|---|---|
| Leaks / Type | No | |
| Notes - EMISSIONS | THE EMISSIONS SYSTEM IS FUNCTIONING NORMAL. | |
| Aftertreatment Heat Shields / Guards | ||
| DEF Lines / Wiring | ||
| Diesel Exhaust Fluid (DEF) Tank |
| Compression in Radiator | No | |
|---|---|---|
| Coolant Leaks | No | |
| Oil in Anti-Freeze | No | |
| Standard Radiator | Yes | |
| Notes - COOLING SYSTEM | THE COOLING SYSTEM IS FUNCTIONING NORMAL IN 73 DEGREE WEATHER. | |
| Anti-Freeze Level / Color / Condition | COOLANT HAS A CLOUDY APPEARANCE AND IS LEVEL. THE SAMPLE TAKEN AT 4755 HOURS JUST SHOWED IT TO BE CLOUDY. | |
| Belts / Pulleys - COOLING SYSTEM | ||
| Coolers | ||
| Fan | ||
| Fan Drive / Type | ELECTRIC FANS. | |
| Fan Shrouds / Guards | ||
| Hoses / Tubes | ||
| Radiator | ||
| Water Pump |
| Block Heater | Yes | |
|---|---|---|
| Ether Aid | Yes | |
| Alternator | ||
| Batteries / Cables / Master Disconnect | ||
| Lighting | ||
| Starter | ||
| Wiring | THE FUSE COVERS ARE MISSING FROM THE BATTERY CONNECTIONS. |
| Notes - HYDRAULICS | THE HYDRAULICS ARE PERFORMING NORMAL. | |
|---|---|---|
| Swing Drive Oil Level | THE DRIVE OIL WAS CHANGED & SAMPLED AT 4778 HOURS WITH SAMPLE RETURNING NORMAL. | |
| Boom Cylinder | ||
| Bucket Cylinder | ||
| Control Linkage | ||
| Filter Condition (CUT) | THE OIL IS ORIGINAL WITH THE LAST BEING TAKEN AT 4778 HOURS. THE SAMPLE RETURNED NORMAL. | |
| Hose Lines | ||
| Hydraulic Swivel | ||
| Operating Condition - HYDRAULICS | ||
| Pump Drive | ||
| Pumps & Valves | ||
| Stick Cylinder | ||
| Swing Gear | ||
| Swing Motors | ||
| Tank | ||
| Travel Motors | TRACKING STRAIGHT & SPOT TURNING ON DRY MATERIAL. |
| Technology System Operational | Yes | |
|---|---|---|
| Boom Sensor | ||
| Bucket Sensor | ||
| Machine Display | ||
| Stick Sensor | ||
| Tilt / Bucket Sensor Harness | ||
| Tilt Sensor |
| Boom Length (Actual Length) | 20 FOOT 2 INCHES | |
|---|---|---|
| Notes - BOOM | THE BOOM MOUNT HAS MINIMAL PLAY. | |
| Boom Condition | ||
| Boom Pins | ||
| Pins & Bushings - BOOM |
| Notes - STICK | THE BOOM TO STICK JOINT IS TIGHT TO MINIMAL PLAY. | |
|---|---|---|
| Stick Length | 10 FOOT 6 INCHES | |
| Pins & Bushings - STICK | ||
| Stick Conditions | ||
| Stick Pins |
| Quick Coupler | No | |
|---|---|---|
| Brand | RAVALING ROUND CORNER SAND. | |

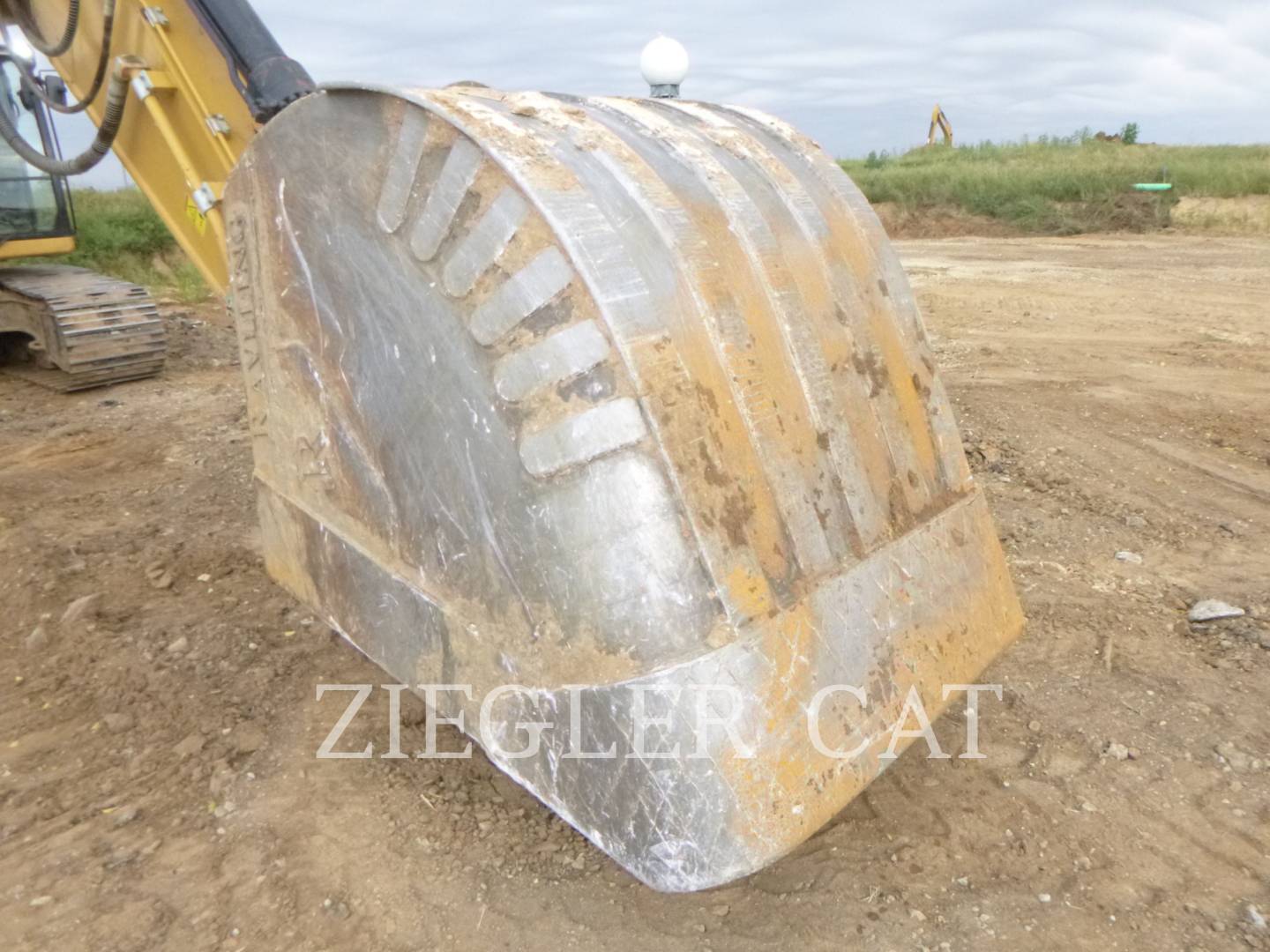

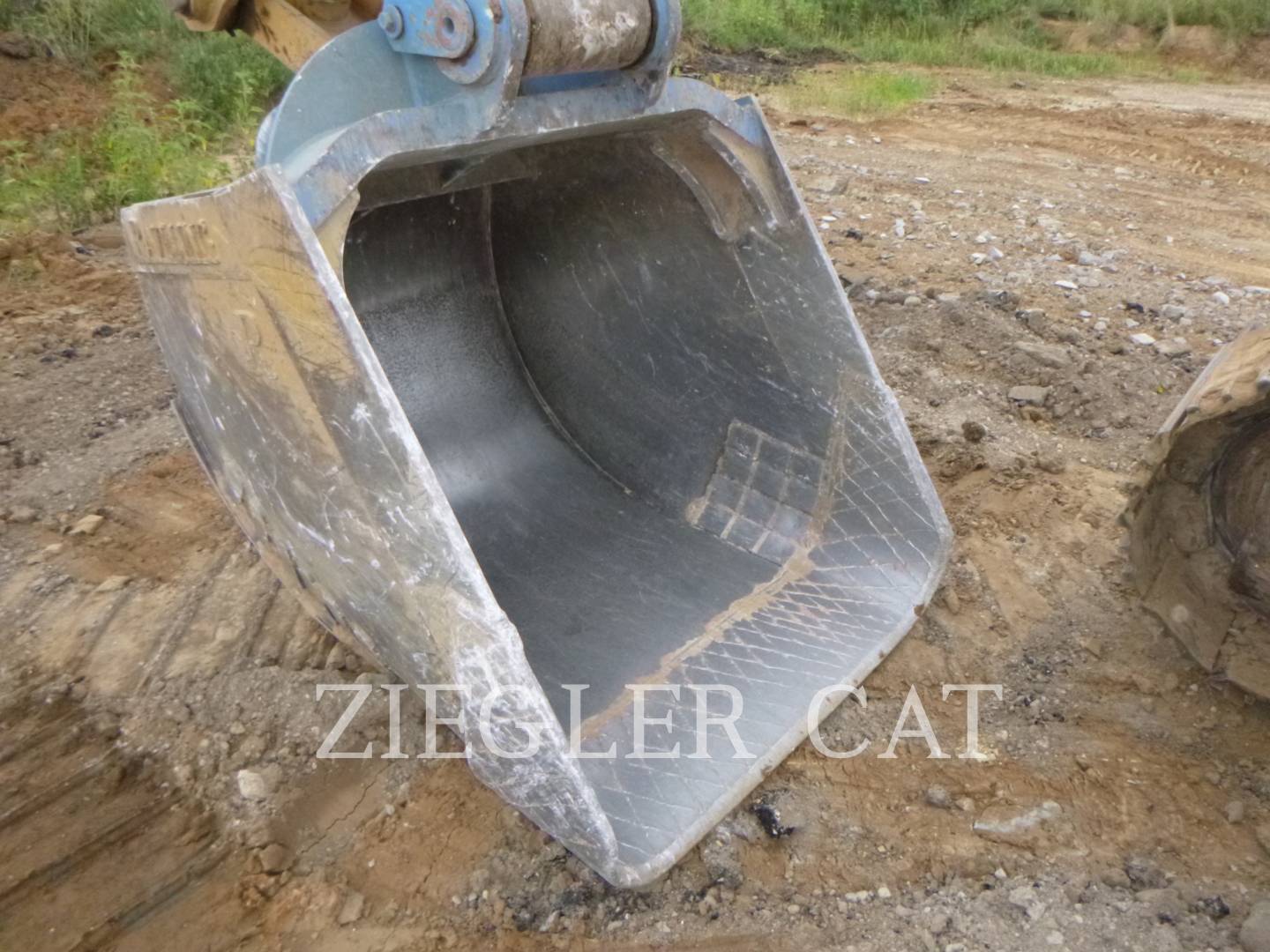

| Notes - BUCKET | THE BUCKET & LINKAGES ARE IN GOOD FUNCTIONAL CONDITION. | |
| Width | 53 INCHES | |
| Bucket Bottom | ||
| Bucket Linkage | TIGHT OVERALL. | |
| Bucket Mounts | ||
| Bucket Sides | ||
| Cutting Edges |
| Link Part Number | 517-2281 | |
|---|---|---|
| Notes - UNDERCARRIAGE | THE U/C IS IN FUNCTIONAL CONDITION. | |
| Track Shoes Width / Type | 32 INCH TRIPLE GROUSER SHOES. | |
| Track Frame - Left | ||
| Track Frame - Right | ||
| Carrier Rollers Front |
Left Measurement: 156.5MM Left Percent Worn: 14% Right Measurement: 156.5MM Right Percent Worn: 14% |
|
| Carrier Rollers Rear |
Left Measurement: 156.5MM Left Percent Worn: 14% Right Measurement: 156.5MM Right Percent Worn: 14% |
|
| Idlers Front |
Left Measurement: 22MM Left Percent Worn: 46% Right Measurement: 22MM Right Percent Worn: 46% |
|
| Links |
Left Measurement: 114MM Left Percent Worn: 12% Right Measurement: 114MM Right Percent Worn: 12% |
|
| Pins & Bushings (External) |
Left Measurement: 63.5MM Left Percent Worn: 61% Right Measurement: 63.5MM Right Percent Worn: 61% |
|
| Pins & Bushings (Internal) |
Left Measurement: 813MM Left Percent Worn: 2% Right Measurement: 813MM Right Percent Worn: 2% |
|
| Segments |
Left Percent Worn: 80% Right Percent Worn: 80% |
|
| Track Roller 9 |
Left Measurement: AVE 155.5MM Left Percent Worn: 36% Right Measurement: 155.5MM Right Percent Worn: 36% |
|
| Track Shoe Grouser Height |
Left Measurement: 27.75MM Left Percent Worn: 2% Right Measurement: 27.75MM Right Percent Worn: 2% |
| Notes - FINAL DRIVES | BOTH DRIVE OILS WERE CHANGED & SAMPLED AT 4778 HOURS WITH BOTH SAMPLES RETURNING NORMAL. | |
|---|---|---|
| Housings, Left | ||
| Housings, Right | ||
| Planetaries / Differential, Left | ||
| Planetaries / Differential, Right |
| comment 1 | THE MACHINE IS BEING USED EACH DAY WITH SMOOTH ENGINE & NORMAL PERFORMING HYDRAULICS. THE LINKAGES ARE TIGHT AND MACHINE HAS A STRAIGHT APPEARANCE. | |
|---|---|---|
| comment 2 | LEVEL 4PM COMPLETED 10-23 AT 3882 HOURS & A LEVEL 3PM COMPLETED 7-25 AT 4778 HOURS. |
Comments
A/C
HEATER
LIGHTS
RADIO
PRODUCT LINK
PATTERN CHANGER
STRAIGHT TRAVEL
FINE SWING
10 FOOT 6 INCH STICK
ENG COOL HEATER
ETHER AID
GRADE 2D WITH ASSIST
COMBO AUX HYDS
360 DEGREE CAMERA
SAND BUCKET
Features
