2011 Caterpillar 257B3 3,399 engine hrs

$19,900

3,399 engine hrs

Stock Number: EQ0140711

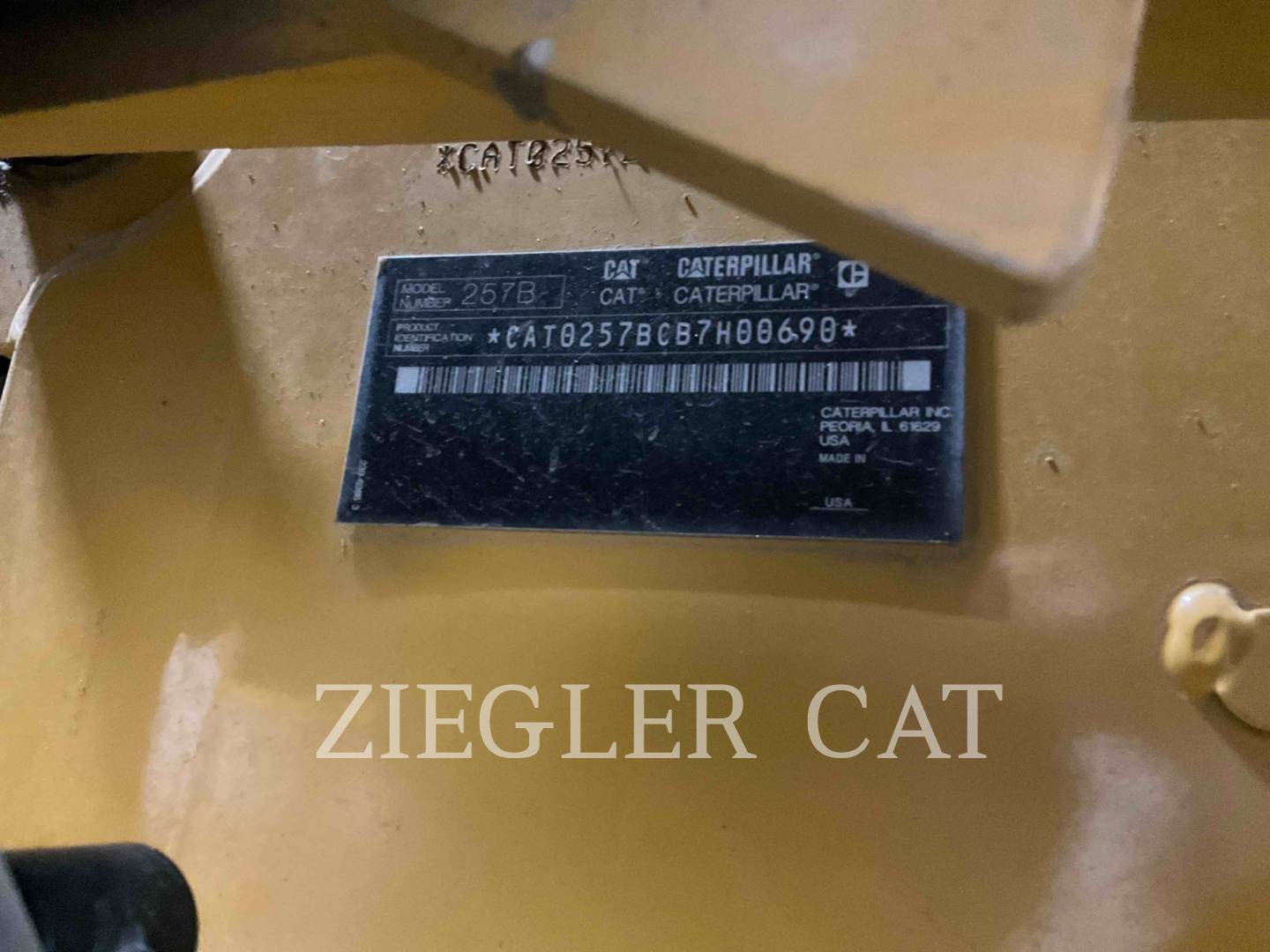

VIN: B7H00690

ALTOONA, IA

Features

ET Product Status Report Download	Yes
Logged / Active Codes	No	No recently logged codes
Machine Starts and is Operable	Yes
S.O.S. (All Compartments)	No
VIDS/VIMS Download Available	No
Body	● ● ●
Frame	● ● ●
General	● ●

Parking Brake Functioning	Yes
ROPS Certification Plate	Yes
Safety Decals In Place	Yes
Safety Decals Legible	Yes
Back Up Alarm	● ● ●
Dead Engine Lowering Valve	● ● ●
Horn	● ● ●
ROPS	● ● ●
Safety Locks / Pins	● ● ●
Seat Belt / Date	● ●	Seat belt is old but still works
Secondary Exit	● ● ●

Diesel Exhaust Fluid (DEF) Level - OPERATOR STATION	NA
Fuel Level - OPERATOR STATION	Half
Current O&MM	No
Current Parts Manual	No
Current Safety Manual	No
Air Conditioner	●	AC clutch doesnt kick on.
Armrests	● ● ●
Cab Filter / Heat Vent Louvres	● ●	Cab filter dirty and will need to be changed soon. 3 louvers broekn
Dash Console	● ● ●
Door Latches / Hinges / Seals	● ●	Door seal at the bottom of the door is falling off.
Floor Boards / Mats	● ● ●
Gauges	● ● ●
Headliner	● ● ●
Heater / Defroster	● ● ●

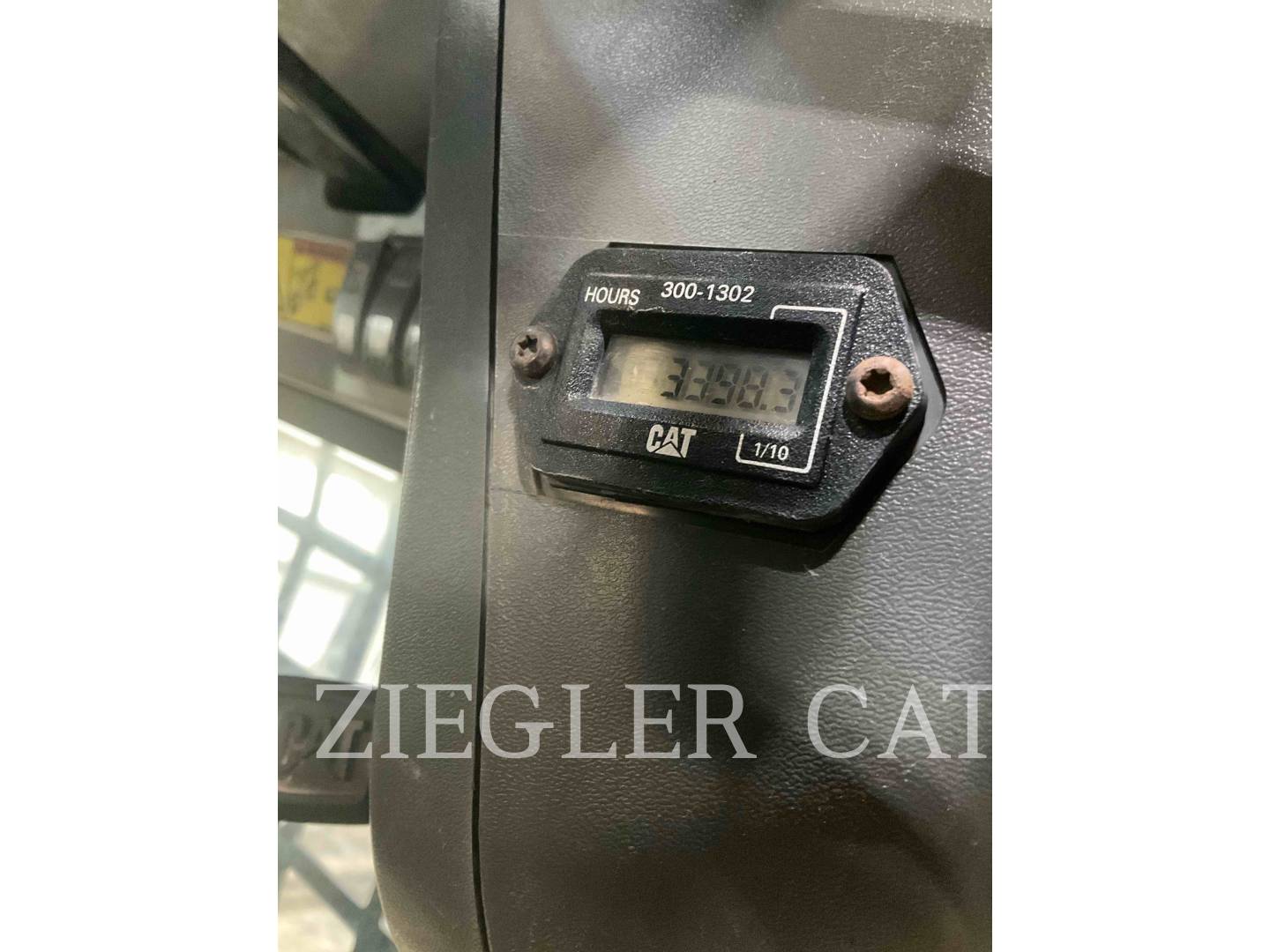

Hour Meter - GAUGES, OPERATION STATION, CONSOLE	● ● ●
Hydraulic Controls	● ●	Joystick doesnt stay in float by itself you have to hold the joystick fully forward.
Interior Lights	●	Light doesnt work
Interior Plastic / Fabric	● ● ●
Mirrors	● ● ●
Seat Cushions / Suspension / Type	● ●	Cushion is in good shape but seat adjustment doesnt work
Switches	● ●	Hydraulic lockout and bypass switch cover is missing.
Windows	● ●	Top window is gone.
Windshield Wipers	● ● ●

Apparent Other Engine Damage	No
Blow By	No
Fuel Leaks	No
Has Engine been rebuilt?	No
Knocking	No
Oil Leaks	Yes	Oil filter is leaking oil. level 1 leak
Service Needed	Yes	No service on record
Water in Oil	No
Notes - ENGINE	Engine oil pressure needs double checked due to light coming on and flickering but when the sensor is unplugged the light will act the same way when the sensor is plugged in, indicating a wiring issue.
Oil Pressure (H/L/N)	Normal
Smoke Color (B/D/L/W)	None
Belts / Pulleys - ENGINE	● ● ●
Engine Oil Level / Condition	● ● ●
Engine Supports / Mounts	● ● ●
Exhaust / Muffler / Stack	● ● ●
Fuel Injection System	● ● ●
Governor	● ● ●
Intake / Air Filters	● ● ●
Operating Condition - ENGINE	● ● ●
Turbocharger / Blower	● ● ●

Notes - EMISSIONS	NA

Compression in Radiator	No
Coolant Leaks	No
Oil in Anti-Freeze	No
Anti-Freeze Level / Color / Condition	● ● ●
Coolers	● ● ●
Fan	● ● ●
Fan Drive / Type	● ● ●
Fan Shrouds / Guards	● ● ●
Hoses / Tubes	● ● ●
Radiator	● ● ●
Water Pump	● ● ●

Block Heater	Yes
Alternator	● ● ●
Batteries / Cables / Master Disconnect	● ● ●
Lighting	● ●	Left rear stop light and work light dont work
Starter	● ● ●
Wiring	● ●	Work tool harness is shwoing wires. Also has a wiring issue for the engine oil pressure light.

Magnetic Plugs Removed & Checked?	No
Front Torsion Bars	● ● ●
Housings, Left	● ● ●
Housings, Right	● ● ●
Lines / Linkages	● ● ●
Operating Condition	● ● ●
Rear Torsion Bars	● ● ●
Torsion Axles	● ●	Bushings have some wear to them, tracks are slightly leaned in and pointing out.
Travel Controls	● ●	Joystick base is leaking oil
Travel Motors	● ●	Right side drive motor looks like its leaking oil level 1 leak.
Travel Pumps	● ● ●

Leaks - HYDRAULICS	Yes	Hydraulic filter is leaking and one of the drivelines is leaking at the connection to the hystat. levle 1 leaks
Detent Switch	● ●	Doesnt hold the joystick in place when in float
Hoses / Lines	● ● ●
Lift Cylinders	● ● ●
Overall Operating Condition - HYDRAULICS	● ● ●
Pump & Valves	● ● ●
Tank	● ● ●
Tilt Cylinder	● ●	Rod eyes have a lot of play.

Bucket Bottom	● ● ●
Bucket Sides	● ● ●
Cutting Edges	●	Needs a new cutring edge, cant be flipped.
Loader Frame	● ● ●
Loader Pins & Bushings	●	Lower bushings need replaced
Quick Coupler	● ● ●

Idlers	● ● ●
Roller	● ● ●
Roller Frame	● ● ●
Sprocket	● ● ●
Track / Belt Condition	● ●	Repalced one track
Tread Depth	Left Measurement: 21mm Right Measurement: 20
