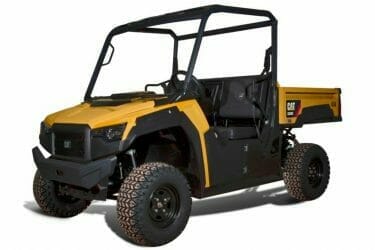

The gas-powered Cat® CUV85 Utility Vehicle efficiently completes hauling tasks, quickly maneuvering over rugged terrain on the work site at speeds over 45 mph (72.4 km/h). The CUV85 seats five people and features a rugged all steel cargo bed, 1,000 lb (453.6 kg) total rear cargo capacity and 2,000 lb (907.2 kg) towing capacity for outstanding performance in a variety of applications.



  • Engine
    Spec Value
    Fuel Type Gasoline
    Engine Size/Type 50 hp, 0.8 L, Three-Cylinder
    Cooling Liquid with Fan
    Safety Standard ANSI/ROHVA 1-2014
  • Capacity
    Spec Value
    Seat (Capacity) 5
    Fuel Tank Capacity 10 gal (US)
    Towing 2000 lb
    Rear Cargo (Capacity) 1000 lb
    Rear Cargo (Type) Steel
    Box Lining Paint
  • Driveline
    Spec Value
    Top Speed Over 45 mph (72.4 km/h) with 25 mph (40.2 km/h) Configurable Speed Setting
    Transmission CVT
    Drive System 2WD/4WD/Electric Rear Locking Differential
  • Dimensions
    Spec Value
    Rear Cargo Dimensions (L × W × H) 41.5 in × 55.25 in × 11.75 in (1054 mm × 1403 mm × 299 mm)
    Wheel Base 85 in
    Overall Vehicle Size (L × W × H) 160 in × 63 in × 74 in (4064 mm × 1600 mm × 1880 mm)
    Ground Clearance 10.5 in
    Seat Height 32 in
    Floor Height 12.25 in
    Curb Weight (Wet) 1952 lb
  • Electrical
    Spec Value
    Instrument Gauge Digital
    Headlight Halogen
    Tail Light Dual LED
    Location for Secondary Battery Yes
  • Suspension
    Spec Value
    Tire Type Utility
    Tire Size 25 × 10.5-12
    Wheel Steel
    Suspension Type (Front) A-Arm – Independent
    Suspension Type (Rear) A-Arm – Independent
    Brakes Single and Dual Piston Disc Brakes
    Emergency/Park Brake Parking Gear
    Sway Bar (Front) Standard
  • Interior
    Spec Value
    Seat Belt Three-Point
    Seat Cut and Sewn
    Side Restraints Shoulder Bar with Knee Door
    Behind Seat Storage Yes
  • Steering/Shifting
    Spec Value
    Steering Electric Power Assist
    Shifter Location Steering Column
    Shifter Type Mechanical
