Ziegler CAT

New Equipment

CUV82

The gas-powered Cat® CUV82 Utility Vehicle efficiently completes hauling tasks, quickly maneuvering over rugged terrain on the work site at speeds over 45 mph (72.4 km/h). The CUV82 seats 2 people and features a rugged all steel cargo bed, 1,000 lb (453.6 kg) total rear cargo capacity and 2,000 lb (907.2 kg) towing capacity for outstanding performance in a variety of applications.

Photos

  • CUV82 1
  • CUV82 2
  • CUV82 3
  • CUV82 4
  • CUV82 5
  • CUV82 6

Documents

Specifications

  • Engine
    Spec Value
    Fuel Type Gasoline
    Engine Size/Type 50 hp, 0.8 L, Three-Cylinder
    Safety Standard ANSI/ROHVA 1-2014
    Cooling Liquid with Fan
  • Capacity
    Spec Value
    Rear Cargo (Type) Steel
    Seat (Capacity) 2
    Rear Cargo (Capacity) 1000 lb
    Fuel Tank Capacity 10 gal (US)
    Towing 2000 lb
    Box Lining Paint
  • Dimensions
    Spec Value
    Overall Vehicle Size (L × W × H) 126 in x 63 in x 74 in (3200 mm x 1600 mm x 1880 mm)
    Rear Cargo Dimensions (L × W × H) 41.5 in x 55.25 in x 11.75 in (1054 mm x 1403 mm x 299 mm)
    Wheel Base 85 in
    Ground Clearance 10.5 in
    Floor Height 12.25 in
    Seat Height 32 in
    Curb Weight (Wet) 1689 lb
  • Driveline
    Spec Value
    Top Speed Over 45 mph (72.4 km/h) with 25 mph (40.2 km/h) Configurable Speed Setting
    Drive System 2WD/4WD/Electric Rear Locking Differential
    Transmission CVT
  • Electrical
    Spec Value
    Headlight Halogen
    Location for Secondary Battery Yes
    Instrument Gauge Digital
    Tail Light Dual LED
  • Suspension
    Spec Value
    Wheel Steel
    Tire Size 25 x 10.5-12
    Suspension Type (Front) A-Arm – Independent
    Tire Type Utility
    Suspension Type (Rear) A-Arm – Independent
    Brakes Single and Dual Piston Disc Brakes
    Sway Bar (Front) Standard
    Emergency/Park Brake Parking Gear
  • Interior
    Spec Value
    Seat Cut and Sewn
    Seat Belt Three-Point
    Side Restraints Shoulder Bar with Knee Door
    Behind Seat Storage Yes
  • Steering/Shifting
    Spec Value
    Shifter Type Mechanical
    Shifter Location Steering Column
    Steering Electric Power Assist

Request Information

$13,999

  • By providing my email address, I consent to receive communications sent by Ziegler. I may opt out at any time.
  • This field is for validation purposes and should be left unchanged.

Ready to Purchase?

Buy Now

Related Products

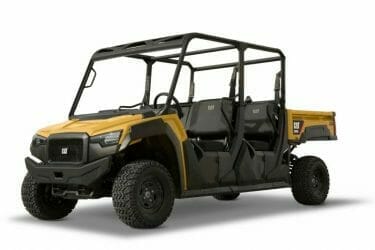

CUV85
