Cat Telehandlers offer performance and versatility.
Cat

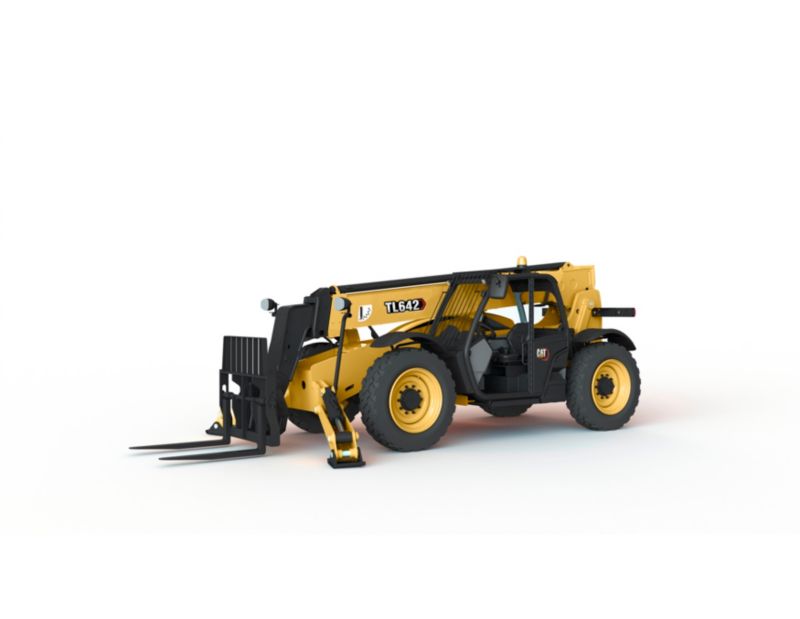

TL642 w/StabilizersTelehandler
Specifications
-
Engine
Spec Value Engine Model Cat® C3.6L Gross Power - Basic 73.7 HP Note Meets U.S. EPA Tier 4 Final emission standards. -
Weights
Spec Value Operating Weight 22928 lb -
Operating Specifications
Spec Value Rated Load Capacity 6500 lb Maximum Lift Height 42 ft Load at Maximum Height - Stabilizers Down 6500 lb Maximum Forward Reach 30 ft Load at Maximum Reach - Stabilizers Down 1700 lb Top Travel Speed 19 mile/h -
Dimensions
Spec Value Height 8 ft Width 8 ft Wheel Base 11.25 ft Length - Fork Face 18.5 ft Ground Clearance 17 in Turning Radius - Over Tires 12 ft -
Tires
Spec Value Standard 370/75-28 Duraforce Air Optional (1) 370/75-28 Duraforce Foam Fill Optional (2) 315/95-28 Telemaster Solid Optional (3) 13.00-24 16PR Air Optional (4) 13.00-24 12PR Foam Optional (5) 370/75-28 Non-Marking Air Optional 370/75-28 Non-Marking Foam -
Hydraulic System
Spec Value Pump Type Single-section -
Service Refill Capacities
Spec Value Fuel Tank 38.3 gal (US) Hydraulic System 42 gal (US) -
Boom Performance
Spec Value Boom Up 15.5 s Boom Down 10.7 s Tele In 11.8 s Tele Out 17 s Drawbar Pull - Basic 20670 lb -
Braking System
Spec Value Parking Brake Spring-applied hydraulic release on front axle -
Brakes
Spec Value Features Service Brakes - inboard wet disc brakes on front and rear axles; Parking Brakes- spring-applied hydraulic release on front axle -
Operator Station
Spec Value Features Vinyl suspension seat, single electronic joystick, spacious interior, ergonomic cab -
Instrumentation
Spec Value Features Volt meter, hourmeter, engine oil pressure gauge, fuel gauge, water temperature gauge -
Work Tools
Spec Value Cubing Forks [2] 1220 mm, 50 mm × 50 mm ([2] 48 in, 2 in × 2 in) Carriages - Side Shift 50 in Pallet Forks - Option 1 [2] 1220 mm, 60 mm × 125 mm ([2] 48 in, 2.36 in × 5 in) Carriages - Swing 100°, 1829 mm, 2948 kg Capacity, 2268 kg Swung (100°, 72 in, 6,500 lb Capacity, 5,000 lb Swung) Carriages - Standard Tilt 50 in Lumber Forks - Option 1 [2] 1525 mm, 45 mm × 180 mm ([2] 60 in, 1.75 in × 7 in) Pallet Forks - Option 2 [2] 1220 mm, 60 mm × 100 mm ([2] 48 in, 2.36 in × 4 in) Carriages - Dual Fork Positioning 50 in Pallet Forks - Option 3 [2] 1829 mm, 60 mm × 150 mm ([2] 72 in, 2.36 in × 6 in)
Standard Equipment
TELESCOPIC BOOM
- Boom angle indicator
ELECTRICAL
- Alternator, 60 amp, 12 volt
- Battery, 12 volt, 1000 CCA
- Horn
- Alarm, backup
OPERATOR STATION
- Canopy, ROPS/FOPS
- Joystick, single electronic
- Adjustable joystick wristrest
- Low step, grab bars for easy entry
- Seat - vinyl, suspension with Cat logo
- Steering wheel spinner knob
- Floor mat - heavy duty
- Left side rear view mirror
- Service door, cab air intake filter, fuel fill, hydraulic fill, level indicator, fuse panel and washer fill
- Instruments - volt meter, hourmeter, engine oil pressure gauge, water temperature gauge. All gauges protected by clear acrylic cover.
- Park Brake with indicator light
- Steering Wheel with Cat logo
- Cat keys and locks
- Brakes - wet disc service
POWER TRAIN
- Engine,Cat® C3.6L (73.7 hp)
- Thermal starting aid
- Transmission, 4-speed forward, 3-speed reverse
- Cat filters, hoses and couplings
- Axles - Dana
- Steering - 4 wheel
- Parking brake with indicator light
- Drive - 4 wheel
STRUCTURE
- Chassis, frame level up to 10 degrees when operating in rough, uneven terrain
- Cat IT Coupler
ANTI-FREEZE
- Coolant - Anti-freeze, 50/50 Mix
TIRES
- Tires - 370/75-28 Duraforce Air
OTHER EQUIPMENT
- Integrated lift and tie down points
- Standard Cat color paint
- Auxillary hydraulics for auxillary attachments (one function)
Optional Equipment
TELESCOPIC BOOM
- Hydraulic IT Coupler (includes Auxiliary Electrics)
ELECTRICAL
- Work Light Group: 2 Cab mounted headlights -- 2 forward, 1 rearward; 1 Reversing Light; 2 Boom Mounted Lights, 1 Rotating Beacon
- Engine heater block
- Heater - open cab
- Road Light Group -- Headlights, Brake Lights, Turn Signals
OPERATOR STATION
- Air conditioning
- Auxiliary hydraulics for Hydraulic Work Tools (one function)
- Single Joystick - with Rocker Switch
- EROPS - Cab Enclosure (Door, Safety Glass Windows, Front Windshield Wiper, Heater & Defroster Fan)
- Skylight Wiper
- Brick Guard - Top and front.
TIRES
- Tires - 13.00-24 12PR Foam
- Tires - 13.00-24 16PR Air
- Tires - 370/75-28 Duraforce Foam Fill
- Tires - 370/75-28 Non-Marking Air
- Tires - 315/95-28 Telemaster Solid
OTHER EQUIPMENT
- Fenders
- Tow Hook - Pintle Type
- Instant Hook - 4000 lb capacity, boom head mounted winch
- Outriggers
- Artic package - Package includes: 2400 AMP starter, 1000 watt hydraulic reservoir heater, 500 watt engine oil-pan heater, Dual maintenance free, 1375 CCA gel cell batteries, 160 watt battery heating blanket, 1000 watt engine block heater.
WORK TOOLS
- Access Work Platform - 8 ft x 4 ft; 1,000 maximum capacity (available from factory)
- Carriage - side shift, 50 in. (available from factory)
- Lifting Hook - fork mounted (available from factory)
- Truss Broom
- Carriage - standard tilt, 50 in. (available from factory)
- Carriage - wide tilt, 72 in. (available from factory)
- Carriage - standard rotate, 50 in. (available from factory)
- Carriage - swing, 72 in., 100 degrees, 6000 lb capacity, 5000 lb swung (available from factory)
- Pallet Forks - two 60 in, 2 in x 6 in, capacity per pair 6600 lb (available from factory)
- Pallet Forks - two 48 in, 2.36 in x 4 in, capacity per pair 6600 lb (available from factory)
- Cubing Forks - two 48 in, 2 in x 2 in, capacity per pair 3800 lb (available from factory)
- Bucket - General Purpose 1.3 Cu. Yd.
- Bucket - Material Handling 1.95 Cu. Yd.
- Bucket - Multi-Purpose, 1.3 Cu. Yd.
