Caterpillar

PL61 Pipelayer

Engine Model

Cat C4.4

Flywheel Power

130 HP

Lift Capacity

40000 lb

Overview

The PL61 is part of a full line of purpose-built Cat pipelayers designed for performance, safety and serviceability. Easy transport width, combined with the experienced support of the Cat dealer network, means this key pipe line equipment is available when and where you need it.

Photos

  • PL61 Pipelayer

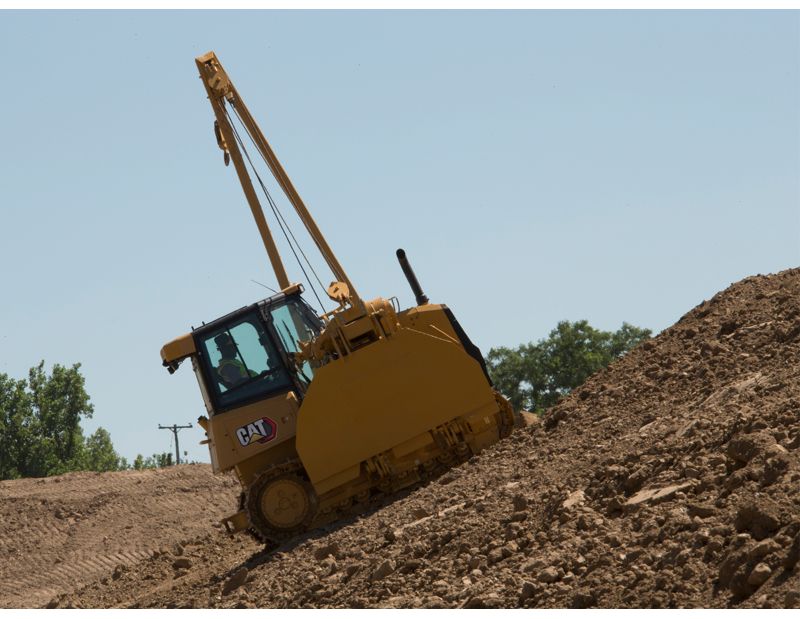

    PL61 Pipelayer
  • PL61 Pipelayer

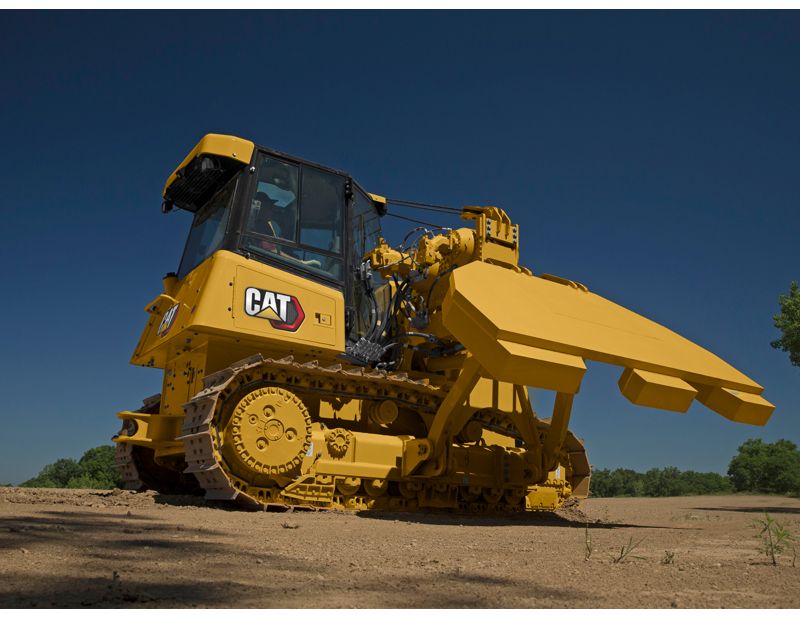

    PL61 Pipelayer
  • PL61 Pipelayer

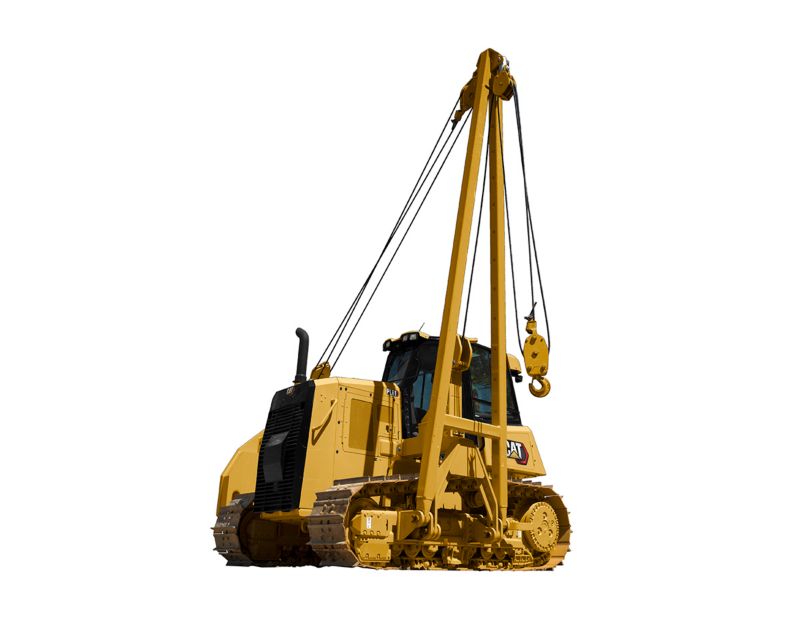

    PL61 Pipelayer
  • PL61 Pipelayer

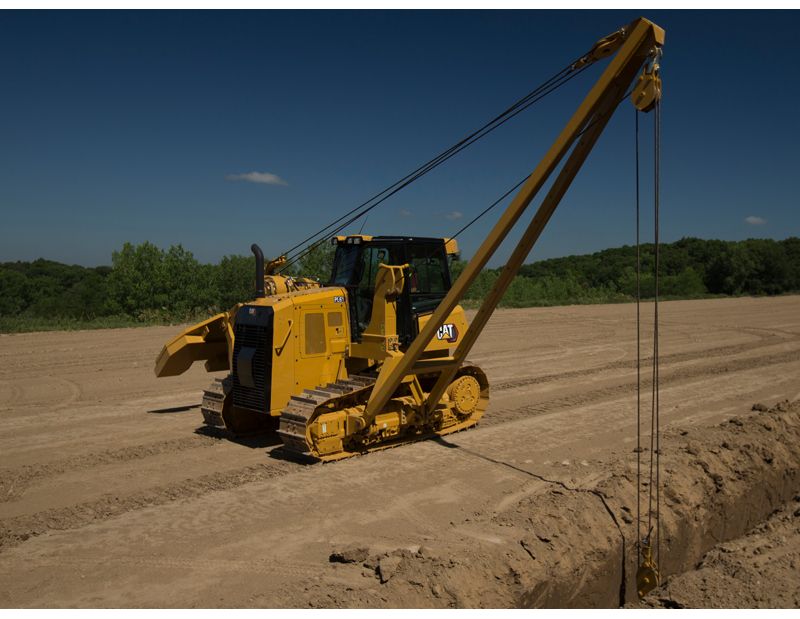

    PL61 Pipelayer
  • PL61 Pipelayer
    PL61 Pipelayer
  • PL61 Pipelayer
    PL61 Pipelayer
  • PL61 Pipelayer
    PL61 Pipelayer

Documents

Features

BUILT TO PERFORM

BUILT TO PERFORM

  • 18 ton (40,000 lb.) lift capacity with side boom.
  • Easy transport width at 3240 mm (128 in).
  • More robust fuel system with advanced filtration to better withstand poor fuel conditions (engines equivalent to Tier 3/Stage IIIA).
  • Cold weather package provides added features for cab comfort and more reliable engine starting/performance in cold environments.

BUILT TO PERFORM

  • 18 ton (40,000 lb.) lift capacity with side boom.
  • Easy transport width at 3240 mm (128 in).
  • More robust fuel system with advanced filtration to better withstand poor fuel conditions (engines equivalent to Tier 3/Stage IIIA).
  • Cold weather package provides added features for cab comfort and more reliable engine starting/performance in cold environments.
OPERATOR COMFORT AND CONTROL

OPERATOR COMFORT AND CONTROL

  • Hystat transmission, faster steering response for superior maneuverability on the pipeline.
  • Choice of narrow or wide tracks to optimize for job site ground conditions.
  • Durability in rough terrain with heavy duty undercarriage.
  • Ergonomically designed right joystick places all boom, hook and counterweight function conveniently in one hand.
  • Comfortable cab with air suspension seat, ergonomic controls and excellent visibility.
  • Improved heating/ventilation/air conditioning system that better circulates around the operator using a canopy machine.

OPERATOR COMFORT AND CONTROL

  • Hystat transmission, faster steering response for superior maneuverability on the pipeline.
  • Choice of narrow or wide tracks to optimize for job site ground conditions.
  • Durability in rough terrain with heavy duty undercarriage.
  • Ergonomically designed right joystick places all boom, hook and counterweight function conveniently in one hand.
  • Comfortable cab with air suspension seat, ergonomic controls and excellent visibility.
  • Improved heating/ventilation/air conditioning system that better circulates around the operator using a canopy machine.
TOP-TIER SERVICE AND SUPPORT

TOP-TIER SERVICE AND SUPPORT

  • Worldwide Cat dealer network understands pipeline job site needs for outstanding support, even in remote areas.
  • Purpose-built pipelayer gives you a single source for parts and service on all components.
  • Easy access to grouped maintenance and diagnostic points.
  • Simplified cable replacement – no need to thread through hood.
  • Updated cooling package allows more air flow, reducing fan speed for greater efficiency.
  • Hydraulic demand fan automatically reduces fan speed in cooler conditions to help save fuel.
  • Hydraulic reversing fan offers automatic or manual modes and changes direction to blow debris out of the radiator cores.
  • Equipped with Product Link™ which enables remote monitoring, improving overall fleet management effectiveness.

TOP-TIER SERVICE AND SUPPORT

  • Worldwide Cat dealer network understands pipeline job site needs for outstanding support, even in remote areas.
  • Purpose-built pipelayer gives you a single source for parts and service on all components.
  • Easy access to grouped maintenance and diagnostic points.
  • Simplified cable replacement – no need to thread through hood.
  • Updated cooling package allows more air flow, reducing fan speed for greater efficiency.
  • Hydraulic demand fan automatically reduces fan speed in cooler conditions to help save fuel.
  • Hydraulic reversing fan offers automatic or manual modes and changes direction to blow debris out of the radiator cores.
  • Equipped with Product Link™ which enables remote monitoring, improving overall fleet management effectiveness.
BUILT-IN SAFETY FEATURES

BUILT-IN SAFETY FEATURES

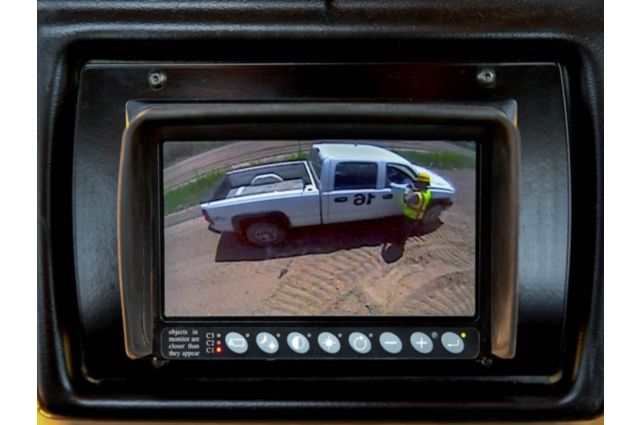

  • Rear vision camera, with dedicated display, adds to visibility for greater safety.
  • Load Monitor Indicator (LMI) delivered with the machine for simple installation of load monitor system on the job site.
  • Quick drop release function now common with other Cat pipelayer models for added ease of use.
  • Rear window exit now common across Cat pipelayer product line.
  • Factory integrated Roll Over Protective Structure (ROPS) helps protect operators and machine in case of rollover.

BUILT-IN SAFETY FEATURES

  • Rear vision camera, with dedicated display, adds to visibility for greater safety.
  • Load Monitor Indicator (LMI) delivered with the machine for simple installation of load monitor system on the job site.
  • Quick drop release function now common with other Cat pipelayer models for added ease of use.
  • Rear window exit now common across Cat pipelayer product line.
  • Factory integrated Roll Over Protective Structure (ROPS) helps protect operators and machine in case of rollover.

Specifications

  • Engine
    Spec Value
    Engine Model Cat C4.4
    Flywheel Power 130 HP
    Net Power - 2,200 rpm - ISO 9249 130 HP
    Net Power - 2,200 rpm - ISO 9249 (DIN) 132 HP
    Cat C4.4 Emissions U.S. EPA Tier 4 Final/EU Stage IV/Korea Tier 4 Final
    Cat C7.1 Emissions China Nonroad Stage III, equivalent to Tier 3/Stage IIIA
    Fuel Tank 69 gal (US)
    DEF Tank(1) 5 gal (US)
    Note (1) All nonroad Tier 4 Final, Stage IV and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) with 15 ppm (mg/kg) of sulfur or less, or up to B20 biodiesel blended with ULSD. B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214). Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specification are required. Consult your OMM for further machine specific fuel recommendations.
    Note (2) Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241.
    Note (3) (1) Machines equipped with Tier 4 Final/Stage IV emissions reduction technology.
  • Pipelaying Equipment
    Spec Value
    Lift Capacity 40000 lb
  • Weights - Operating Weight
    Spec Value
    Cab, 560 mm (22 in) Shoes(1) 39890 lb
    Cab, 560 mm (22 in) Shoes 40060 lb
    Cab, 760 mm (30 in) Shoes(1) 40920 lb
    Cab, 760 mm (30 in) Shoes 41095 lb
    Note (1) Machines equipped with Tier 4 Final/Stage IV emissions reduction technology.
  • Weights - Shipping Weight
    Spec Value
    Cab, 560 mm (22 in) Shoes(1) 37570 lb
    Cab, 560 mm (22 in) Shoes 37720 lb
    Cab, 760 mm (30 in) Shoes(1) 38600 lb
    Cab, 760 mm (30 in) Shoes 38780 lb
    Note (1) Machines equipped with Tier 4 Final/Stage IV emissions reduction technology.
  • Undercarriage
    Spec Value
    Track Gauge 79 in
    Track on Ground 104 in
    Ground Contact Area - LGP 6920 in²
    Ground Contact Area - Narrow 5100 in²
    Ground Pressure(1) - LGP 5.9 psi
    Ground Pressure(1) - Narrow 7.8 psi
    Ground Pressure - LGP 6.3 psi
    Ground Pressure - Narrow 7.9 psi
    Number of Shoes/Rollers - Each Side 40/8
    Track Shoe Width - Narrow/LGP 560/760 mm (22/30 in)
    Note (1) Machines equipped with Tier 4 Final/Stage IV emissions reduction technology.
  • Dimensions
    Spec Value
    Width - Tractor - With 760 mm [30 in] Shoes 109 in
    Width - Tractor - With 560 mm [22 in] Shoes 101 in
    Width - Counterweight Extended 187 in
    Width - Tractor - Counterweight Retracted 128 in
    Width - Tractor - Counterweight/Boom Removed 126 in
    Track Gauge 79 in
    Operating Length 151 in
    Length - Track on Ground 104 in
    Machine Height - Tip of Winch 101 in
    Height of Machine from Tip of Grouser to Top of Stack(1) 112 in
    Height - Top of ROPS: Canopy/Cab 118 in
    Boom Height (at SAE 1.22 m [4 ft] overhang) 245 in
  • Air Conditioning System
    Spec Value
    Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.3 kg of refrigerant which has a CO2 equivalent of 1.859 metric tons.
