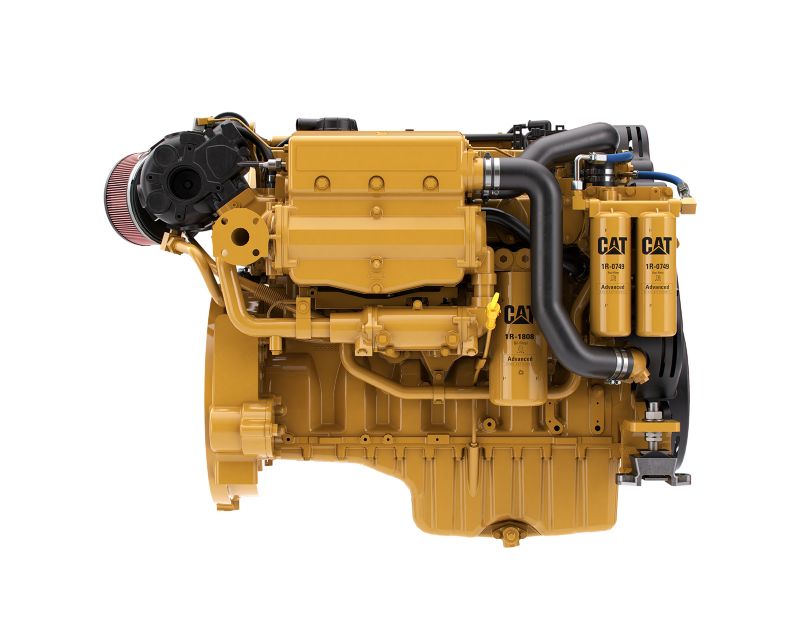

C9.3 Marine Auxiliary Engine
Features
Specifications
-
Power Rating
Spec Value Power Range 292 bhp - 436 bhp (218 bkW - 325 bkW) -
Engine Specifications
Spec Value Rated Engine Speed 1,500, 1,800 rpm Aspiration Turbocharged-aftercooled Stroke 5.8 in Bore 4.5 in Displacement 567.5 in³ Rotation from Flywheel End Counterclockwise Configuration In-Line 6, 4-Stroke-Cycle Diesel Emissions IMO II, IMO III, U.S. EPA Tier 3, China Stage II Cooling Heat exchanger and separate or combined keel cooled options Oil Change Interval 500 hrs Governor Electronic Flywheel Housing SAE No. 1 (113 teeth) Refill Capacity Lube Oil System w/oil filter change: 24.5 L (6.5 gal) -
Dimensions & Weights
Spec Value Width - Engine 38.5 in Height 43 in Length - Engine 57.2 in Engine Dry Weight - Approximate 2083-2474 lbs (945-1122 kg)
Standard Equipment
STANDARD EQUIPMENT
- Vibration damper and guard
- Engine oil cooler
- Thermostats and housing
- Gear-driven sea water pump (self-priming)
- Electronic control system
- Water-cooled turbocharger and exhaust manifold
- Primary fuel filters
- Common rail fuel system
- Corrosion-resistant Sea water aftercooler
- Shell and tube jacket water heat exchanger
Optional Equipment
OPTIONAL ATTACHMENTS
- Electric fuel priming pump
- Fuel cooler
- Transmission gear oil cooler (engine mounted for HEX)
- Additional engine and transmission sensor packages
- Alternators - 24V 70 or 105 amp, 12V 110 amp
- Electric starting motors - 12V or 24V
- Instrument panels
- PTO Drives - V-belt pulley stack, stub shaft
- Double wall fuel rail
- Duplex fuel and oil filters
- Air starting motor
- Closed crankcase ventilation
- Dual electric starting motors or combined electric/air
