The Cat?� C13 IPU configuration not only provides the flexibility and options found on a standard industrial engine, but also comes fitted with air filter and mounting, an integrated cooling system with air and coolant lines, and full wire harnessing with an engine-mounted ECM. Meeting Brazil MAR-1 and UN R96 Stage IIIA emission standards and UN R120 performance standards for measurement of net power and specific fuel consumption, the IPU allows for easier and faster installation, allowing the customer to spend less time worrying about integration and more time doing the work that matters.
Caterpillar

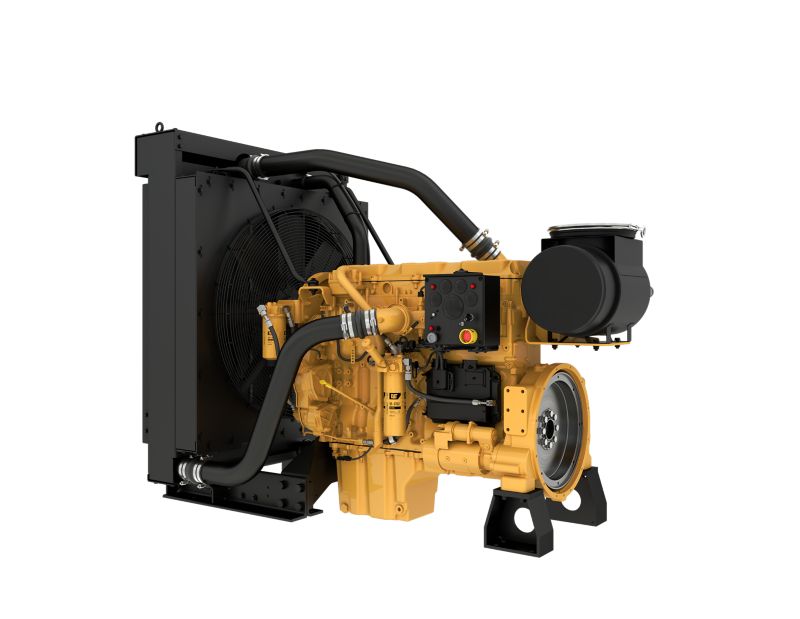

Cat?� C13 Industrial Power Unit
Photos
-
C13 LRC Industrial Power Units - Lesser Regulated & Non-Regulated
Features
Specifications
-
Power Rating
Spec Value Maximum Power 536 hp Rated Speed 1800-2100 Minimum Power 385 hp -
Emission Standards
Spec Value Emissions Brazil MAR-1, UN R96 Stage IIIA, U.S. EPA Tier 3 -
General
Spec Value Engine Configuration Inline 6, 4-Stroke-Cycle Diesel Bore 5.1 in Stroke 6.2 in Displacement 763 in³ Compression Ratio 17.0:1 Aspiration Turbocharged Aftercooled (TA) Rotation from Flywheel End Counterclockwise Aftertreatment - -
Power Unit Dimensions
Spec Value Length 92 in Width 50 in Height 71 in Weight 3730 lb
Standard Equipment
Air Inlet System
- Turbocharged
- Air-to-Air Aftercooled
Control System
- Electronic governing, PTO speed control
- Programmable ratings
- Automatic altitude compensation
- Power compensation for fuel temperature
- Programmable low and high idle and total engine limit
- Electronic diagnostics and fault logging
- Engine monitoring system SAE J1939 broadcast and control
- ADEM™ A4 Electronic Control Unit (ECU)
Cooling System
- Thermostats and housing, vertical outlet
- Jacket water pump, centrifugal
- Water pump, inlet
Exhaust System
- Exhaust manifold, dry
- Optional exhaust outlet
Flywheels and Flywheel Housing
- SAE No. 1 flywheel housing
Fuel System
- MEUI injection
- Fuel filter, secondary (2 micron)
- ACERT™ Technology
- Fuel transfer pump
- Fuel priming pump
Lube System
- Crankcase breather
- Oil cooler
- Oil filler
- Lube oil filter
- Front sump oil pan
- Oil dipstick
- Gear driven oil pump
General
- Vibration damper
- Lifting eyes
- Cold start capability to -20° C (-4° F)
- Paint: Caterpillar yellow, with optional colors available at request
