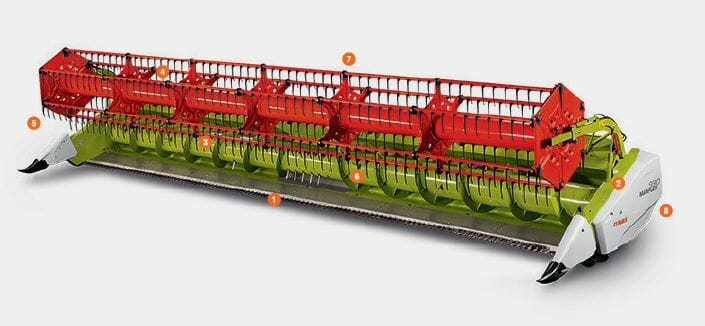

MAXFLEX

FLEXIBLE, EFFICIENT MULTI-CROP HARVESTING

MAXFLEX heads are the most advanced auger-style flex heads in the industry. All MAXFLEX heads are equipped with a flexible cutter bar that automatically adjusts to changing ground conditions while reducing the potential for scooping up debris and rocks.

Photos

Specifications

  • MAXFLEX 930
    Spec Value
    Working Width (ft / m) 30.25 / 9.22
    End Dividers Standard
    Crop Lifters Option
    Auger Type 1-piece + MULTIFINGER + height adjustable
    Auger Diameter / Tube Diameter (in / mm) 26 / 660 / 16.5 / 420
    Auger Speed (rpm) 178
    Rear Wall Extension Standard
    Stripper Plates Standard
    Skids Standard
    Knife 1-piece knife + 3 in coarse serration
    Drive Dual planetary knife
    Vertical Flex (in / mm) 7 / 180
    Spare Knife Standard
    Reel Type 1-piece, 6 bat
    Reel Diameter (in / mm) 40 / 1,014
    Reel Tine Adjustment Standard
    Automatic Parking and Operating Position Standard
    LED Header Light Package (num) Option (4)
    AUTO CONTOUR Standard
    Multicoupler Standard
    Weight (will vary depending on options) (lbs / kg) 5,888 / 2,671
  • MAXFLEX 770
    Spec Value
    Working Width (ft / m) 25.25 / 7.69
    End Dividers Standard
    Crop Lifters Option
    Auger Type 1-piece + MULTIFINGER + height adjustable
    Auger Diameter / Tube Diameter (in / mm) 26 / 660 / 16.5 / 420
    Auger Speed (rpm) 178
    Rear Wall Extension Standard
    Stripper Plates Standard
    Skids Standard
    Knife 1-piece knife + 3 in coarse serration
    Drive Dual planetary knife
    Vertical Flex (in / mm) 7 / 180
    Spare Knife Standard
    Reel Type 1-piece, 6 bat
    Reel Diameter (in / mm) 40 / 1,014
    Reel Tine Adjustment Standard
    Automatic Parking and Operating Position Standard
    LED Header Light Package (num) Option (4)
    AUTO CONTOUR Standard
    Multicoupler Standard
    Weight (will vary depending on options) (lbs / kg) 5,064 / 2,289
