This XQP200 generator set is EU Stage V emission standard capable. Each model delivers increased flexibility by easily switching between 50 and 60 Hz, which allows one machine to satisfy varying load requirements across diverse regions and applications including mining, manufacturing, oil and gas and construction.
Cat
XQP200 EU Stage V
Overview

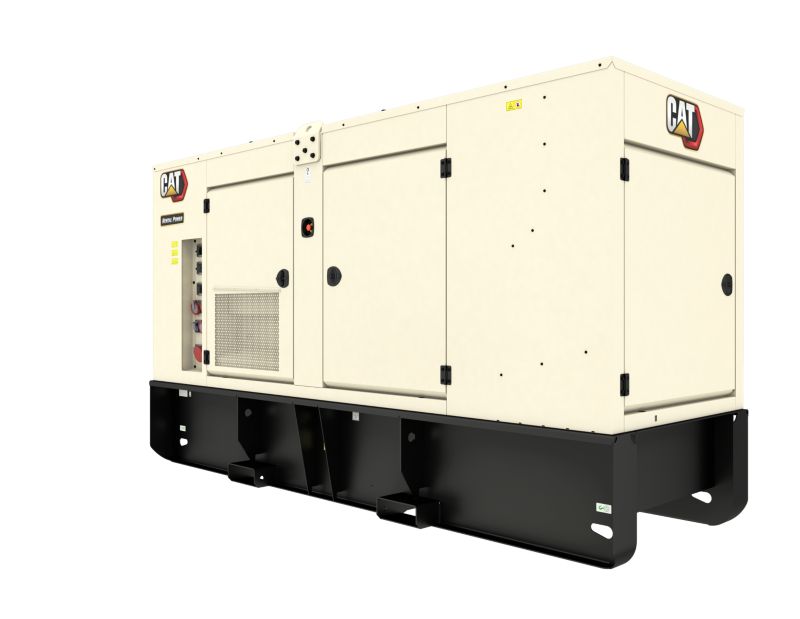

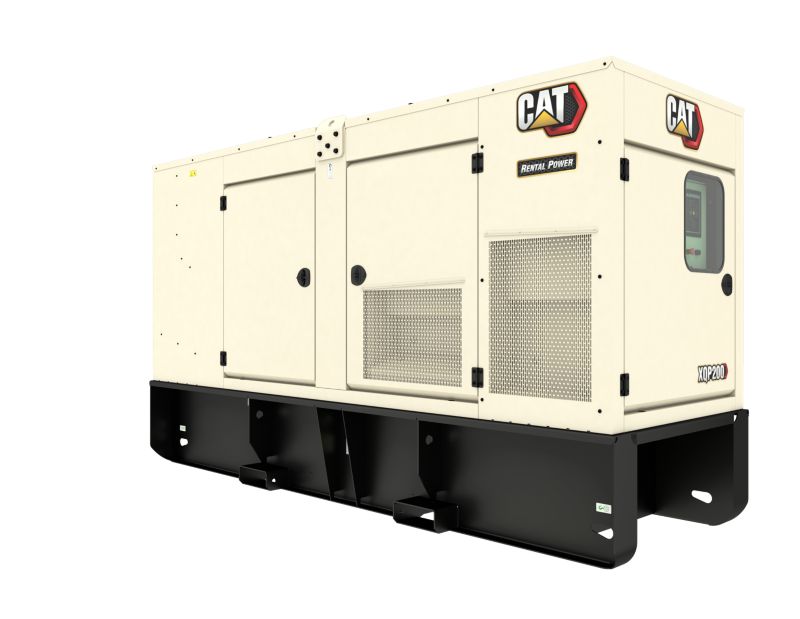

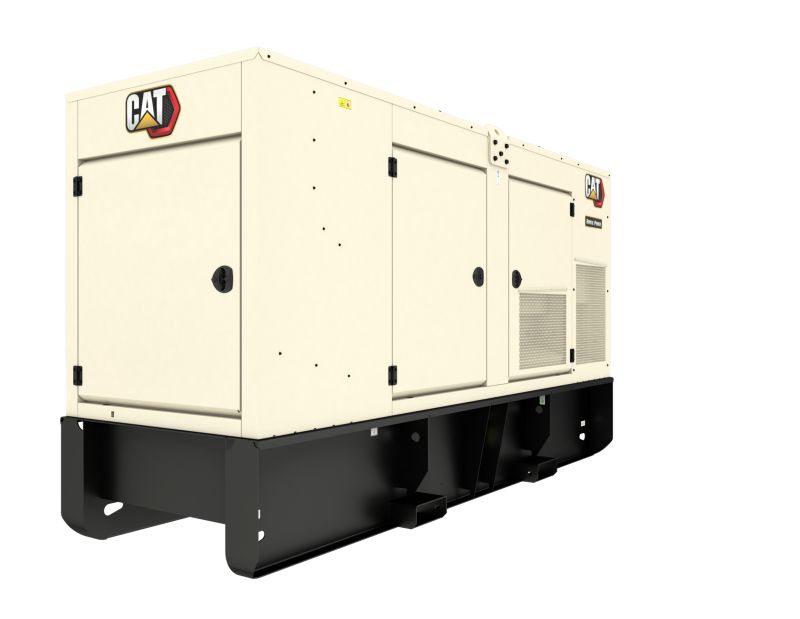

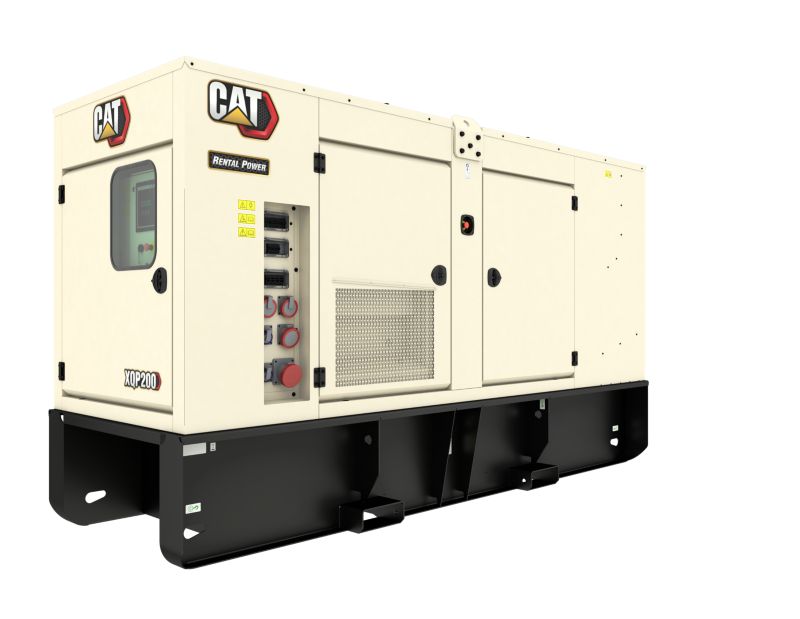

Photos
-
XQP200 -
XQP200 -
XQP200 -
XQP200
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Showroom
XQP200, Virtual Product Tour
Features
Rental ready
Robust, durable product with a range of rental ready features to meet job requirements and applications.
Rental ready
Robust, durable product with a range of rental ready features to meet job requirements and applications.
Fuel/Emissions Strategy
EU Stage V.
Fuel/Emissions Strategy
EU Stage V.
Cat C7.1 Diesel Engine
Industry proven reliability.
Cat C7.1 Diesel Engine
Industry proven reliability.
Cat EMCP 4.2B Control Panel
Easy to use digital controls.
Cat EMCP 4.2B Control Panel
Easy to use digital controls.
Cat LC5114F Generator
Integrated voltage regular for fast response in demanding applications.
Cat LC5114F Generator
Integrated voltage regular for fast response in demanding applications.
Robust Galvanised Enclosure
Inhibits corrosion in service. Prevents water ingress, provides security and sound attenuation.
Robust Galvanised Enclosure
Inhibits corrosion in service. Prevents water ingress, provides security and sound attenuation.
Sound Isolated Operator Panel
Improved operator comfort.
Sound Isolated Operator Panel
Improved operator comfort.
Cat Connect
Remote monitoring for fleet management and asset tracking.
Cat Connect
Remote monitoring for fleet management and asset tracking.
Factory Designed, Built and Tested
Single-source Supplier
Factory Designed, Built and Tested
Single-source Supplier
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
500 hr Oil Change Intervals
Reducing operating costs and producing less waste.
500 hr Oil Change Intervals
Reducing operating costs and producing less waste.
Improved Transportability
Drag bars, Dual point lifting frame, Fork lift pockets and 4 Point lift.
Improved Transportability
Drag bars, Dual point lifting frame, Fork lift pockets and 4 Point lift.
Additional Options Available
Synchronising controls. Distribution sockets. Extended Service interval kits.
Additional Options Available
Synchronising controls. Distribution sockets. Extended Service interval kits.
Specifications
-
Generator Set
Spec Value Rating Prime 200 kVA Frequency 50/60 Hz Voltage 127 - 480 V Fuel/Emissions Strategy EU Stage V -
Engine
Spec Value Engine Cat® C7.1 Fuel Diesel -
Dimensions
Spec Value Width 56 in Height 93 in Length 161 in Weight - With Lube Oil and Coolant 8049 lb -
Fuel Consumption
Spec Value 100% Load 50 Hz 11.5 gal/hr 100% Load 60 Hz 14.3 gal/hr 75% Load 50 Hz 8.6 gal/hr 75% Load 60 Hz 10.5 gal/hr -
Noise rating (with enclosure)
Spec Value Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 75.1 dB(A)
Standard Equipment
Cat® C7.1 Diesel Engine
- Twin Turbocharged, air-to-air aftercooler
- Electronic ECM controlled
After Treatment
- Engine Mounted Clean Emissions Module (CEM)
- Diesel Emissions Fluid (DEF)
Alternator
- LC5114F Frame
- Coastal insulation protection
Control Panel
- Digital EMCP4.2B set mounted digital controller
Air Filter
- High efficiency two stage air cleaner, with dust cup andservice indicator
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge. Filled from factory
- High ambient performance
Charging / Starting System
- 24V heavy duty charging alternator with integral regulator
Fuel System
- 24 hour dual wall fuel tank with internal fuel fill
- Engine mounted primary and secondary fuel filter
Distribution
- Separate robust steel enclosures for control & distribution sections
- 4 pole, 400A main circuit breaker
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
- Sealed quarter-turn compression latches with key orpadlock capabilities
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
- Full manufacturer's warranty
Optional Equipment
Control Panel
- ComAp InteliGen NTC, Deepsea 7320, Deepsea 8620, DEIF AGC-4
- Syncronising capabilities
Distribution
- CE socket box with integrated MCB & RCBO protection
Fuel Option Pack
- Inboard mounted 3-way valve for external fuel connection, electronic fuel gauge and Bund Level Sender
Drains option Pack
- Oil and coolant drains piped to base frame
