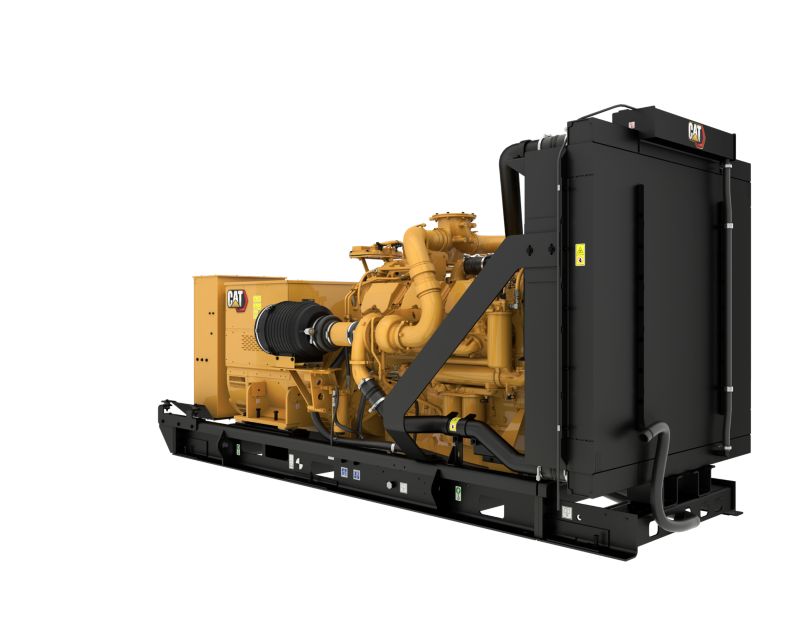

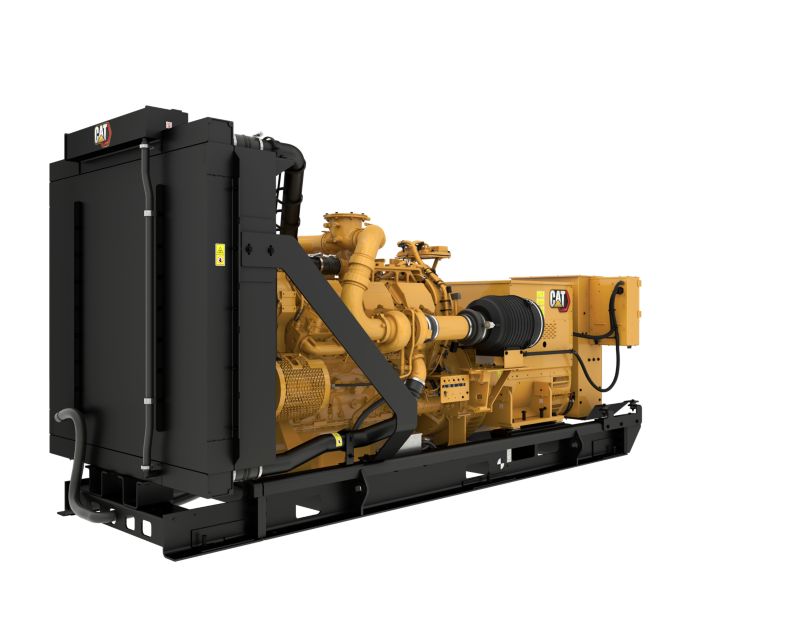

Producing reliable power at 1000 ekW, 60 Hz, our DE1000S GC diesel generator set is made to meet your needs in standby applications. We’ve designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. This generator set offers a low fuel consumption system.
Cat
DE1000S GC
Overview
Photos
-
DE1000S GC -
DE1000S GC -
DE1000S GC -
DE1000S GC
360° View
Interior
Open Set
Showroom
Virtual Product tour
Features
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
SR500 Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
SR500 Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP1.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Site-specific programming for specific customer requirements
GCCP1.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 50°C (122°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Cooling System
- Designed to operate in standard ambient temperatures up to 50°C (122°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
- Low Fuel Consumption
Certifications
- Low Fuel Consumption
One Safe Source
- Components used in the generator set are selected at the design stage to provide optimum package performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
One Safe Source
- Components used in the generator set are selected at the design stage to provide optimum package performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
Specifications
-
Generator Set Specifications
Spec Value Maximum Rating 1000 eKW Minimum Rating 1000 eKW Emissions/Fuel Strategy Low Fuel Consumption Voltage 380 - 480 Volts Frequency 60 Hz Speed 1800 rpm Duty Cycle Standby -
Engine Specifications
Spec Value Engine Model C32 TA, V-12, 4-Stroke Water-Cooled Diesel Bore 5.71 in Stroke 6.38 in Displacement 1958.86 in³ Compression Ratio 15.0:1 Aspiration TA Fuel System EUI Governor Type Adem™A4 -
Generator Set Dimensions
Spec Value Length - Minimum 164.3 in Length - Maximum 164.3 in Width - Minimum 73.1 in Width - Maximum 73.1 in Height - Minimum 87.3 in Height - Maximum 87.3 in Dry Weight - Genset (minimum) 14669 lb Dry Weight - Genset (maximum) 14669 lb
Standard Equipment
Control Panel
- GCCP1.3
Cooling System
- Radiator
Optional Equipment
Control Panels
- Remote monitoring software
Starting/Charging
- Jacket water heater
General
- Single element or dual element air cleaner
- Circuit breaker panel, based on regional and product configuration
