Cat

DE450S GC (60 Hz) Generator Set

Maximum Rating

450 ekW

Minimum Rating

450 ekW

Emissions/Fuel Strategy

Non Regulated

Overview

Producing reliable power 450 ekW at 60 Hz, our DE450S GC generator set powerd by C13 diesel engine designed to ISO 8528-5 transient response requirements.

Photos

360° View

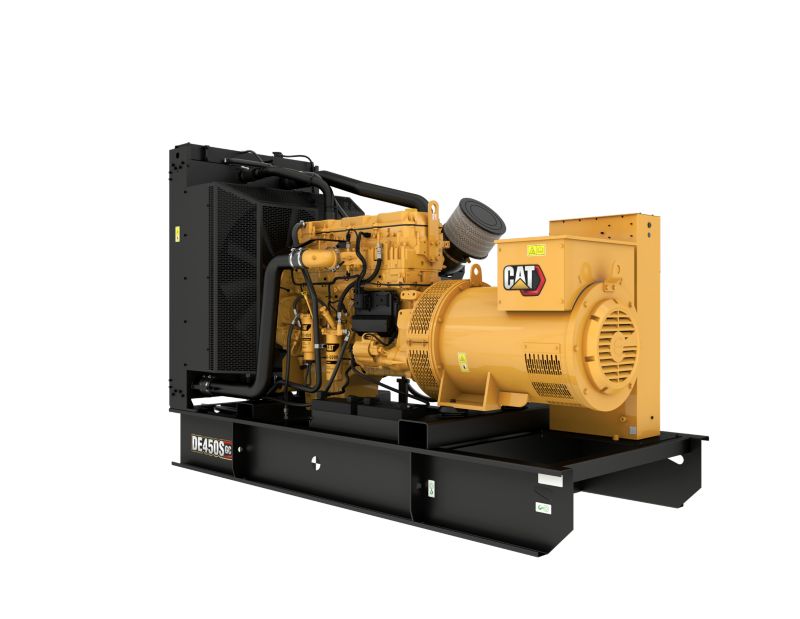

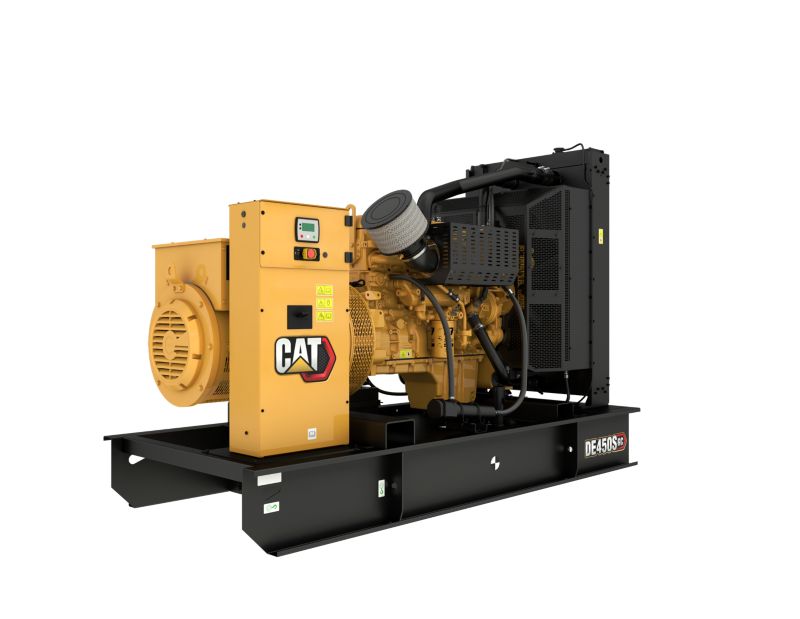

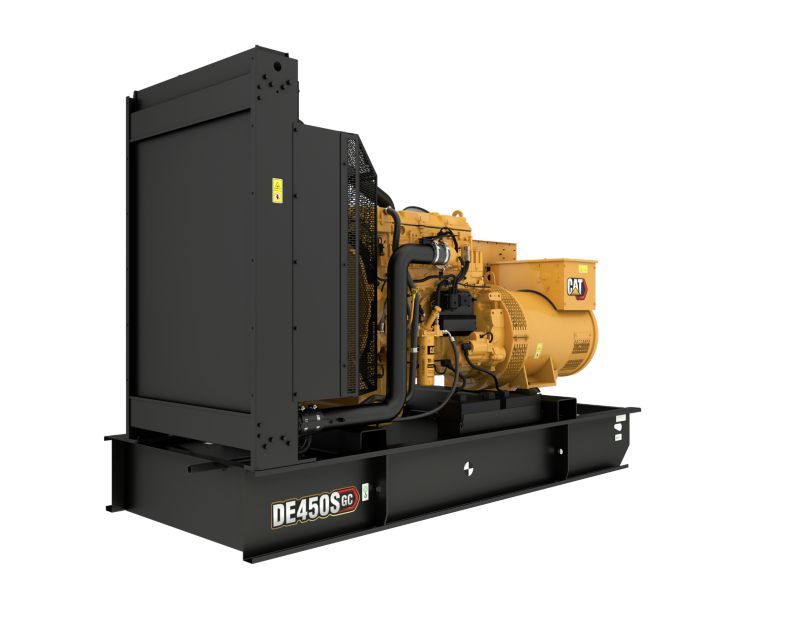

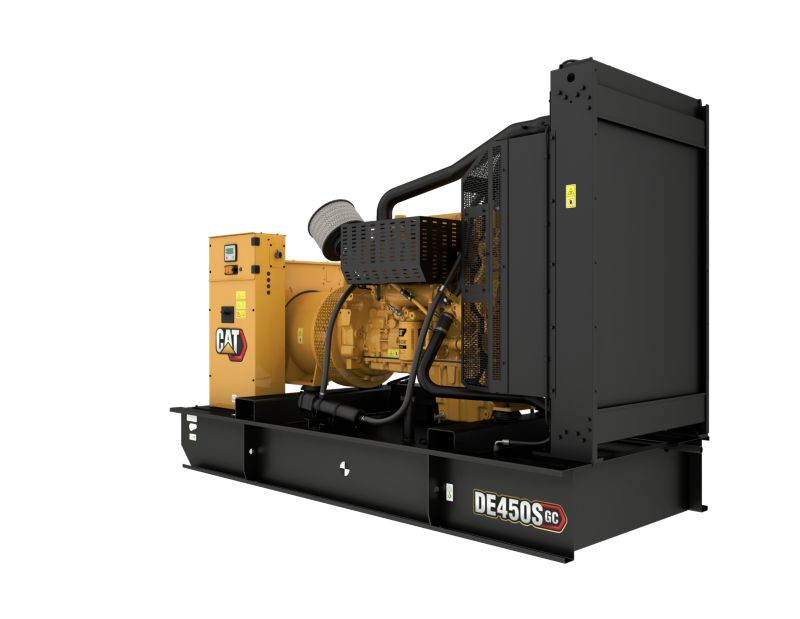

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Interior

360° Interior view. Double click on the image to zoom in on any area of the product.

Showroom

DE450S GC, Virtual Product Tour

Features

Specifications

  • Generator Set Specifications
    Spec Value
    Maximum Rating 450 ekW
    Minimum Rating 450 ekW
    Emissions/Fuel Strategy Non Regulated
    Voltage 220 to 480 Volts
    Frequency 60 Hz
    Speed 1800 RPM
    Duty Cycle Standby
  • Engine Specifications
    Spec Value
    Engine Model C13 In-line 6, 4-cycle diesel
    Bore 5.1 in
    Stroke 6.2 in
    Displacement 763 in³
    Compression Ratio 15.8:1
    Aspiration Turbocharged Air-to-Air Aftercooled
    Fuel System EUI
    Governor Type Adem™A4
  • Generator Set Dimensions
    Spec Value
    Length - Maximum 122 in
    Width - Maximum 52.7 in
    Height - Maximum 85.4 in
    Dry Weight - Genset (maximum) 6446 lb

Standard Equipment

Engine

  • Cat® C13 Inline 6 cylinder, 4 stroke diesel

Control Panels

  • GCCP 1.1

Governor

  • Mechanical governor

Alternator

  • A Frame standard alternator

Fuel Storage

  • Single wall 8 hour fuel tank

Cooling System

  • Radiator and cooling fan with guards
  • Fan drive, battery charging alternator drive

Electrical Options

  • 3 Pole Circuit breaker
  • Neutral earth link
  • 24 Volt battery with rack and cables

Air inlet system

  • Air cleaner; light duty with disposable element

Lube system

  • Lubricating oil
  • Oil drain line with valve

Mounting system

  • Captive linear vibration isolators
  • Lifting provision and drag points

General

  • Engine and alternator pre paint, Caterpillar yellow
  • Engine and alternator pre-paint, Caterpillar yellow

Lube System

  • Oil drain valves

Mounting System

  • Includes lifting provisions and termination points for coolant and lube oil drain lines
  • Captive linear vibration isolators between base and engine-generator

Starting / Charging System

  • 24V battery with rack and cables

Optional Equipment

Control panel

  • Speed and Voltage adjust potentiometers
  • PLG 4G/3G/Ethernet
  • Annunciator
  • Emergency E-Stop

Enclosure

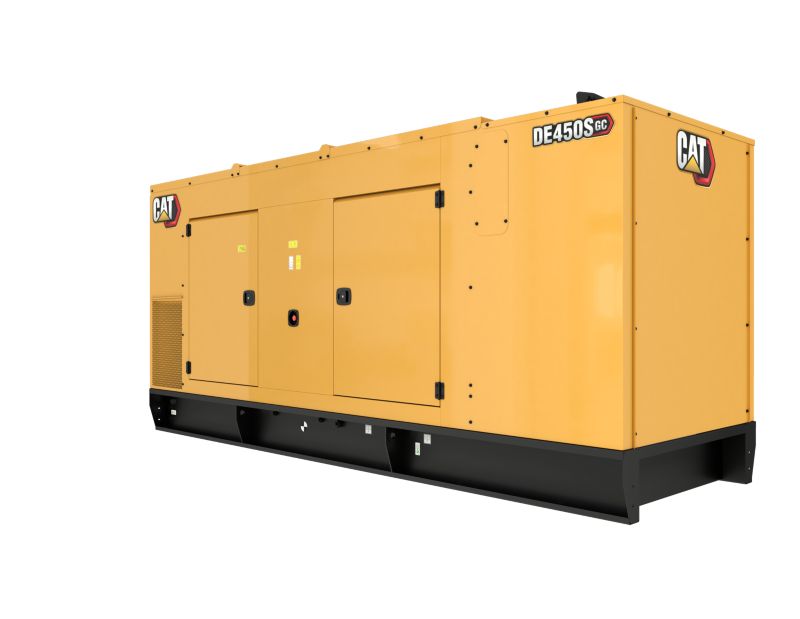

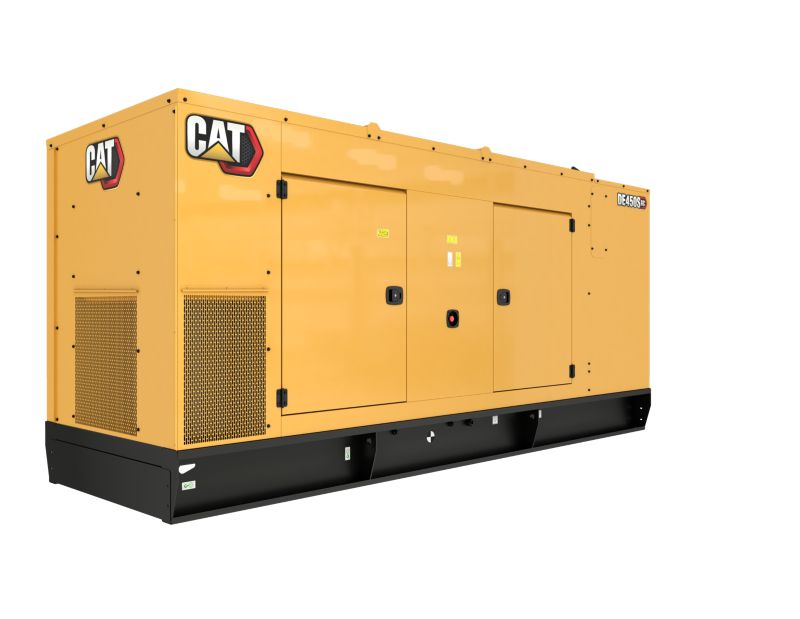

  • Cat GC enclosure

Electrical Options

  • 4 Pole Circuit breaker
  • Auxiliary contacts
  • Padlockable circuit breaker
  • Battery charger
  • Wet battery

Alternator

  • Space heater
  • AVR

Fuel System

  • Dual wall 8 hour fuel tank
  • Single wall 8 hour fuel tank with spill containment
  • Low fuel level shutdown
  • Low and high fuel level alarms

Exhaust System

  • Industrial silencer
  • 10 dBA Attenuation silencer

Air inlet system

  • Single stage air filter
  • Dual element air filter

Certifications

  • EU Certificate of Conformance (CE)
  • EAC Certification

Extended service coverage

  • 3, 4, 5 and 10 Years
