Producing reliable power of 50 ekW at 60 Hz, our DE55 GC diesel generator set is designed to meet ISO 8528-5 transient response requirements.
Cat

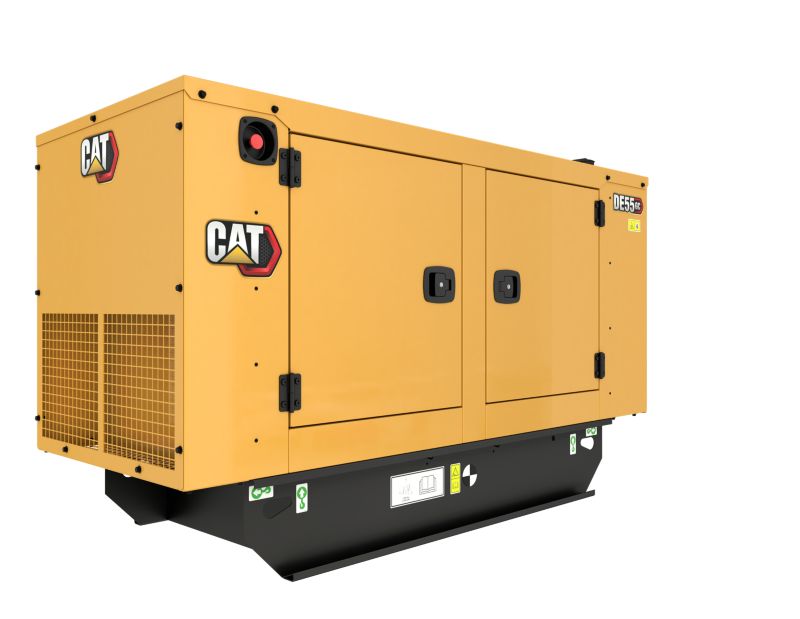

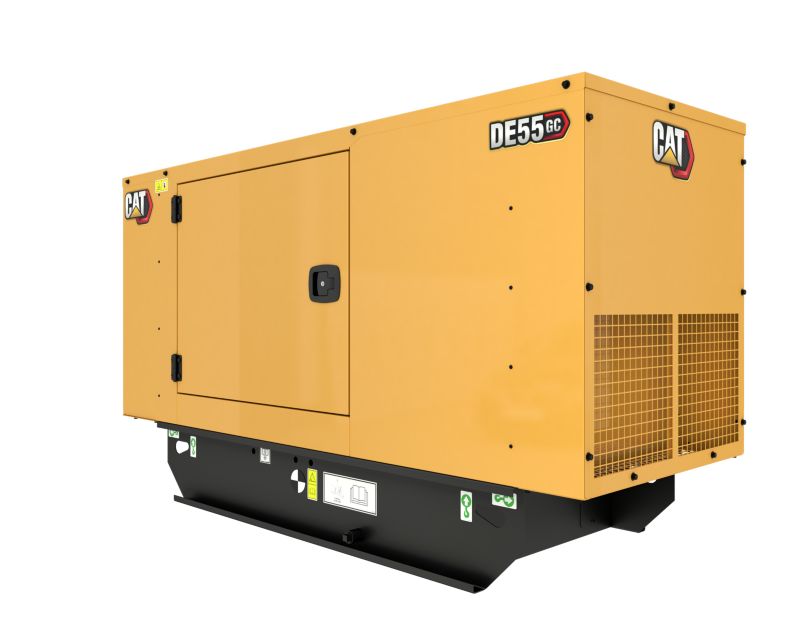

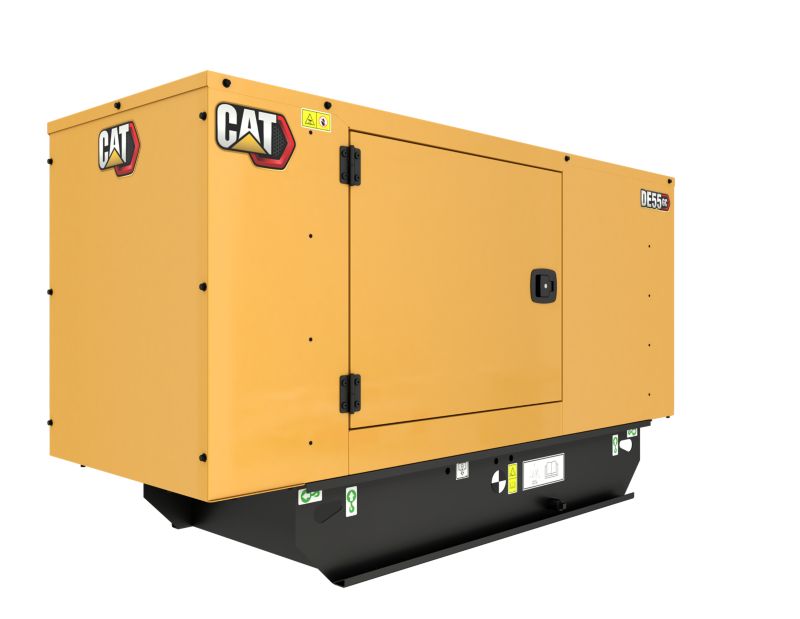

DE55 GC Generator Set (60 Hz)
Overview
Photos
360° View
Exterior
Showroom
DE55 GC, Virtual Product Tour
Features
Specifications
-
Generator Set Specifications
Spec Value Frequency 60 Hz Maximum Rating 50 ekW Emissions/Fuel Strategy Non Regulated Voltage 220 to 480 Volts Minimum Rating 50 ekW Speed 1800 rpm Duty Cycle Standby -
Engine Specifications
Spec Value Engine Model Cat® C3.3, In-line 3, 4-cycle diesel Bore 4.1 in Stroke 5 in Displacement 201.4 in³ Compression Ratio 17.25:1 Aspiration Turbocharged Fuel System Inline Governor Type Mechanical -
Generator Set Dimensions
Spec Value Length - Maximum 76.6 in Width - Maximum 34.3 in Height - Maximum 48.7 in Dry Weight - Genset (maximum) 2114 lb
Standard Equipment
Engine
- C3.3, Inline 3 cylinder, 4 stroke diesel
Genset Control
- GCCP 1.1
Governor
- Mechanical governor
Alternator
- A Frame standard alternator
Fuel Storage
- Single wall 8 hour fuel tank
Enclosure
- Cat GC enclosure
Air, Cooling & Exhaust
- Enclosure silencer
General
- Engine and alternator pre-paint, Caterpillar yellow
Optional Equipment
Certification
- Australia, CIS, Gulf Certification
- Certificate of Conformance
Alternator Requirements
- Space heater
Auxiliary Supply Voltage
- 120V
Fuel Storage
- Dual wall 8 hour fuel tank
- Low fuel level shutdown
- Single wall tank with containment
- Low fuel level alarm
- High fuel level alarm
Genset Control
- Battery charger
- Volt free contacts for genset running
- Volt free contacts for common alarm
- Emergency stop with key
- Earth leakage
- USB to RS485 Communications device
- Earth fault
- Panel mounted audible alarm
- Battery
- Standby Pack (Smart Jacket water heater, Battery charger)
- Coolant heater
- Low coolant level shutdown
Circuit breaker
- 3 Pole Circuit breaker 63A
- 3 Pole Circuit breaker 80A
- 3 Pole Circuit breaker 100A
- 3 Pole Circuit breaker 125A
- 3 Pole Circuit breaker 160A
- 3 Pole Circuit breaker 200A
- 4 Pole Circuit breaker 63A
- 4 Pole Circuit breaker 80A
- 4 Pole Circuit breaker 100A
- 4 Pole Circuit breaker 125A
- 4 Pole Circuit breaker 160A
- 4 Pole Circuit breaker 200A
- Circuit breaker padlock
- Neutral earth link
- Overload via alarm switch on breaker
Testing & Packaging
- PGS Test report @ 1.0 power factor
- PGS Test report @ 0.8PF
