Producing reliable power of 30 ekW at 60 Hz, our DE33 GC diesel generator set is designed to meet ISO 8528-5 transient response requirements.
Cat
DE33 GC Generator Set (60 Hz)
Overview
Photos
-

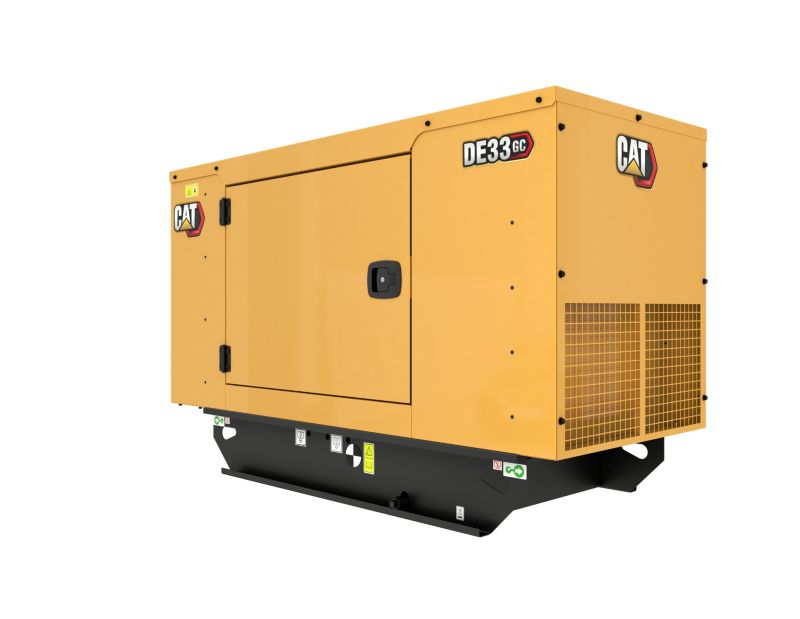

DE33GC -

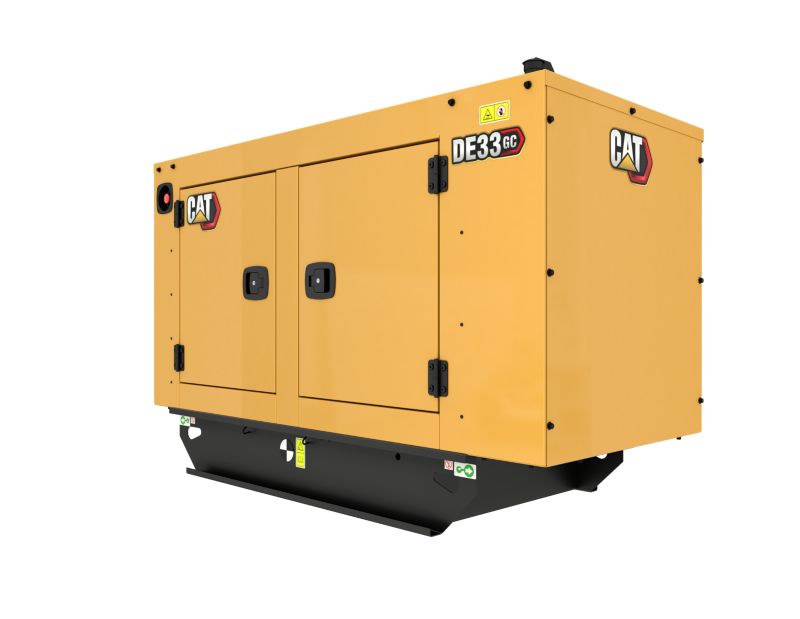

DE33GC -

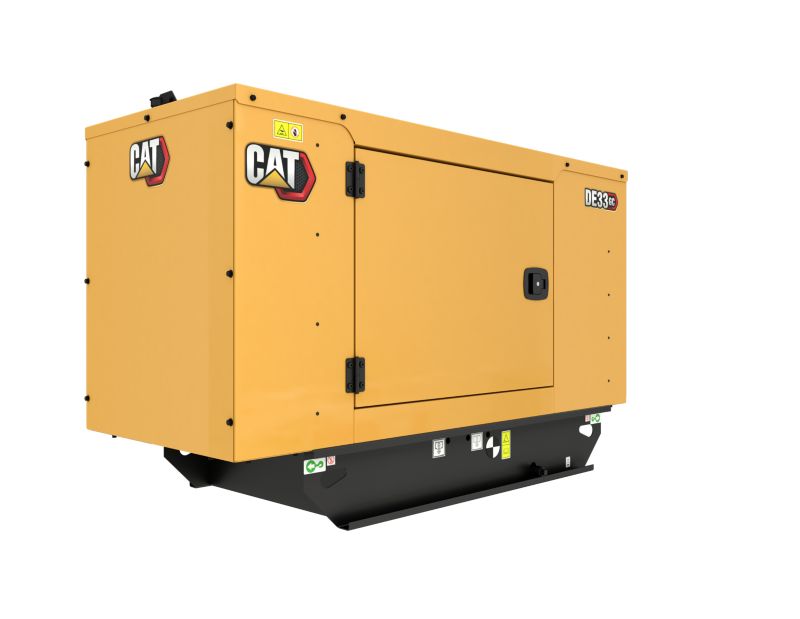

DE33GC -
DE33GC
360° View
Exterior
Showroom
DE33 GC, Virtual Product Tour
Features
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
A-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
A-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP 1.1 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
GCCP 1.1 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
- CE Certification Available
- CIS Certification Available
Certifications
- CE Certification Available
- CIS Certification Available
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Specifications
-
Generator Set Specifications
Spec Value Maximum Rating 30.0 ekW Minimum Rating 30.0 ekW Emissions/Fuel Strategy Non Regulated Voltage 220 to 480 Volts Frequency 60 Hz Speed 1800 rpm Duty Cycle Standby -
Engine Specifications
Spec Value Engine Model Cat® C3.3, In-line 3, 4-cycle diesel Bore 4.1 in Stroke 5 in Displacement 201.4 in³ Compression Ratio 19.25:1 Aspiration Naturally Aspirated Fuel System Inline Governor Type Mechanical -
Generator Set Dimensions
Spec Value Length - Maximum 76.6 in Width - Maximum 34.3 in Height - Maximum 48.7 in Dry Weight - Genset (maximum) 2114 lb
Standard Equipment
Engine
- C3.3, Inline 3 cylinder, 4 stroke diesel
Genset Control
- GCCP 1.1
Governor
- Mechanical governor
Alternator
- A Frame standard alternator
Fuel Storage
- Single wall 8 hour fuel tank
Enclosure
- Cat GC enclosure
Air, Cooling & Exhaust
- Enclosure silencer
General
- Engine and alternator pre-paint, Caterpillar yellow
Optional Equipment
Certification
- Certificate of Conformance
- Australia, CIS, Gulf Certification
Alternator Requirements
- Space heater
Auxiliary Supply Voltage
- 120V
Fuel Storage
- Dual wall 8 hour fuel tank
- Low fuel level shutdown
- Single wall tank with containment
- Low fuel level alarm
- High fuel level alarm
Genset Control
- Battery charger
- Volt free contacts for genset running
- Volt free contacts for common alarm
- Earth fault
- Panel mounted audible alarm
- USB to RS485 Communications device
- Emergency stop with key
- Earth leakage
- Low coolant level shutdown
- Coolant heater
- Standby Pack (Smart Jacket water heater, Battery charger)
- Battery
Circuit breaker
- 3 Pole Circuit breaker 80A
- 3 Pole Circuit breaker 63A
- 3 Pole Circuit breaker 100A
- 3 Pole Circuit breaker 125A
- 3 Pole Circuit breaker 160A
- 3 Pole Circuit breaker 200A
- 4 Pole Circuit breaker 80A
- 4 Pole Circuit breaker 63A
- 4 Pole Circuit breaker 100A
- 4 Pole Circuit breaker 125A
- 4 Pole Circuit breaker 160A
- 4 Pole Circuit breaker 200A
- Circuit breaker padlock
- Neutral earth link
- Overload via alarm switch on breaker
Testing & Packaging
- PGS Test report @ 1.0 power factor
- PGS Test report @ 0.8 power factor
