834K Scoops Wheel Dozer
Overview
Photos
-
834K Scoop Wheel Dozer -

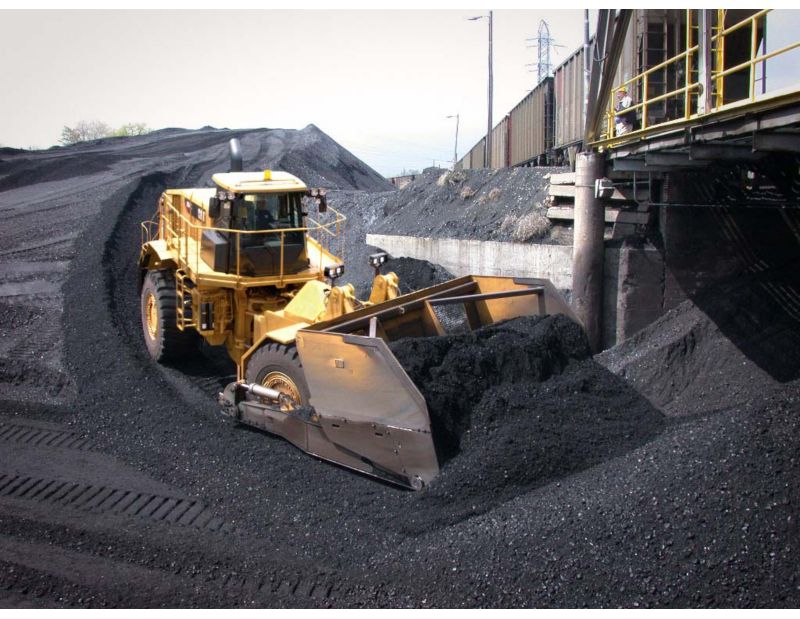

834K Coal Scoop Wheel Dozer -

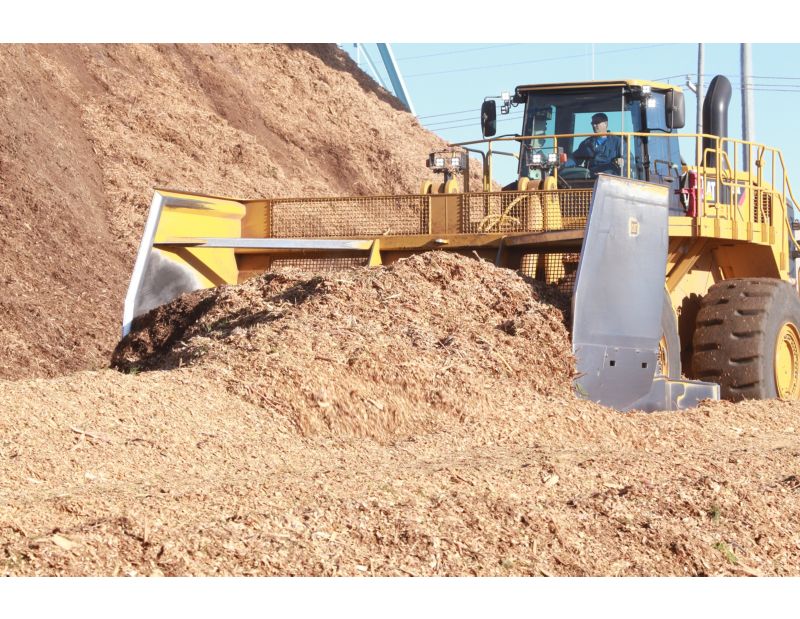

834K Chip Scoop Wheel Dozer -
834K Chip Scoop Wheel Dozer
360° View
Exterior
360� Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360� Interior view. Double click on the image to zoom in on any area of the product.
Documents
Specifications
-
Engine
Spec Value Engine Model C18 Cat® Net Power 496 HP Bore 5.7 in Stroke 7.2 in Displacement 1105 in³ Rated Speed 1,900/min Emissions U.S. EPA Tier 4 Final/EU Stage IV, Tier 3 Equivalent, or Tier 2 Equivalent Torque Rise 52% Net - SAE J1349 496 HP Peak Power Speed 1500/min Peak Torque - 1,300 rpm 2092 ft·lbf Gross - SAE J1349 562 HP -
Transmission
Spec Value Direct Drive - Reverse 3 14.3 mile/h Forward - 3 12.6 mile/h Direct Drive - Reverse 1 4.5 mile/h Forward - 2 7.2 mile/h Direct Drive - Forward 2 7.7 mile/h Forward - 1 4.2 mile/h Direct Drive - Reverse 2 8.1 mile/h Reverse - 2 7.6 mile/h Direct Drive - Forward 3 13.7 mile/h Reverse - 1 4.2 mile/h Reverse - 3 13.3 mile/h Forward - 4 22 mile/h Direct Drive - Forward 1 Lock-up disabled Direct Drive - Forward 4 23.9 mile/h Transmission Type Cat planetary power shift Note Travel speeds based on 35/65-R33 tire. -
Brakes
Spec Value Brakes ISO 3450: 2011 -
Axles
Spec Value Front Fixed Rear Trunnion Oscillation Angle ±13° -
Weights
Spec Value Operating Weight 112838 lb -
Service Refill Capacities
Spec Value Cooling System 31.7 gal (US) Crankcase 15.9 gal (US) Transmission 31.7 gal (US) Hydraulic System - Tank Only 37 gal (US) Differential - Final Drives - Rear 49.1 gal (US) Differential - Final Drives - Front 49.1 gal (US) Hydraulic System Factory Fill 63.4 gal (US) Diesel Exhaust Fluid Tank* 8.7 gal (US) Fuel Tank 209.5 gal (US) Note (1) All non-road Tier 4 Final/Stage IV Technology diesel engines are required to use:
– Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm (mg/kg) sulfur or less. Biodiesel blends up to B20 are acceptable when blended with 15 ppm (mg/kg) sulfur or less ULSD and when the biodiesel feedstock meets ASTM D7467 specifications.
– Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specifications are required.Note (2) *Only applicable to Tier 4 Final/Stage IV equipped machines. -
Operating Specifications
Spec Value Coal Scoop Operating Weight 112428 lb Chip Scoop Operating Weight 112838 lb -
Sound Performance - Tier 4 Final/Stage IV: Suppression
Spec Value Operator Sound Level (ISO 6396) 72 dB(A) Machine Sound Level (ISO 6395) 109 dB(A) Note (1) The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008.
– The measurement was conducted at 70 percent of the maximum engine cooling fan speed.Note (2) Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. Note (3) The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. – The measurement was conducted at 70 percent of the maximum engine cooling fan speed. -
Sound Performance - Tier 4 Final/Stage IV - Standard
Spec Value Operator Sound Level (ISO 6396) 73 dB(A) Machine Sound Level (ISO 6395) 111 dB(A) Note (2) Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. Note (1) The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. – The measurement was conducted at 70 percent of the maximum engine cooling fan speed. Note (3) The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. – The measurement was conducted at 70 percent of the maximum engine cooling fan speed. -
Dimensions (Approximate)
Spec Value Height - Top of Exhaust Stack 14.8 ft Centerline of Front Axle to Hitch 7.5 ft Length - With Chip Scoop on Ground 39.3 ft Ground to Center of Front Axle 3.2 ft Length - With Coal Scoop on Ground 39.3 ft Height - Top of Cab 13.7 ft Length - Front of Tire 28.4 ft Centerline of Rear Axle to Edge of Bumper 10.5 ft Height - Top of Air Cleaner 12.8 ft Height - Top of Hood 10.9 ft Ground Clearance 1.7 ft Wheel Base 14.9 ft Height - Edge of Dumped Scoop 5 ft Height - Edge of Retracted Scoop 7.4 ft Dump Angle at Full Lift Height 64 deg -
Scoops
Spec Value Coal Scoop Carry Capacity 30 yd³ Type Large capacity scoops for both wood chip and coal applications. A mesh screen integrated into the back of the scoop maintains visibility to the cutting edge. The chip scoop version has extra screens at the top due to higher capacity. Components Both scoops come with dual lift cylinders for increased lift capacity. Integrated stabilizer system makes sure that the scoop stays stable and centralized on the machine. Scoop tilt function is standard and provides ±15 degrees of tilt to maintain grade conditions and keep your operation safe. Coal Scoop Doze Capacity 60 yd³ Chip Scoop Carry Capacity 35 yd³ Chip Scoop Doze Capacity 70 yd³ -
Hydraulic System - Lift/Dump/Tilt
Spec Value Pilot Maximum Flow 13.7 gal/min Pilot Relief Valve Setting 580 psi Maximum Flow at 1,900 rpm 153 gal/min Lift/Tilt System Variable displacement piston Cylinders, Double Acting - Left and Right Dump, Bore and Stroke 127 mm × 838 mm (5.0 in × 33.0 in) Lift/Tilt System - Circuit Pilot operated LS valve with EH Relief Valve Setting - Lift/Tilt 4206 psi Cylinders, Double Acting - Lift, Bore and Stroke 170.0 mm × 1107 mm (6.7 in × 43.6 in) Pilot System Variable displacement piston Cylinders, Double Acting - Tilt, Bore and Stroke 152.4 mm × 953 mm (6.0 in × 37.5 in) -
Hydraulic System - Steering
Spec Value Maximum Flow 65.8 gal/min Total Steering Angle 86° Steering Cycle Times - Low Idle 5.7 s Steering Cycle Times - High Idle 3.1 s Relief Valve Setting - Steering 3495 psi Steering System - Pump Piston, variable displacement Steering System - Circuit Pilot, load sensing -
Sound Performance - Tier 2 Equivalent/Stage II: Standard
Spec Value Note (1) The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. – The measurement was conducted at 70 percent of the maximum engine cooling fan speed. Machine Sound Level (ISO 6395) 112 dB(A) Operator Sound Level (ISO 6396) 81 dB(A) Note (3) The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008.
– The measurement was conducted at 70 percent of the maximum engine cooling fan speed.Note (2) Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. -
Sound Performance - Tier 2 Equivalent/Stage II: Suppression
Spec Value Note (1) The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. – The measurement was conducted at 70 percent of the maximum engine cooling fan speed. Note (2) Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. Machine Sound Level (ISO 6395) 109 dB(A) Operator Sound Level (ISO 6396) 81 dB(A) Note (3) The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. – The measurement was conducted at 70 percent of the maximum engine cooling fan speed. -
Air Conditioning System
Spec Value Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes.
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
ELECTRICAL
- Alarm, back-up
- Alternator (100 amp)
- Batteries, maintenance-free
- Deutsch terminal connectors
- Electrical system (24V)
- Lighting system, halogen (front and rear), access stairway
- Starter, electric (heavy-duty)
- Starting receptacle for emergency starts
OPERATOR ENVIRONMENT
- Air conditioner
- Cab, sound suppressed and pressurized
- Internal four-post rollover protective structure (ROPS/FOPS), radio ready (entertainment) includes antenna, speakers and converter (12V, 15 amp), 12V power port, tinted glass
- Cigar lighter (12V, 15 amp) and ashtray
- Coat hook
- Electro-Hydraulic tilt, tip controls
- Heater and defroster
- Horn, electric
- Light, cab (dome)
- Lock-up clutch disable switch
- Lunchbox and beverage holders
- Monitoring system (VIMS 3G)
- Action alert system, three category
- Instrumentation, gauges:
– Engine coolant temperature
– Fuel level
– Hydraulic oil temperature
– Speedometer/tachometer
– Transmission oil temperature
– Instrumentation, warning indicators
– Axle/brake oil temperature (front/rear)
– Brake oil pressure
– Electrical system, low voltage
– Engine intake/combustion air temperature
– Engine oil pressure
– Engine overspeed
– Fuel pressure
– Hydraulic oil filter status
– Parking brake status
– Transmission filter status
– Cat Vision (rear vision camera) - Mirrors, rearview (externally mounted)
- Rimpull select switch
- Seat, Comfort Series (cloth), air suspension
- Seat belt, retractable, 76 mm (3 in) wide
- STIC control system with steering lock
- Tilt and lift control system lock
- Transmission gear indicator
- Wet-arm wipers/washers (front and rear)
- Intermittent front wiper
POWER TRAIN
- Brakes, full hydraulic, enclosed, wet-disc
- Multiple disc service brakes
- Case drain filters
- Demand fan
- Engine, Cat C18 MEUI, ATAAC, ADEM™ IV controller
- Fuel priming pump (electric)
- Parking brake
- Precleaner, engine air intake
- Radiator, Next Generation Modular
- Radiator (NGMR)
- Separated cooling system
- Starting aid (ether) automatic
- Throttle lock
- Torque converter, impeller clutch with lock-up control system and rimpull control system (switch and dial in cab)
- Transmission, planetary, autoshift (4F/3R)
OTHER STANDARD EQUIPMENT
- Doors, service access (locking)
- Engine, crankcase, 500 hour interval with CH-4 oil
- Grouped Electronic Clutch Pressure
- Control, remote mounted pressure taps
- Hitch, drawbar with pin
- Hood, metallic with lockable service doors
- Hydraulic oil cooler
- Muffler (under hood)
- Oil sampling valves
- Stairway, left side (rear access)
- Steering, load sensing
- Vandalism protection caplocks
- Venturi stack
- ±15 degree scoop tilt
TIRES, RIMS AND WHEELS
- A tire must be selected from the mandatory attachments section – base machine price includes a tire allowance
ANTIFREEZE
- Premixed 50 percent concentration of Extended Life Coolant with freeze protection to –34° C (–29° F)
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
POWER TRAIN
- –50° C (–58° F) antifreeze
- Engine oil change system, high speed, Wiggins
- Engine block heater 120V or 240V
- Engine compression brake
- Automatic retarding control (with engine compression brake)
- Axle oil cooler
- Second starter
- Jacket water heater
- Crankcase guards
OPERATOR ENVIRONMENT
- Cab precleaner
- AM/FM/CD/MP3 radio
- Satellite Sirius radio with Bluetooth
- LED warning strobe
- CB radio ready
- Window pull down visor
- Sound suppression
- Visor group – cab pull-down shade
- Cat Detect (rear object detection)
MISCELLANEOUS ATTACHMENTS
- Front and rear roading fenders
- Fast fill fuel system (Shaw-Aero)
- Cat Detect
- Halogen and HID lights
