The CB13 asphalt compactor offers enhancements that simplify operation, provide versatility, and deliver excellent fuel economy. Rotary dials, oscillatory vibration (option), and 360 degree seating (option) make this compactor a perfect match for urban streets, rural roads, highways, interstates and other high-production applications.
Cat

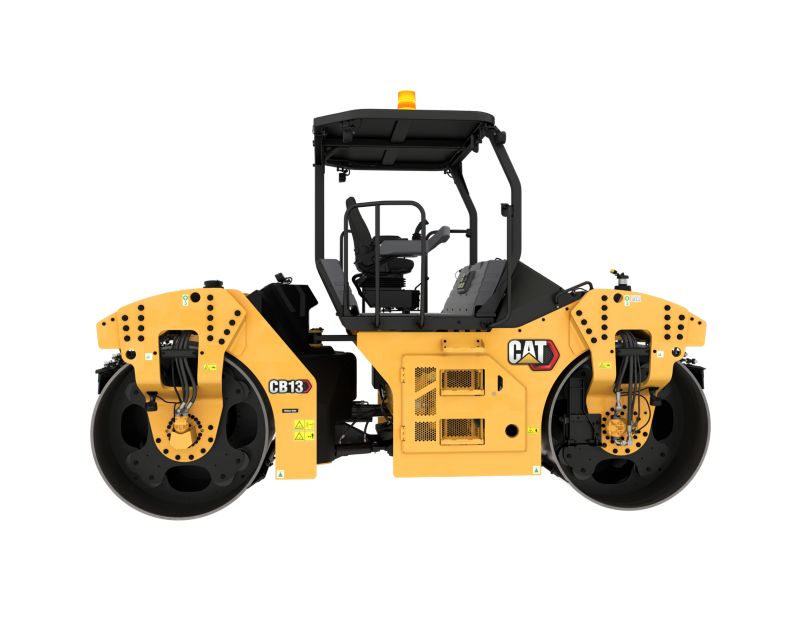

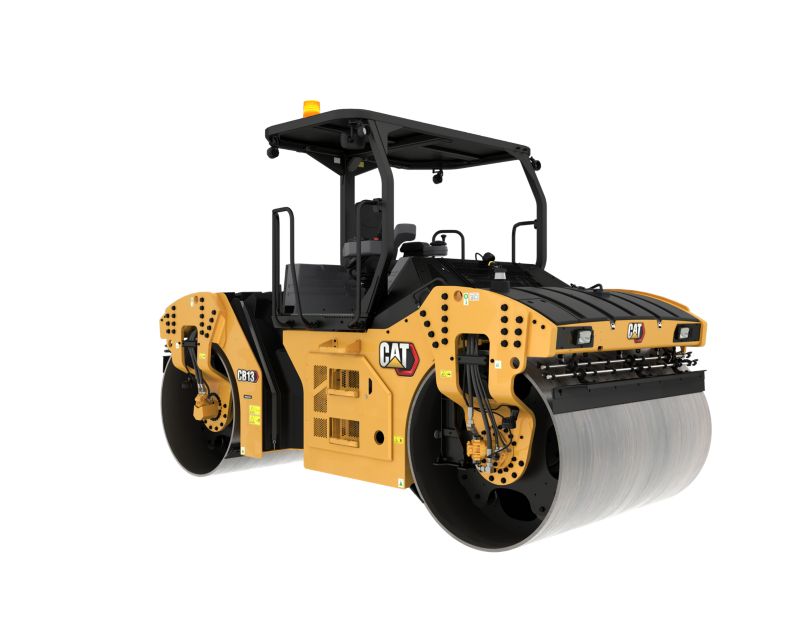

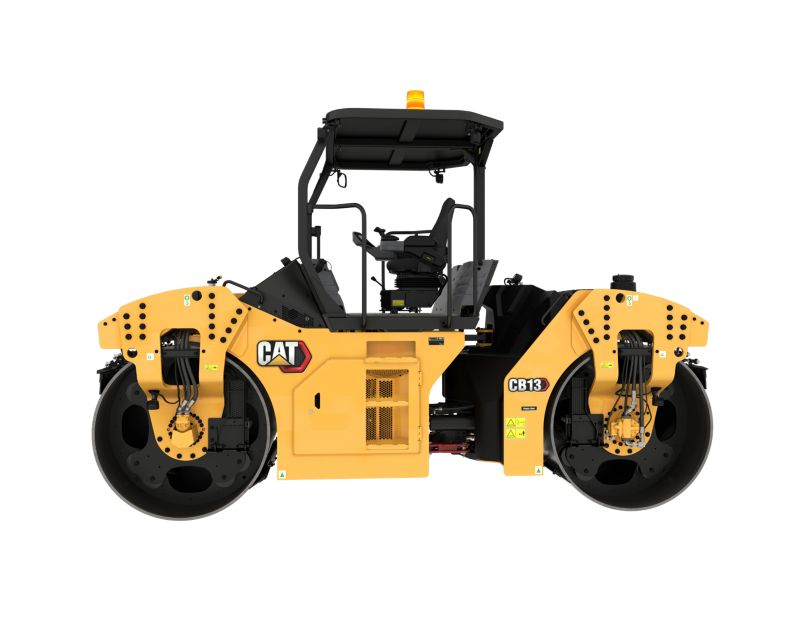

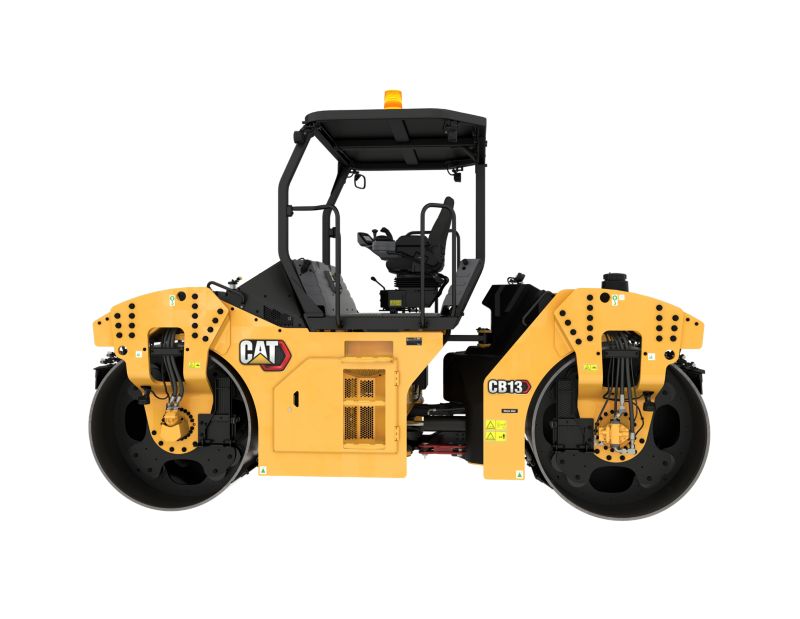

CB13 Tandem Vibratory Roller
Overview
Photos
-
CB13 -
CB13 -
CB13 -
CB13 -
CB13
Videos
360° View
Exterior
360º Exterior View. Double clickon the image to zoom in on any area of the product.
Interior
360º Interior view. Double click on the image to zoom in on any area of the product.
Features
Simple to Operate, Easy to Learn
- Innovative hand-wheel steering technology delivers precise control and good forward visibility
- Easily activate the vibratory system, water spray system, and drum offset with the multi-function propel handle
- Machine functions with LED indicators have been independently grouped for simplified control and quick activation
- Dual side access on ROPS/Canopy machines provide operators with flexibility to mount and dismount the machine (U.S. and Canada only)
Simple to Operate, Easy to Learn
- Innovative hand-wheel steering technology delivers precise control and good forward visibility
- Easily activate the vibratory system, water spray system, and drum offset with the multi-function propel handle
- Machine functions with LED indicators have been independently grouped for simplified control and quick activation
- Dual side access on ROPS/Canopy machines provide operators with flexibility to mount and dismount the machine (U.S. and Canada only)
Better Fuel Economy
- Get up to 10% better fuel economy with the Cat C4.4 engine and standard Eco-mode
- The C4.4 engine provides 106 kW (142 hp) of power and meets regional emissions requirements
- Unique Eco-mode design modifies engine speed based on load requirements; high amplitude vibration utilizes higher engine speed, while static rolling conserves fuel and operates at low engine speed with even lower sound levels
Better Fuel Economy
- Get up to 10% better fuel economy with the Cat C4.4 engine and standard Eco-mode
- The C4.4 engine provides 106 kW (142 hp) of power and meets regional emissions requirements
- Unique Eco-mode design modifies engine speed based on load requirements; high amplitude vibration utilizes higher engine speed, while static rolling conserves fuel and operates at low engine speed with even lower sound levels
Easy Vibratory System Set-up
- Five amplitude system utilizes a single frequency with five distinct amplitudes that provide excellent performance on thick lifts and rigid mix designs
- Versa Vibe™ vibratory system creates a 2-in-1 machine with four amplitudes and two frequencies; two settings for lighter hitting and higher working speeds on thin lifts; and two settings for heavier hitting and slower speeds on thick lifts and challenging mix designs
- 2-amplitude/2-frequency vibratory system automatically optimizes amplitude and frequency with a single switch for simple thin/thick lift operation
Easy Vibratory System Set-up
- Five amplitude system utilizes a single frequency with five distinct amplitudes that provide excellent performance on thick lifts and rigid mix designs
- Versa Vibe™ vibratory system creates a 2-in-1 machine with four amplitudes and two frequencies; two settings for lighter hitting and higher working speeds on thin lifts; and two settings for heavier hitting and slower speeds on thick lifts and challenging mix designs
- 2-amplitude/2-frequency vibratory system automatically optimizes amplitude and frequency with a single switch for simple thin/thick lift operation
Compaction Options Include Oscillation
- Oscillatory vibration on the rear drum combined with standard vertical vibration front drum delivers both performance and versatility
- Oscillation system utilizes proven pod-style eccentric weight technology developed by Caterpillar
- 2 year/2000 hour service interval helps maximize uptime and limit maintenance costs.
- Durable power-transmission belt delivers 2-times the load capacity of timing belt systems leading to extended life
- Standard drum shells offer exceptional long-term life on a variety of mix designs and delivers outstanding mat texture, density, and smoothness.
Compaction Options Include Oscillation
- Oscillatory vibration on the rear drum combined with standard vertical vibration front drum delivers both performance and versatility
- Oscillation system utilizes proven pod-style eccentric weight technology developed by Caterpillar
- 2 year/2000 hour service interval helps maximize uptime and limit maintenance costs.
- Durable power-transmission belt delivers 2-times the load capacity of timing belt systems leading to extended life
- Standard drum shells offer exceptional long-term life on a variety of mix designs and delivers outstanding mat texture, density, and smoothness.
Ensure Mat Coverage with Compaction Control
- Pass-count and Temperature Mapping combines infrared temperature sensors with GPS mapping to keep the operator informed of current asphalt temperatures, machine position, pass-count, and layer coverage
- Compaction Meter Value (CMV) utilizes a drum-mounted accelerometer to measure the combined stiffness of the asphalt layer, base layer, and sub-base layer to indicate road structure quality beneath the surface
- Machine to Machine communication helps keep rolling patterns in sync by sharing mapped data such as CMV, temperature mapping, and pass count coverage between multiple machines
Ensure Mat Coverage with Compaction Control
- Pass-count and Temperature Mapping combines infrared temperature sensors with GPS mapping to keep the operator informed of current asphalt temperatures, machine position, pass-count, and layer coverage
- Compaction Meter Value (CMV) utilizes a drum-mounted accelerometer to measure the combined stiffness of the asphalt layer, base layer, and sub-base layer to indicate road structure quality beneath the surface
- Machine to Machine communication helps keep rolling patterns in sync by sharing mapped data such as CMV, temperature mapping, and pass count coverage between multiple machines
Prevent Build-Up, Keep the Drum Surfaces Wet
- High capacity water tank provides long duration between fills
- Dual water pumps provide back-up capability and alternate with direction of travel to maximize service life
- Triple filtration prevents clogs with filters located at the fill point, water pumps, and spray nozzles
- Integrated freeze protection kit (optional) provides protection in cold temperatures when machine is not in use
Prevent Build-Up, Keep the Drum Surfaces Wet
- High capacity water tank provides long duration between fills
- Dual water pumps provide back-up capability and alternate with direction of travel to maximize service life
- Triple filtration prevents clogs with filters located at the fill point, water pumps, and spray nozzles
- Integrated freeze protection kit (optional) provides protection in cold temperatures when machine is not in use
Boost Performance with Enhanced Visibility
- Optimize sight lines with 360 seating option; always face the direction of travel
- LED Lighting delivers excellent job site illumination while conserving energy
- Night-lighting option provides additional illumination to the ROPS/Cab, drum edges, and drum surfaces
Boost Performance with Enhanced Visibility
- Optimize sight lines with 360 seating option; always face the direction of travel
- LED Lighting delivers excellent job site illumination while conserving energy
- Night-lighting option provides additional illumination to the ROPS/Cab, drum edges, and drum surfaces
Product Link™
- Make timely, fact-based decisions to maximize efficiency, improve productivity, and lower owning and operating costs
- Easily track location, machine hours, fuel usage, and idle time
- Diagnostic codes are made available through online web applications
- Remote flash works around your schedule to ensure your machine’s software is up to date for optimal performance
Product Link™
- Make timely, fact-based decisions to maximize efficiency, improve productivity, and lower owning and operating costs
- Easily track location, machine hours, fuel usage, and idle time
- Diagnostic codes are made available through online web applications
- Remote flash works around your schedule to ensure your machine’s software is up to date for optimal performance
Specifications
-
Weights
Spec Value Standard - Operating Weight 27557 lb Maximum Operating Weight 28991 lb Static Linear Load 189 lb/in -
Operating Specifications
Spec Value Standard Compaction Width 79 in Drum Offset 6 in Ground Clearance 11.5 in Curb Clearance 28 in -
Engine
Spec Value Engine Model Cat C4.4 Gross Power 142 HP -
Travel Speeds
Spec Value Low 4 mile/h High 8 mile/h -
Dimensions
Spec Value Overall Length 15.5 ft Wheel Base 11.25 ft Height - With ROPS/FOPS 10 ft Overall Width 92 in -
Vibratory System
Spec Value Centrifugal Force per Drum - Maximum 24728 lb Centrifugal Force per Drum - Minimum 7800 lb Maximum Amplitude 0.038 in Minimum Amplitude 0.012 in Maximum Frequency 3800 V/m Minimum Frequency 2520 V/m -
Service Refill Capacities
Spec Value Fuel Tank Capacity 66 gal (US) Water Spray Tank Capacity 264 gal (US)
Standard Equipment
Operating Environment
- 180 degree seat positioning with sliding station
- Adjustable armrests
- Platform ROPS/FOPS
- Propel lever with 4-button control
- Steering wheel - fixed position, left side
- Suspension seat - no heat
- 76 mm (3 in) high visibility seatbelt
- Vandalism protection
Technology
- Product Link™ PLE743
- Remote Flash
- Remote Troubleshooting
Powertrain
- Cat C4.4, 4-cylinder
Electrical System
- 150 amp alternator
- 12-volt charging system
- Automotive-type fuse system
- Maintenance-free batteries
- Cat Electronic Technician (Cat ET)
- Remote start/charge receptacle
Service and Maintenance
- Maintenance-free Hitch
- 3 yr/3000 hr conventional vibratory system service interval
- 2 yr/2000 hr oscillatory vibration system service interval
- Grouped filters with ground level access
- Remote access drains
- Sampling ports for Scheduled Oil Sampling
- Site gauges
Safety
- Backup Alarm
- Warning horn (front & rear)
- LED Working Lights
- Steps, front drum fuel refill
- Warning, LED safety beacons
Optional Equipment
Operating Environment
- 360 degree seat positioning with sliding station
- Steering wheel - elevated position, left side
- Suspension seat w/ heat
- Seat headrest
Technology
- Infrared asphalt temperature sensors
- CMV accelerometer - front drum
- GNSS Mapping - temperature and passcount
- Machine to machine communication
- Product Link PLE783
Powertrain
- Offset hitch
Vibratory System
- Biodegradeable hydraulic oil
- Five amplitude vibratory system
- Two amplitude/two frequency vibratory system
- Versa Vibe� vibratory system
- Two amplitude/two frequency w/Oscillation vibratory system
- Versa Vibe w/Oscillation vibratory system
- Cocoa mats
- Mats - water distribution
- Freeze protection - water spray system
- Rear drum oscillation kit - field installed drum
Safety
- LED Working Lights with turn signals
- LED Roading Lights
- Mirror package
- Steps, rear drum water spray refill
