The Cat® 836 Landfill Compactor is designed with heavy-duty main structures that support multiple life cycles, features a Cat C18 engine, single-lever steering, pressurized cab, and wheel/tip options that help provide extended service life. Available Cat Compact Technologies further enhance compaction performance and consistency by providing accurate compaction values and 3D mapping.
Caterpillar
836 Landfill Compactor
Overview
Photos
-

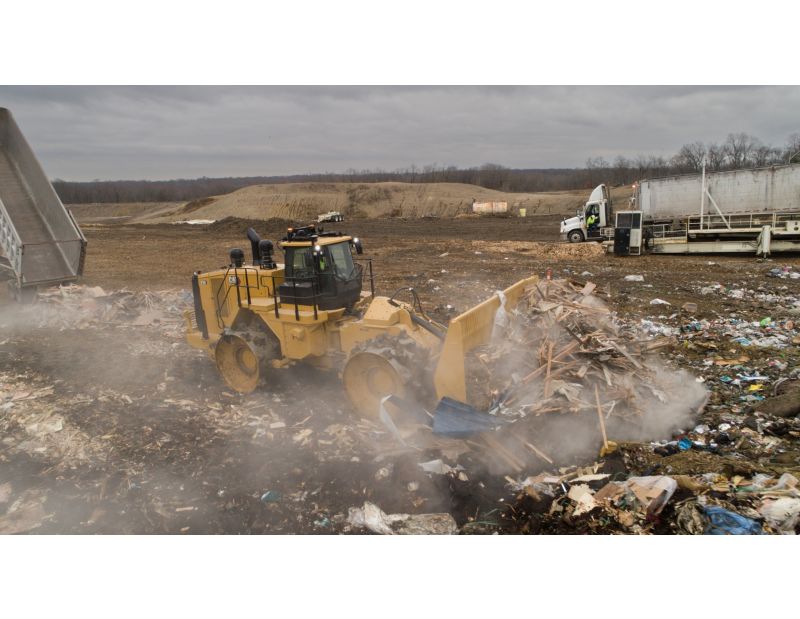

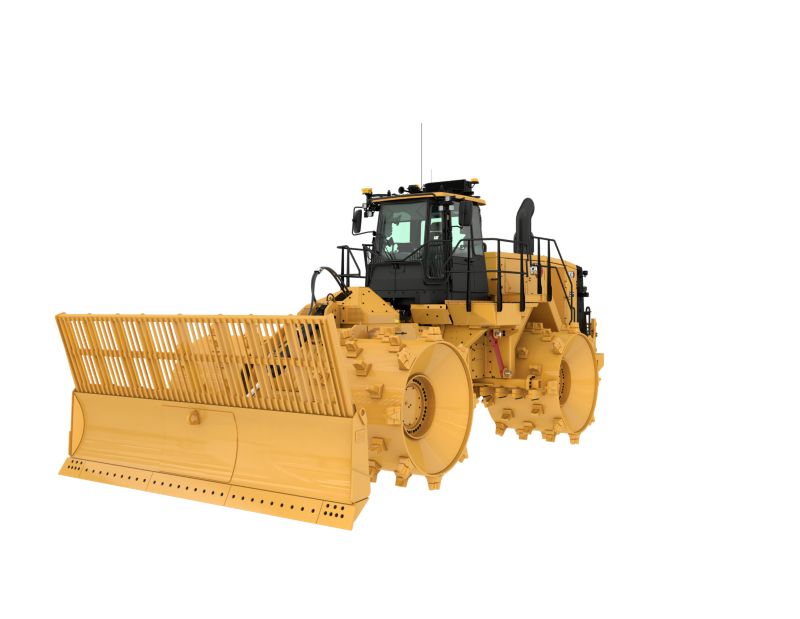

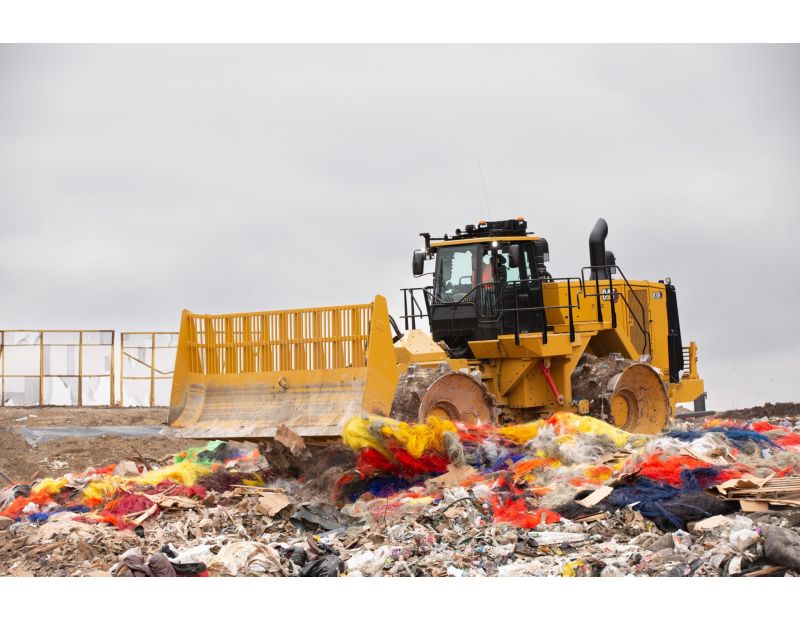

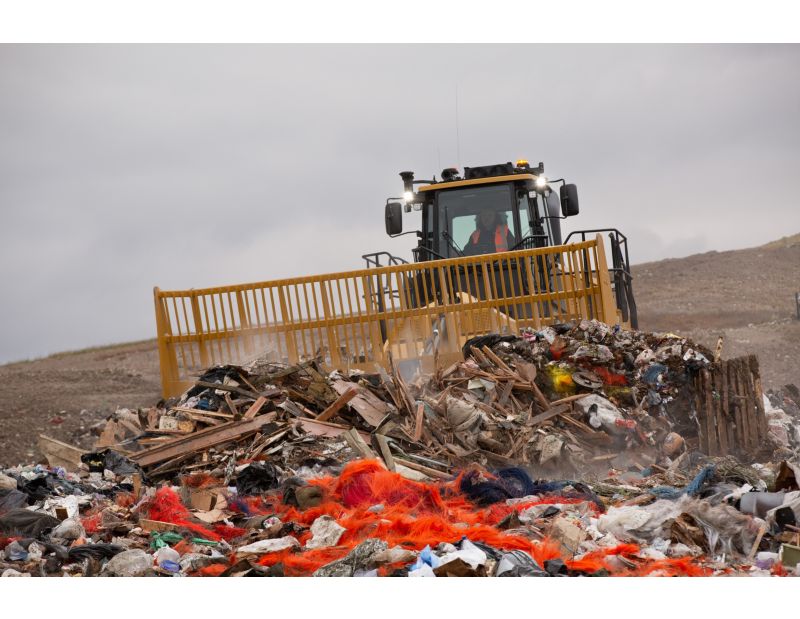

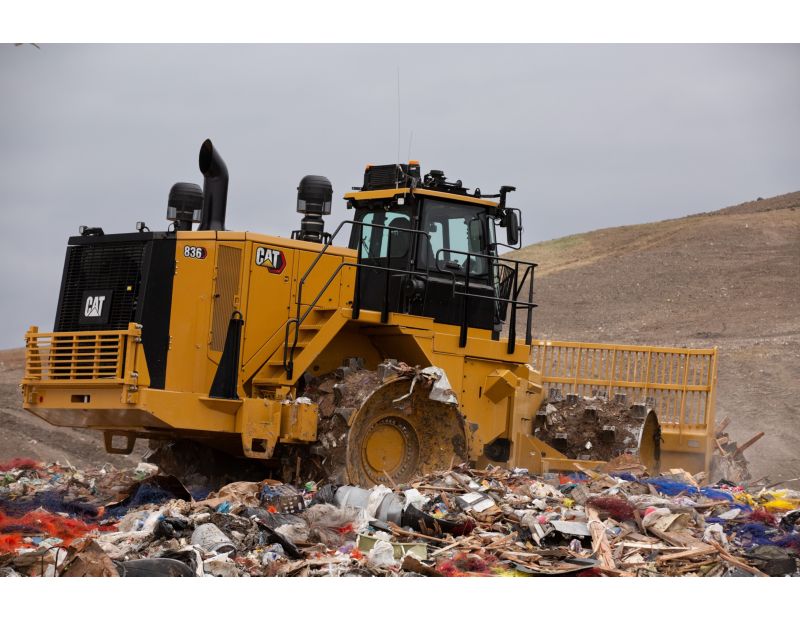

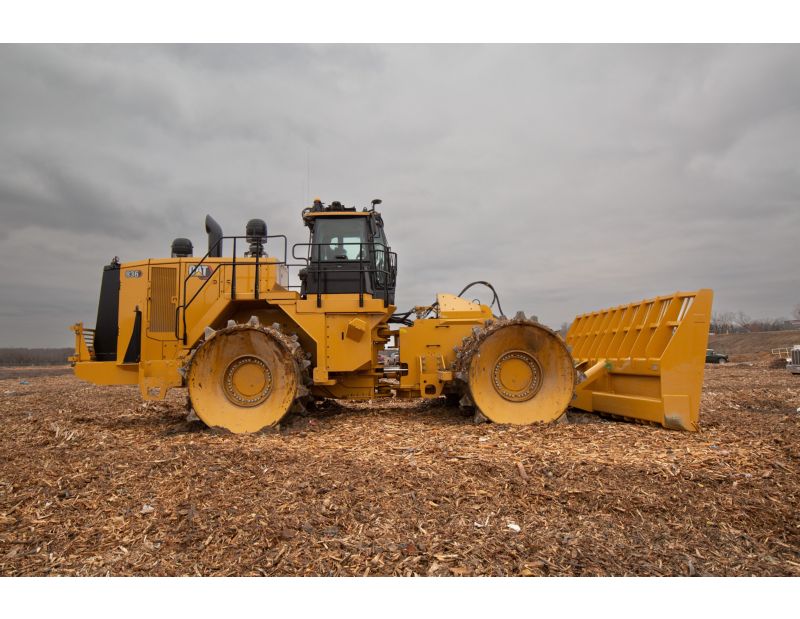

836 Landfill Compactor -
836 Landfill Compactors -
836 Landfill Compactors -
836 Landfill Compactors -
836 Landfill Compactors -
836 Landfill Compactors
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360° interior view. Double click on the image to zoom in on any area of the product.
Showroom
836 Virtual Product Tour
Specifications
-
Engine
Spec Value Gross Power - SAE J1995:2014 562 hp Net Power - SAE J1349:2011 496 hp Net Power - ISO 9249:2007 502 hp Engine Power - ISO 14396:2002 553 hp Emissions U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V and Japan 2014 or Brazil MAR-1, equivalent to China Nonroad Stage III/U.S. EPA Tier 3/ EU Stage IIIA Engine Model C18 Rated Speed 1900 rpm Peak Torque ( 1,400 rpm ) 2275 lbf·ft Torque Rise 52% Bore 5.71 in Stroke 7.2 in Displacement 1104.5 in³ High Idle Speed 2120 r/min Low Idle Speed 750 r/min Maximum Altitude - Without Derating 7500 ft Note Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. -
Operating Specifications
Spec Value Operating Weight (Tier 4 Final/Stage V) 124063 lb Operating Weight (Tier 3/Stage IIIA equivalent) 123321 lb Maximum Operating Weight (Tier 4 Final/Stage V) 126364 lb Maximum Operating Weight (Tier 3/Stage IIIA equivalent) 125622 lb -
Transmission
Spec Value Transmission Type Planetary - Powershift - ECPC Direct Drive - Forward 1 4.3 mile/h Direct Drive - Forward 2 7.8 mile/h Direct Drive - Reverse 1 4.6 mile/h Direct Drive - Reverse 2 8.2 mile/h -
Hydraulic System - Lift
Spec Value Lift System - Circuit Flow Sharing Implement; Pilot Operated LS Valve w/EH Lift System - Pump Variable displacement piston Max Flow @ 2000 rpm 79 gal/min Relief Valve Setting - Lift 4206 psi Cylinders, Double Acting: Lift, Bore, Stroke 137.9 mm x 1021 mm (5.5 in x 40.2 in) Pilot System Variable displacement piston Pilot Relief Valve Setting 551 psi -
Hydraulic System - Steering
Spec Value Steering System - Circuit Flow Sharing Implement; Pilot, load sensing Steering System - Pump Piston – Variable Displacement Max Flow @ 2000 rpm 79 gal/min Relief Valve Setting - Steering 3495 lb/in² Total Steering Angle 86 Steering Cycle Times - High Idle 3.9 s Steering Cycle Times - Low Idle 6.4 s -
Service Refill Capacities
Spec Value Fuel Tank 209 gal (US) Diesel Exhaust Fluid Tank 9 gal (US) Cooling Systems - Tier 4 Final/EU Stage V 40 gal (US) Cooling System - Tier 3/Stage IIIA Equivalent 37.2 gal (US) Engine Crankcase 16 gal (US) Transmission 21.9 gal (US) Differential - Final Drives - Front 49 gal (US) Differential - Final Drives - Rear 50 gal (US) Hydraulic System - Implement/Steering 46.2 gal (US) Hydraulic Tank Only 27.2 gal (US) Note - All nonroad Tier 4 Final/Stage V diesel engines are required to use: - Ultra low sulfur diesel (ULSD) fuels containing 15 ppm (mg/kg) for EPA and 10 ppm (mg/kg) for EU sulfur or less. Biodiesel blends up to B20 are acceptable when blended with 15 ppm (mg/kg) sulfur or less ULSD and when the biodiesel feedstock meets ASTM D7467 specificiations. - Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specifications are required. - Diesel exhaust fluid (DEF) that meets all requirements defined in ISO 22241-1:2006. -
Air Conditioning System
Spec Value Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.4 kg of refrigerant which has a CO2 equivalent of 2.002 metric tonnes. -
Axles
Spec Value Front Planetary – Fixed Rear Planetary – Oscillating Oscillation Angle ±6° -
Braking System
Spec Value Service Brakes Multi Disc Wet (Enclosed) 2 WHL Parking Brake Spring Applied, Hydraulic Released -
Sound Performance - Tier 4 Final/EU Stage V
Spec Value Operator Sound Level (ISO 6396:2008) - Standard 72 dB(A) Machine Sound Level (ISO 6395:2008) - Standard 111 dB(A) Operator Sound Level (ISO 6396:2008) - Suppression 72 dB(A) Machine Sound Level (ISO 6395:2008) - Suppression 109 dB(A) Note (1) The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurements are conducted at 70% of the maximum engine cooling fan speed. Note (2) Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. Note (3) The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurements are conducted at 70% of the maximum engine cooling fan speed. -
Sound Performance - Tier 3 / Stage IIIA
Spec Value Operator Sound Level (ISO 6396:2008) - Standard 72 dB(A) Machine Sound Level (ISO 6395:2008) - Standard 112 dB(A) Operator Sound Level (ISO 6396:2008) - Suppression 72 dB(A) Machine Sound Level (ISO 6395:2008) - Suppression 110 dB(A) Note (1) The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurements are conducted at 70% of the maximum engine cooling fan speed. Note (2) Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. Note (3) The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurements are conducted at 70% of the maximum engine cooling fan speed. -
Dimensions (Approximate)
Spec Value Height to Top of Beacon 15.2 ft Height to Top of Air Conditioning Condenser 15.2 ft Height - Cab Roof 14.1 ft Height - Top of Exhaust Pipe 15.1 ft Height - Top of Hood 11.3 ft Ground Clearance to Hitch 2.1 ft Ground Clearance to Transmission Guard 2.1 ft Ground Clearance to Bottom of Bumper 3.2 ft Centerline of Rear Axle to Rear Compactor Guard 11.3 ft Hitch to Centerline of Front Axle 7.5 ft Wheel Base 14.9 ft Width over Front Striker Bars 12.9 ft Width over Rear Striker Bars 12.9 ft Width over Platform 10.5 ft Width over Drums 14 ft Overall Machine Length with Semi U-Blade 35.8 ft -
Straight Blade
Spec Value Capacity 25.9 yd³ Overall Width 17 ft Height 7.4 ft Height of Cutting Edge 3.7 ft Digging Depth 1.2 ft Ground Clearance 5.7 ft Turning Radius – Outside Corner of Blade 28.7 ft Turning Radius - Inside of Wheels 11.9 ft Weight 6894 lb Total Operating Weight 123000 lb -
Semi U-Blade
Spec Value Capacity 29.3 yd³ Overall Width 17.4 ft Height 7.5 ft Height of Cutting Edge 4.1 ft Digging Depth 1.2 ft Ground Clearance 5.7 ft Turning Radius – Outside Corner of Blade 28.9 ft Turning Radius – Inside of Wheels 11.9 ft Weight 7963 lb Total Operating Weight 124063 lb -
U-Blade
Spec Value Capacity 33.6 yd³ Overall Width 17.4 ft Height 7.2 ft Height of Cutting Edge 4.1 ft Digging Depth 3.1 ft Ground Clearance 3.9 ft Turning Radius – Outside Corner of Blade 28.8 ft Turning Radius – Inside of Wheels 11.9 ft Weight 7696 lb Total Operating Weight 123785 lb -
Wheels
Spec Value Combination Tips (Weight Group) 28250 lb Plus Tips - Weight (Group) 29784 lb Paddle Tips - Weight (Group) 272227 lb Chopper Tips (Weight Group) 28404 lb Diamond Tips Weight (Group) 32659 lb Outside Diameter 83.8 in Outside Diameter - Diamond 84.3 in Drum Diameter 69.7 in Drum Width 55.1 in Feet Per Row 8 Feet Per Wheel 40 Replaceable Weld on Width Over Drums 4280 mm Tip Height 179 mm Tip Height - Diamond 7.25 in
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
POWER TRAIN
- Advanced Productivity Electronic Control Shifting (APECS)
- Air to air aftercooler
- Brakes, fully hydraulic, enclosed, wet multiple disc brakes
- Cat Clean Emission Module, insulated (Tier 4 Final/Stage V/Korea Stage V and Japan 2014)
- Electro hydraulic parking brake
- Engine, Cat C18: – Tier 4 Final/Stage V/Korea Stage V and Japan 2014 – Tier 3/Stage IIIA equivalent
- Fuel priming pump, electric
- Fuel to air cooler
- Ground level engine shutoff
- Guard (3 piece) transmission
- Heat shield, turbo and exhaust manifold
- Hydraulically driven demand fan
- Integrated braking
- Radiator, Aluminum Modular Radiator (AMR)
- Separated cooling system
- Starting aid (ether) automatic
- Throttle lock
- Torque converter with lockup clutch (LUC)
- Turbine precleaner, engine air intake
- Transmission, planetary, with 2F/2R speed range control
- Underhood ventilation system
ELECTRICAL
- Alarm, back-up
- Alternator, 150 amp
- Batteries, maintenance-free (4-1,000 CCA)
- Converter, 10-15 amp, 24V to 12V
- Lighting system, halogen (front and rear)
- Lighting, access stairway
- Starter, electric (heavy duty)
- Starter lockout (ground level)
- Starting receptacle for emergency start
- Transmission lockout (ground level)
OPERATOR ENVIRONMENT
- Air conditioner w/roof-mounted condenser
- Cab, sound-suppressed and pressurized
- Internal four-post rollover protective structure (ROPS/FOPS)
- Radio ready for (entertainment) includes antenna, speakers and converter (12V, 10-15 amp) 12V power port for mobile phone or laptop connection
- Camera, rear vision
- Coat and hard hat hooks
- Flip-up armrest
- Heater and defroster
- Horn, electric
- Hydraulic controls (floor mounted)
- Implement hydraulic lockout
- Laminated glass
- Light, (dome) cab
- Lunchbox and beverage holders
- Instrumentation, Gauges: – DEF fluid level (Tier 4 Final/Stage IV) – Hydraulic oil temperature – Speedometer/tachometer – Torque converter temperature
- Instrumentation, Warning Indicators: – Action alert system, three category – Axle/brake oil temp, front – Brake oil pressure – Electrical system, low voltage – Engine failure malfunction alert and action lamp
- Mirrors, rearview (externally mounted)
- Parking brake status
- Radio, CB (ready)
- Seat, Cat Comfort, (cloth) air suspension
- Seat belt, retractable, 76 mm (3") wide
- STIC Control System with steering lock
- Sun visor, front
- Glass (window) - rubber mounted glass
- Transmission gear (indicator)
- Vital Information Management System (VIMS) with graphical information display: external data port, customizable operator profiles
- Wet-arm wipers/washers (front and rear)
- Intermittent wipers (front and rear)
WHEELS
- Wheels, paddle, plus, combination, and diamond wheel configurations
GUARDS
- Guards, axle (front and rear)
- Guards, cab window
- Guards, crankcase and power train, hydraulically powered
- Guards, rear fan and grill
BLADES
- Bulldozer arrangement is included in the standard equipment. Bulldozer blades are optional.
FLUIDS
- Antifreeze, premixed 50% concentration of extended life coolant with freeze protection to –34° C (–29° F)
OTHER STANDARD EQUIPMENT
- Auto Blade Positioner (ABP)
- Demand fan/swing out (hydraulic reversible)
- Doors, service access locking
- Ecology drains for engine, radiator, hydraulic tank
- Electronic clutch pressure control and remote mounted pressure taps
- Emergency platform egress
- Engine, crankcase, 500 hour interval with CJ-4 oil
- Fuel tank, 793 L (210 gal)
- Hitch, drawbar with pin
- Hoses, Cat XT™
- Hydraulic oil cooler
- Hydraulic, steering and brake filtration/screening system
- Oil sampling valves
- Product Link™ - Cellular
- Stairways, fixed-L/R (rear access)
- Steering, load sensing
- Vandalism protection caplocks
- Venturi stack
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
Various blades:
- Straight blade
- U-blade
- Semi U-blade
Various tip and wheel arrangements:
- Paddle
- Plus
- Diamond
