Ziegler CAT

Caterpillar

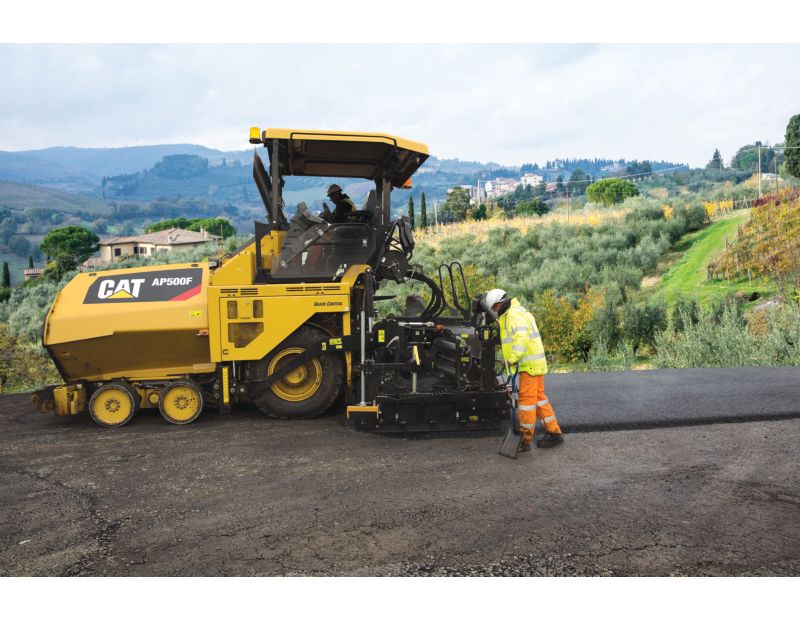

AP500F Wheel Paver

Gross Power

142 HP

Standard Paving Range - SE50 V, SE50 VT

2.55 - 5.0 m (8' 4" - 16' 4")

Operating Weight - Paver Only

29020 lb

Overview

The AP500F is a mid-sized wheel paver that offers versatility for highways, rural roads, streets and other mid-sized projects.

Photos

Videos

  • F-Series Paver Overview
  • Cat Grade Control Setup
  • Paving by the Numbers

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Interior

360° interior view. Double click on the image to zoom in on any area of the product.

Specifications

  • Weights
    Spec Value
    Operating Weight - Paver Only 29020 lb
    Operating Weight - SE50 VT Screed only 7695 lb
    Shipping Weight - Paver Only 28599 lb
    Operating Weight - SE50 V Screed only 7239 lb
  • Operating Specifications
    Spec Value
    Standard Paving Range - SE50 V, SE50 VT 2.55 - 5.0 m (8' 4" - 16' 4")
    Maximum Paving Speed - With Vibratory Screed 250 ft/min
    Inside Turn Radius 1.15 ft
    Maximum Travel Speed 10 mile/h
    Maximum Paving Speed - With Tamper Bar Screed 82 ft/min
    Hopper Capacity 219 ft³
    Maximum Paving Width - SE50 VT 21.3 ft
    Maximum Paving Width - SE50 V 21.3 ft
    Maximum Throughput Capacity 1288 tonnes/hr
  • Engine
    Spec Value
    Gross Power 142 HP
    Engine Model Cat C4.4 with ACERT
  • Service Refill Capacities
    Spec Value
    Fuel Tank Capacity 47 gal (US)
    DEF Tank 5 gal (US)

Optional Equipment

Options

  • Air-ride Seat with Heat
  • All-Wheel Drive
  • Auger and Mainframe Extensions
  • Auxiliary Power Panel
  • Ballast
  • Cat Grade Control
  • Decelerator Pedals
  • Ecological Washdown System
  • Feed Sensor (Sonic or Mechanical)
  • Front Wheel Assist
  • Hardtop Canopy
  • HID Lights
  • Leveling Devices
  • Lights (Working or Roading)
  • Mainframe Extensions (Power or Manual)
  • Power Folding Front Apron
  • Product Link
  • Oscillating Push Rollers
  • Steering Guide
  • Tow Point Indicators (Upper)
  • Truck Hitch
  • Generator
  • Umbrella
  • Uptime Kit
  • Ventilation System
  • Warning Beacon
  • Wide-width Paving Packages
  • Windshield w/Hardtop Canopy

Grade References

  • Non-Contacting Sonic Grade Sensor
  • Contacting Grade Sensor
  • Outboard Leveler, 9.15 m (30') and 12.2 m (40')
  • Inboard Leveler
  • Mobile Stringline
  • Fore ‘N Aft Leveler
  • Sonic Averaging Beam
  • Rigid Ski, 9.15 m (30') and 12.2 m (40')

Screed Choices

  • SE50 V Vibratory Screed
  • SE50 VT Tamper Bar Screed
