Ziegler CAT

Caterpillar

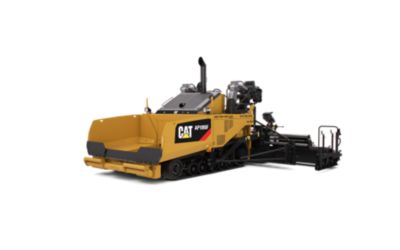

AP655F Mobil-Trac Paver

Gross Power

173 HP

Standard Paving Range - SE50 V, SE50 VT

2.55 - 5.0 m (8' 4" - 16' 4")

Operating Weight - Paver Only

34356 lb

Overview

The AP655F is a mid to high production, rubber track paver that excels on airports runways, interstates, highways, and other large jobsites. It’s high travel speed, flotation, and traction deliver superb mobility.

Photos

Videos

  • F-Series Paver Overview
  • Paving by the Numbers
  • AP655F Customer Testimonial
  • Cat Grade Control Setup

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Interior

360° interior view. Double click on the image to zoom in on any area of the product.

Showroom

Virtual Product Tour

Specifications

  • Weights
    Spec Value
    Operating Weight - SE60 V Screed only 7495 lb
    Operating Weight - Paver Only 34356 lb
    Operating Weight - SE50 V Screed only 7239 lb
    Shipping Weight - Paver Only 34725 lb
    Operating Weight - SE60 VT XW Screed only 9898 lb
    Operating Weight - SE60 V XW Screed only 8973 lb
    Operating Weight - SE50 VT Screed only 7363 lb
  • Operating Specifications
    Spec Value
    Standard Paving Range - SE50 V, SE50 VT 2.55 - 5.0 m (8' 4" - 16' 4")
    Maximum Paving Speed - With Tamper Bar Screed 82 ft/min
    Maximum Paving Speed - With Vibratory Screed 210 ft/min
    Maximum Travel Speed 9 mile/h
    Inside Turn Radius 1.5 ft
    Standard Paving Range - SE60 V, SE60 V XW, SE60 VT XW 3.0 - 6.0 m (9' 10" - 19' 6")
    Maximum Paving Width - SE60 V 25 ft
    Maximum Paving Width - SE50 VT 26.3 ft
    Hopper Capacity 250 ft³
    Maximum Throughput Capacity 1433 tonnes/hr
    Maximum Paving Width - SE50 V 21.3 ft
    Maximum Paving Width - SE60 V XW, SE60 VT XW 33 ft
  • Engine
    Spec Value
    Gross Power 173 HP
    Engine Model Cat C4.4 with ACERT
  • Service Refill Capacities
    Spec Value
    Fuel Tank Capacity 73 gal (US)
    DEF Tank 5 gal (US)

Optional Equipment

Options

  • Air-ride Seat with Heat
  • Auger and Mainframe Extensions
  • Auxiliary Power Panel
  • Ballast
  • Cat Grade Control
  • Decelerator Pedals
  • Ecological Washdown System
  • Feed Sensor (Sonic or Mechanical)
  • Friction Steering
  • Hardtop Canopy
  • HID Lights
  • Leveling Devices
  • Lights (Working or Roading)
  • Mainframe Extensions (Power or Manual)
  • Oscillating Push Rollers
  • Power Folding Front Apron
  • Product Link
  • Smooth or Treadbar Belt
  • Steering Guide
  • Tow Point Indicators (Upper)
  • Track Plow
  • Truck Hitch
  • Generator
  • Umbrella
  • Uptime Kit
  • Ventilation System
  • Warning Beacon
  • Wide-width Paving Packages
  • Windshield w/Hardtop Canopy

Grade References

  • Non-Contacting Sonic Grade Sensor
  • Contacting Grade Sensor
  • Outboard Leveler, 9.15 m (30') and 12.2 m (40')
  • Inboard Leveler
  • Mobile Stringline
  • Fore ‘N Aft Leveler
  • Sonic Averaging Beam
  • Rigid Ski, 9.15 m (30') and 12.2 m (40')

Screed Choices

  • SE50 V Vibratory Screed
  • SE50 VT Tamper Bar Screed
  • SE60 V Vibratory Screed
  • SE60 V XW Vibratory Screed
  • SE60 VT XW Tamper Bar Screed
