Ziegler CAT

Caterpillar

AP1055F Mobil-Trac Paver

Gross Power

225 HP

Standard Paving Range

3 - 6 m (9' 10"-19' 6")

Operating Weight - With SE60 V

45090 lb

Overview

The AP1055F is a high-production, rubber track paver that excels on airports runways, interstates, highways, and other large jobsites. Its high travel speed, flotation, and traction deliver superb mobility.

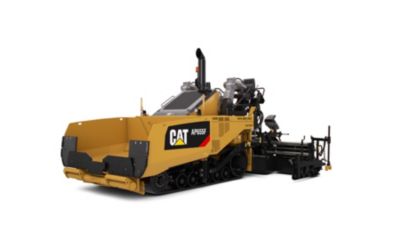

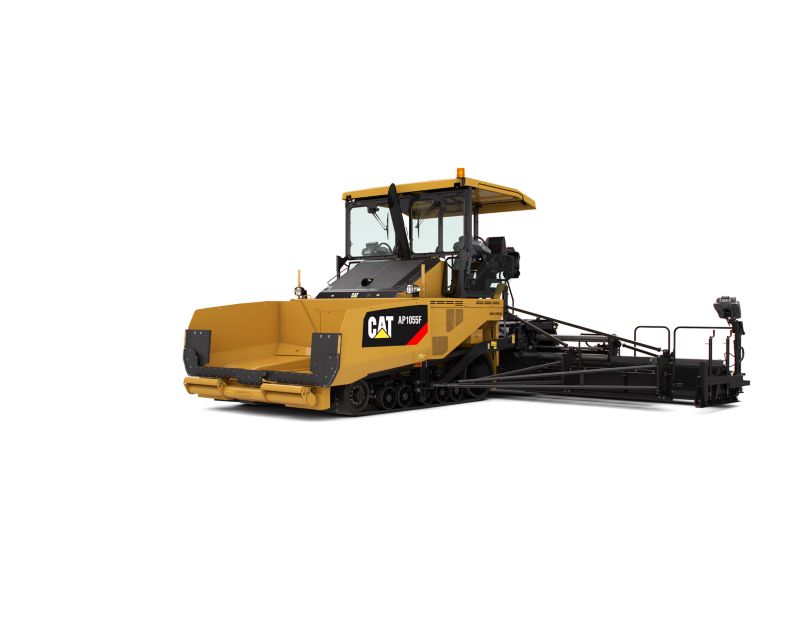

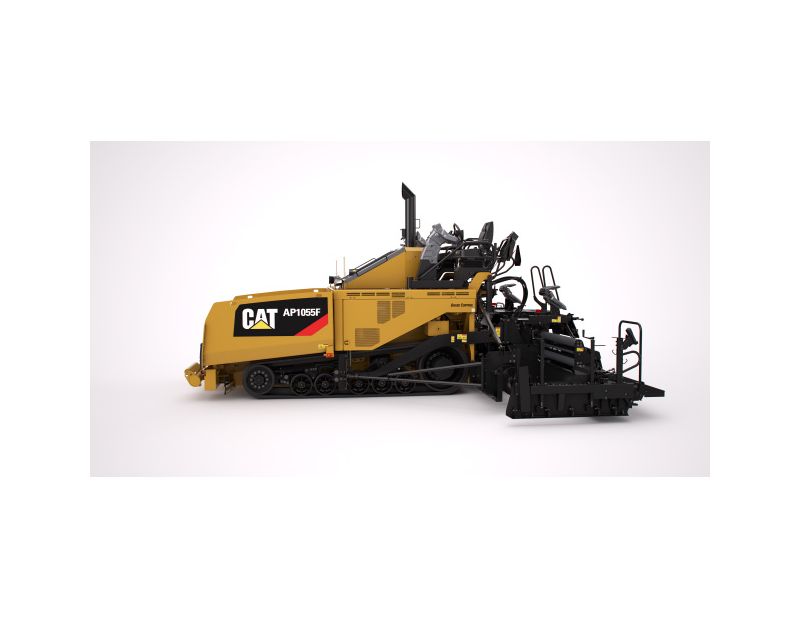

Photos

Videos

  • F-Series Paver Overview
  • Paving by the Numbers
  • Cat Grade Control
  • AP1055F Customer Testimonial
  • Consistency Drives Smoothness

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Interior

360° interior view. Double click on the image to zoom in on any area of the product.

Showroom

Virtual Product Tour

Specifications

  • Weights
    Spec Value
    Operating Weight - With SE60 V 45090 lb
    Tractor Operating Weight 37553 lb
    Operating Weight - With SE60 VT XW 48320 lb
    Tractor Shipping Weight 36804 lb
    Operating Weight - With SE60 V XW 46580 lb
  • Operating Specifications
    Spec Value
    Standard Paving Range 3 - 6 m (9' 10"-19' 6")
    Maximum Travel Speed 9 mile/h
    Inside Turn Radius 1.5 ft
    Hopper Capacity - Standard Entry 267 ft³
    Maximum Paving Speed - With Tamper Bar Screed 82 ft/min
    Maximum Paving Speed - With Vibratory Screed 210 ft/min
    Maximum Paving Width - SE60 V Screed 25 ft
    Maximum Paving Width - SE60 V XW, VT XW Screeds 33 ft
    Hopper Capacity - Low Entry Hopper 286 ft³
    Maximum Throughput Capacity 1766 tonnes/hr
  • Dimensions
    Spec Value
    Operating Width - Standard Entry Hopper 132 in
    Operating Height - Without Canopy 146 in
    Operating Width - Low Entry Hopper 142 in
    Operating Height - With Canopy 157 in
    Transport Width - With End Gates Folded 9.83 ft
    Transport Width - With Screed End Gates 10.66 ft
    Truck Entry Height - With Low Entry Hopper 20.5 in
    Truck Entry Height - With Standard Entry Hopper 22.5 in
    Transport Length - With SE60 V Screed 20 ft
    Transport Length - With SE60 XW-Series 22.7 ft
    Operating Length - With SE60 V Screed 22.5 ft
    Operating Length - With SE60 V XW, VT XW Screeds 23.1 ft
    Transport Height - Without Canopy 10.45 ft
    Transport Height - Canopy Retracted 10.5 ft
  • Engine
    Spec Value
    Gross Power 225 HP
    Engine Model Cat C7.1 with ACERT
  • Service Refill Capacities
    Spec Value
    Fuel Tank Capacity 92 gal (US)
    DEF Tank 5 gal (US)

Optional Equipment

Options

  • Air-ride Seat with Heat
  • Auger and Mainframe Extensions
  • Auxiliary Power Panel
  • Ballast
  • Cat Grade Control
  • Decelerator Pedals
  • Ecological Washdown System
  • Feed Sensor (Sonic or Mechanical)
  • Friction Steering
  • Hardtop Canopy
  • HID Lights
  • Leveling Devices
  • Lights (Working or Roading)
  • Mainframe Extensions (Power or Manual)
  • Oscillating Push Rollers
  • Power Folding Front Apron
  • Product Link
  • Smooth or Treadbar Belt
  • Steering Guide
  • Tow Point Indicators (Upper)
  • Track Plow
  • Truck Hitch
  • Generator
  • Umbrella
  • Uptime Kit
  • Ventilation System
  • Warning Beacon
  • Wide-width Paving Packages
  • Windshield w/Hardtop Canopy

Grade References

  • Non-Contacting Sonic Grade Sensor
  • Contacting Grade Sensor
  • Outboard Leveler, 9.15 m (30') and 12.2 m (40')
  • Inboard Leveler
  • Mobile Stringline
  • Fore ‘N Aft Leveler
  • Sonic Averaging Beam
  • Rigid Ski, 9.15 m (30') and 12.2 m (40')

Screed Choices

  • SE60 V Vibratory Screed
  • SE60 V XW Vibratory Screed
  • SE60 VT XW Vibratory and Tamper Bar Screed
