The SE60 V XW delivers extremely tight mat textures with high densities. It utilizes rear-mounted extenders, vibratory screed plates and has a paving range of 3.0 m to 10.0 m (9′ 10″ – 33′). It excels on interstates, highways, airport runways and other wide-width applications.
Caterpillar
SE60 V XW Screed
Photos
-
SE60 V XW
Videos
Features
Fast Heating

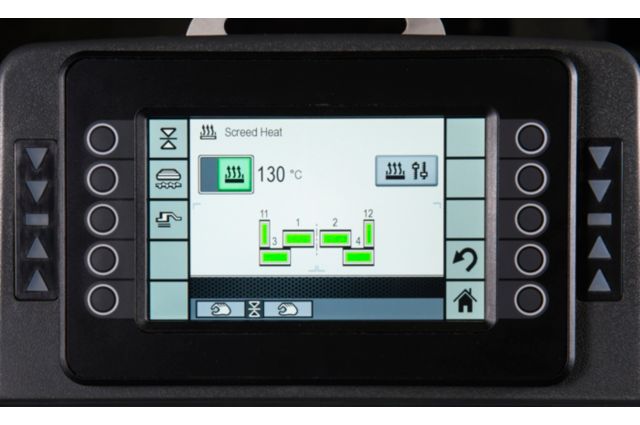

The 70 kW, tractor integrated generator combined with the technologically advanced screed heating system, ensures fast, even heat distribution. The 15 minute heating time at standard widths can lead to more daily production and lower fuel consumption due to less time waiting for the screed plates to reach the preset temperature.
Fast Heating
The 70 kW, tractor integrated generator combined with the technologically advanced screed heating system, ensures fast, even heat distribution. The 15 minute heating time at standard widths can lead to more daily production and lower fuel consumption due to less time waiting for the screed plates to reach the preset temperature.
Exclusive Monitoring
The exclusive generator system monitors heating elements for failure conditions in order to help plan for scheduled service events. Furthermore, temperature zone monitoring allows heating to continue in the event of a sensor failure and warning indicators are delivered through the LCD displays.
Exclusive Monitoring
The exclusive generator system monitors heating elements for failure conditions in order to help plan for scheduled service events. Furthermore, temperature zone monitoring allows heating to continue in the event of a sensor failure and warning indicators are delivered through the LCD displays.
More Control

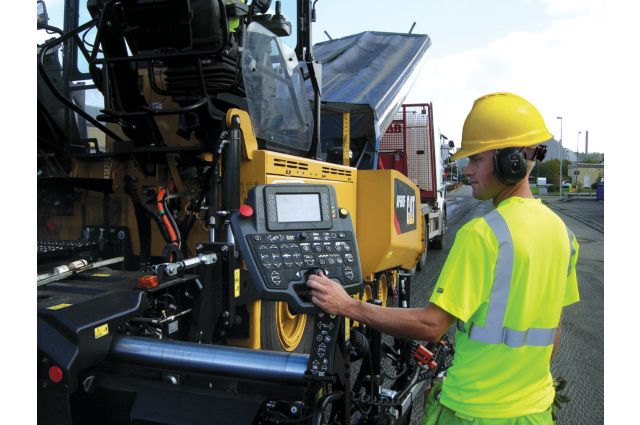

The extenders are equipped with 2 speed ranges and proportional control for better performance around obstacles. Pendant control located on the extenders enable operators to perform functions remotely. The conveyor ratio adjustment can be made from the screed control panel when utilizing the 2-sensor feeder system in order to maintain optimal material height in front of the screed.
More Control
The extenders are equipped with 2 speed ranges and proportional control for better performance around obstacles. Pendant control located on the extenders enable operators to perform functions remotely. The conveyor ratio adjustment can be made from the screed control panel when utilizing the 2-sensor feeder system in order to maintain optimal material height in front of the screed.
Integrated Cat Grade Control

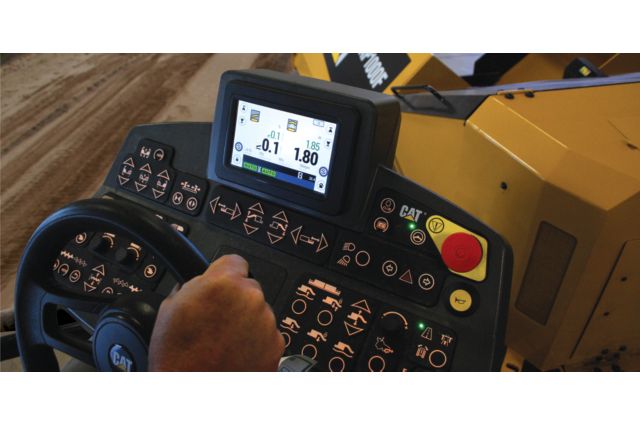

Factory integrated Cat Grade Control allows the crew to operate from either of the tractor or screed consoles. A split screen mode enables the screed operators to work from a single side or from each side of the screed. This is especially helpful when training new operators and when the crew is tasked with multiple job site duties.
Integrated Cat Grade Control
Factory integrated Cat Grade Control allows the crew to operate from either of the tractor or screed consoles. A split screen mode enables the screed operators to work from a single side or from each side of the screed. This is especially helpful when training new operators and when the crew is tasked with multiple job site duties.
Simple Adjustment

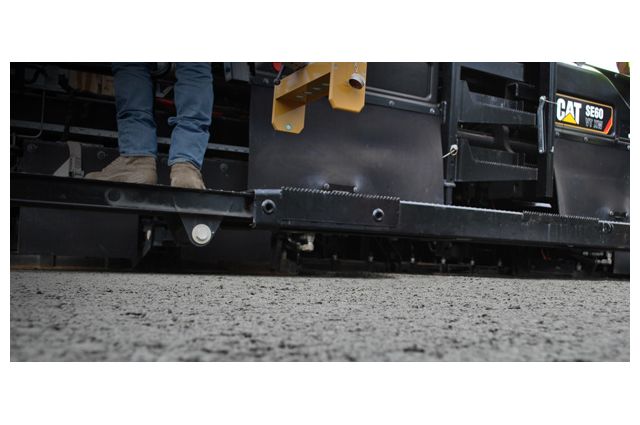

Power controls for crown, slope, and height allow for on-the-go adjustment at standard and maximum widths. The exclusive trailing edge screed plate adjusters as well as machined screed frames help optimize plate life and simplify leveling procedures.
Simple Adjustment
Power controls for crown, slope, and height allow for on-the-go adjustment at standard and maximum widths. The exclusive trailing edge screed plate adjusters as well as machined screed frames help optimize plate life and simplify leveling procedures.
Easy Service, Increased Durability

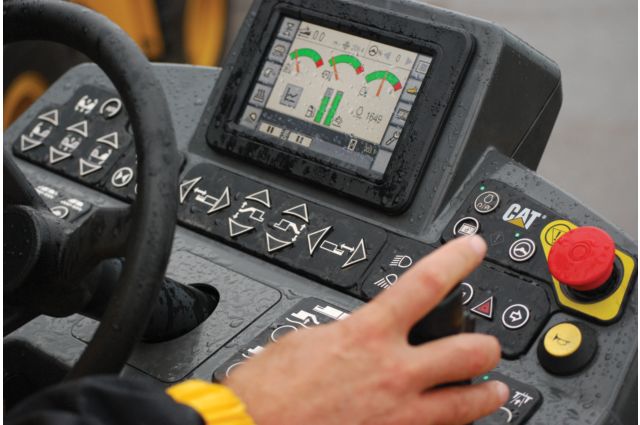

Water resistant consoles and LCD displays ensure performance in adverse conditions and the million-cycle keypad switches and oil-bath vibratory pods provide longterm reliability. The heating elements slide out for easy replacement.
Easy Service, Increased Durability
Water resistant consoles and LCD displays ensure performance in adverse conditions and the million-cycle keypad switches and oil-bath vibratory pods provide longterm reliability. The heating elements slide out for easy replacement.
Extra Wide Paving Packages
The SE60 V XW can be equipped with extension packages that pave up to 10.0 m (33'). Power controls for crown, slope, and extension height provide easy adjustment for better mat textures and quality. An exclusive fastening system utilizes power controls to attach the extensions, eliminating the need for additional lifting devices.
Extra Wide Paving Packages
The SE60 V XW can be equipped with extension packages that pave up to 10.0 m (33'). Power controls for crown, slope, and extension height provide easy adjustment for better mat textures and quality. An exclusive fastening system utilizes power controls to attach the extensions, eliminating the need for additional lifting devices.
Specifications
-
Dimensions
Spec Value Transport Width - Endgates Folded 9.85 ft Screed Plate Width - Front to Back 16 in Length - Front to Back, Endgates Removed 76 in Transport Length - Tractor and Screed 22.6 ft Length - Front to Back, Endgates Attached 98 in -
Weights
Spec Value Standard Weight 8973 lb -
Operating Specifications
Spec Value Standard Paving Range 3.0 to 6.0 m (9' 10"- 19' 6") Maximum Paving Width 33 ft Extender Height Range -20 mm to +50 mm Crown Range -4% to +10% Vibratory Speed Range 0 - 3000 rpm Maximum Paving Depth 12 in Extender Slope Range -3% to +10% Heating Time - Standard Width 15 minutes Heating Time - Maximum Width 25 minutes
