The Cat® Microgrid Master Controller-Medium (MMC-M) is designed for medium-to-large industrial/ commercial installations. The MMC-M will integrate a variety of traditional and renewable energy sources to provide overall monitoring and control of the assets. These assets may be either located at a common installation or dispatched over a wider region.
Caterpillar
Cat® Microgrid Master Controller-M (MMC-M)
Overview
Photos
-

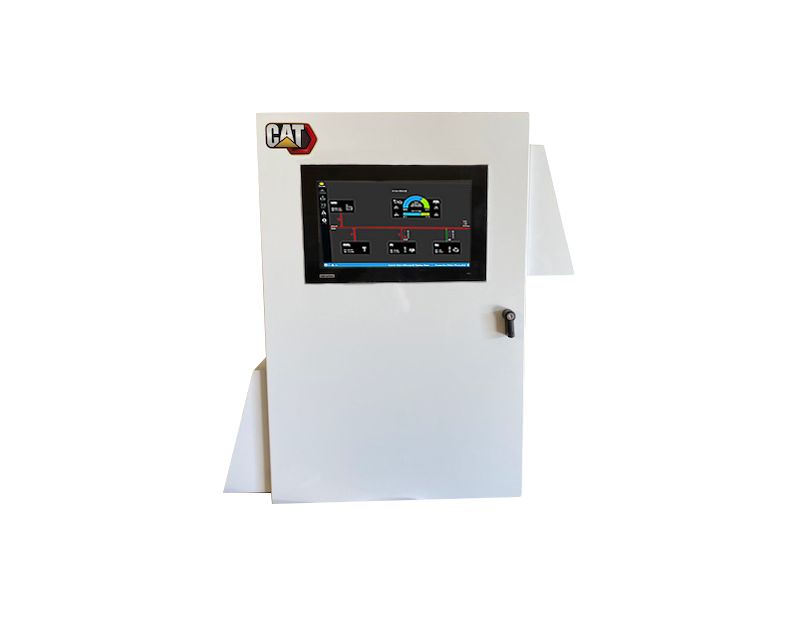

Microgrid Master Controller-Medium (MMC-M)
360° View
Exterior
360 Exterior view. Double click on the image to zoom in on any area of the product.
Showroom
Virtual Product Tour. Double click on the hotspots to see in on any area of the product.
Features
Specifications
-
Technical Summary
Spec Value Application Photovoltaic and energy storage systems Module Type Monitoring / control, assets optimization
Standard Equipment
MMC-M Panel
- 15" industrial color touch-screen display
- Industrial PC for asset control
- Industrial PC for data management
- Router for customer connection-Ethernet port
- Digital I/O module for interfacing with ATS and other relays
- Lightening Arrestor & Surge Protector
- Fan and heater for temperature regulation with thermal control
- Uninterruptible Power Supply with battery management
- Indoor/Outdoor rated IP54 wall mount control panel.
- Software features activated depending upon the option set chosen.
