Caterpillar

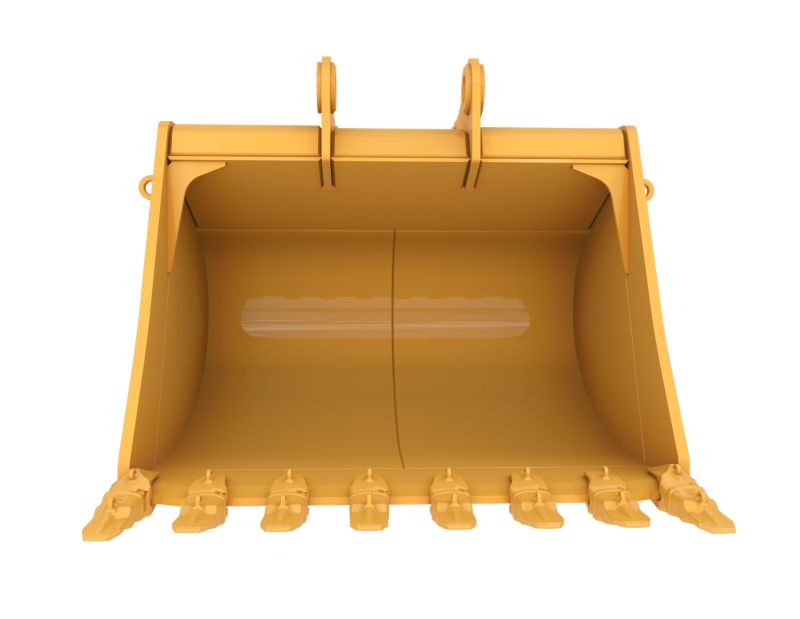

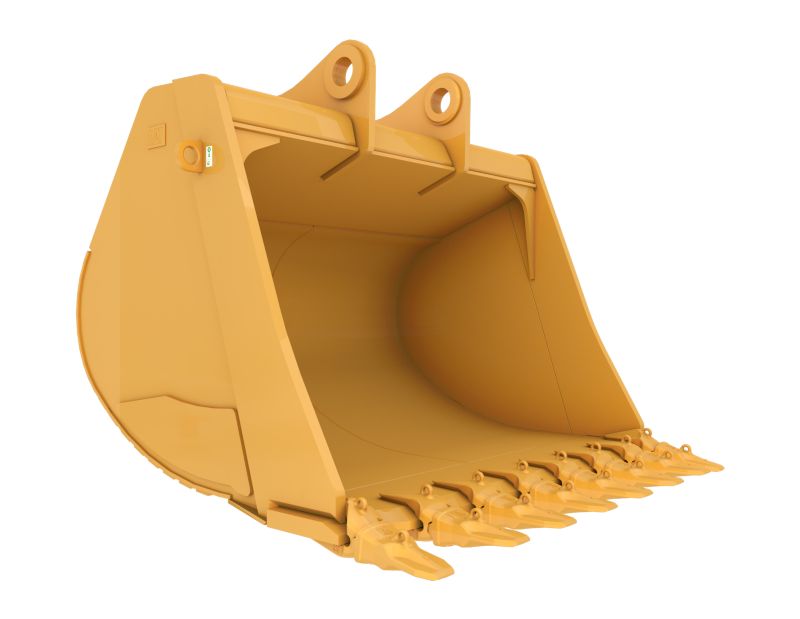

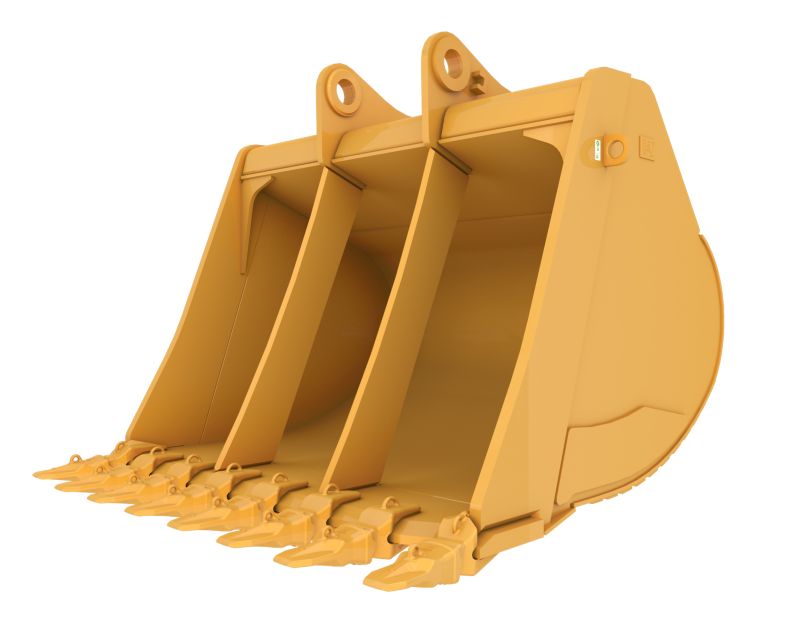

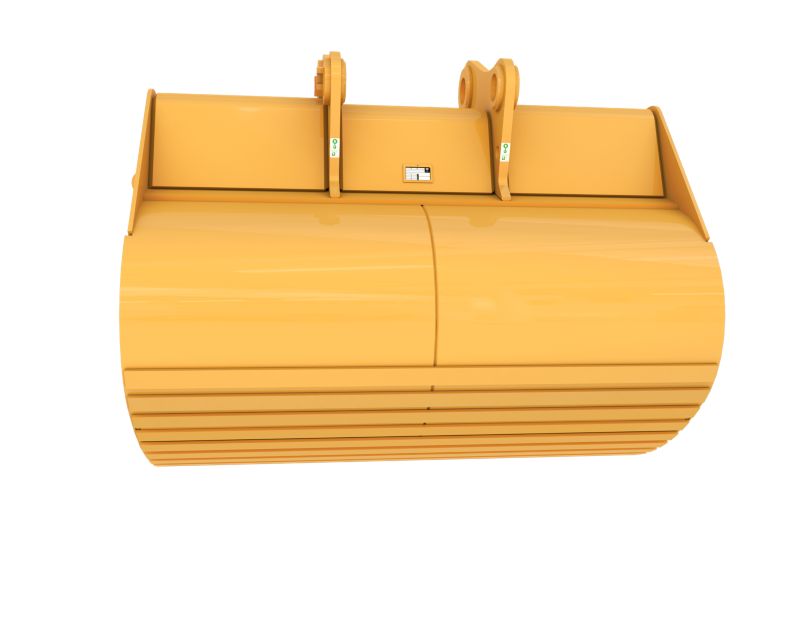

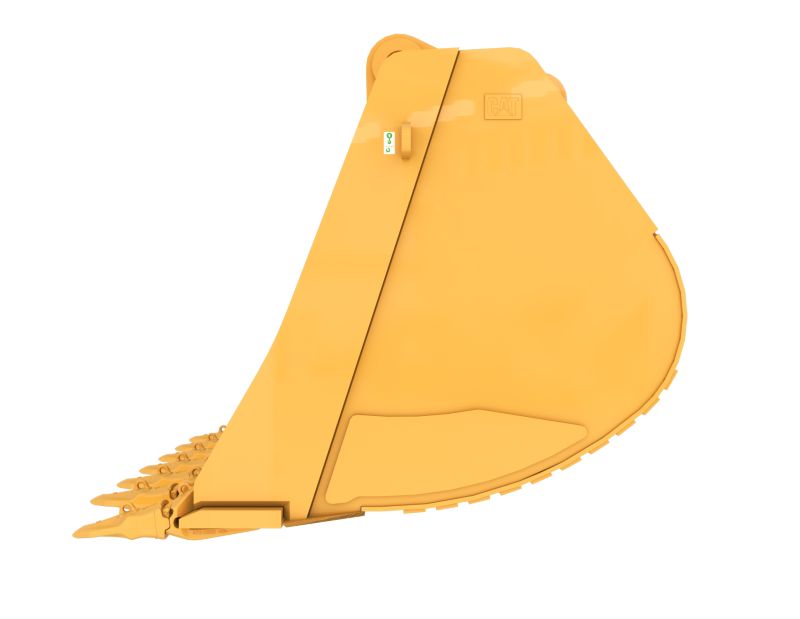

10.4 m³ (13.6 yd³) Coal bucket for the 6015 Hydraulic Mining Shovel

Cat Coal buckets are high-capacity buckets designed for low density, high cohesion material, such as coal or sand. Light weight construction and straight lip design with small sized GET allow for maximum payload and material movement. Coal buckets have the Light Duty wear package. This package utilizes hardened plates on the exterior of the bucket in the highest wear areas and has optional coal breakers.

Photos

Specifications

  • General
    Spec Value
    Material Density 1686 lb/yd³
    Wear Package Light Duty - Coal

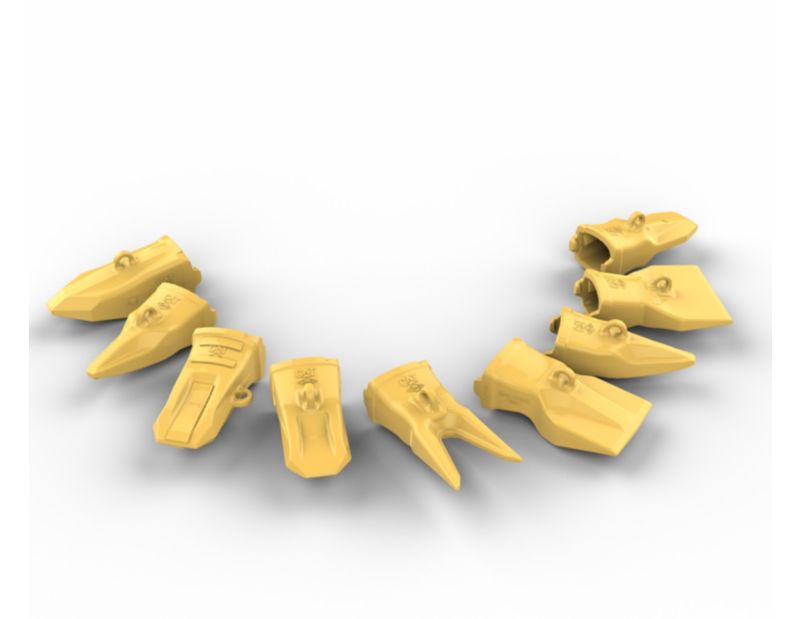

    Ground Engaging Tool (GET) System K150
    Machine Model 6015
    Capacity 13.6 yd³
    Weight 16543 lb
    Outer Width 119.6 in
    Inner Width 111.8 in
